7/16 DIN Clamp Solder Coaxial RF Connector

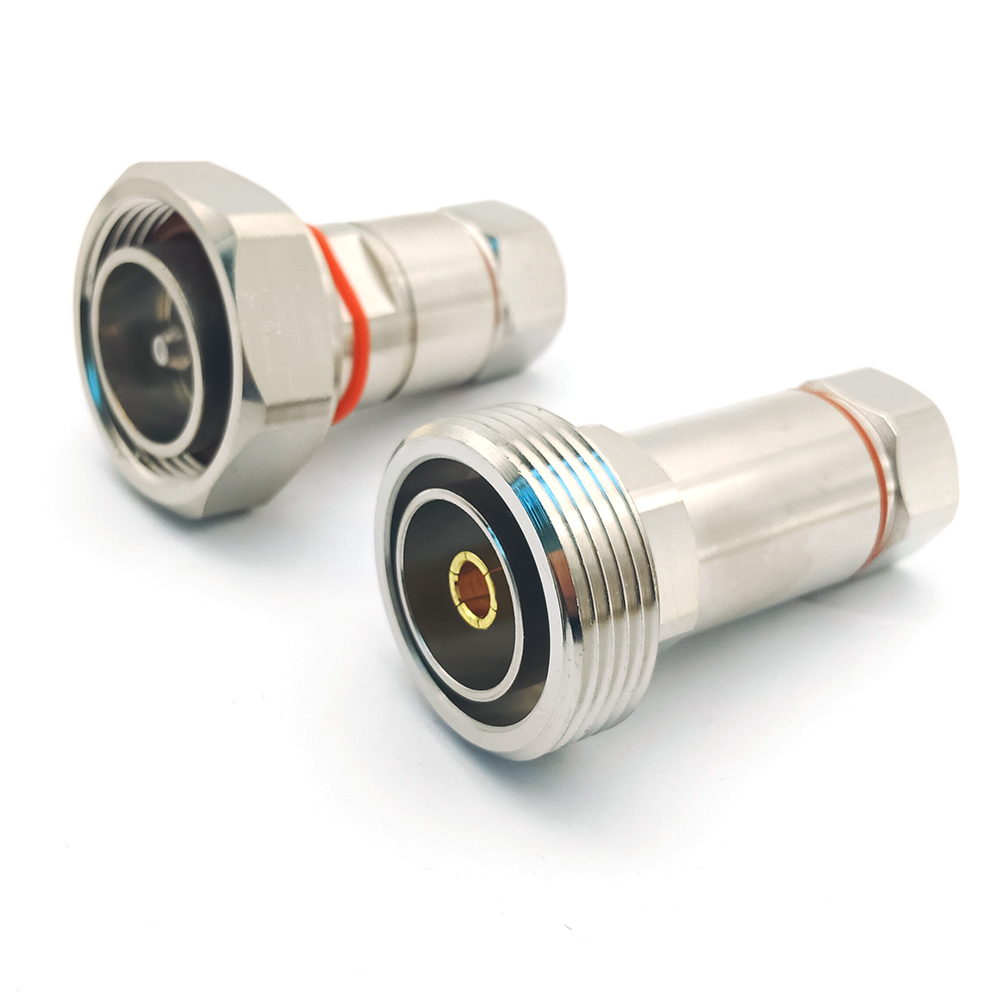

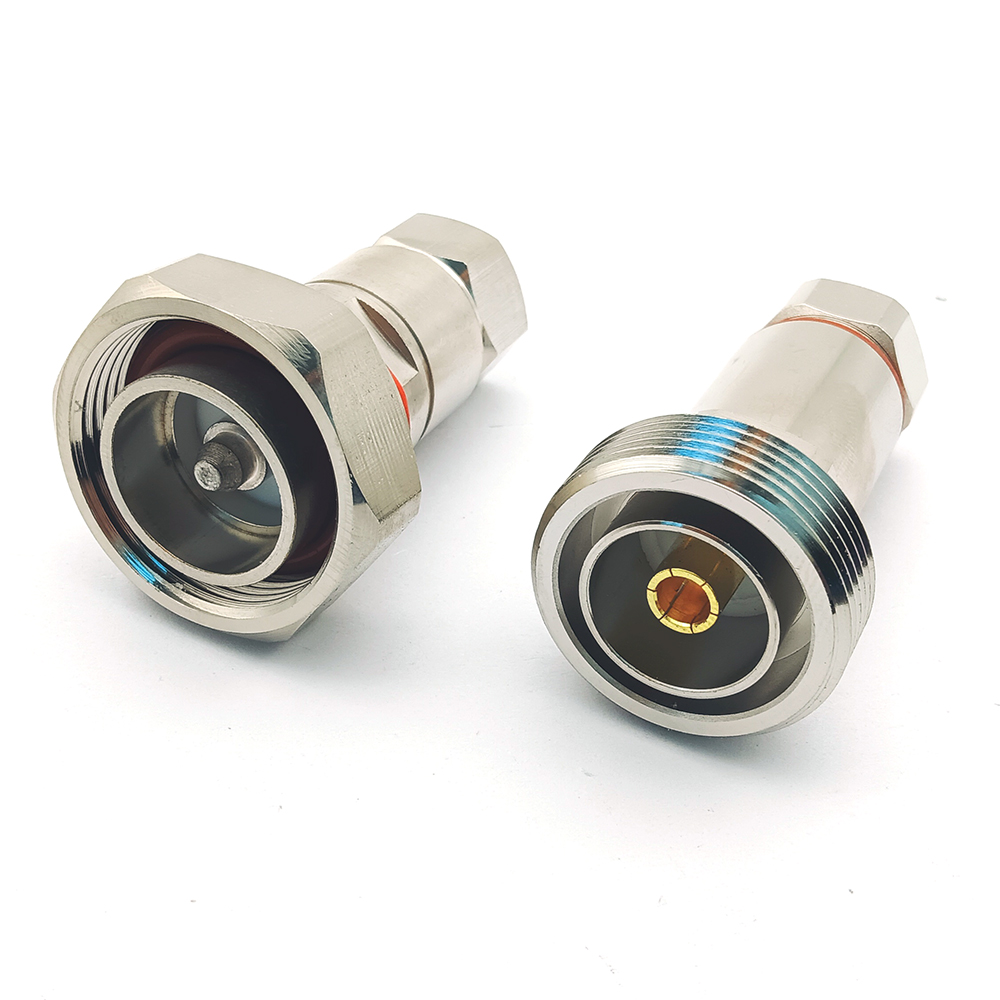

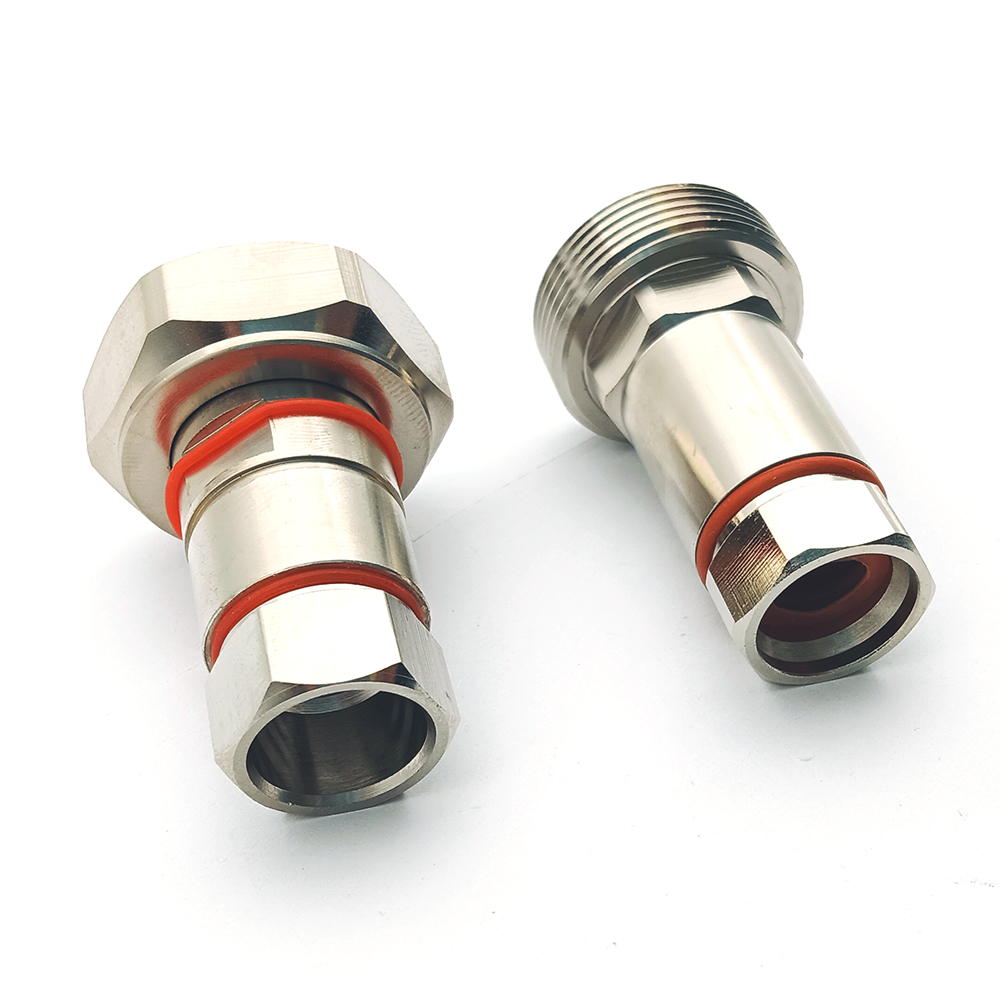

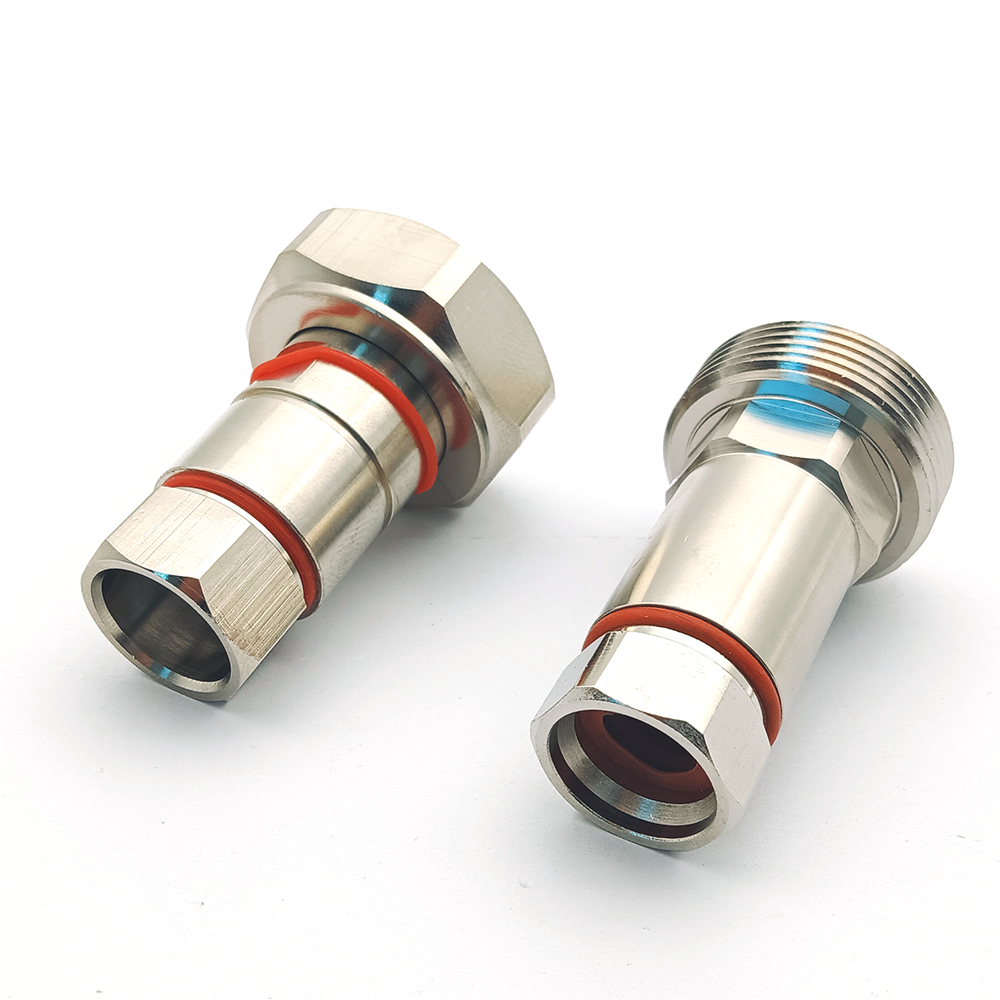

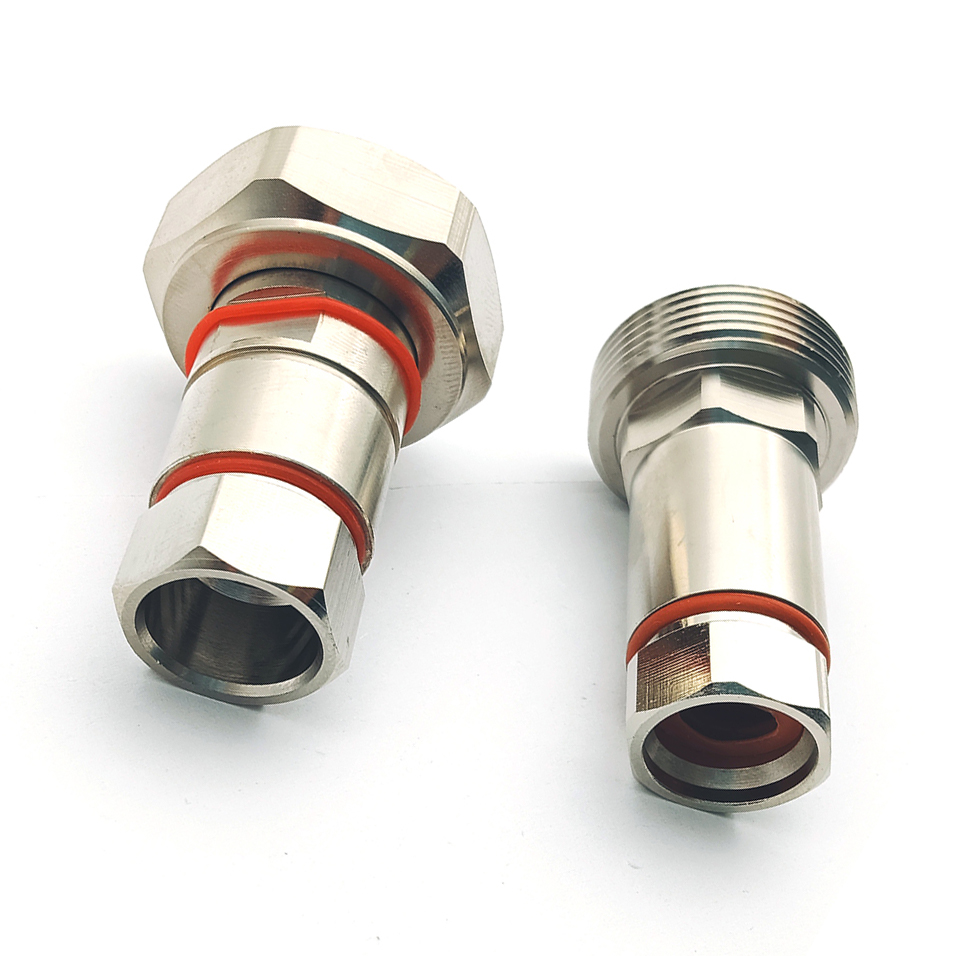

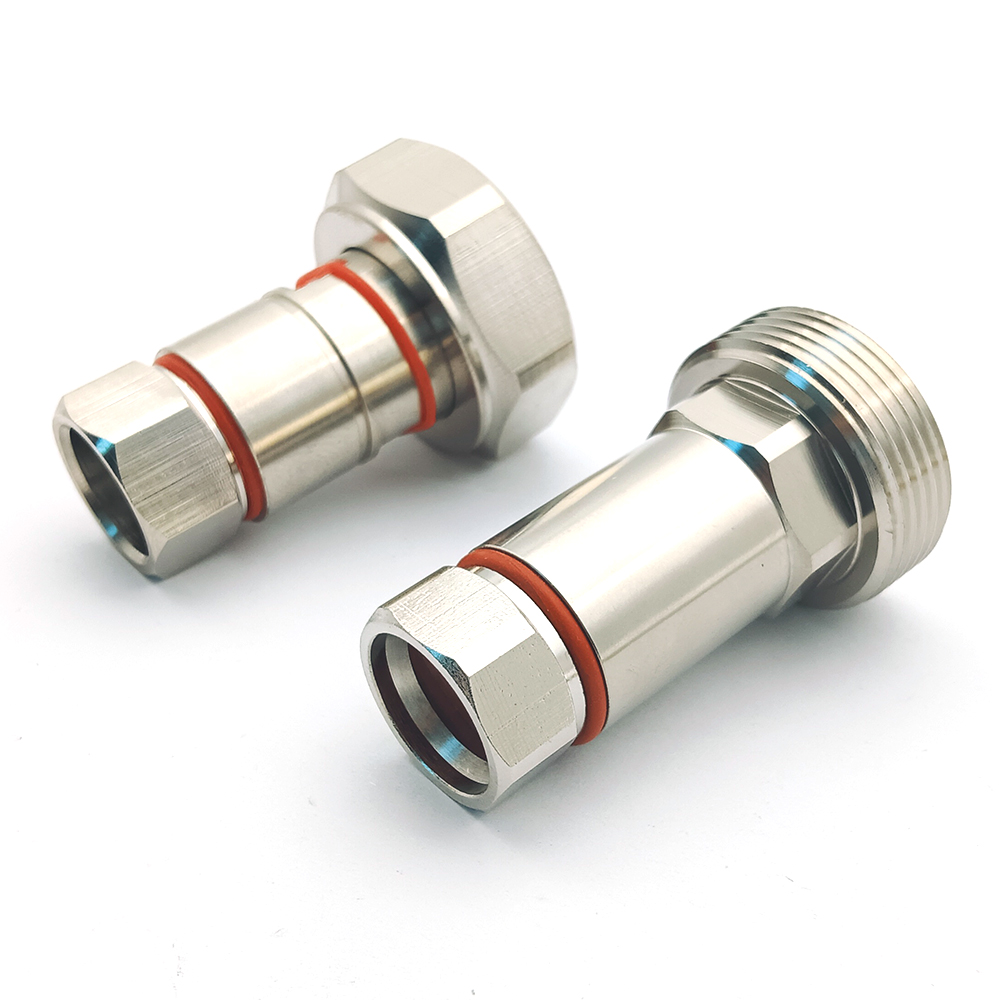

Male Female 7/16 DIN Clamp Solder Coaxial RF Connector – High-Power, Low-PIM Solution for Professional RF Systems

This premium male female 7/16 DIN coaxial RF connector is engineered for high-frequency, high-power environments where signal integrity and long-term reliability are critical. Designed with a clamp-and-solder termination method, it ensures a mechanically robust and electrically stable connection between coaxial cables and RF equipment. Its standardized 7/16 DIN interface aligns with global industry specifications, making it ideal for telecom base stations, broadcast transmitters, and industrial RF systems requiring minimal passive intermodulation (PIM) and superior performance across extended frequency ranges.

Key features include a corrosion-resistant brass body with nickel plating for durability in harsh outdoor conditions, low PIM characteristics to prevent signal distortion in dense network setups, and a secure crimp or solder attachment that minimizes signal loss. The connector’s precision-machined internal contacts and impedance-matched design support frequencies up to 3 GHz, ensuring optimal transmission efficiency for modern wireless infrastructure such as 5G networks, satellite communications, and microwave links.

Engineered for professionals who demand consistent performance under extreme load conditions, this RF connector combines mechanical resilience with electrical excellence. Whether deployed in urban cell towers, remote broadcast facilities, or rugged industrial environments, the 7/16 DIN clamp solder connector maintains reliable connectivity even when subjected to vibration, temperature fluctuations, or environmental stressors. Its compatibility with standard RG-213, LMR-400, and other common coaxial cables makes it a versatile choice for both new installations and retrofits.

Common applications span telecommunications infrastructure, including macrocell and small cell deployments; broadcast systems such as FM radio and TV transmitters; and specialized RF solutions in military, aerospace, and scientific research. It's particularly effective in multi-carrier environments where low PIM is essential to avoid interference between adjacent frequency bands—an increasingly important factor in modern spectrum management.

Users report improved system uptime, reduced maintenance needs, and clearer signal quality after switching to this connector type. Many engineers highlight its ease of installation using basic tools like crimping pliers and soldering irons, along with consistent results across multiple units—critical for large-scale deployment projects. The absence of loose connections or intermittent faults further enhances trust in mission-critical setups.

What sets this product apart from generic alternatives is its commitment to quality control during manufacturing, adherence to international standards like IEC 61169-8, and focus on minimizing harmonic distortion through advanced contact surface treatment. For users seeking a durable, high-performance solution for demanding RF applications, this male female 7/16 DIN clamp solder connector offers unmatched value and dependability.

Q: Is this connector suitable for outdoor installations? A: Yes, its corrosion-resistant materials and sealed interface make it ideal for outdoor use in various climates.

Q: Can I use it with different types of coaxial cables? A: It supports most standard single-conductor coaxial cables including RG-213, LMR-400, and similar types, provided proper cable preparation and termination techniques are followed.

Q: What does "low passive intermodulation" mean in practical terms? A: Low PIM means fewer unwanted signals generated within the connector itself, resulting in cleaner output and better overall system performance—especially crucial in high-density cellular networks.
