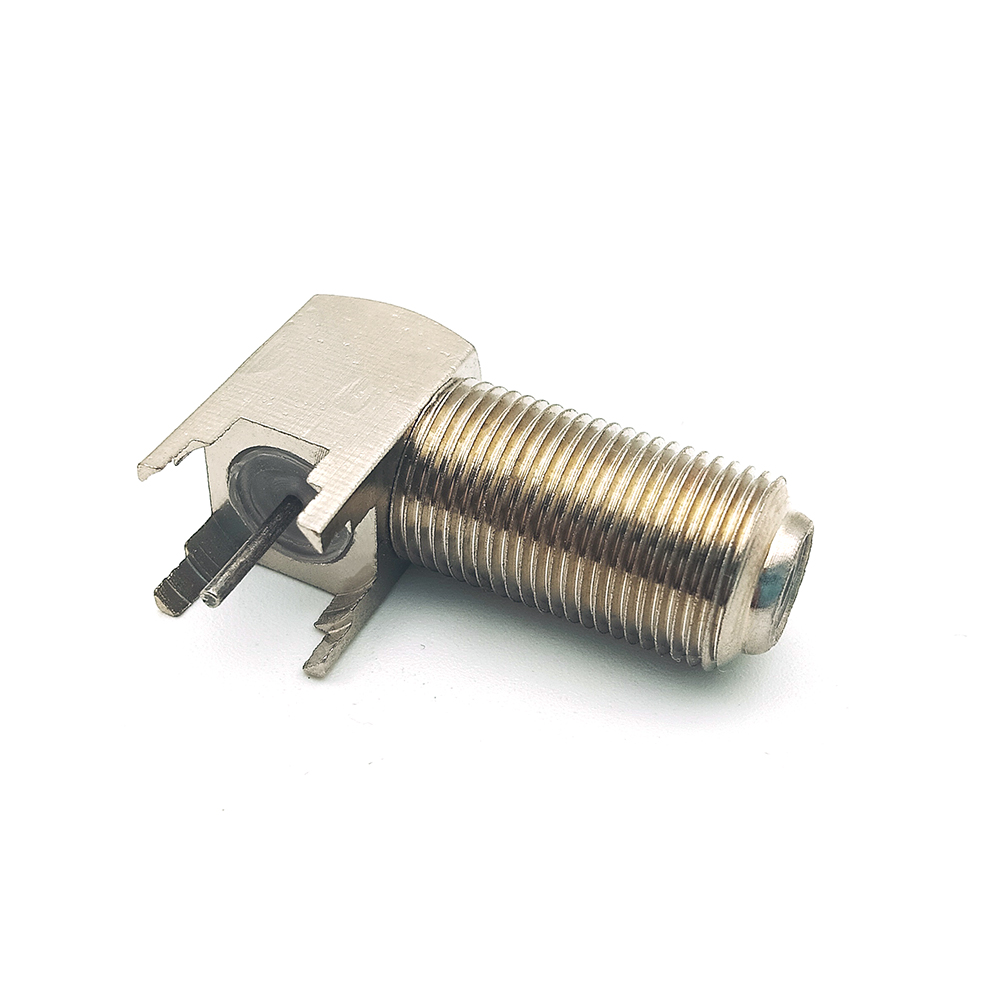

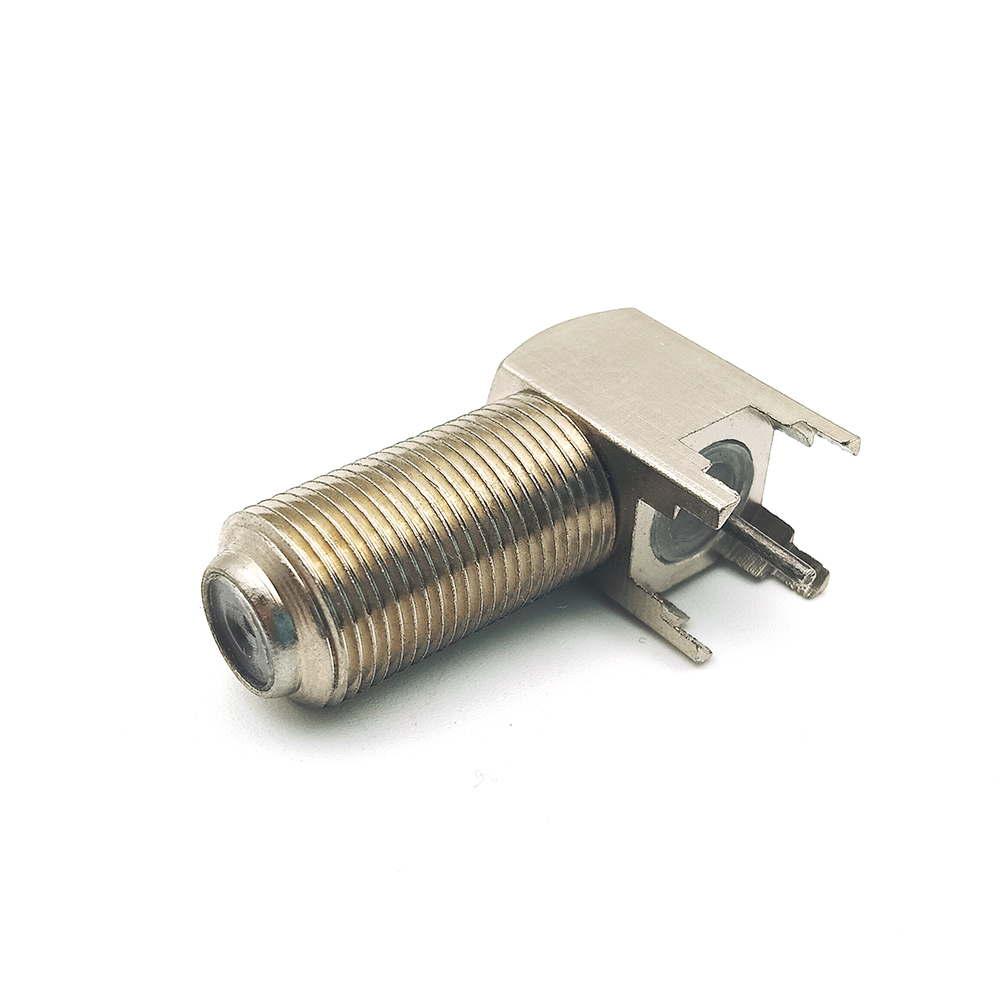

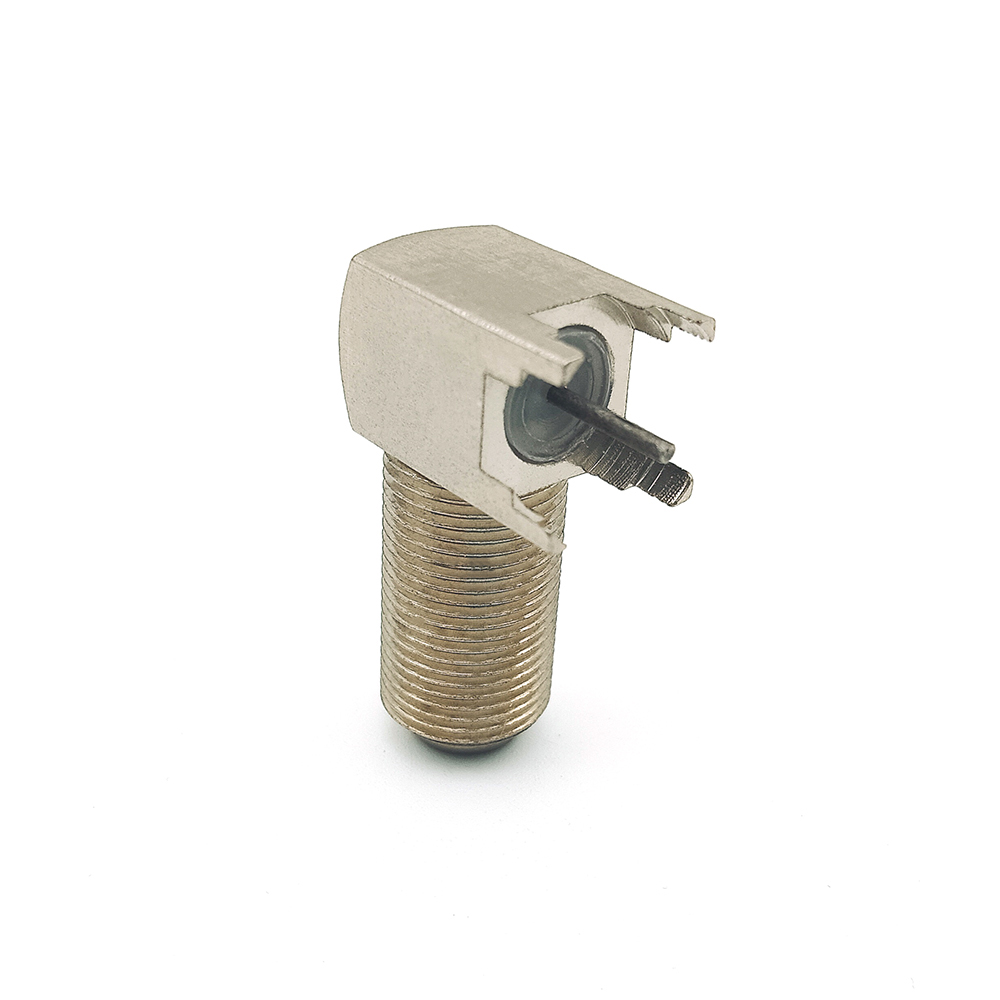

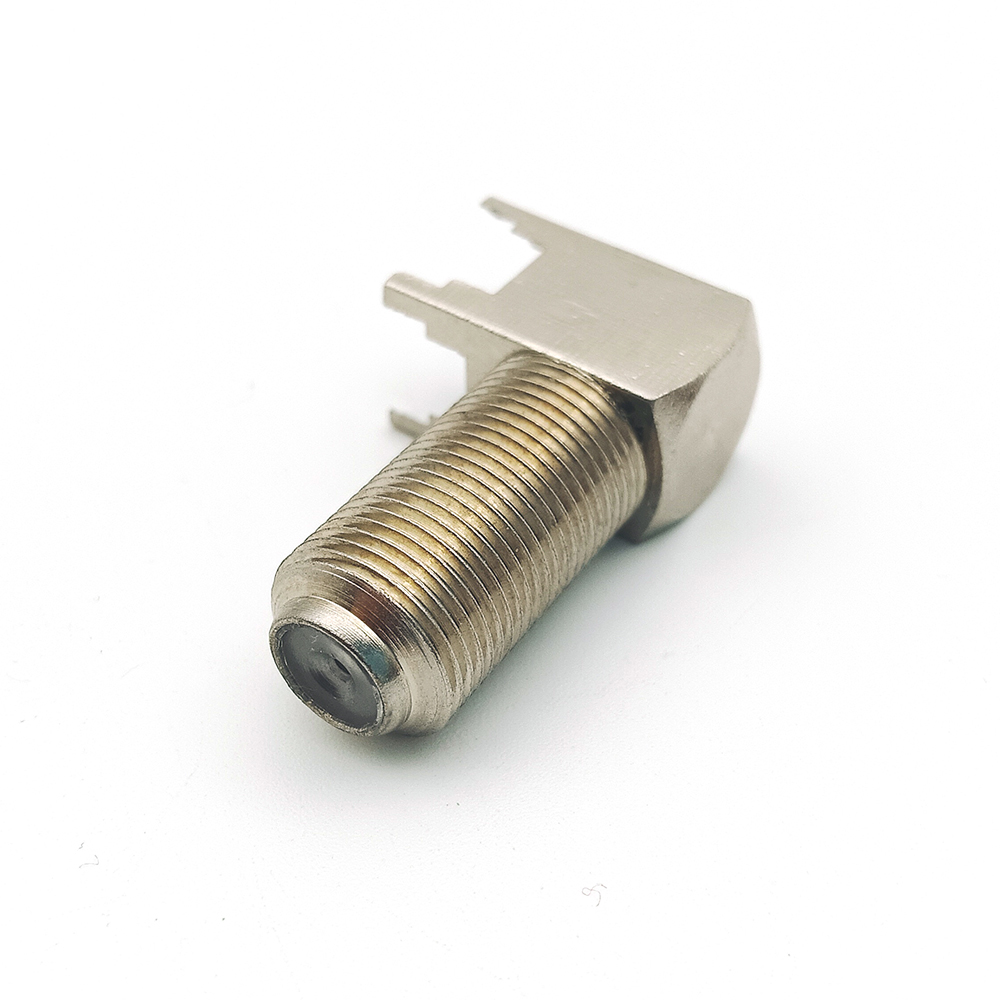

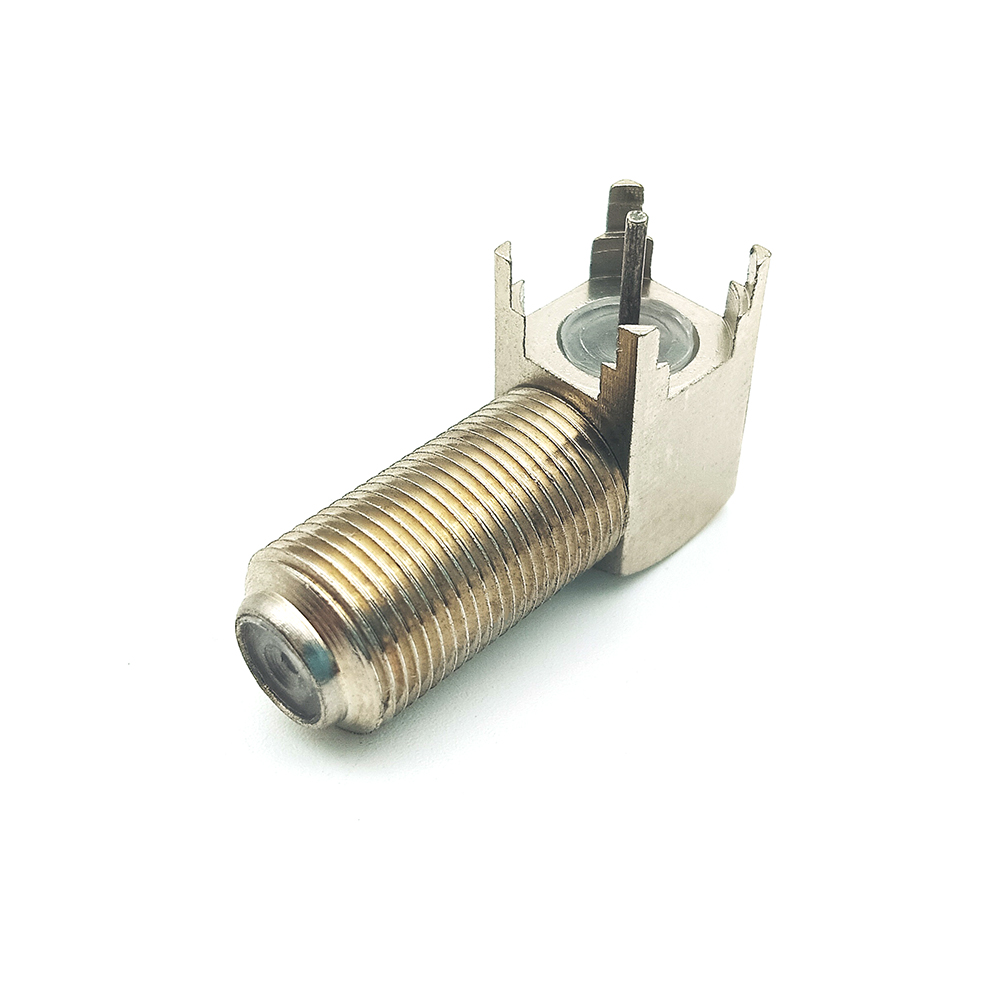

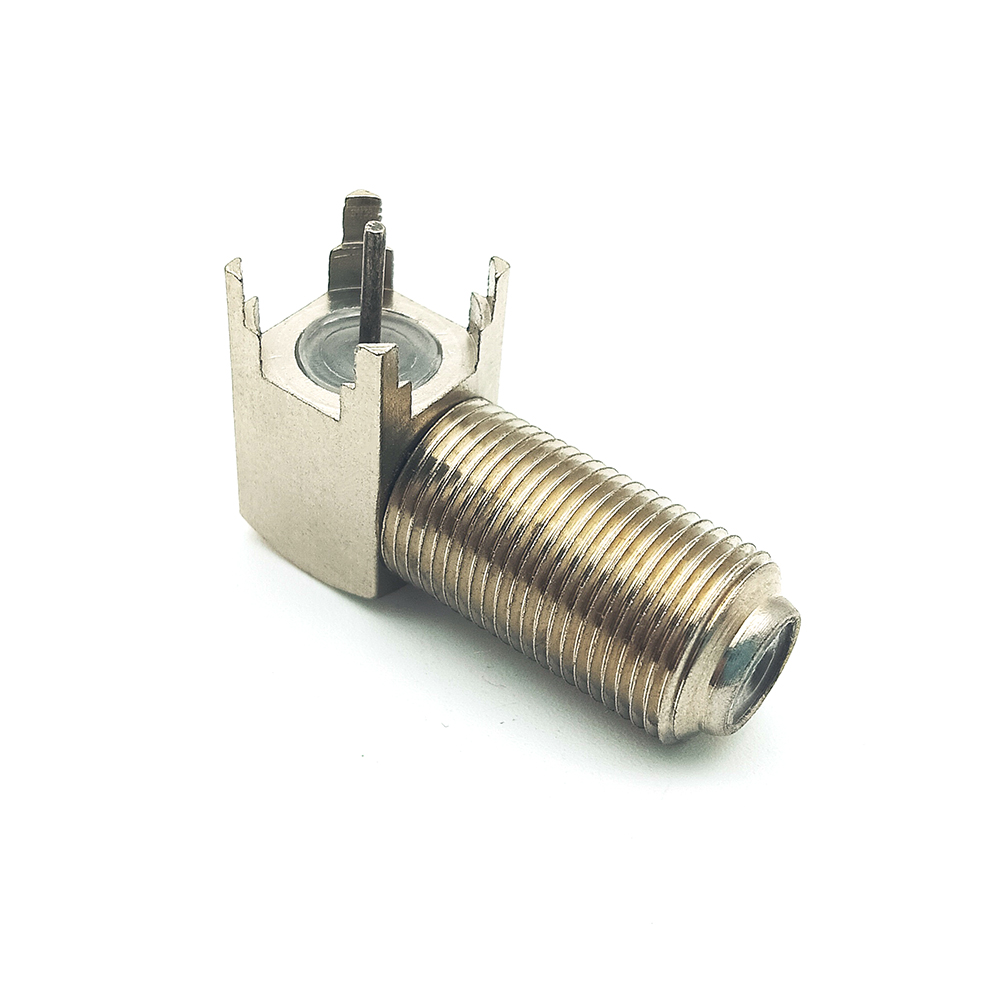

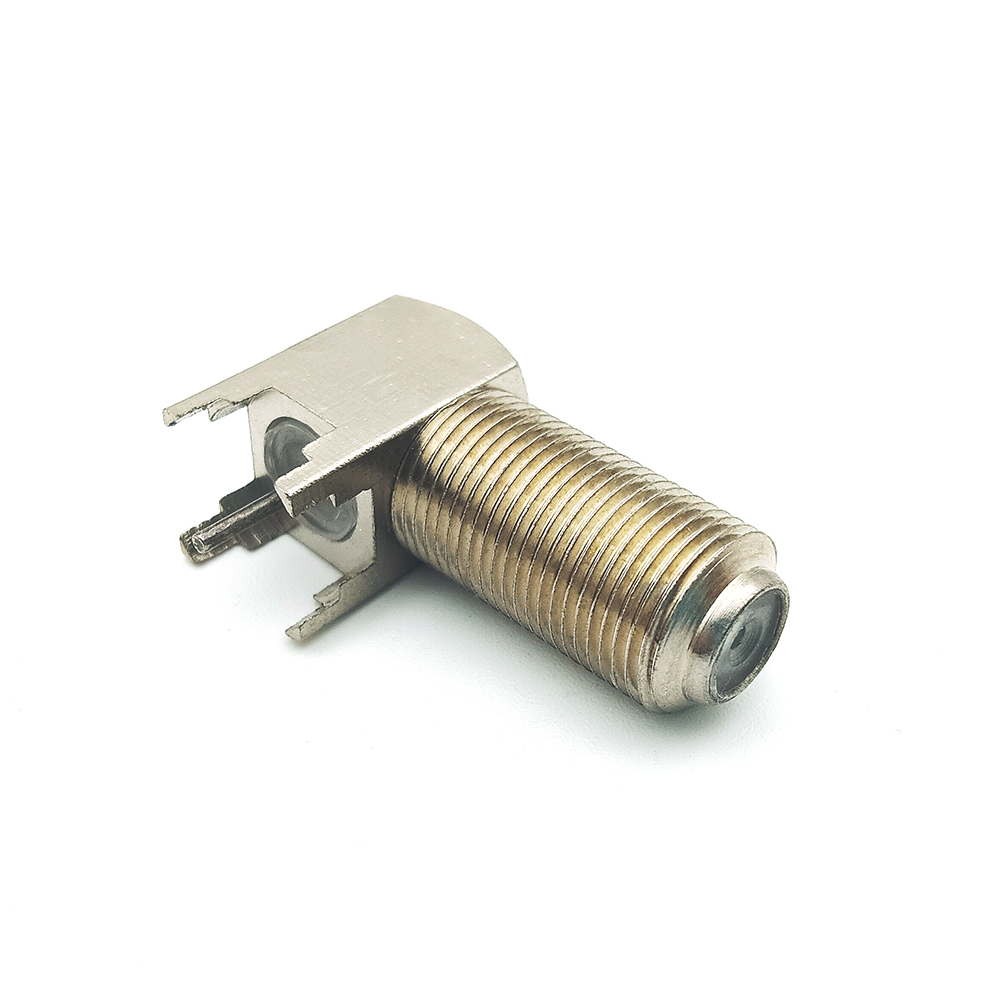

Female Solder F-Type PCB Mount
RF Coaxial Connector – Reliable, High-Performance Signal Transmission for AV Systems This female solder F-type PCB mount RF coaxial connector is engineered for seamless integration between TVs and AV receivers, offering a robust solution for home theater setups, professional audiovisual installations, and industrial signal distribution systems. Designed with precision engineering and premium materials, it ensures consistent performance across a wide range of applications where stable RF connectivity is essential. Key Features: - **Universal Compatibility**: Works reliably with most major TV brands and AV receiver models featuring F-type inputs, making it ideal for diverse consumer electronics environments. - **No External Power Required**: Operates passively—no batteries or power supply needed—simplifying installation while maintaining signal integrity. - **Durable Metal Housing**: Constructed from high-quality metal for enhanced mechanical strength and long-term reliability under frequent use or environmental stress. - **Gold-Plated Contacts**: Ensures low resistance, corrosion-resistant connections that minimize signal degradation over time, even in demanding conditions. - **Solder Mount Design**: Ideal for printed circuit board (PCB) integration, enabling secure and permanent mounting during manufacturing or repair processes. Detailed Description: The F-type connector has become the industry standard for coaxial RF signal transmission due to its cost-effectiveness, ease of installation, and compatibility with common cables like RG-6 and RG-59. This particular model is optimized for surface-mount applications, allowing manufacturers and technicians to integrate it directly onto circuit boards without additional hardware. Its gold-plated contacts reduce contact resistance and prevent oxidation, ensuring reliable data and video signal transfer over extended periods. Whether used in residential entertainment centers or commercial-grade audiovisual infrastructure, this connector delivers consistent results with minimal signal loss—a critical factor in high-definition video and multi-channel audio systems. Ideal Use Cases: Perfect for connecting digital terrestrial TV boxes to AV amplifiers, satellite receivers to home theater systems, or any setup requiring stable coaxial cable termination. Commonly found in smart home installations, broadcast equipment, security camera systems, and professional studio environments where signal clarity and durability are paramount. It’s especially suited for users seeking a plug-and-play solution that doesn’t compromise on quality or longevity. User Feedback Highlights: Users consistently praise the connector’s build quality and ease of soldering, noting improved picture stability when replacing older connectors. Many reviewers highlight how it eliminates intermittent signal issues often experienced with cheaper alternatives. The gold-plated interface stands out as a key differentiator—especially in humid climates where corrosion can degrade performance over time. Frequently Asked Questions: 1. What types of cables are compatible with F connectors? F connectors are primarily designed for use with coaxial cables such as RG-6, RG-59, and other similar low-loss transmission lines commonly used in cable TV, satellite, and broadband networks. 2. Why choose an F-type connector over alternatives? These connectors offer excellent value: they’re affordable, easy to install, provide minimal signal attenuation, and are widely available globally. Their standardized design makes them a go-to choice for both DIY enthusiasts and certified technicians. 3. Are there limitations to using F connectors? While highly effective for indoor and controlled environments, F connectors may require additional waterproofing for outdoor deployments. Additionally, their frequency response is typically limited to around 1 GHz, which is sufficient for most consumer applications but may not meet the demands of ultra-high-frequency RF systems.
Product Categories : RF Coaxial Connector > F Connector
