Fakra

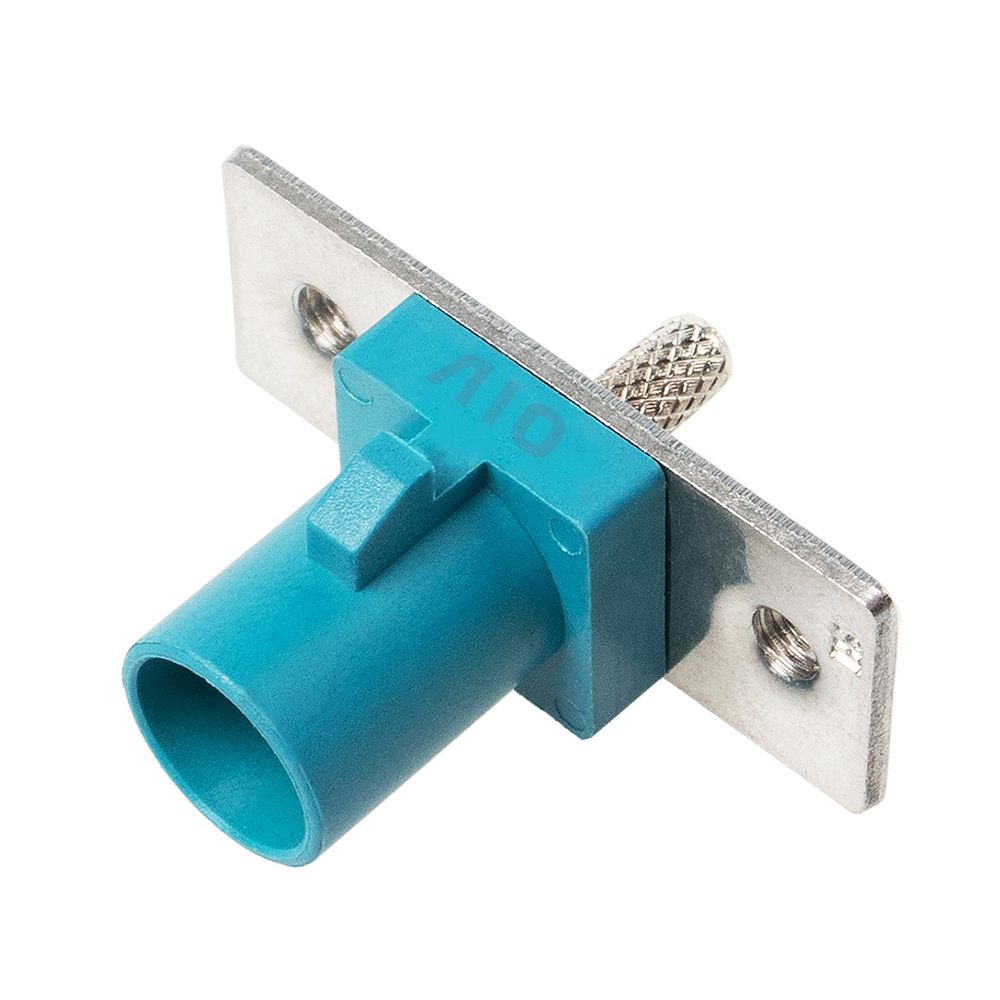

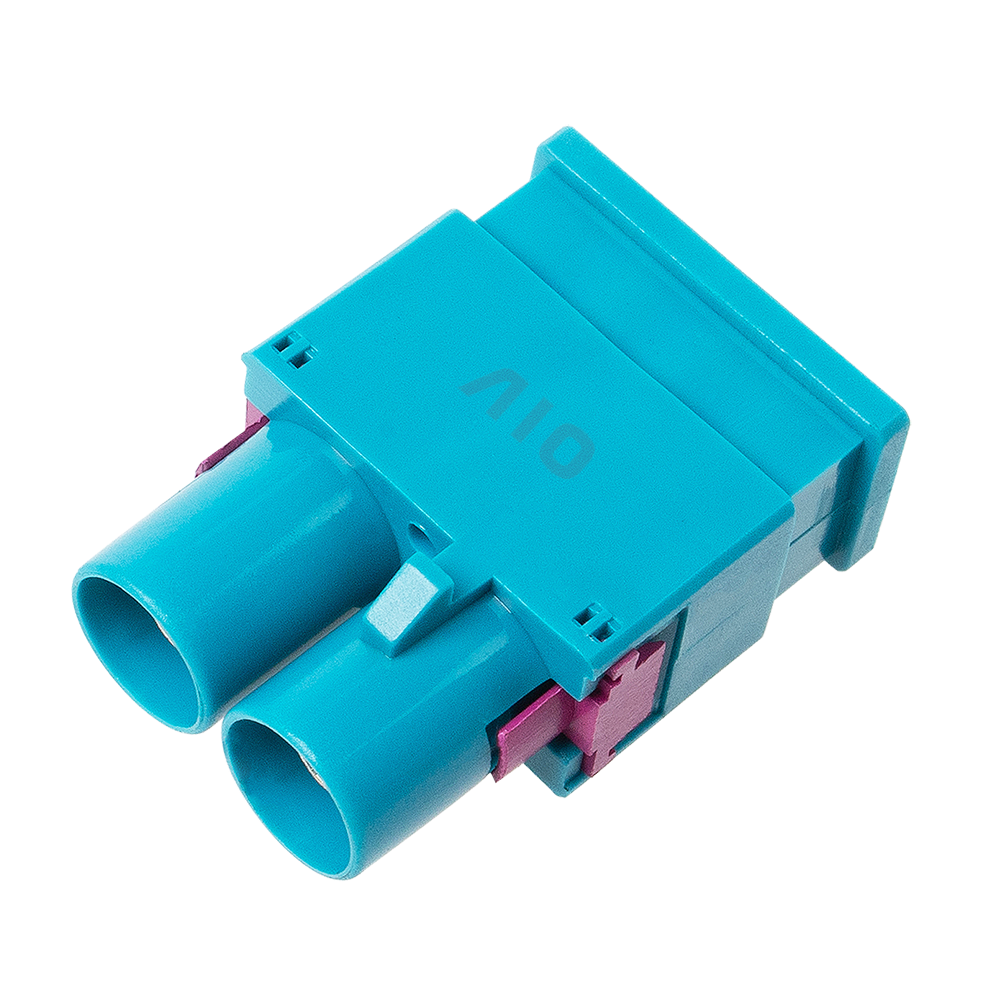

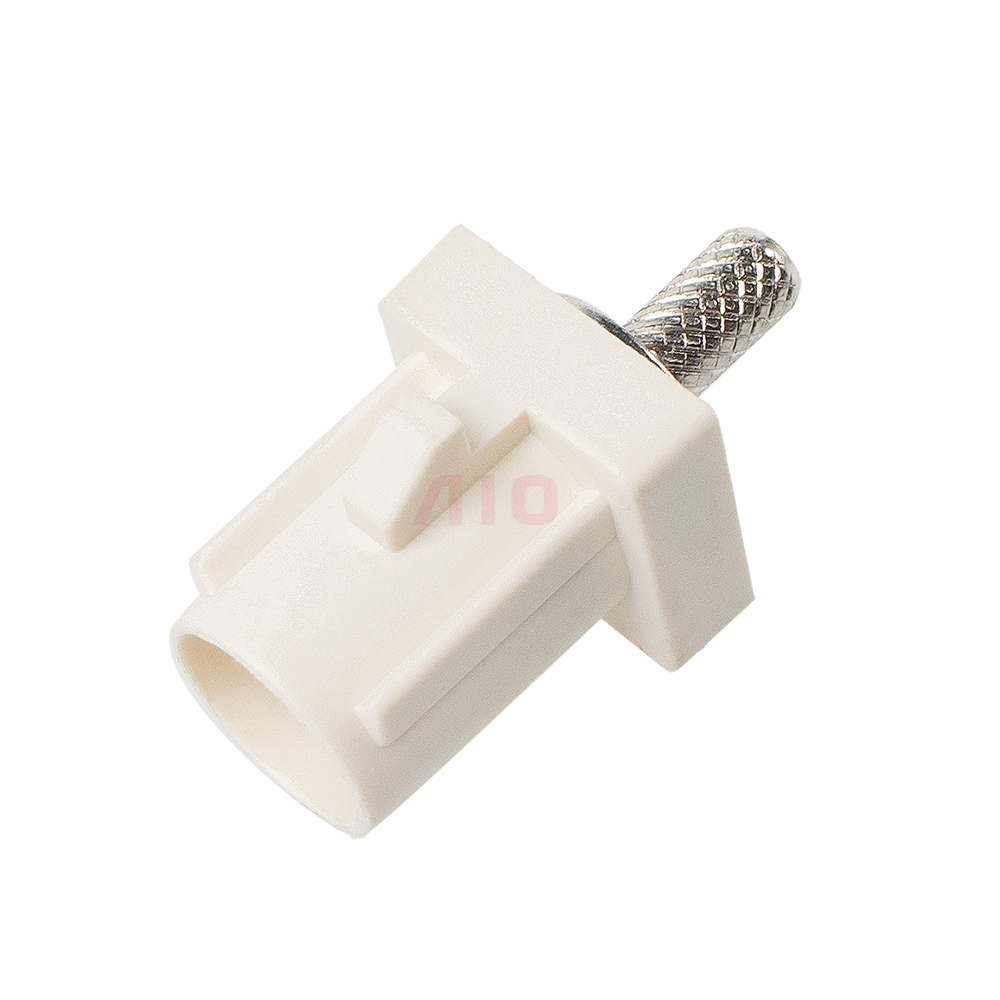

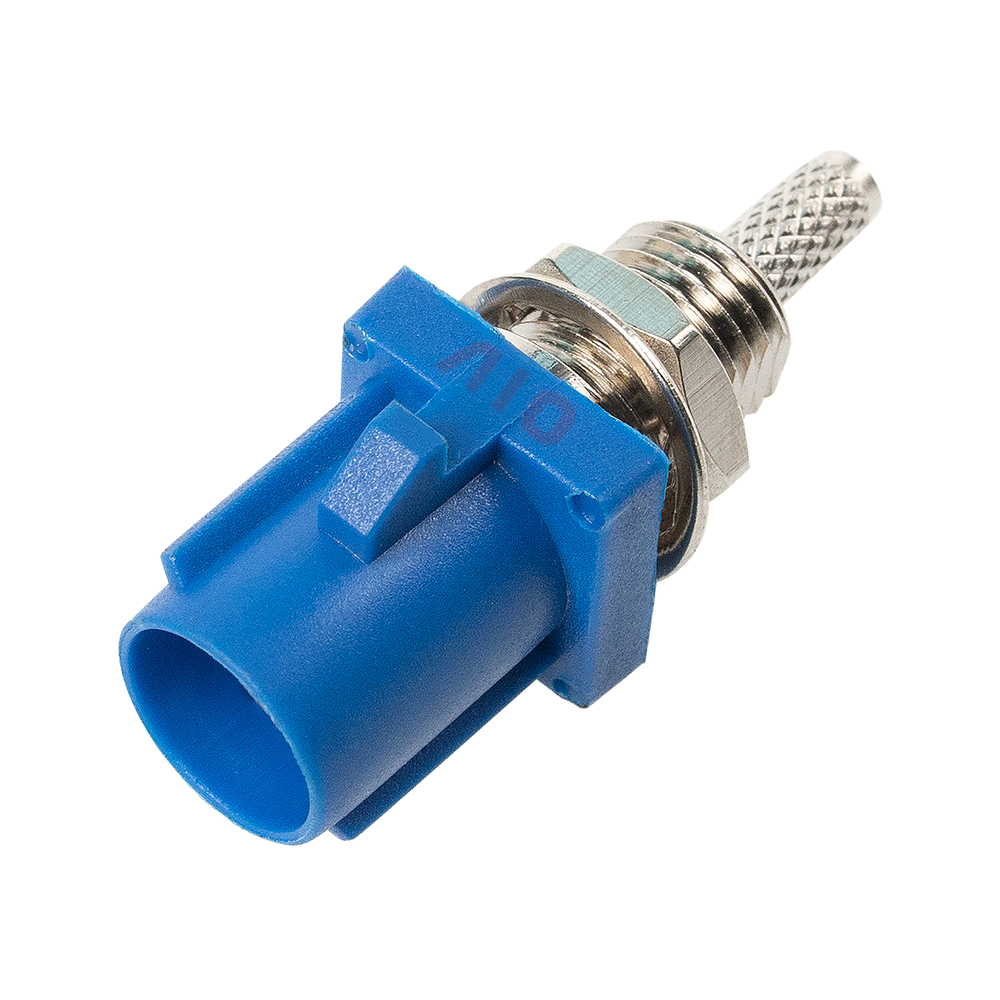

Smb Coaxial Connector – High-Performance RF Solution for Automotive and Wireless Systems This Fakra SMB coaxial connector is engineered for reliability, precision, and versatility in demanding environments. Designed to meet international standards such as ISO 20860-1 and US-Car 18, it offers a robust interface for high-frequency signal transmission across various automotive and industrial applications. With an impedance of 50 Ohms and a frequency range extending from DC up to 6 GHz, this connector ensures minimal signal loss and optimal performance even under extreme conditions. Its return loss exceeds 18 dB, making it ideal for maintaining signal integrity in complex electronic systems. Key Features: - Impedance: 50 Ohms - Frequency Range: DC to 6 GHz - High Data Rates: Up to 8 Gbps - Temperature Tolerance: -40°C to +105°C - Mating Cycles: Minimum 25 - Mechanical Coding: 13 color-coded options plus one neutral code - Dual Lock Mechanism: Primary and secondary locking for secure connections - Customizable Cable Options: Available with RG174, RG316, RG58, DACAR302, RTK031, LMR195, and other types - Precision Stamped Components: Includes center contact, support sleeve, and connector head plug on separate coils for enhanced durability The connector’s design supports seamless integration into modern vehicle architectures, particularly where space constraints and environmental resilience are critical. It features a compact form factor compatible with standard Fakra interfaces while offering superior mechanical stability through its dual-lock mechanism. The use of stamped parts ensures consistent quality and ease of assembly during manufacturing processes. Whether used in tire pressure monitoring systems (TPMS), satellite communications, or Bluetooth modules, this connector delivers reliable connectivity across diverse automotive subsystems. Ideal Applications: This versatile
RF Connector serves multiple purposes in advanced automotive electronics, including but not limited to: - Global Positioning System (GPS) modules - Satellite radio systems - Tire Pressure Monitoring Systems (TPMS) - Bluetooth and Wi-Fi communication units - Antenna interfaces for telematics and infotainment systems - On-board diagnostic (OBD) and vehicle-to-everything (V2X) communication networks Engineered for global OEMs, this connector meets stringent automotive-grade requirements for vibration resistance, thermal cycling, and long-term operational stability. It is especially suited for electric vehicles (EVs), autonomous driving platforms, and connected car technologies that demand low-latency, high-bandwidth data transfer between sensors, control units, and external networks. Customer Feedback: Users consistently praise the connector's consistent performance in harsh climates and its ability to maintain signal fidelity over extended periods. Many engineers highlight the ease of installation due to the intuitive color-coding system and the secure mating mechanism that prevents accidental disconnection during vehicle operation. The availability of customized cable lengths and materials has also been noted as a significant advantage for specialized projects requiring tailored solutions. Frequently Asked Questions: Q: Are you a manufacturer? A: Yes, we are an ISO-certified manufacturer based in China, specializing in high-quality RF connectors for global markets. We offer OEM and ODM services to meet unique technical specifications. Q: Can I get a free sample? A: Existing stock samples are available at no cost; shipping fees apply. For custom configurations, please reach out for further details. Q: What payment methods do you accept? A: We primarily accept bank transfers (T/T). Alternative payment terms can be discussed upon request. Q: Besides FAKRA connectors, what else do you supply? A: Our product line includes car antenna adapters, RF connectors, XLR connectors, mini Fakra connectors, HSL connectors, and more—tailored for automotive, aerospace, and industrial applications. Q: What is the lead time for production orders? A: After deposit confirmation, mass production typically takes 5–10 working days depending on order volume. This connector represents a premium solution for engineers seeking durable, standardized, and customizable RF interconnects. Its combination of compliance with international norms, wide operating temperature range, and flexible customization options makes it a top choice for manufacturers developing next-generation automotive and wireless communication systems worldwide.
Product Categories : Automotive Connector > Fakra Connector
