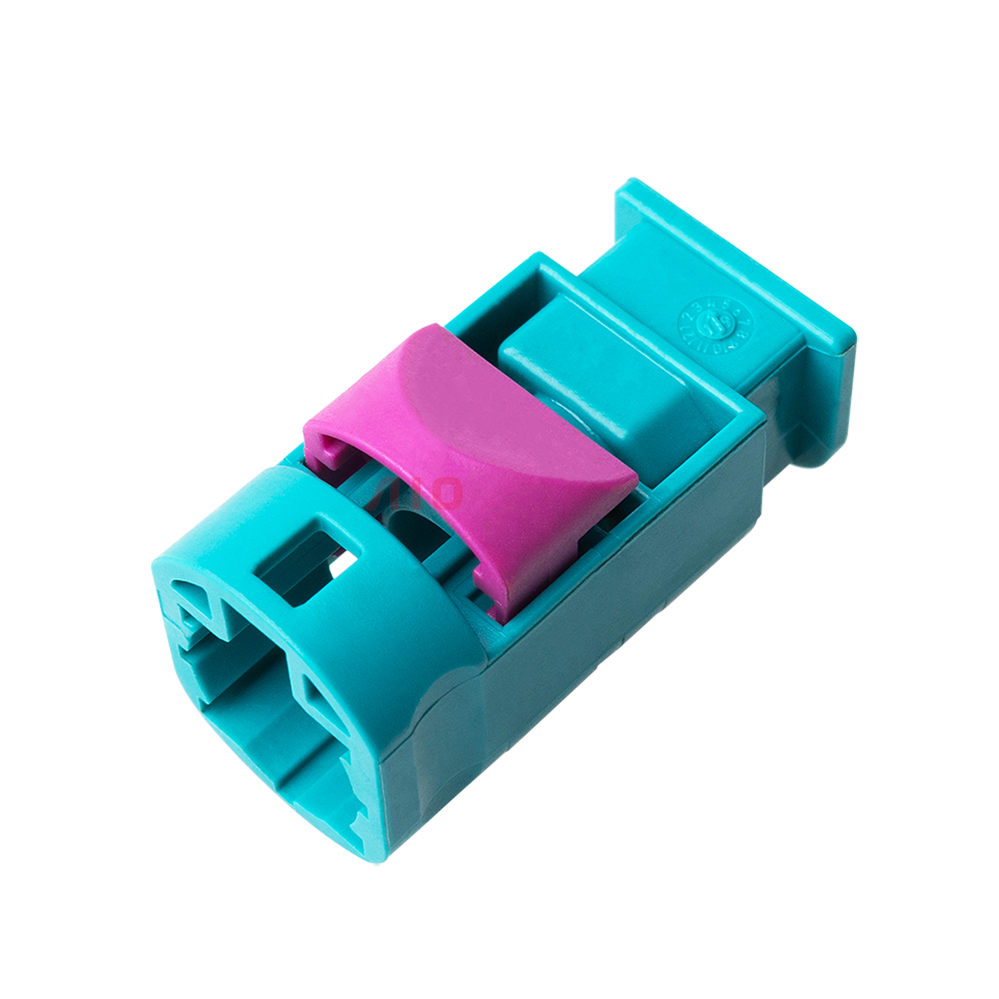

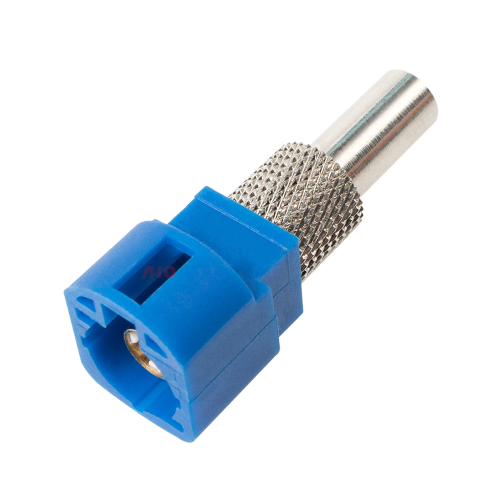

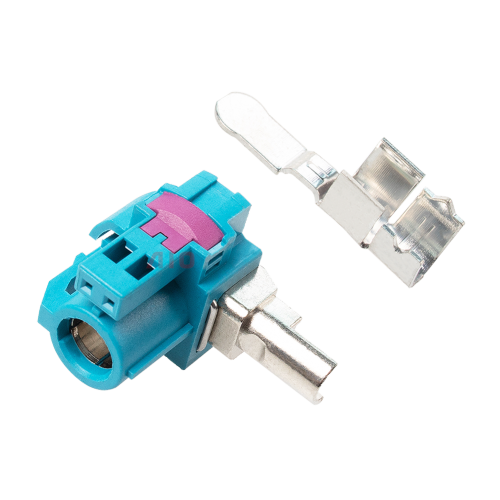

4 Pin Male Female Fakra HSD Crimp Connector

4 Pin Male Female Fakra HSD Crimp Connector – High-Speed Data Transmission for Automotive & Industrial Applications

This precision-engineered 4 pin male female Fakra HSD crimp connector is a reliable, high-performance solution designed to support fast and stable data transmission in demanding automotive and industrial environments. Engineered with Fakra coding standards and optimized for high-speed digital signals, it ensures minimal signal degradation while delivering consistent performance across various vehicle systems. Whether you're integrating advanced infotainment modules or deploying robust camera-based safety systems, this connector provides the stability needed for modern vehicular electronics.

Key Features:

• 100 ohm differential signaling capability for enhanced noise immunity and signal integrity
• Robust crimp-style termination for secure, vibration-resistant connections
• Supports multiple digital protocols including CAN FD, Ethernet, and LIN-based communication
• High-quality materials ensure durability under extreme temperature ranges (-40°C to +125°C)
• Available in customizable color codes for easy identification and system integration
• Compliant with international automotive standards for EMI/EMC resistance

The connector’s design leverages proven Fakra HSD technology—originally developed for high-frequency signal handling in automotive networks—to deliver exceptional bandwidth efficiency. Its compact 4-pin configuration allows for space-saving installation in tight chassis areas, making it ideal for rearview cameras, GPS navigation units, ADAS sensors, and vehicle-to-everything (V2X) communication setups. The crimping mechanism simplifies field assembly without requiring soldering tools, reducing labor time and potential connection errors during manufacturing or maintenance.

Applications Include:

• Automotive infotainment systems (e.g., head units, audio processors)
• Front and rear parking assist cameras
• Telematics and OBD-II diagnostic interfaces
• Wireless communication modules for connected cars
• Industrial automation equipment requiring low-latency data links

Users across Europe, North America, and Asia have praised its consistent signal delivery even under harsh environmental conditions such as high humidity, thermal cycling, and mechanical stress. Many engineers appreciate the flexibility offered by customizable color-coded housings, which streamline troubleshooting and reduce miswiring risks during complex installations.

Frequently Asked Questions:

What makes this connector suitable for high-speed applications? It features a 100-ohm impedance-matched structure that minimizes crosstalk and reflection, ensuring clean signal propagation at speeds up to 1 Gbps—ideal for modern automotive data buses like Ethernet AVB.

Can I customize the color or code of the connector? Yes, we offer a range of color options based on standard Fakra coding schemes, allowing users to differentiate between different data channels or functional groups within a vehicle’s wiring harness.

Is it compatible with other Fakra connectors? This connector follows the industry-standard Fakra HSD specification, meaning it can interface seamlessly with other certified Fakra components such as mini Fakra, HSL, and RF connectors used in similar applications.

For professionals seeking a durable, efficient, and future-ready connection solution, this 4-pin male female Fakra HSD crimp connector stands out as a top-tier choice—delivering both technical excellence and practical usability across global markets.

Product Categories : Automotive Connector > Hsd Connector
