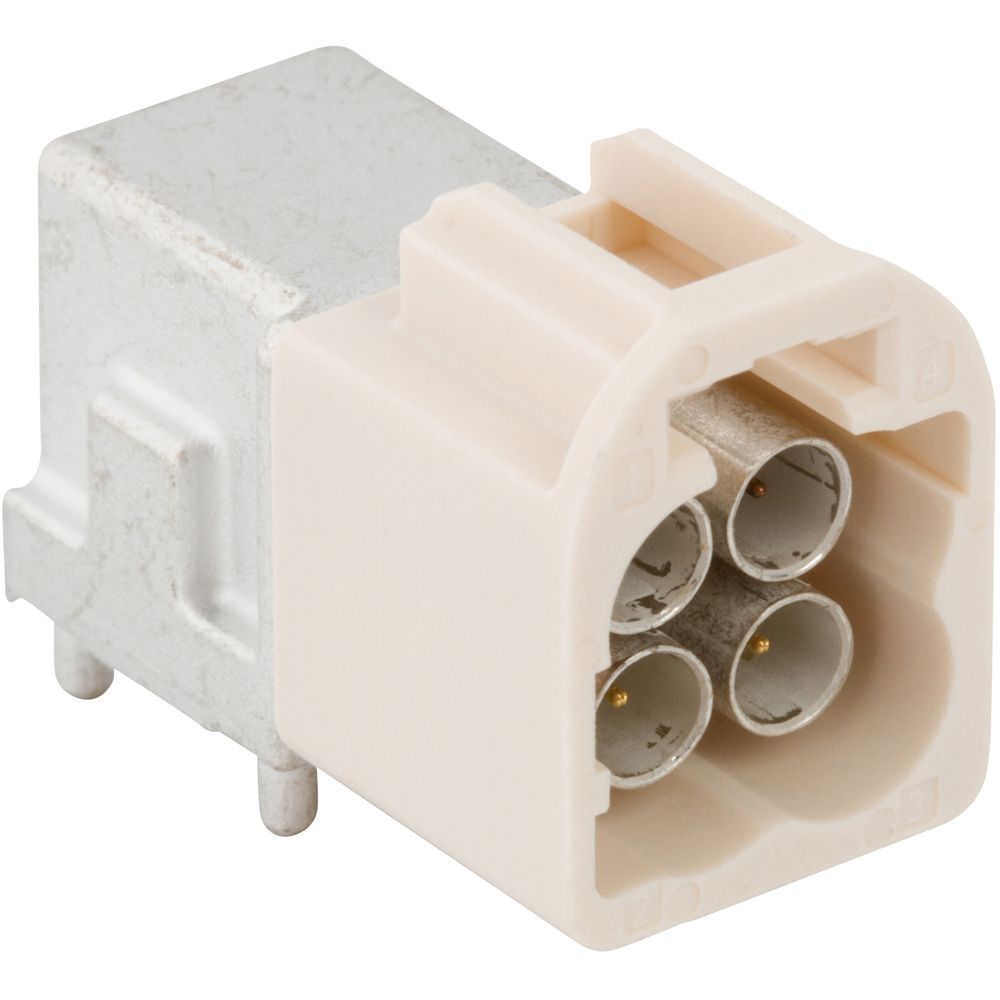

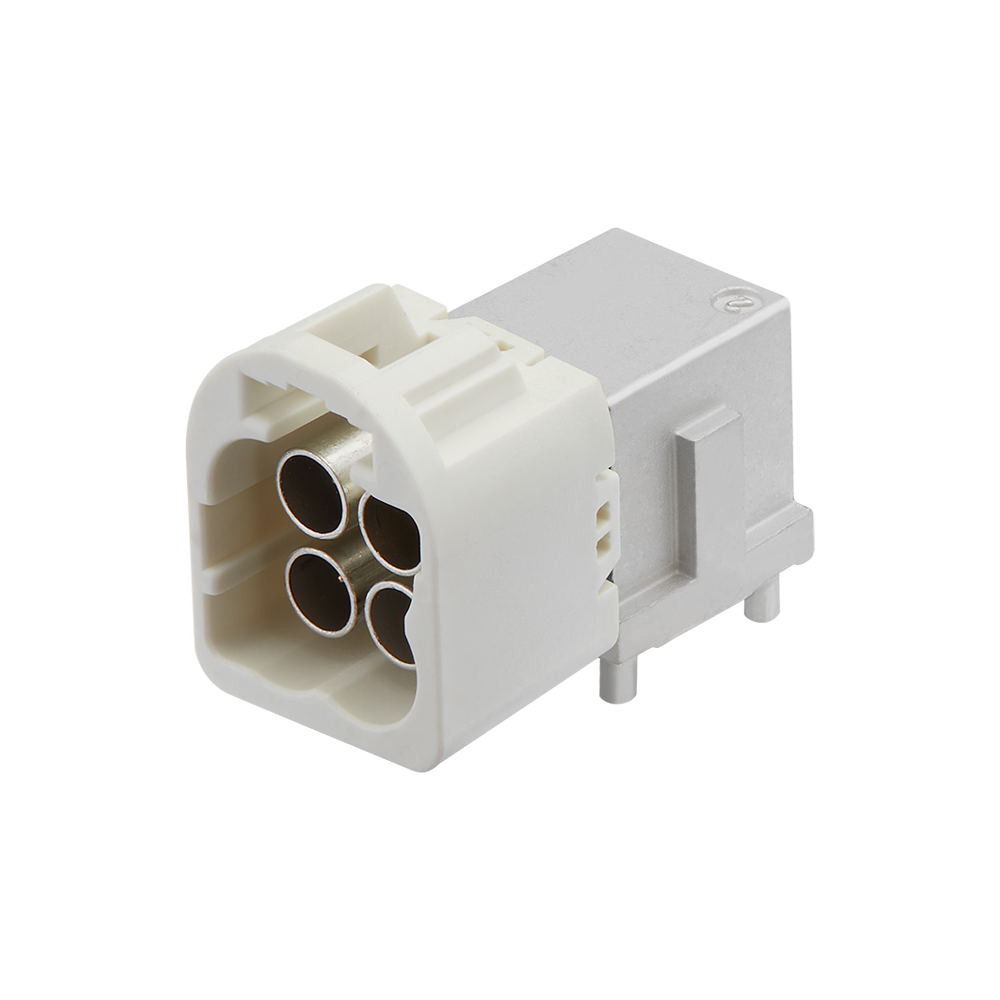

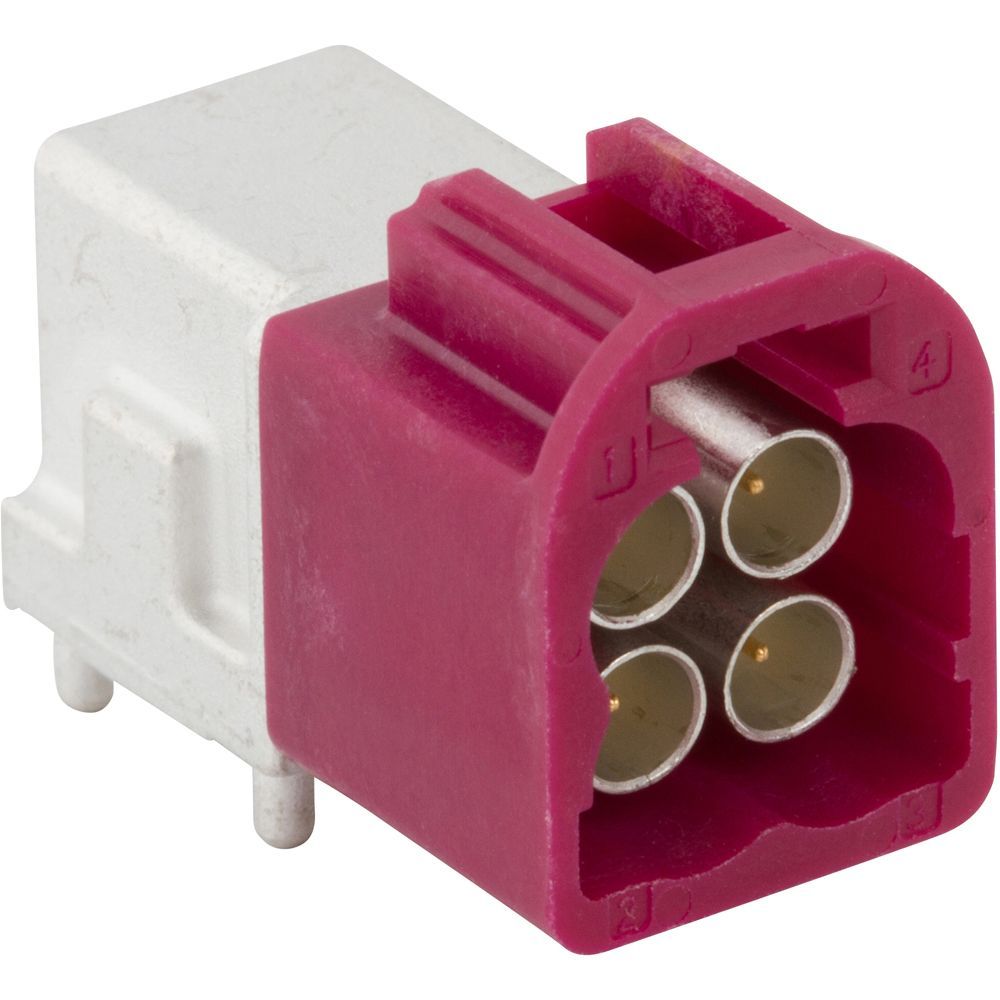

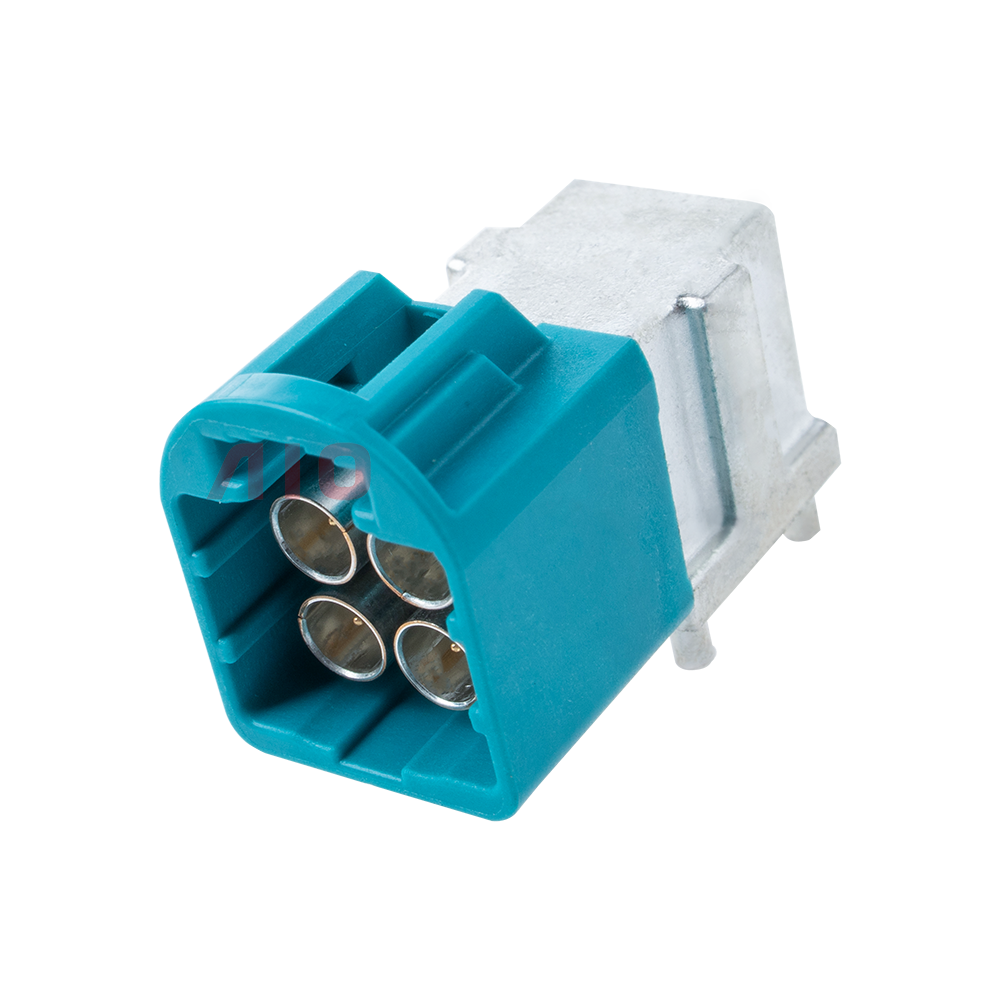

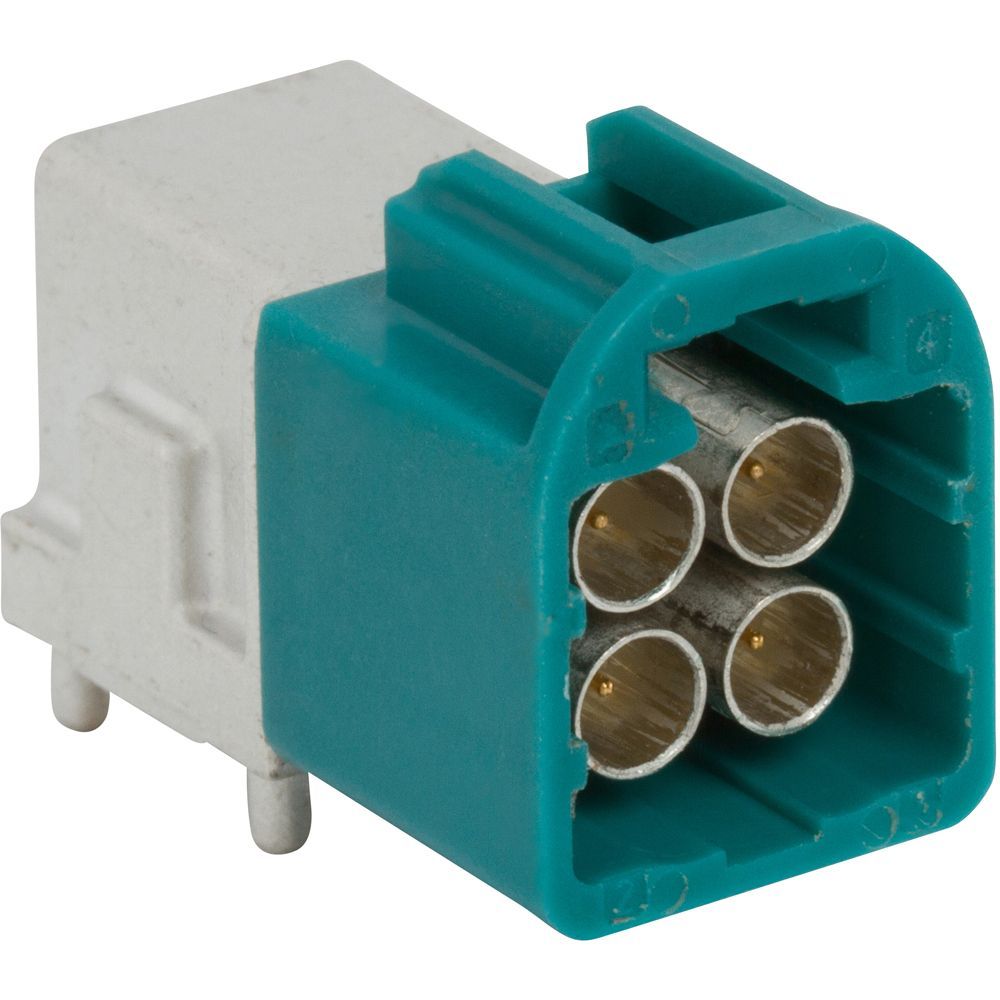

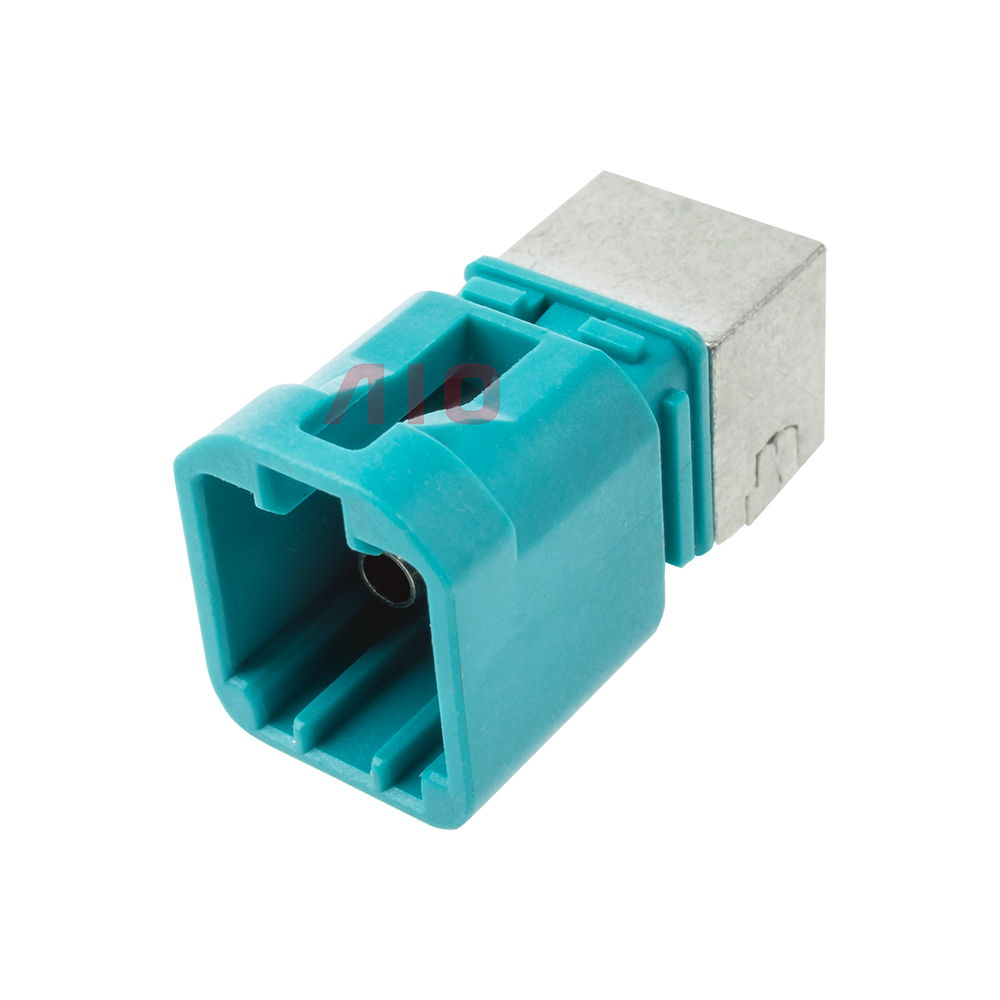

Right Angle Male Mini Fakra PCB Mount Connector

Right Angle Male Mini Fakra PCB Mount Connector – High-Performance RF Solution for Automotive & Telecommunications

This compact and precision-engineered Right Angle Male Mini Fakra PCB Mount Connector is specifically designed to deliver reliable, high-frequency signal transmission in demanding environments such as automotive infotainment systems, telematics, and advanced communication devices. With its space-saving right-angle configuration and robust construction, this connector offers an ideal solution for engineers seeking efficient integration into densely packed printed circuit boards (PCBs) while maintaining superior electrical performance.

Engineered for durability under extreme conditions—including vibration, temperature fluctuations, and mechanical stress—this Mini Fakra male connector ensures consistent connectivity in both vehicle-mounted and industrial-grade applications. Its compatibility with standard Fakra interfaces makes it a versatile choice across multiple industries, from GPS navigation modules to 5G-enabled IoT systems. Whether used in modern EVs, fleet management units, or embedded wireless modules, this connector supports seamless data flow without signal degradation.

Key Features:

• Mini Fakra Male Design: Offers a smaller footprint than traditional connectors while maintaining full compliance with Fakra standards for signal integrity up to 6 GHz.
• Right-Angle Orientation: Enables optimal layout flexibility on PCBs, reducing strain on wiring and enabling tighter component placement in confined spaces.
• Surface-Mount Technology (SMT) Ready: Facilitates automated assembly processes, ensuring high yield and long-term reliability in mass production environments.
• Durable Housing Material: Utilizes high-temperature-resistant polymers that resist cracking, warping, or deformation even under prolonged exposure to heat cycles.
• Low Insertion Loss & High Shielding Effectiveness: Minimizes electromagnetic interference (EMI) and maintains signal clarity critical for Wi-Fi, LTE, and radar-based systems.

Designed with global engineering standards in mind, this connector meets stringent requirements for automotive electronics, including ISO 16750 for environmental resistance and IEC 61076 for mechanical stability. It’s particularly suited for OEMs developing compact yet powerful solutions for smart vehicles, mobile infrastructure, and connected devices where size, weight, and performance are equally important.

Common Applications:

• Automotive GPS receivers, ADAS sensors, and onboard diagnostics (OBD-II) systems
• Vehicle-to-everything (V2X) communication modules requiring stable RF links
• Industrial IoT gateways, remote monitoring units, and telemetry equipment
• Wireless routers, cellular antennas, and small-cell base stations
• Embedded systems in drones, robotics, and portable medical devices

Users consistently praise the ease of installation, consistent signal quality over time, and ability to function reliably in harsh operating conditions. Many engineers note that the right-angle form factor significantly improves board-level routing efficiency compared to straight-mount alternatives, especially when working with multi-layer PCBs in tight chassis designs.

Frequently Asked Questions:

• Is this connector compatible with existing Fakra systems? Yes, it adheres to the standardized Fakra interface, allowing plug-and-play replacement or integration into legacy setups.
• What frequency range does it support? Optimized for frequencies up to 6 GHz, making it suitable for 4G/LTE, 5G NR, and Wi-Fi 6E applications.

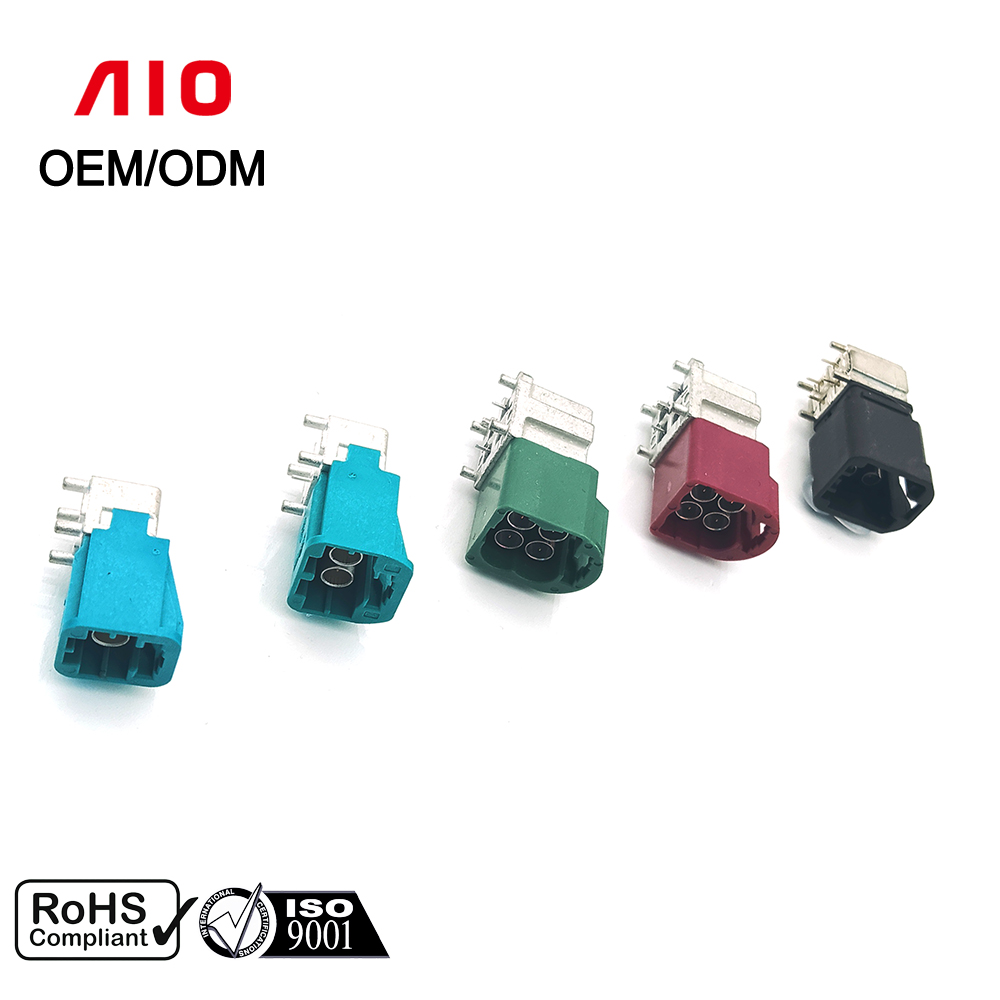

• Can it be customized in terms of color or marking? Custom coding options are available upon request to meet specific identification needs or brand guidelines.
• How does it perform in high-vibration environments? The connector features secure locking mechanisms and reinforced contacts to prevent loosening during operation, ideal for automotive and industrial use.
• Is it RoHS compliant? Yes, all materials meet European Union directives for environmentally safe manufacturing practices.

In summary, the Right Angle Male Mini Fakra PCB Mount Connector combines miniaturization, reliability, and high-speed performance in a single package—making it a top choice for designers focused on innovation, efficiency, and long-term system stability across global markets.
