BNC (Bayonet Neill-Concelman) and TNC (Threaded Neill-Concelman) connectors are both types of RF connectors used to connect coaxial cables, but they differ in design, performance, and applications. Here’s a comparison of the two:

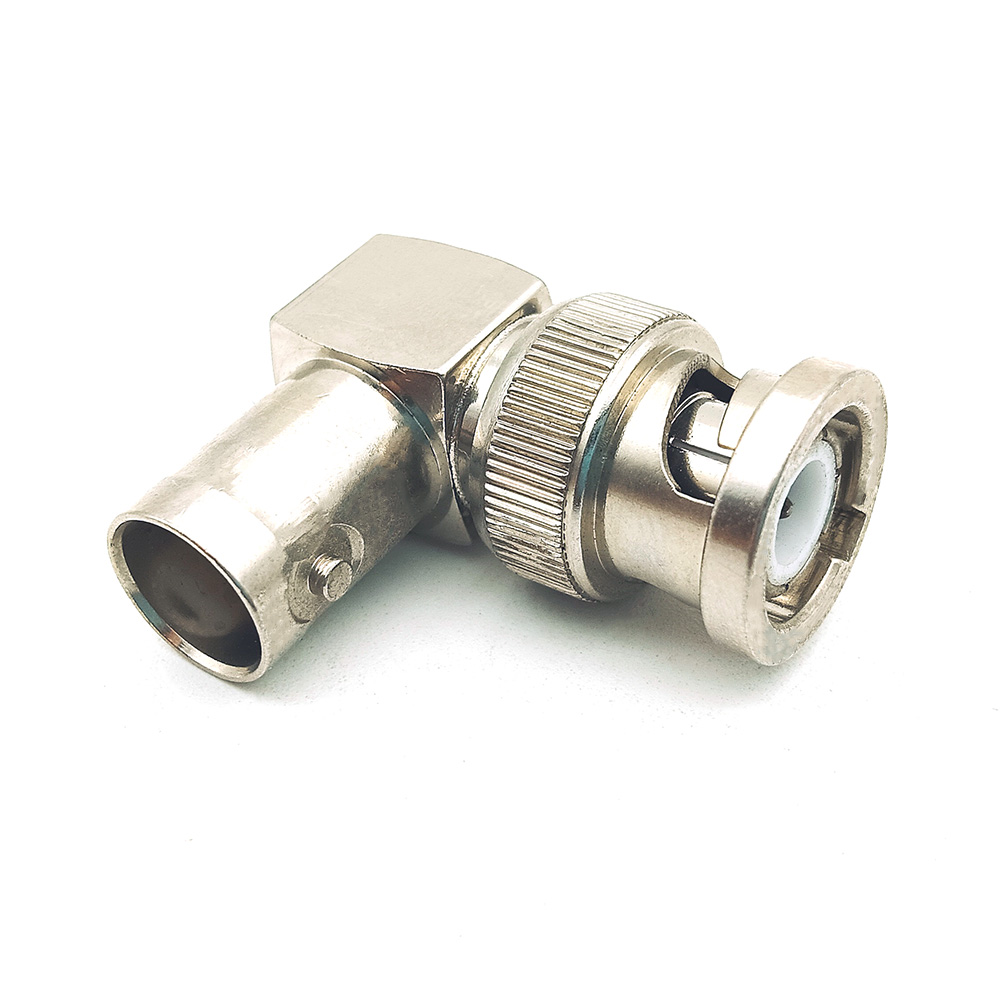

- Design: The BNC connector features a bayonet-style coupling mechanism, where the connector is attached by pushing it onto the terminal and then twisting it a quarter-turn to lock it in place. This design makes it easy to connect and disconnect.
- Frequency Range: BNC connectors are typically used for RF signals up to about 4 GHz, although some versions can handle higher frequencies.
- Applications: Commonly used in applications like video transmission, radio frequencies, test equipment, and older networking systems (like coaxial Ethernet).
- Advantages: Easy to connect and disconnect, reliable for lower-frequency applications, and widely available.
- Design: The TNC connector is similar in design to the BNC connector but uses a threaded coupling mechanism instead of a bayonet. This threading provides a more secure and stable connection.
- Frequency Range: TNC connectors can handle higher frequencies than BNC connectors, typically up to about 11 GHz. This makes them more suitable for applications requiring higher performance.
- Applications: Often used in applications requiring a more stable connection and higher frequency, such as cellular antennas, Wi-Fi systems, and some military and aerospace applications.
- Advantages: Provides a more secure connection with better performance at higher frequencies, reducing the risk of signal loss or interference.
Summary:
- BNC connectors are easier to use and are sufficient for lower-frequency applications, while TNC connectors offer better performance at higher frequencies due to their threaded design, making them more suitable for demanding applications.
- The choice between BNC and TNC depends on the specific requirements of the application, including the frequency range, the need for a secure connection, and ease
