UHF Connector

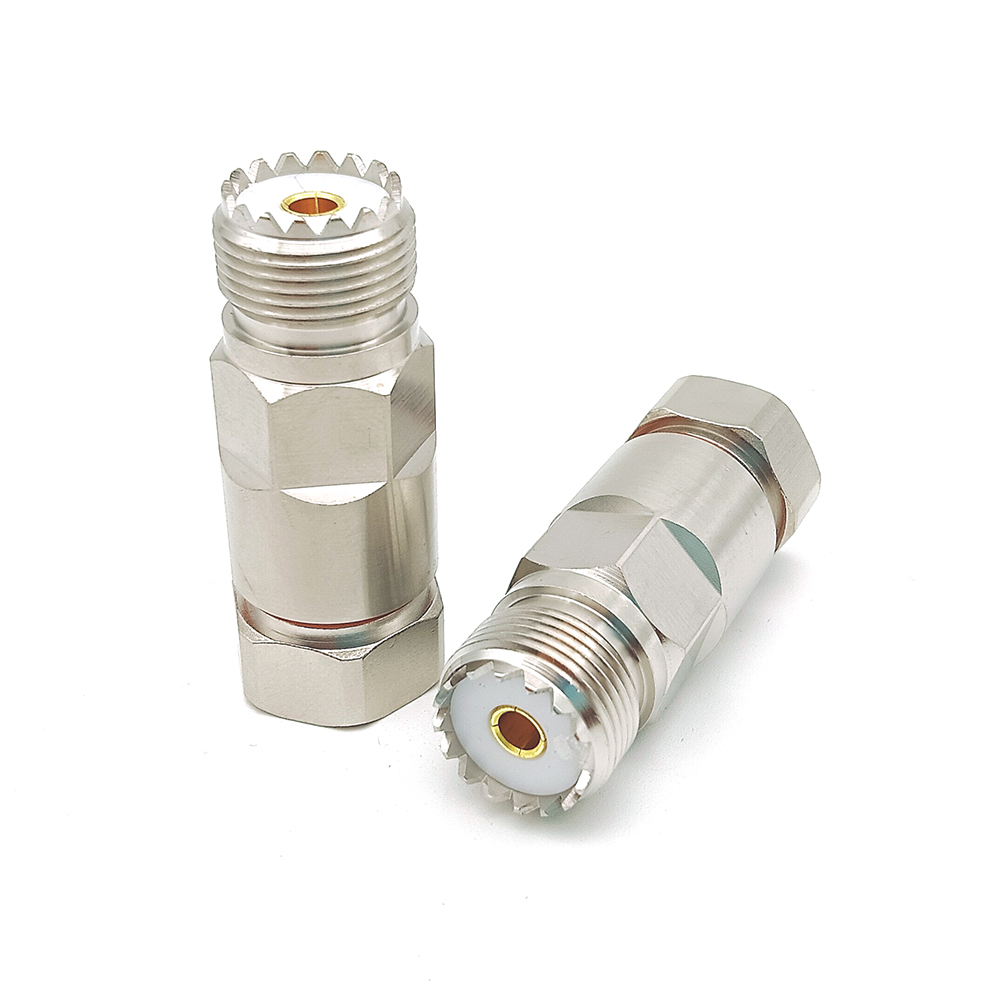

A Uhf Connector (Ultra High Frequency connector) is a coaxial RF Connector originally designed for use with radio frequency systems. Despite its name, it is typically used for frequencies below 300 MHz, making it suitable for various low-frequency applications.

Key Features:

1. Design:

   • It has a threaded coupling mechanism, ensuring a secure and stable connection.
   • The connectors typically feature a larger diameter and robust build.

2. Frequency Range:

   • Commonly used for frequencies below 300 MHz, although some designs may support frequencies up to 500 MHz with degraded performance.

3. Construction:

   • Typically made of metal with an insulating material to separate the center pin (signal) from the outer shell (ground).

4. Compatibility:

   • Commonly used with RG-8 and RG-213 coaxial cables, though adapters can extend compatibility to other cable types.

Applications:

• CB Radios: Widely used in citizen band (CB) radio systems.
• Amateur Radios: A popular choice among ham radio operators.
• Marine Radios: Used in communication systems for boats and ships.
• Low-Frequency RF Applications: Suitable for certain low-frequency data or communication systems.

Limitations:

• UHF connectors are not ideal for high-frequency applications due to signal loss and impedance mismatch at higher frequencies.

While UHF connectors are not the most modern RF connector, they remain in use due to their simplicity, cost-effectiveness, and reliability in low-frequency applications
