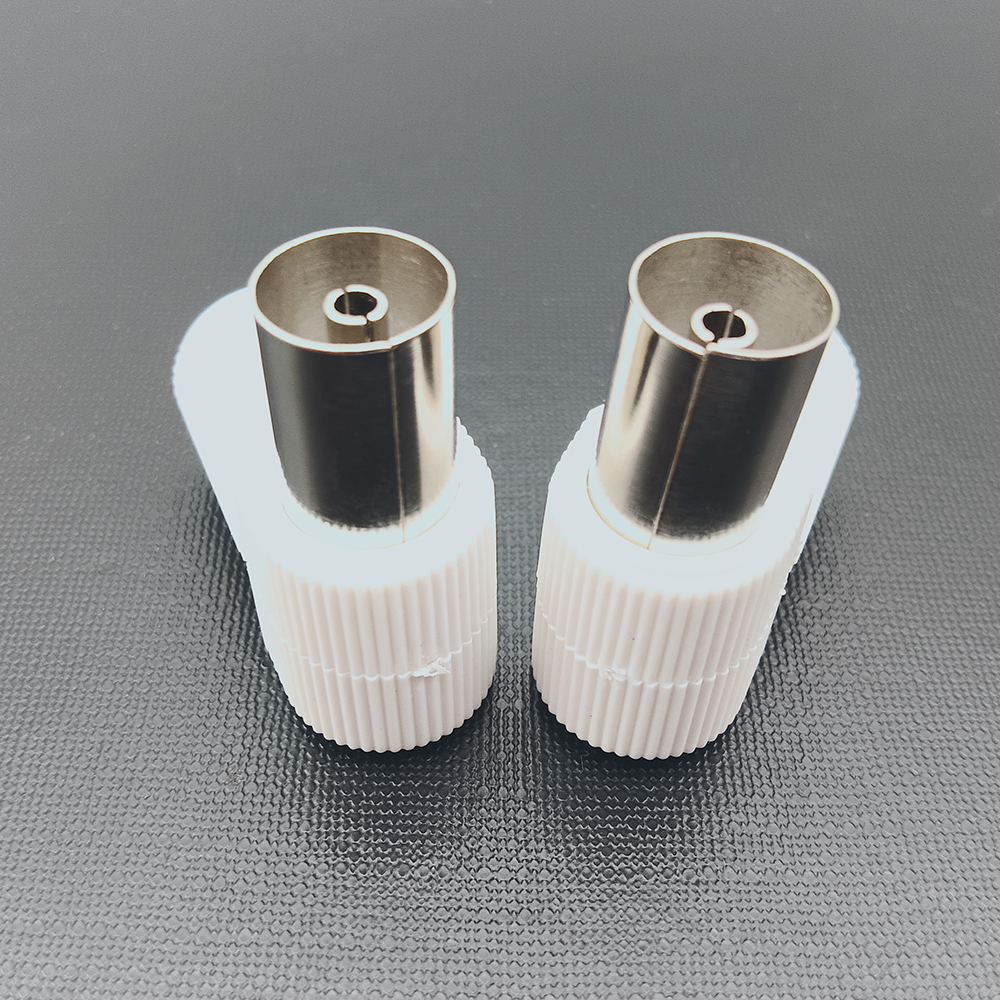

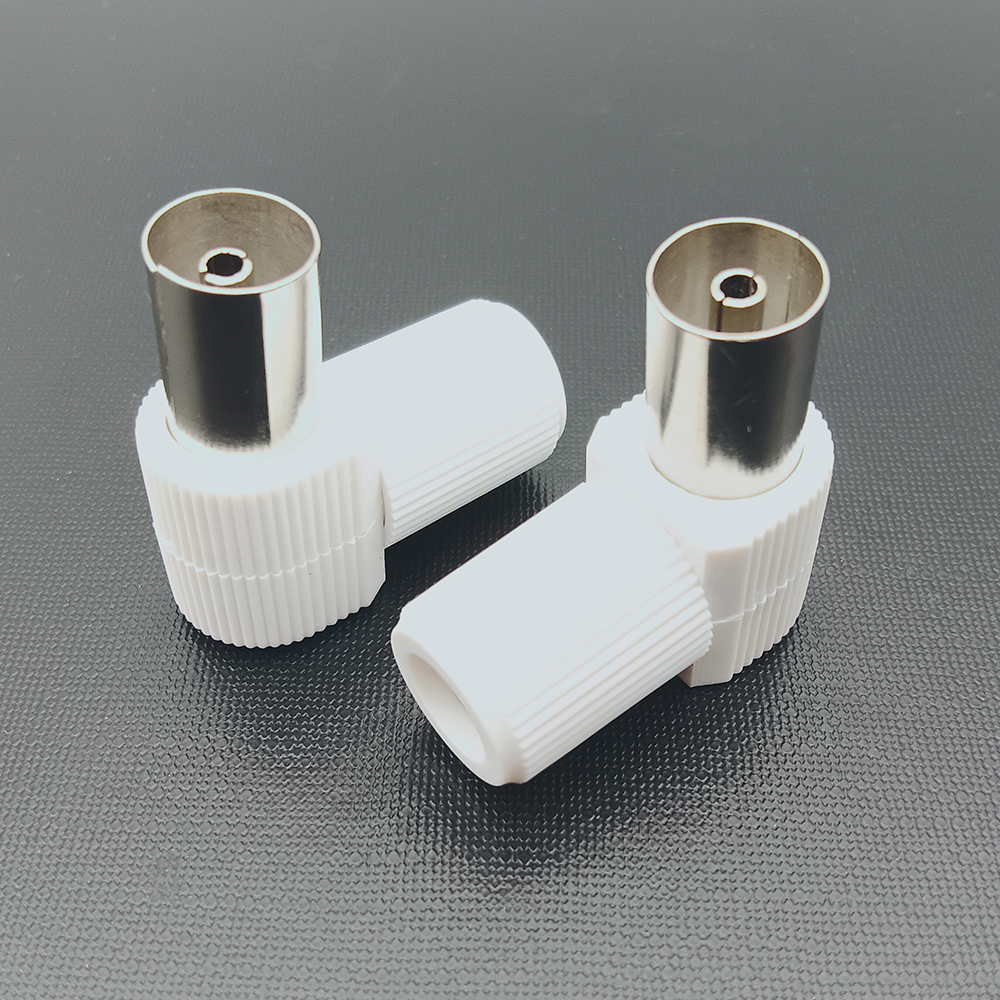

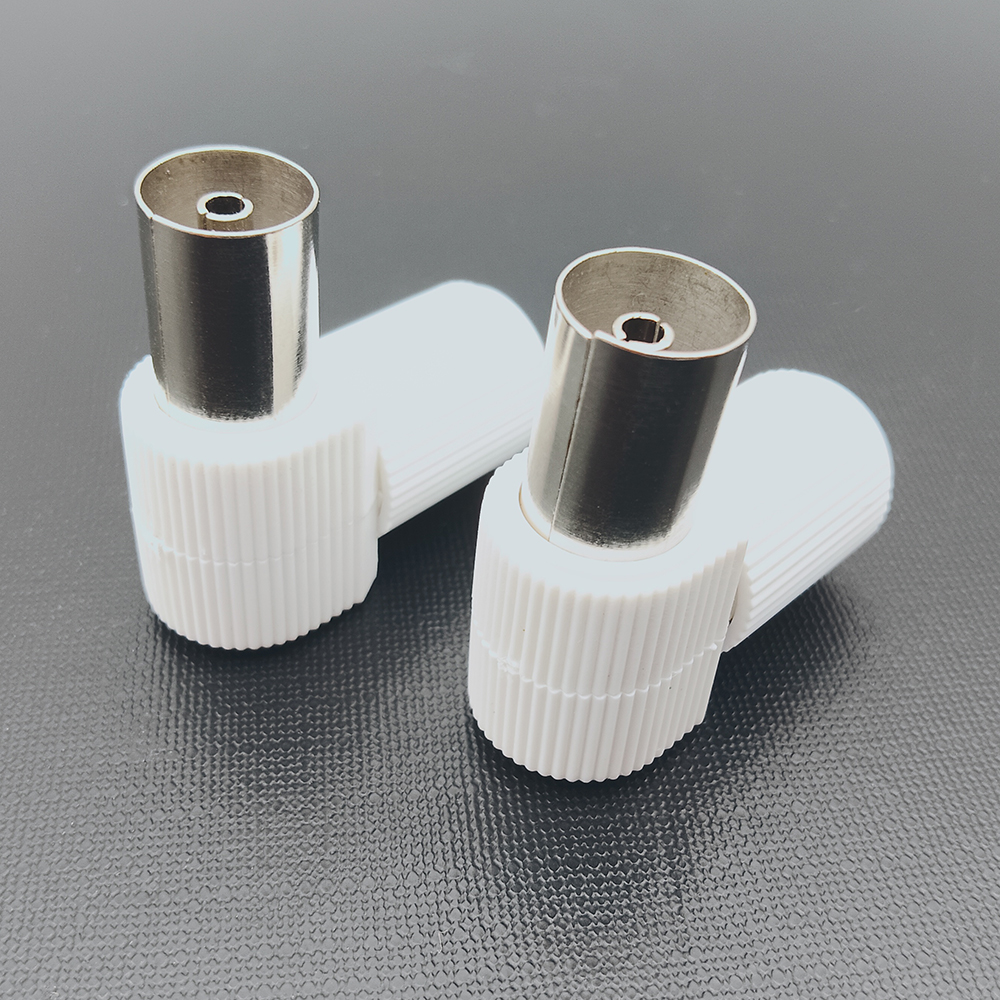

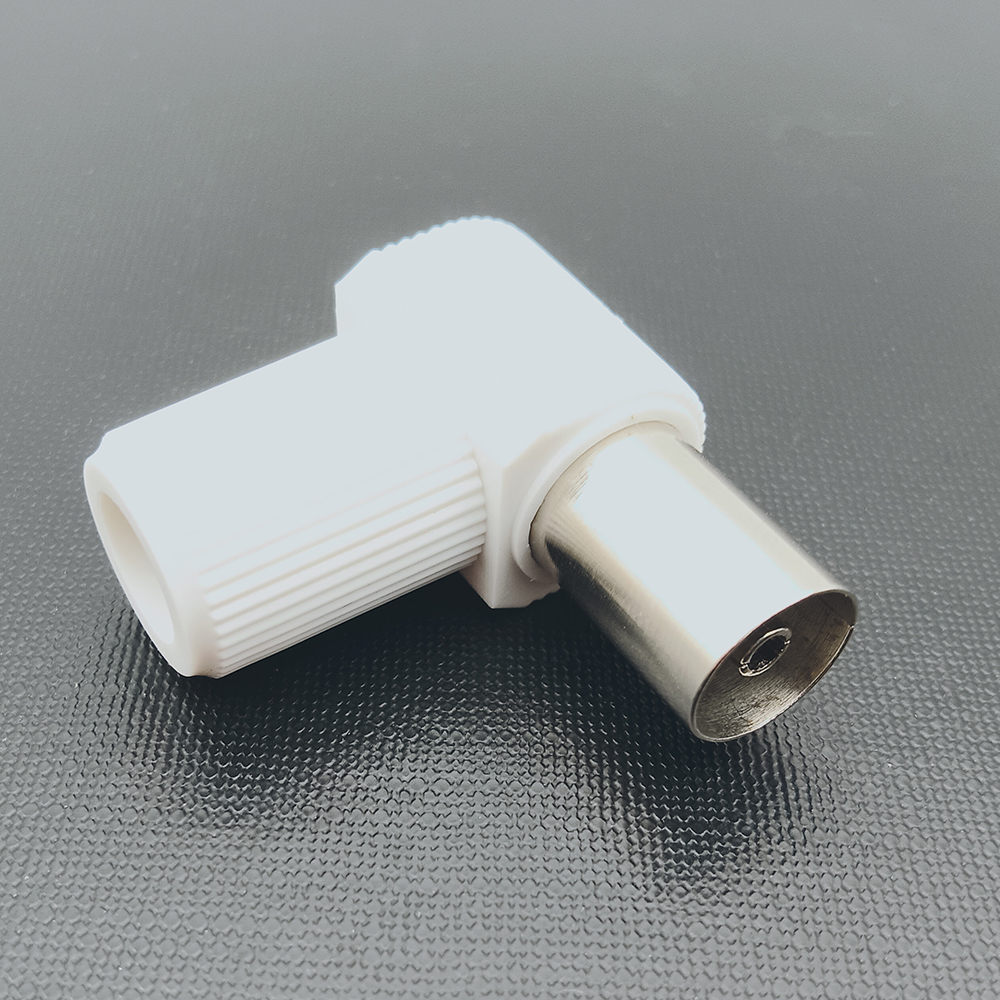

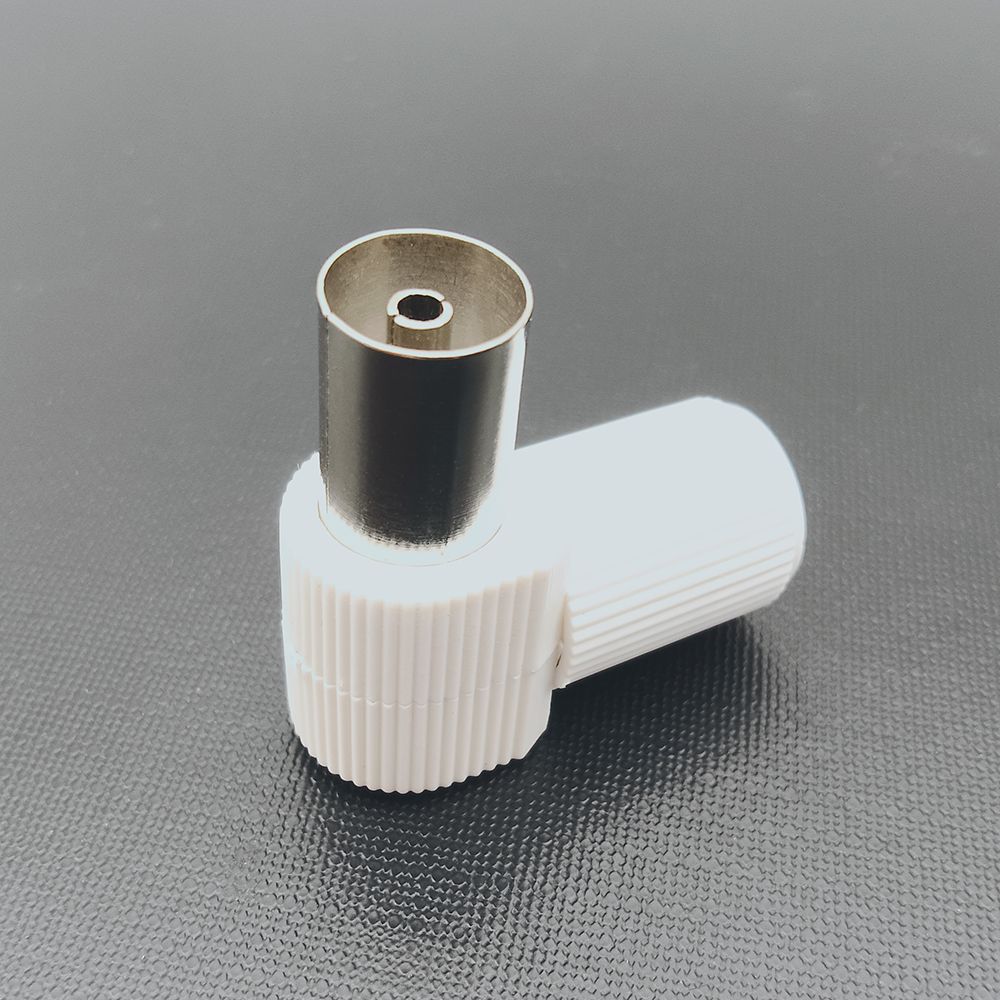

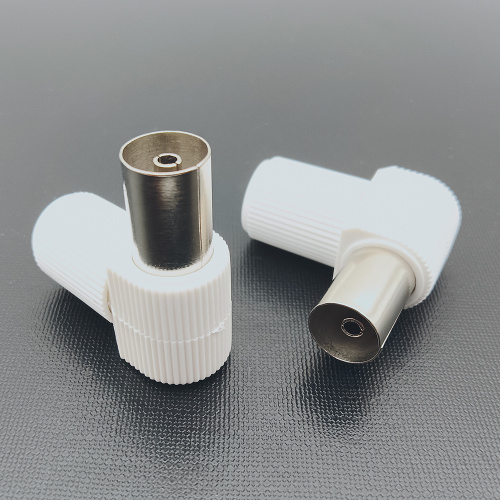

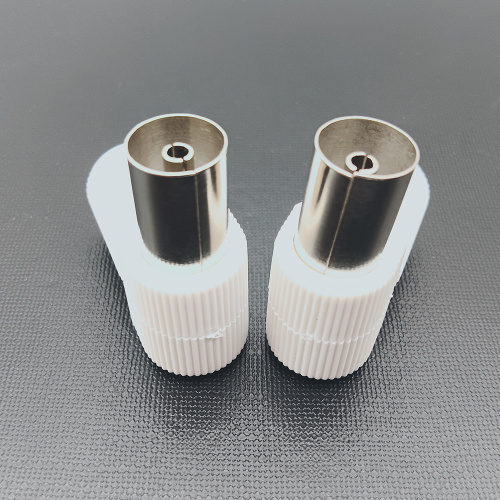

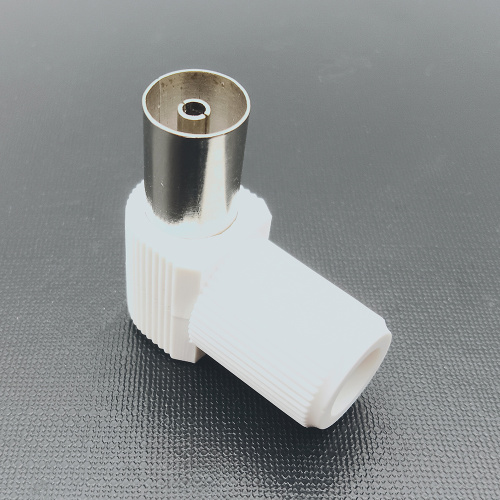

Plastic Right Angle TV PAL Female Coaxial Connector

PAL Right Angle Female Connector – Reliable Signal Transmission for Compact Installations

Engineered for precision and performance, the PAL Right Angle Female Connector delivers a robust solution for high-quality signal connectivity in television, radio, and antenna systems. Designed with a 90-degree angular form factor, this connector excels in space-constrained environments where traditional straight connectors fall short. Its optimized geometry ensures clean cable routing and minimal clutter—ideal for professional AV setups, automotive electronics, or compact home entertainment systems.

Why This Connector Stands Out:

• Right-Angle Design for Space Efficiency: The angled interface allows seamless integration into tight enclosures, such as vehicle dashboards, wall-mounted receivers, or industrial control panels, eliminating strain on cables and reducing installation time.
• Signal Integrity & Interference Resistance: Constructed with precision-machined brass and gold-plated contacts, it maintains low insertion loss and high shielding effectiveness, ensuring crisp audio and stable video transmission without degradation over distance.
• Durable Build Quality: Featuring corrosion-resistant materials and reinforced housing, this RF female connector withstands repeated mating cycles, temperature fluctuations, and environmental stress—perfect for both indoor and outdoor applications.
• Tool-Free Installation: A snap-and-lock mechanism enables quick, reliable connections without special tools or soldering, making it accessible for technicians and DIY users alike.

This PAL-compatible connector is part of a broader range of high-performance interconnect solutions—including DIN, Fakra, HSD, and coaxial wiring harnesses—tailored for modern communication systems across consumer electronics, broadcast infrastructure, and automotive infotainment platforms. Whether you're upgrading an existing setup or designing a new system, its compatibility with standard PAL interfaces ensures plug-and-play reliability across a wide spectrum of devices.

Applications Where It Shines:

From rooftop antennas and satellite dishes to embedded multimedia units in vehicles, this right-angle female connector offers unmatched versatility. It’s widely used in: digital TV installations, wireless microphone systems, marine navigation gear, industrial monitoring equipment, and smart home automation setups where neat cabling and consistent signal quality are non-negotiable.

User Feedback Highlights:

Users consistently praise its ease of use and durability, especially in mobile or harsh environments. One installer noted, “I’ve used dozens of connectors over the years, but this one stands out—it stays secure even after multiple disconnections.” Another user from a broadcast studio said, “The signal clarity improved noticeably after switching to this design—it’s like turning up the volume on your connection.”

Frequently Asked Questions:

Is this connector compatible with all PAL systems? Yes, it adheres to standard PAL specifications and works seamlessly with most analog and digital video outputs that use the same pin configuration.

Can I install it myself without technical expertise? Absolutely—the intuitive design requires no tools or advanced knowledge. Just align the male plug and press firmly until it clicks into place.

Does it support high-frequency signals? Yes, thanks to its low-loss construction and effective electromagnetic shielding, it performs reliably up to several hundred MHz, suitable for UHF/VHF bands commonly found in radio and antenna applications.

For professionals seeking a dependable, space-saving alternative to conventional connectors, the PAL Right Angle Female Connector combines engineering excellence with practical usability—an essential component for any serious AV or RF project requiring precision, resilience, and clean integration.

Product Categories : Wall Plates Jacks > Pal Connector
