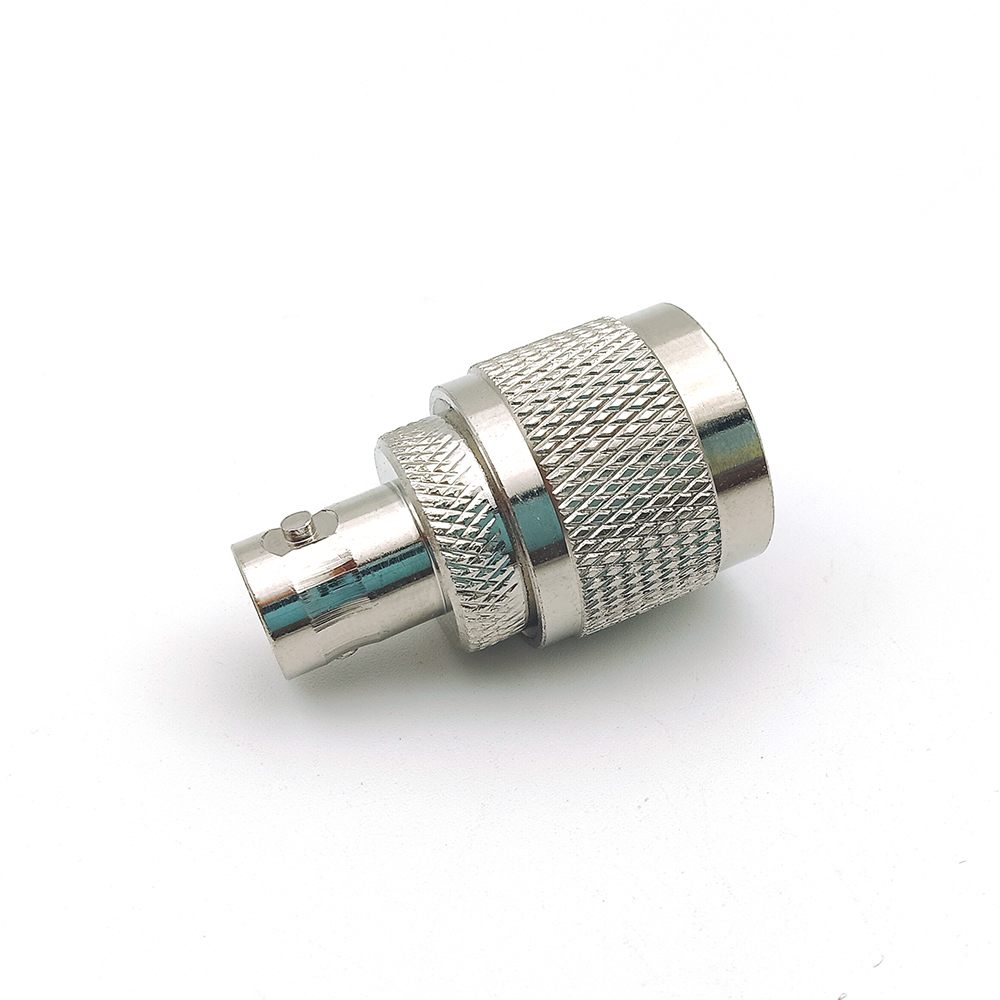

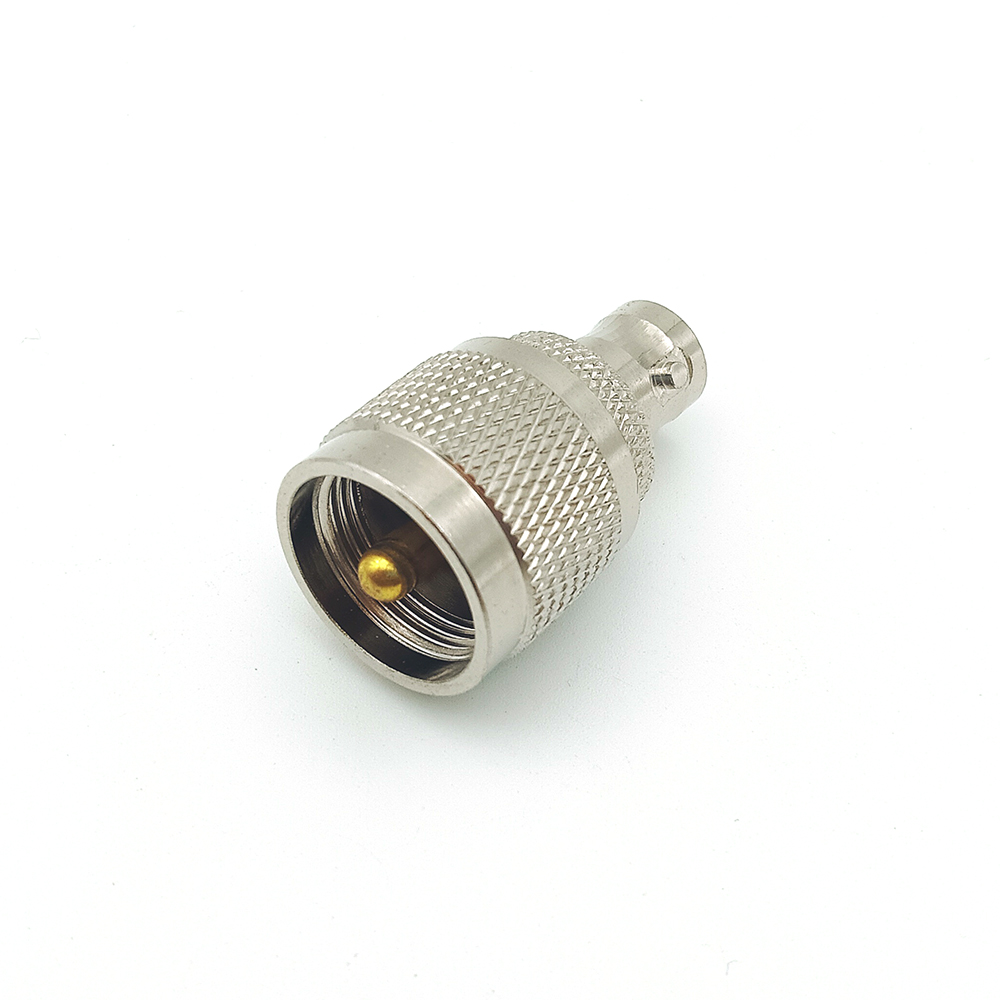

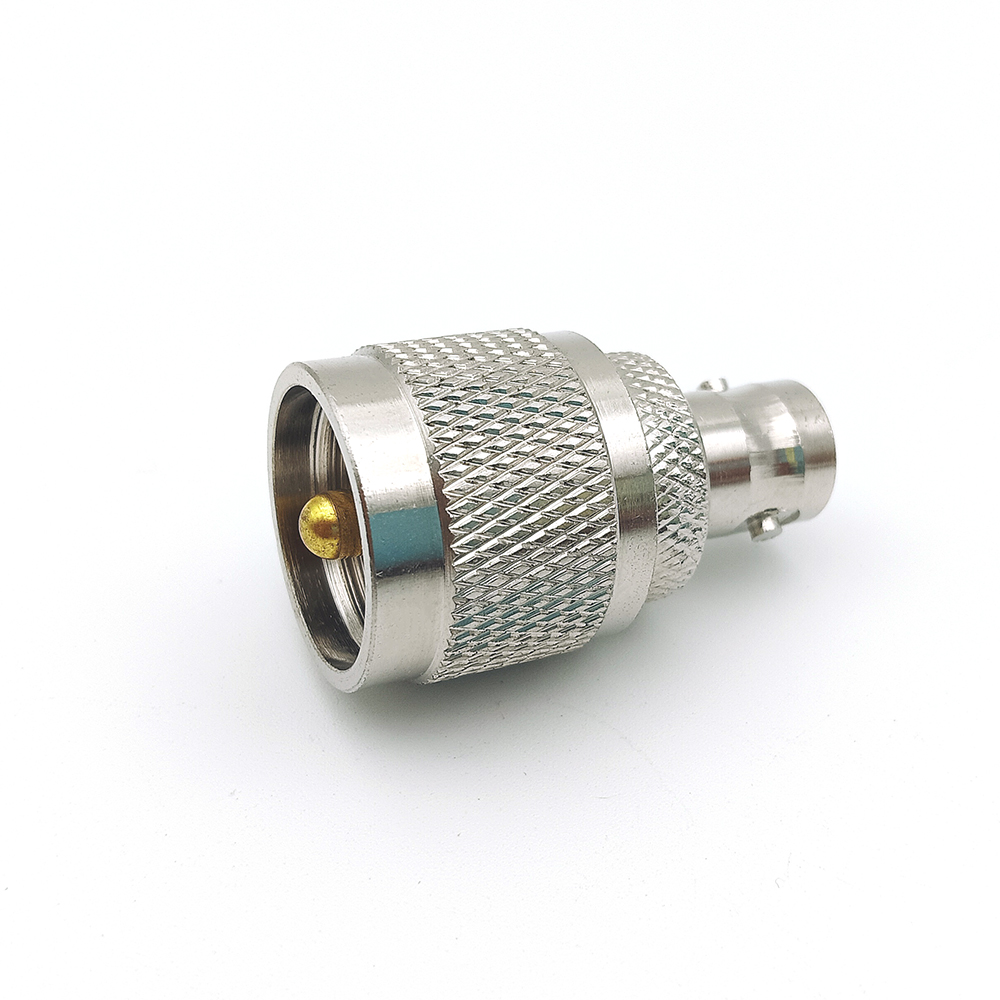

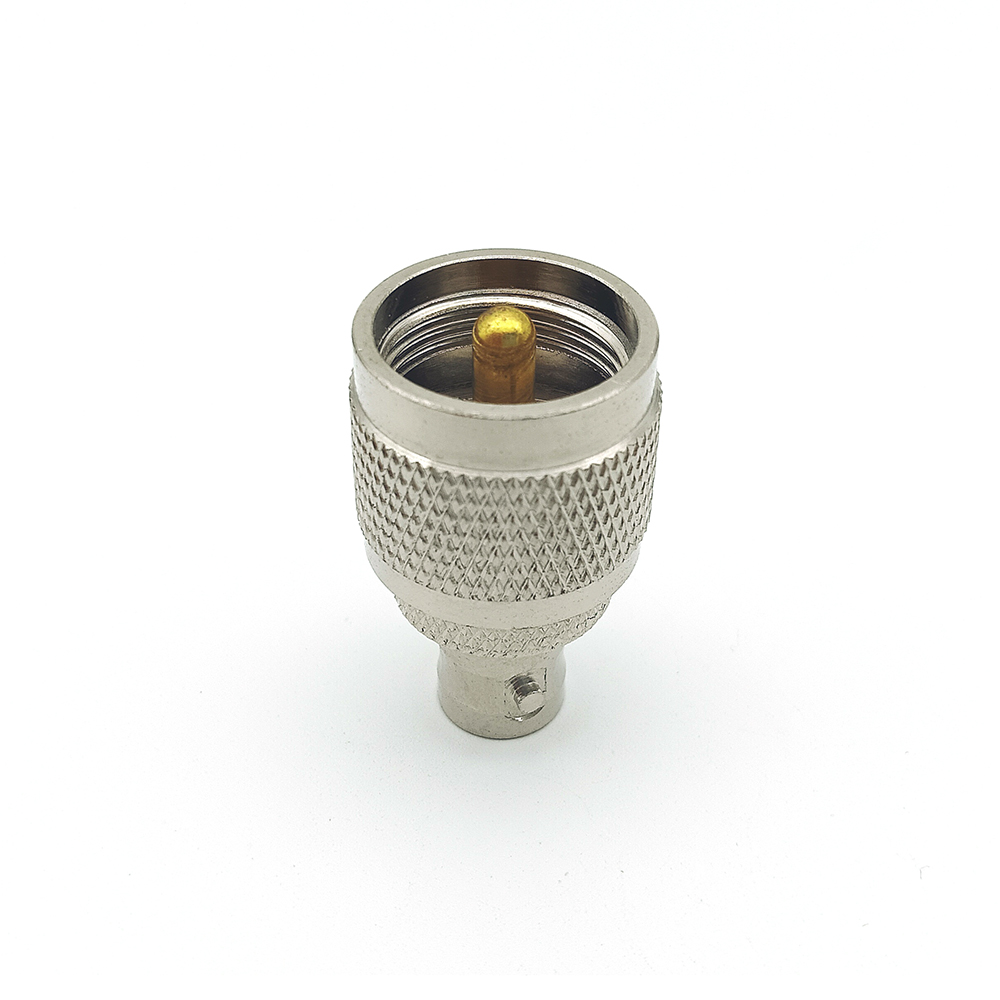

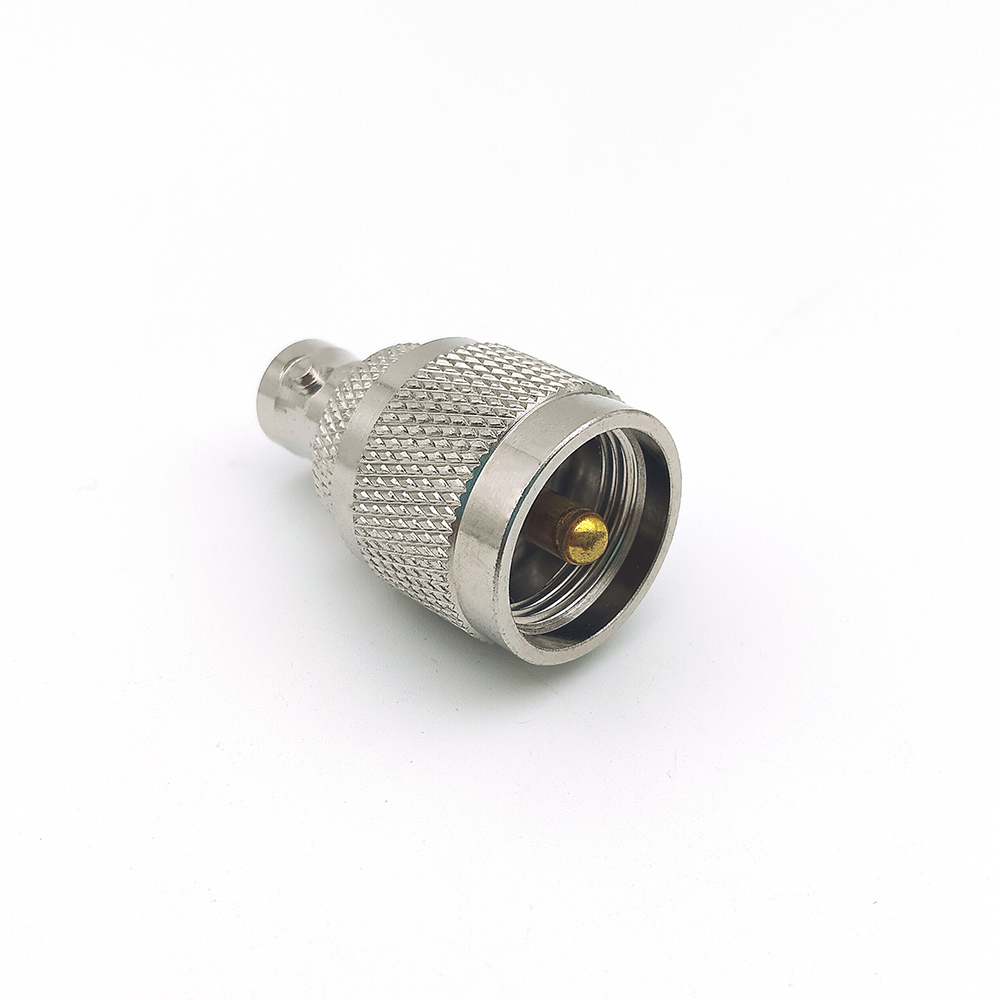

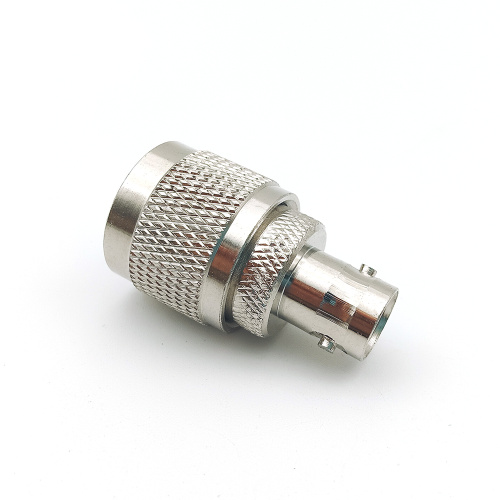

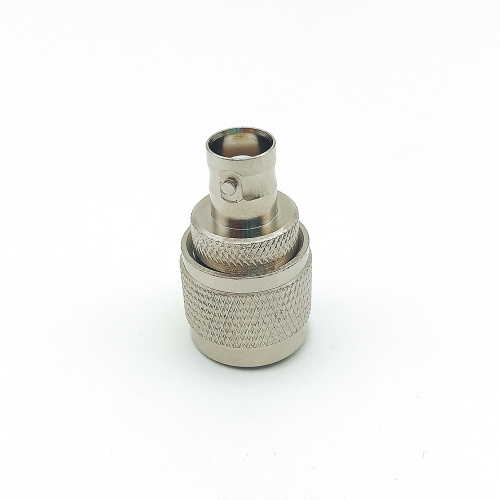

Male UHF to Female BNC RF Coaxial Adapter

UHF to BNC RF Adapter – High-Performance Coaxial Connector for Professional Radio and Wireless Applications

This UHF-to-BNC adapter is a precision-engineered RF interconnect solution designed for seamless compatibility across a wide range of communication systems, including vehicle-mounted CB radios, amateur (ham) radio setups, marine VHF equipment, and antenna analyzers. Engineered with robust materials and stringent performance standards, it ensures reliable signal transmission in demanding environments where stability, durability, and impedance consistency are critical.

Key Features:

• PL-259 Male (UHF) to BNC Female connector interface – ideal for connecting coaxial cables to antennas or test instruments
• Impedance: 50 ohms – maintains signal integrity across RF frequencies up to 300 MHz
• Temperature Range: -40°C to +80°C – suitable for extreme outdoor conditions, from arctic deployments to tropical climates
• Insulation Resistance: ≥5000 MΩ – minimizes leakage current and enhances safety in high-frequency applications
• Durability: Up to 500 mating cycles – built for repeated use without degradation in performance
• Compatibility: Works with Wi-Fi radios, wireless LAN devices, external antennas, and legacy two-way radio systems

This adapter bridges the gap between common UHF connectors found on older radios and modern BNC-equipped devices such as spectrum analyzers, signal generators, and portable transceivers. Whether you're upgrading your mobile communications gear, setting up an amateur radio station, or integrating an external antenna into a marine VHF setup, this connector provides a secure, low-loss connection that reduces signal attenuation and improves overall system efficiency. The threaded PL-259 male end offers mechanical stability, while the BNC female side enables quick coupling with minimal phase shift—making it a preferred choice among professionals in telecommunications, emergency services, and field testing.

Applications Include:

• Antenna installations for ham radio operators using 2-meter band equipment
• Marine VHF radio upgrades requiring flexible cable routing
• Field testing of wireless networks and RF components
• Connecting external antennas to Wi-Fi access points or mesh routers
• Integration into public address systems and broadcast infrastructure

Users report consistent performance even after extended exposure to humidity, vibration, and temperature fluctuations—key factors for reliable operation in both mobile and fixed installations. Its compact design allows easy integration into tight spaces, and its corrosion-resistant plating ensures longevity in salt-air environments typical of coastal and maritime operations.

Frequently Asked Questions:

What is a Uhf Connector? A UHF connector, originally developed for Ultra High Frequency bands, is a threaded RF coaxial interface widely used in radio communications. Though now often applied below 300 MHz, it remains a standard in many legacy and amateur systems.

What does UHF stand for? It refers to Ultra High Frequency, a portion of the electromagnetic spectrum ranging from 300 MHz to 3 GHz—but practical implementations typically limit usage to lower frequencies due to physical limitations.

Where are UHF connectors commonly used? These include CB radios, ham radio antennas, military communications gear, public address systems, and older video transmission equipment.

What types of UHF connectors exist? Common variants include the PL-259 (male) and SO-239 (female), with additional options like right-angle versions, T-connectors, and panel-mount models for specialized mounting needs.
