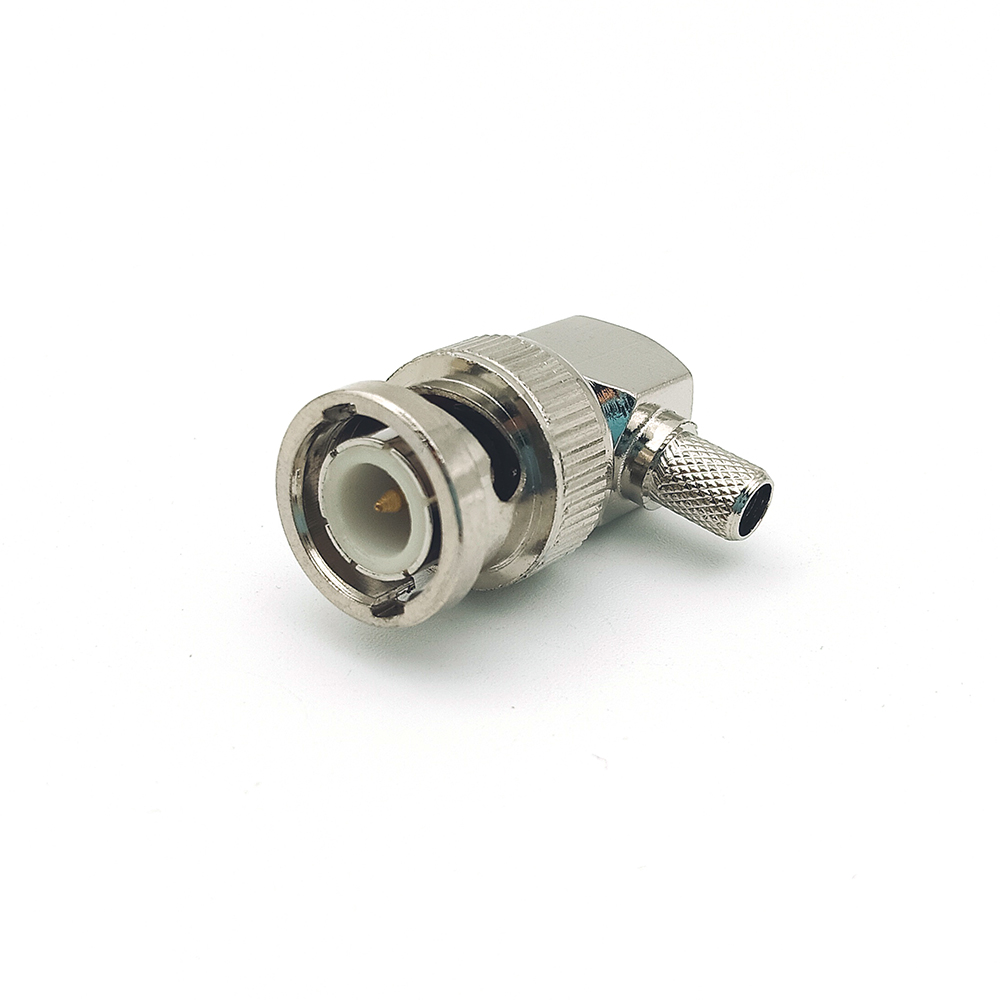

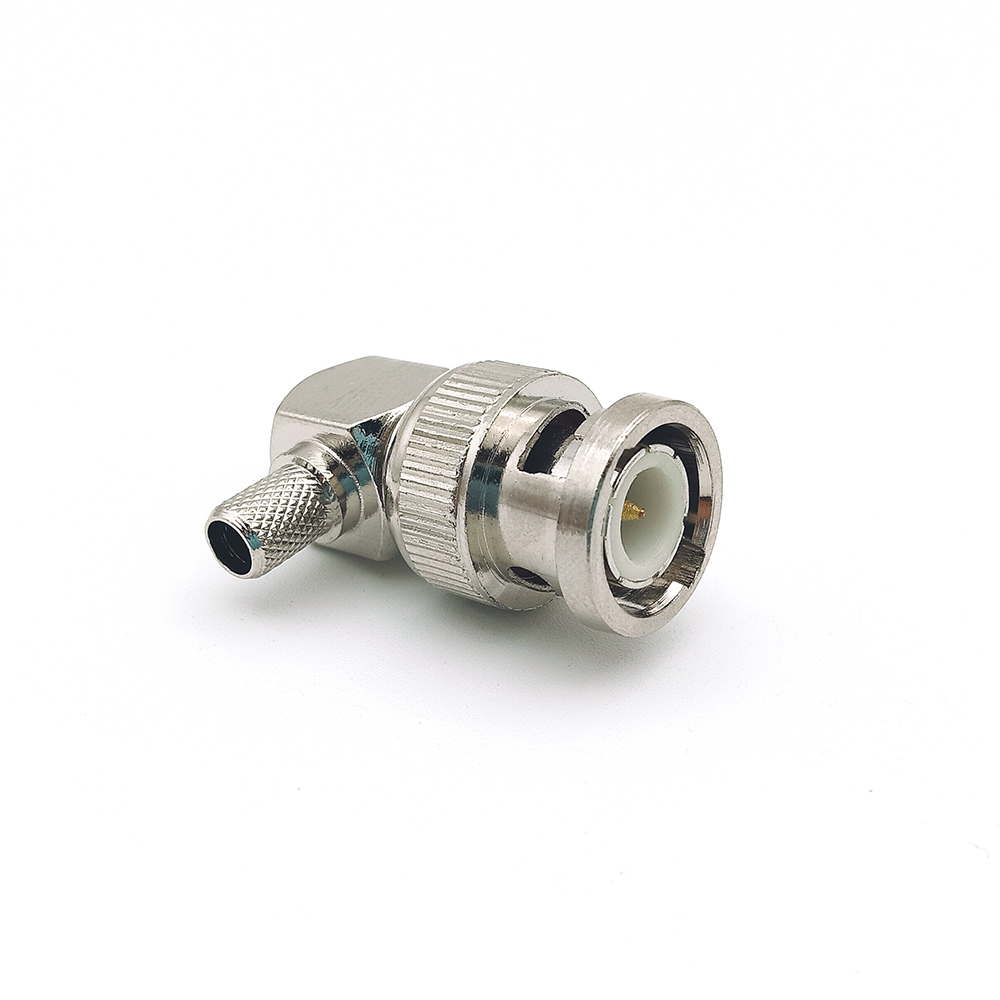

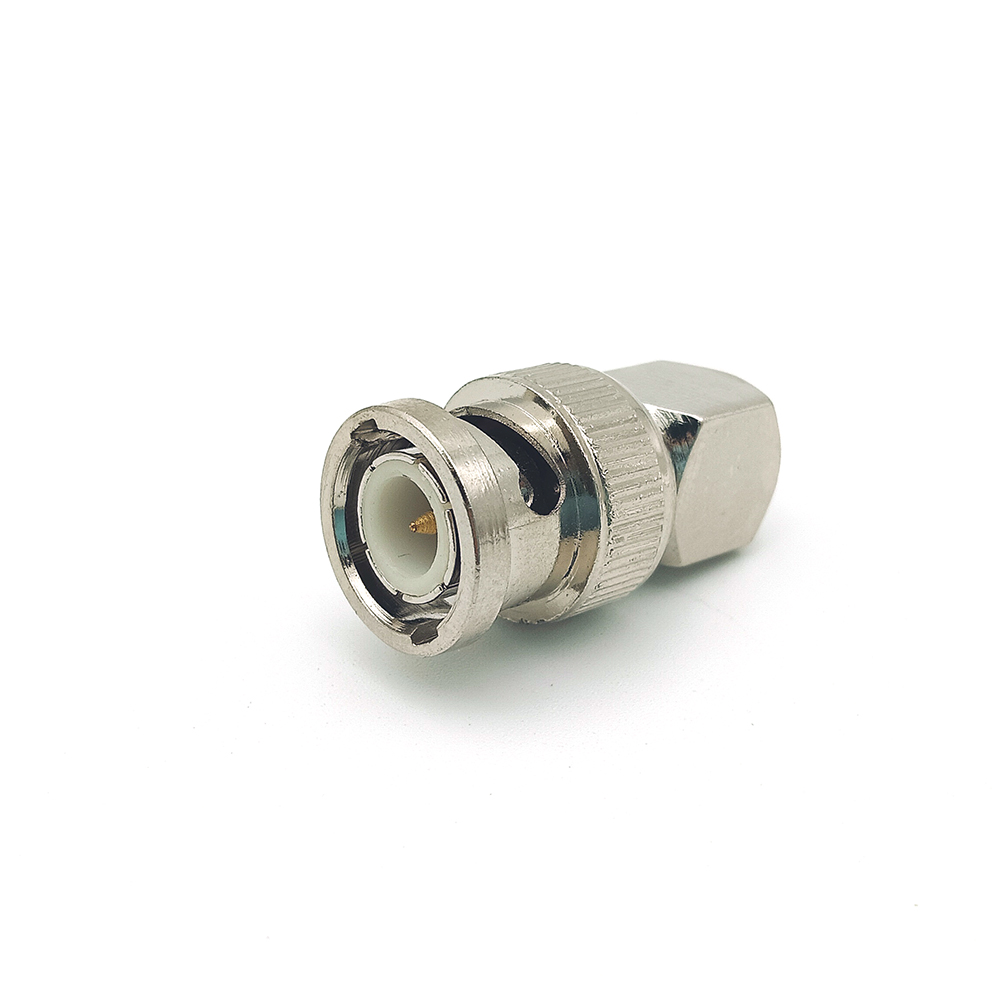

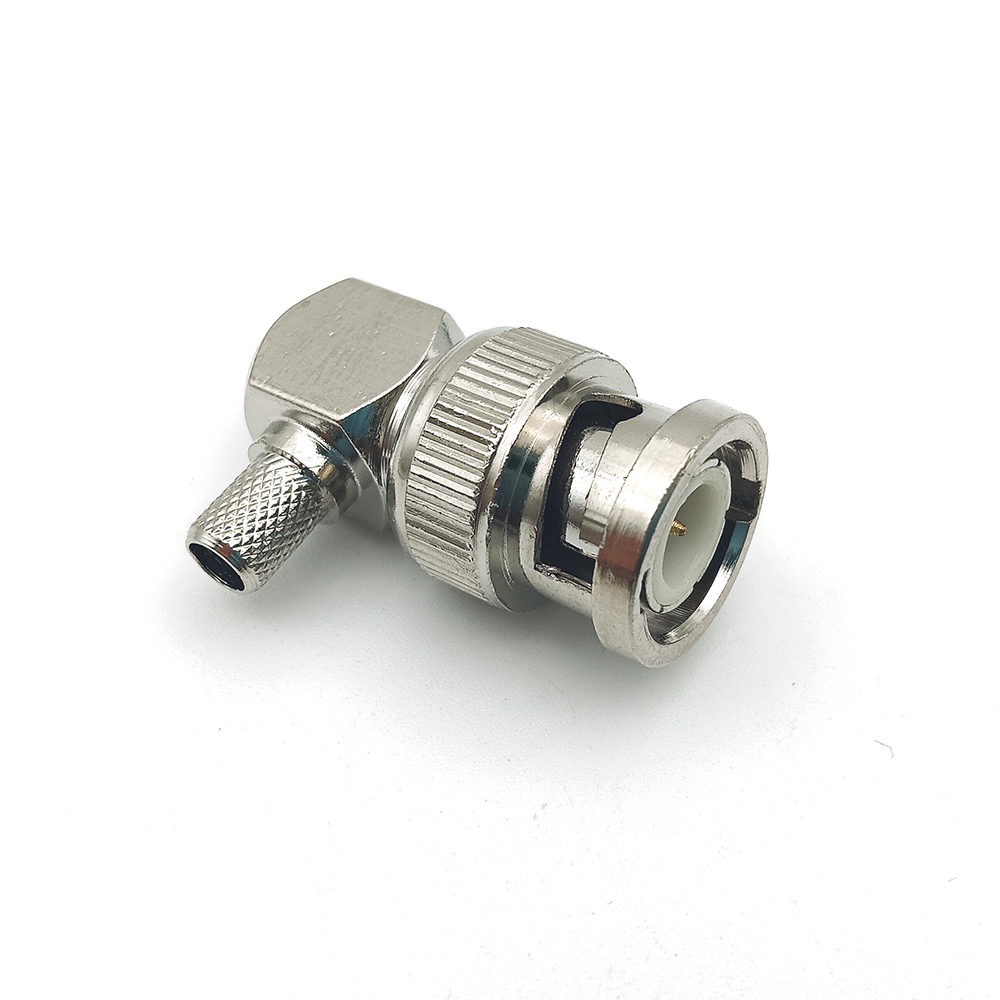

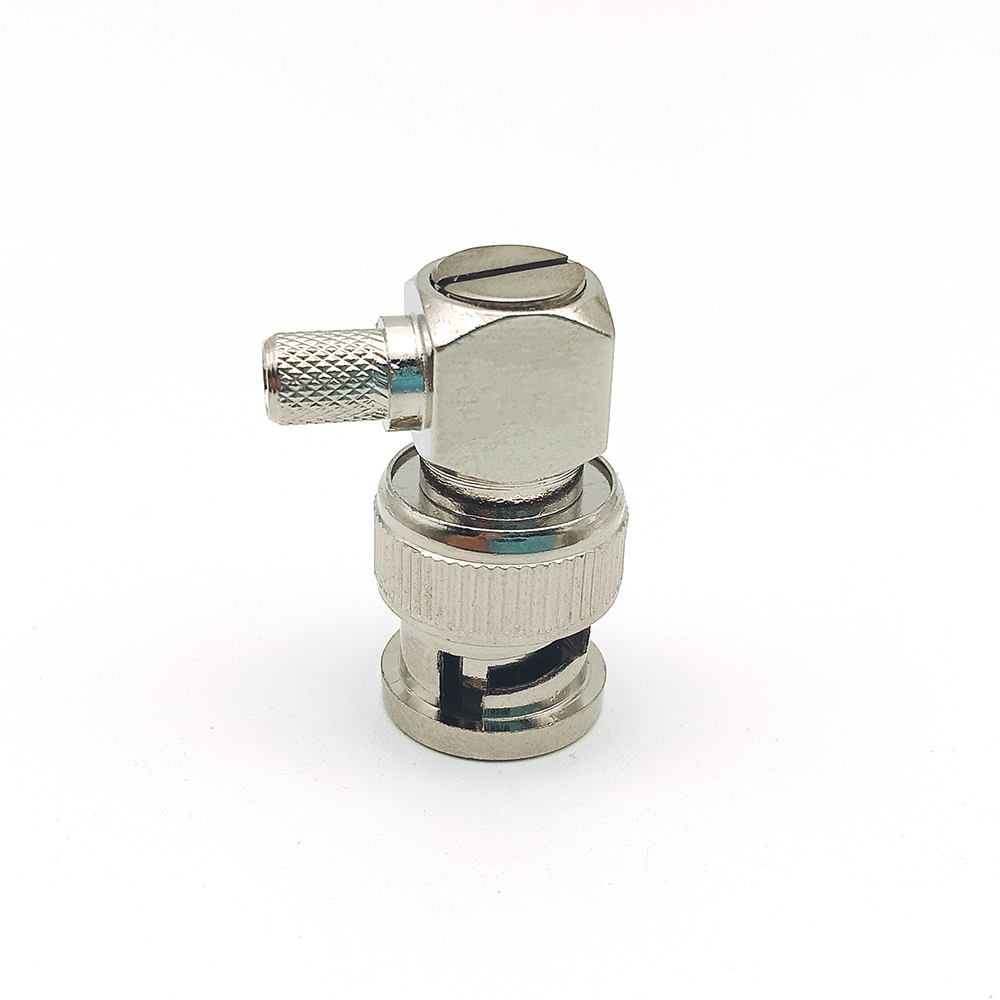

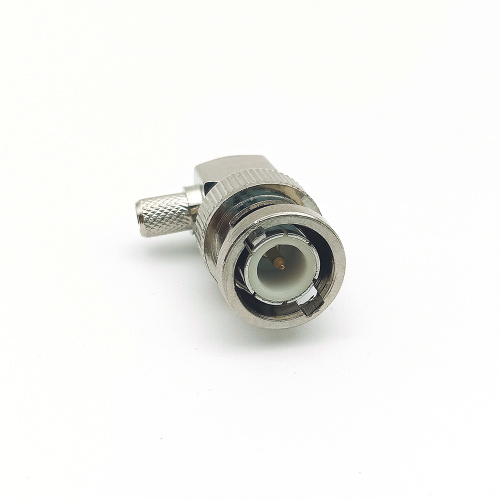

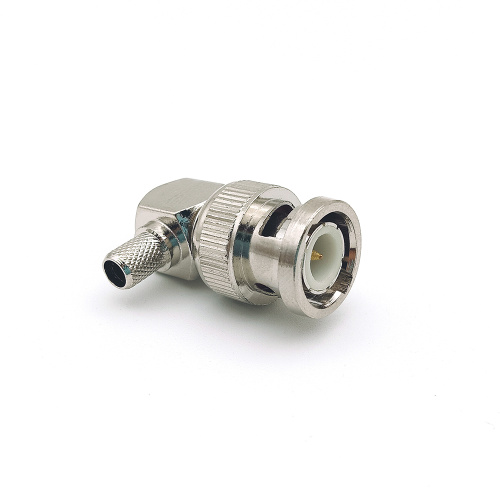

R/A Male Plug Cable Mount BNC Coaxial Connector

Right Angle Male Plug Cable Mount BNC Coaxial Connector – High-Performance RF and Video Connection Solution

Engineered for precision and reliability, the Right Angle Male Plug Cable Mount BNC Coaxial Connector delivers exceptional signal integrity in demanding environments. Ideal for compact installations where space is limited, this connector features a 90-degree orientation that optimizes cable routing while minimizing mechanical stress on connections. Whether used in telecommunications infrastructure, surveillance systems, or laboratory test setups, it ensures consistent performance across a wide frequency range—from DC to 4 GHz—with minimal signal degradation.

This Bnc Connector is designed for seamless integration with standard female BNC interfaces, making it compatible with a broad array of equipment including antennas, CCTV cameras, RF transceivers, and industrial control modules. The male plug configuration allows for secure, low-loss coupling, while the cable-mount design supports both soldering and crimping methods—offering flexibility for different installation techniques. Available options include RG-58, RG-59, RG-174, LMR-195, and other common coaxial cables, enabling tailored solutions based on specific application requirements such as impedance matching, shielding effectiveness, or environmental resilience.

The connector’s robust construction uses brass body materials plated in nickel, silver, or gold for enhanced corrosion resistance and long-term durability. Its center contact is similarly plated to ensure excellent conductivity, reducing contact resistance and improving overall efficiency. Inside, a high-quality PTFE insulator maintains stable dielectric properties, preserving signal purity even under high-frequency operation. With an impedance of precisely 50 ohms, it meets industry standards for video transmission, wireless communication, and test instrumentation applications.

Key benefits include a space-saving right-angle form factor that simplifies mounting in tight enclosures, superior electromagnetic interference (EMI) protection, and easy field assembly without specialized tools. These connectors are widely adopted by engineers working in broadcast media, defense electronics, medical imaging, and automation industries due to their proven track record in harsh conditions—from temperature extremes to vibration exposure.

Applications span professional-grade video systems like HD-over-Coax setups, mobile radio communications, lab bench testing, and embedded sensor networks. Because of its modular design and customizable plating options, users can select configurations optimized for cost, performance, or longevity depending on project demands. For example, gold-plated versions offer superior oxidation resistance in humid climates, while silver-plated variants provide better electrical conductivity at lower costs.

Users consistently praise this connector for its ease of installation, reliable locking mechanism, and ability to maintain signal quality over extended periods—even in high-vibration environments like vehicles or industrial machinery. Many professionals appreciate the clean, organized cabling it enables, especially when integrating multiple devices into confined panels or racks. Its compatibility with various cable types also reduces inventory needs, streamlining procurement for large-scale deployments.

Common questions often revolve around proper termination techniques, compatibility with non-standard cables, and expected lifespan under continuous use. While soldering provides the most durable bond, crimping offers faster deployment for field technicians. Most customers find that following manufacturer guidelines for cable stripping and torque specifications results in optimal performance. When selecting between plating finishes, consider environmental factors: gold for moisture-prone areas, silver for cost-sensitive applications, and nickel for general-purpose use.
