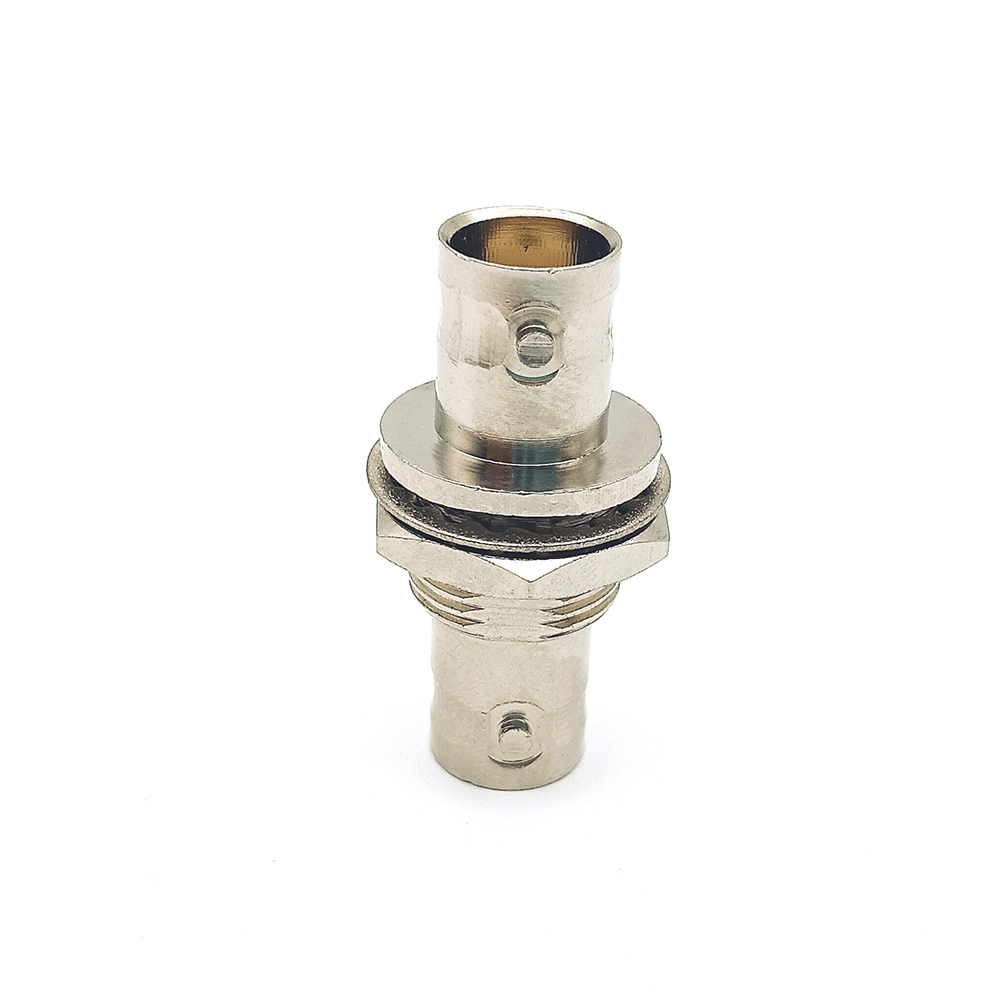

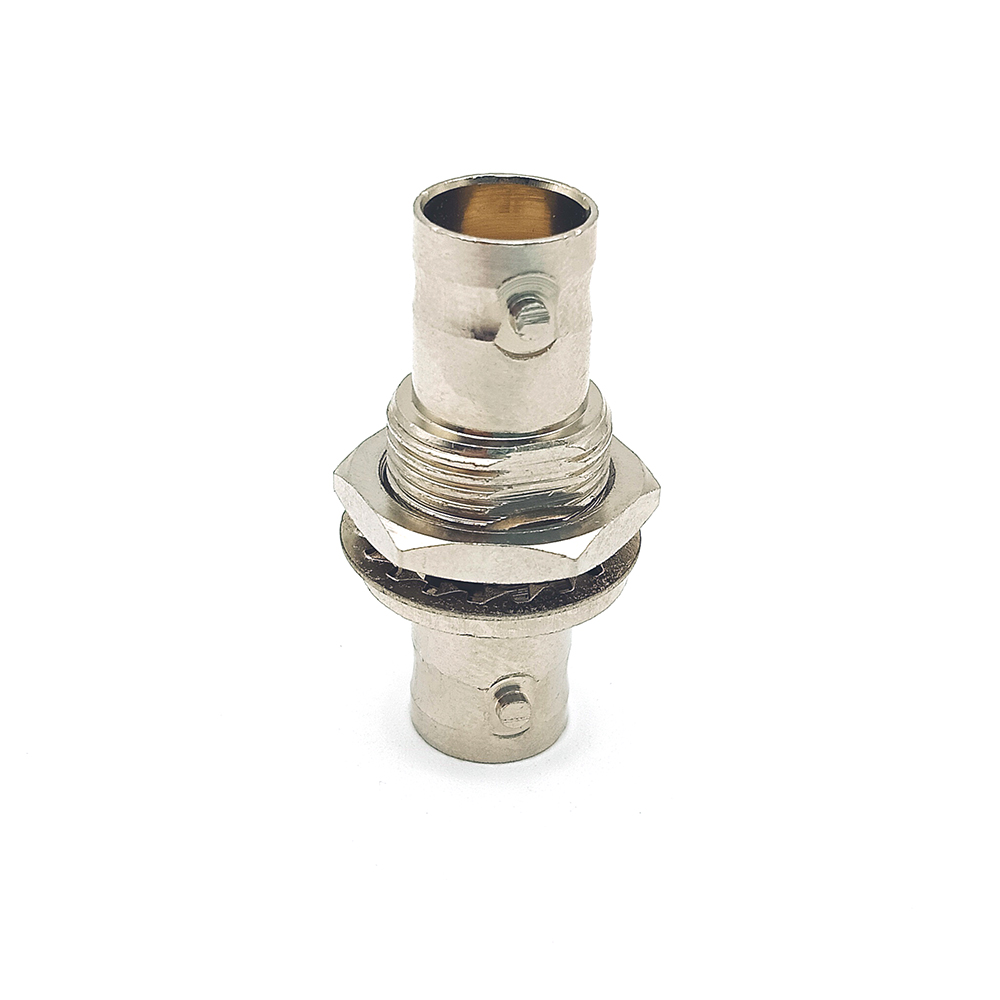

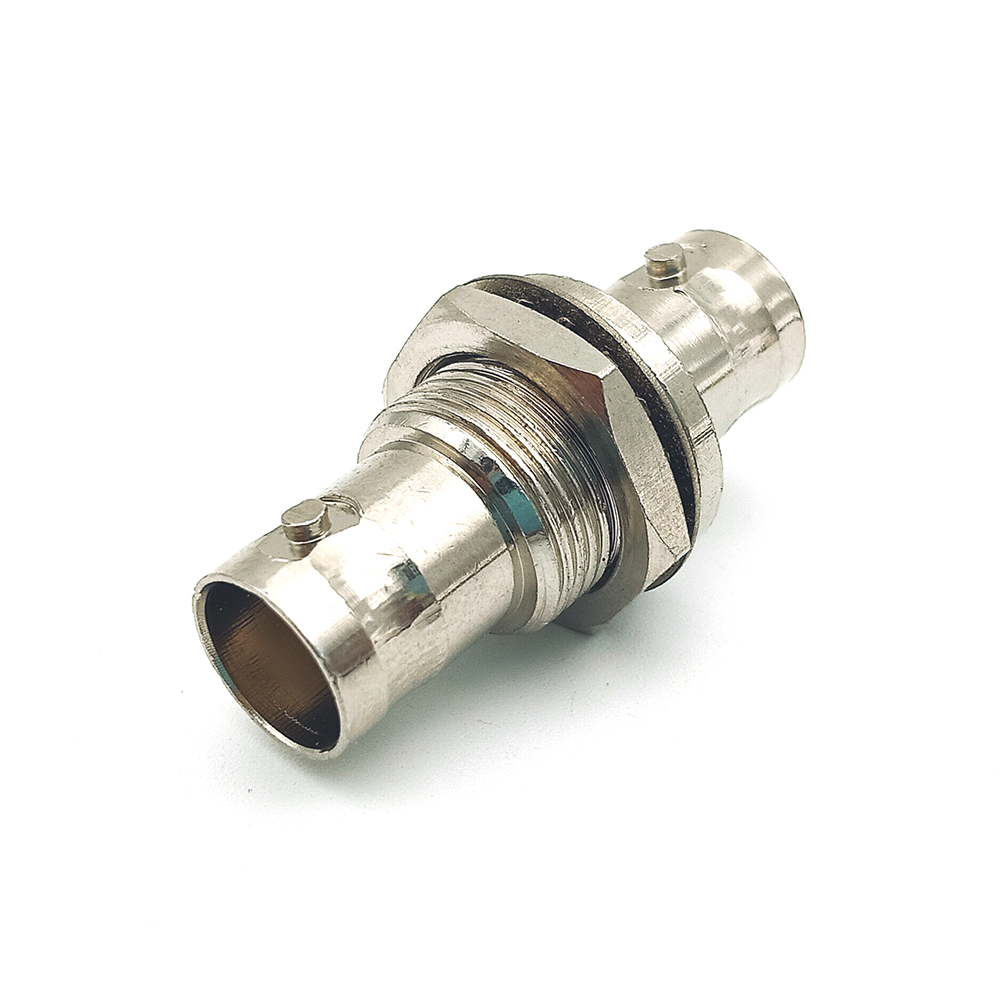

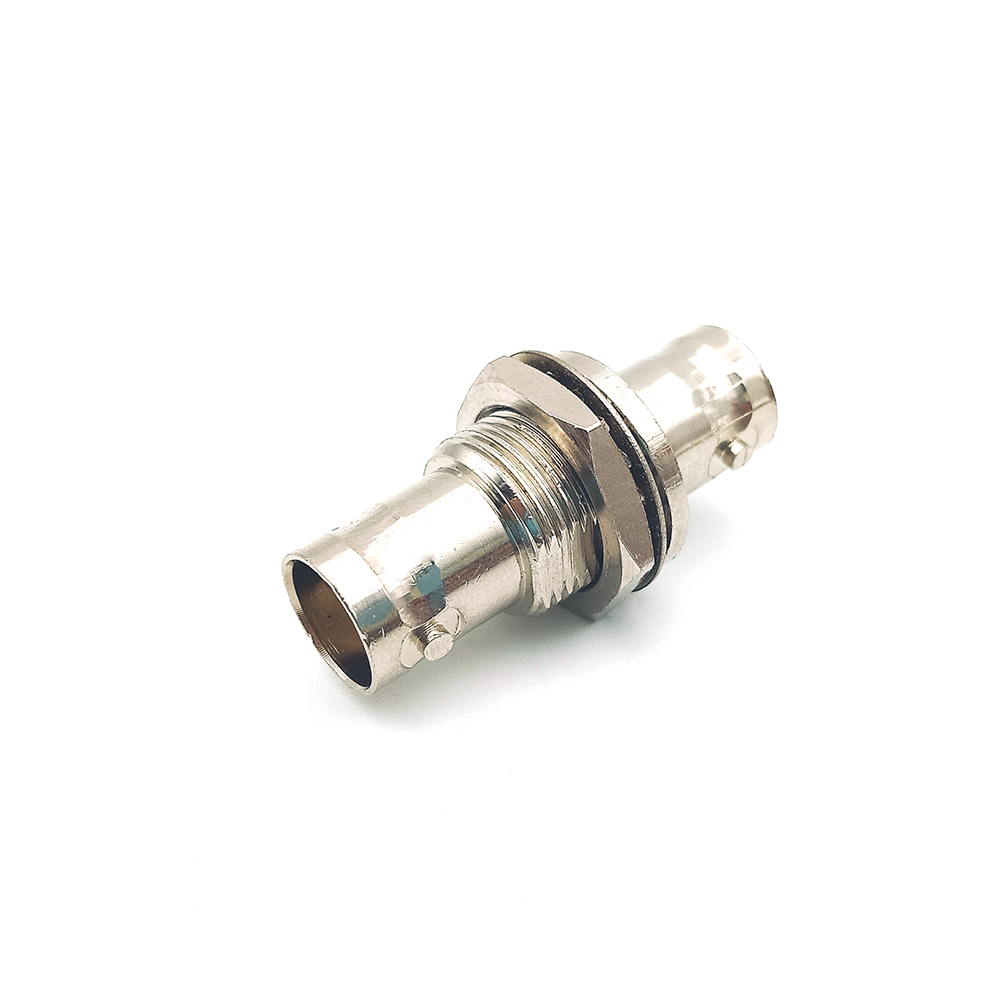

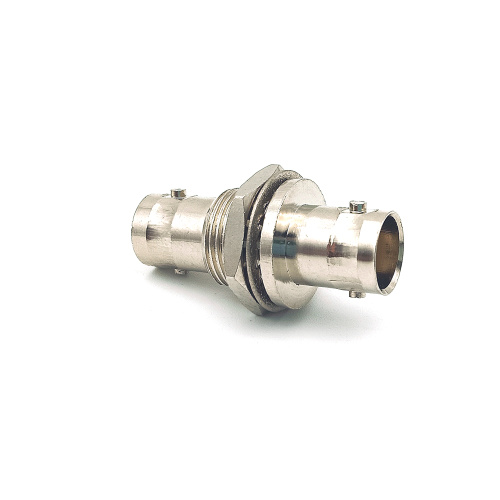

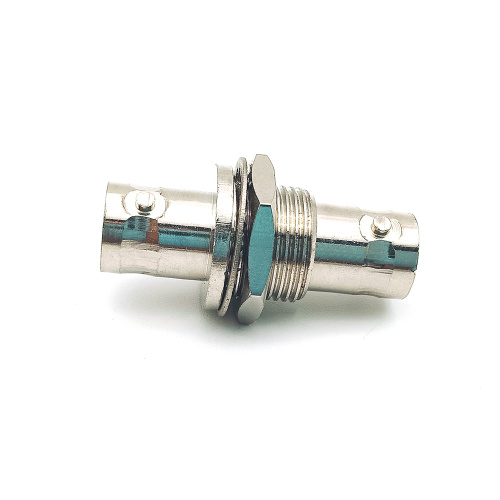

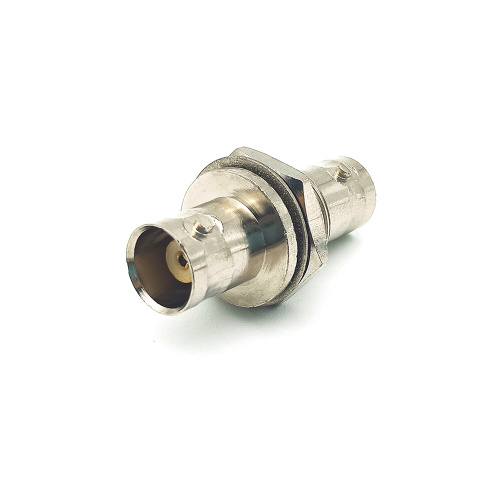

Chassis Bulkhead Mount BNC Female to Female Adapter

Chassis Bulkhead Mount Bnc Female To Female Adapter – Reliable Signal Connectivity for Professional Installations

Engineered for precision and durability, this Chassis Bulkhead Mount Bnc Female To Female Adapter delivers a robust solution for seamless coaxial signal transmission across equipment panels. Ideal for audio, video, and RF applications, it ensures stable performance in demanding environments such as broadcast studios, telecom infrastructure, CCTV systems, and laboratory test setups. With its nickel-plated brass construction and optimized impedance design, this adapter minimizes signal degradation while offering long-term reliability under extreme temperature conditions.

Key Features:

This high-performance interconnect device features a dual female BNC interface that allows direct connection between two male BNC connectors—ideal for extending or bridging signals through enclosures or chassis walls. The secure bulkhead mounting mechanism ensures a firm, vibration-resistant installation, eliminating loose connections commonly found with standard panel-mounted adapters. Engineered for 50 Ohm or 75 Ohm impedance options, it supports both professional video and data transmission standards, making it versatile for use in digital broadcasting, industrial automation, and wireless communication systems. Its corrosion-resistant finish guarantees consistent electrical contact even in humid or chemically exposed settings.

Detailed Description:

Designed for engineers and technicians seeking dependable through-panel connectivity, this adapter is crafted from premium nickel-plated brass—a material known for excellent conductivity, mechanical strength, and resistance to environmental wear. The internal contacts are precision-machined to maintain low VSWR (Voltage Standing Wave Ratio), ensuring minimal signal reflection and maximum throughput efficiency. Whether you're routing cables through a rack-mounted enclosure or integrating into a ruggedized field unit, the adapter’s compact form factor and flush-mount capability make it ideal for space-constrained installations. It complies with international standards for RF connectors, supporting frequencies up to several gigahertz depending on configuration, and performs reliably from -40°C to +85°C, suitable for outdoor and industrial deployments.

Applications:

Commonly used in broadcast engineering, this BNC-to-BNC adapter serves as an essential component in live production gear, satellite uplinks, and fiber-optic backhaul systems. In security infrastructure, it enables clean signal passage between cameras and recording units within surveillance enclosures. For AV integrators, it simplifies cabling in multi-channel video distribution setups. Additionally, it's widely adopted in lab environments where precise signal integrity is critical for testing RF modules, antennas, and transceivers. This makes it a go-to choice for professionals working with analog video, digital audio over coax, and high-frequency instrumentation.

User Feedback Highlights:

Users consistently praise its ease of installation, noting how the threaded bulkhead mount eliminates the need for additional fasteners or adhesives. Many appreciate the lack of signal loss during extended runs, especially when connecting multiple stages of equipment in studio environments. Field technicians report improved uptime in mobile command centers due to the adapter’s ability to withstand repeated plug/unplug cycles without degradation. Overall, customers value the balance of ruggedness and performance, particularly in mission-critical applications where downtime is unacceptable.

Frequently Asked Questions:

What makes this adapter different from regular BNC couplers? Unlike basic connectors, this model is specifically designed for permanent panel integration, offering superior strain relief and electromagnetic shielding. Can I use it with both 50 Ohm and 75 Ohm systems? Yes—it’s available in both configurations, allowing flexibility across various signal types, including SDI video and amateur radio bands. Is it suitable for outdoor use? Absolutely—the wide operating temperature range and corrosion-resistant plating ensure reliable function in harsh climates. How does it improve signal quality compared to generic alternatives? By reducing insertion loss and maintaining consistent impedance, it preserves signal fidelity over longer distances, which is crucial for high-resolution video and sensitive RF measurements.

For professionals who demand flawless connectivity in complex installations, this Chassis Bulkhead Mount BNC Female to Female Adapter offers unmatched reliability, durability, and signal integrity—making it the preferred choice for global industries requiring precision in every connection.

Product Categories : RF Coaxial Connector > Bnc Connector
