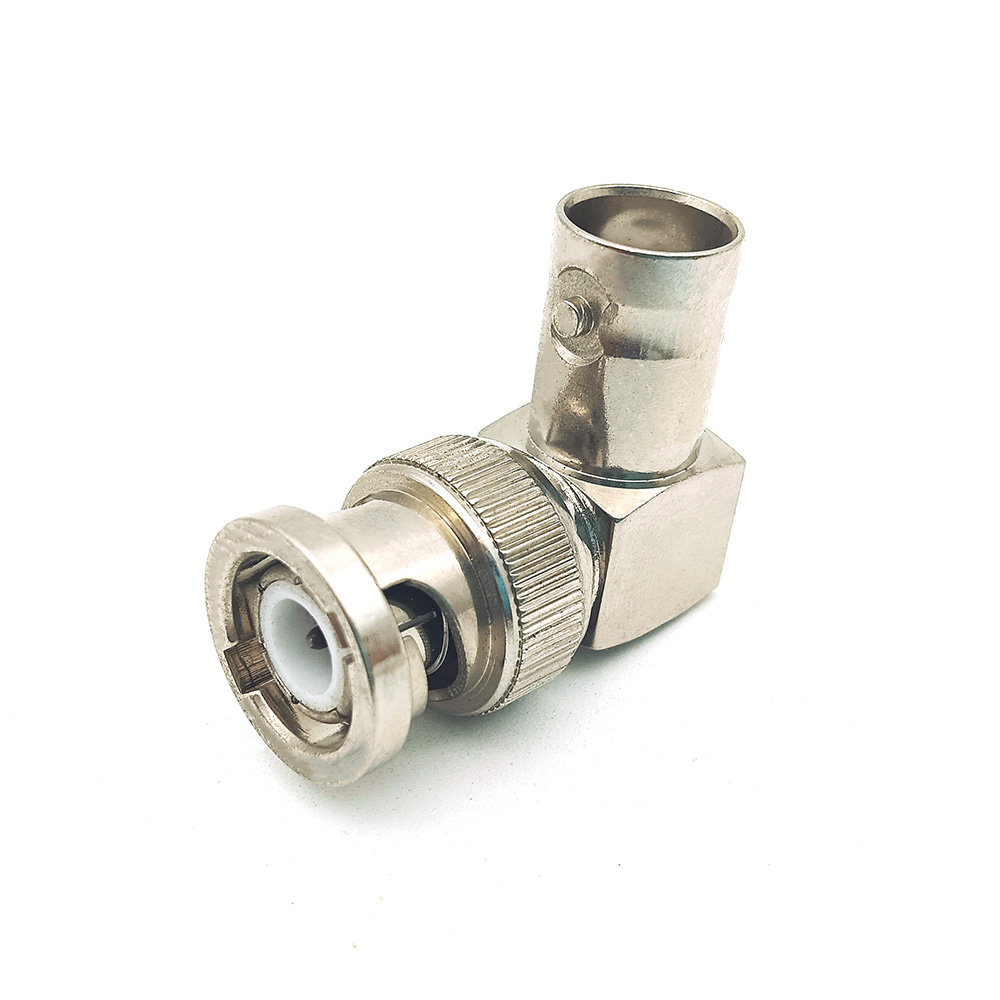

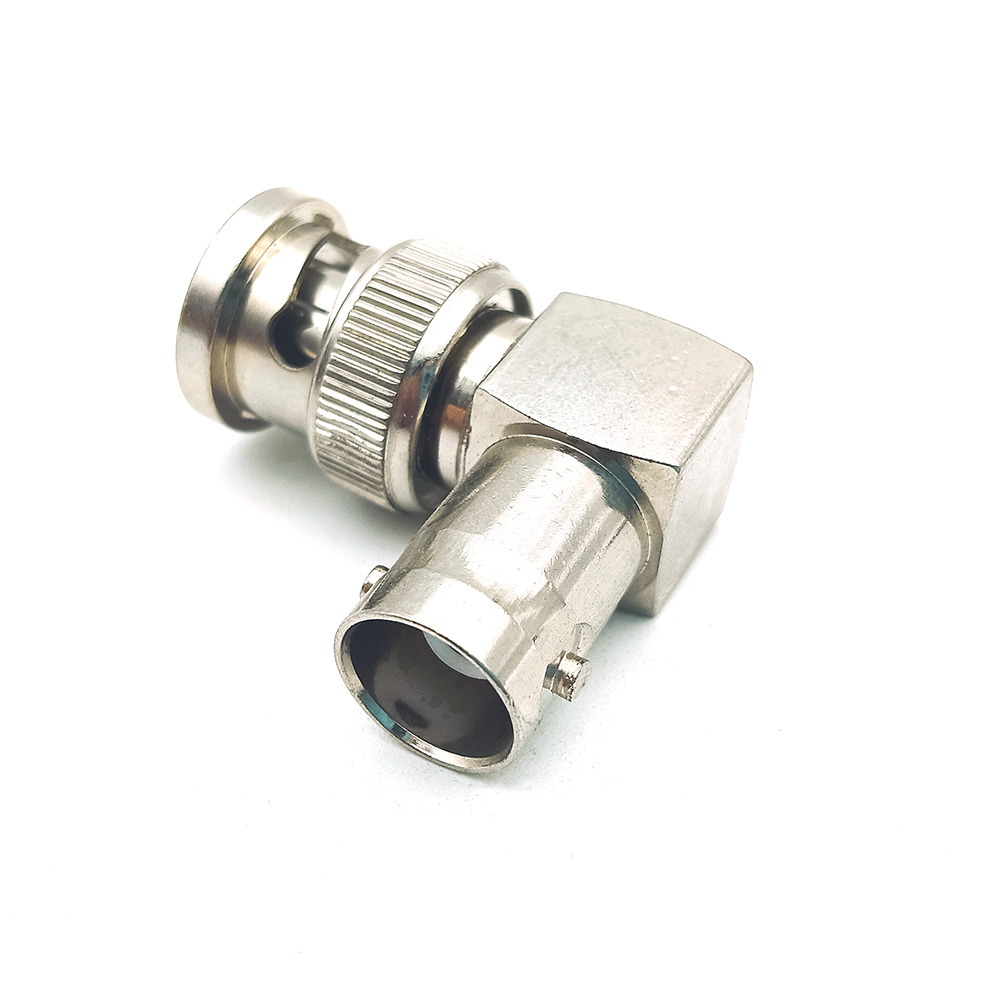

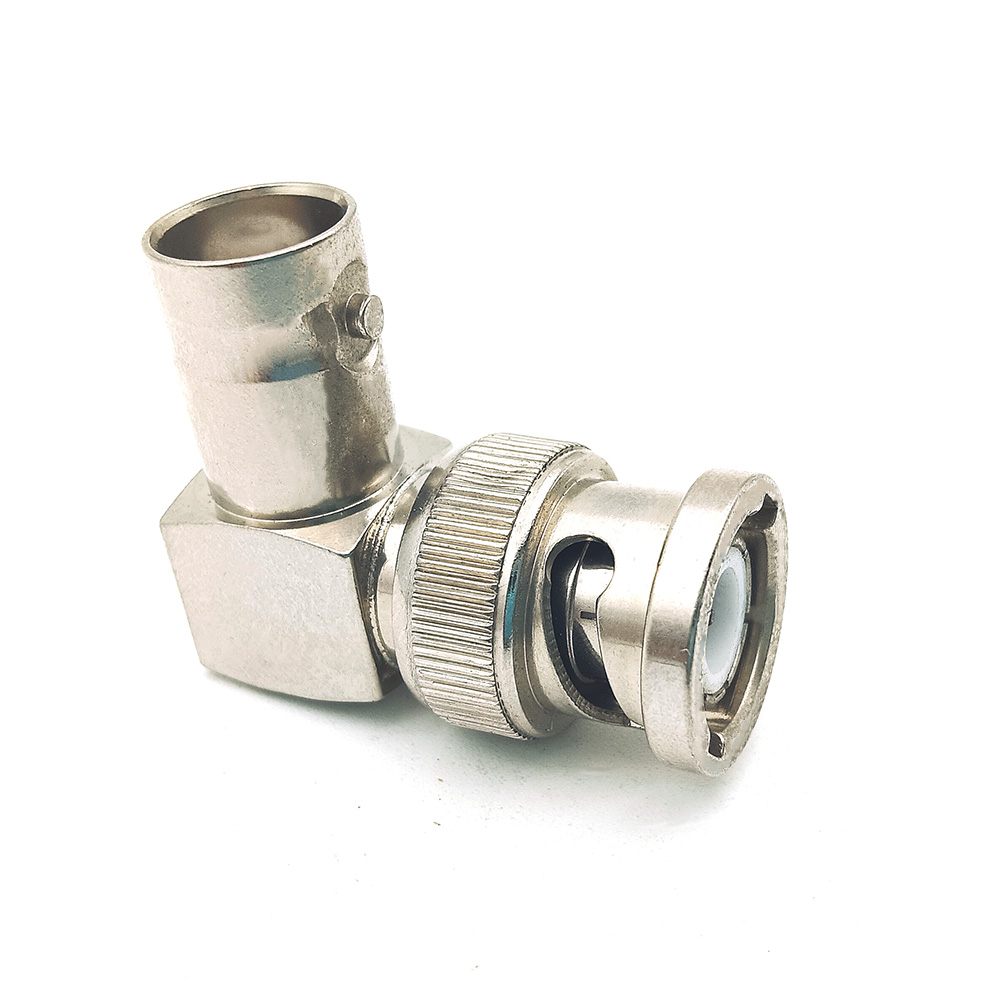

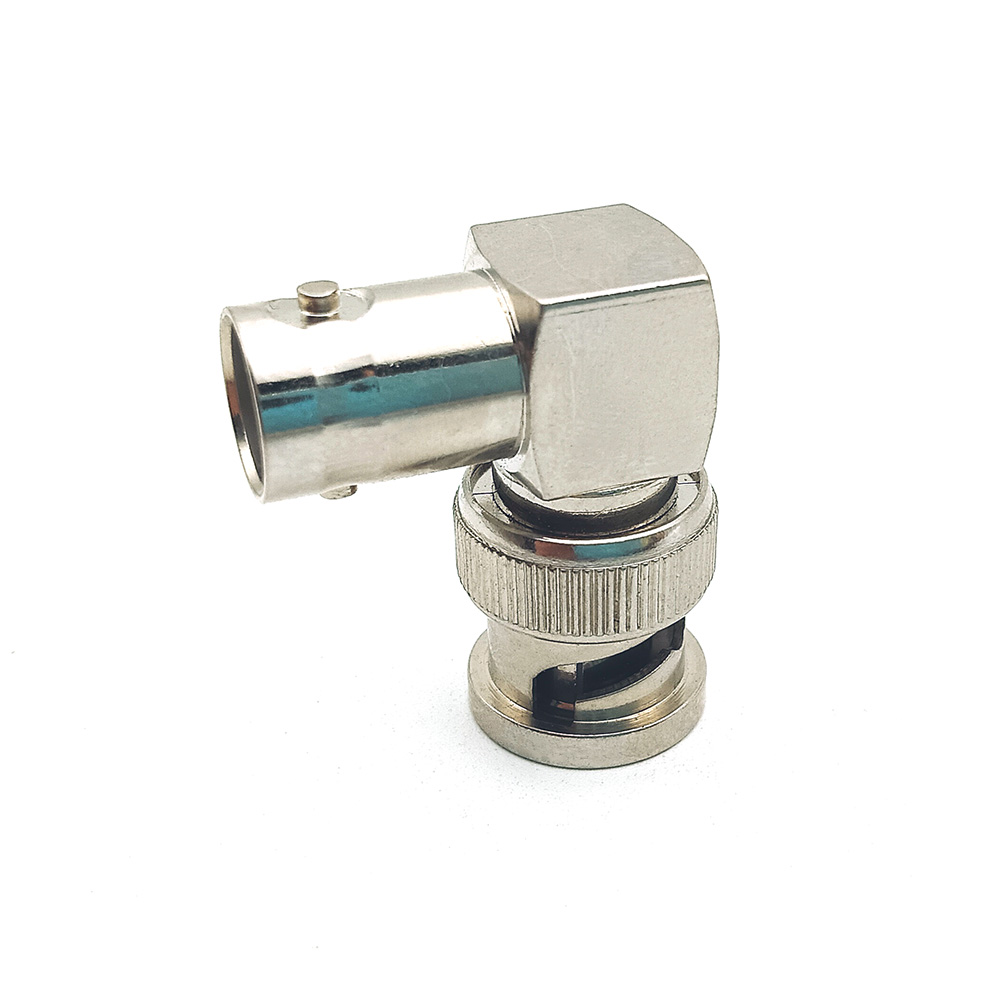

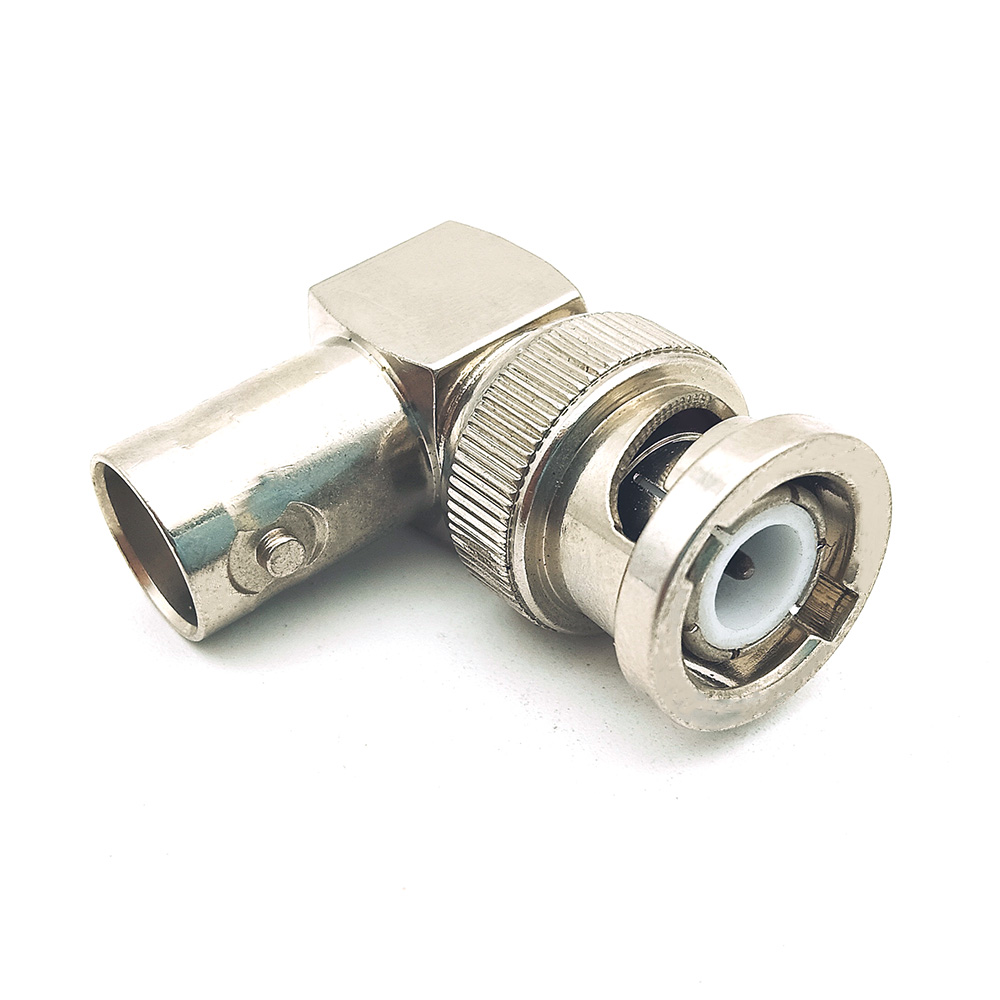

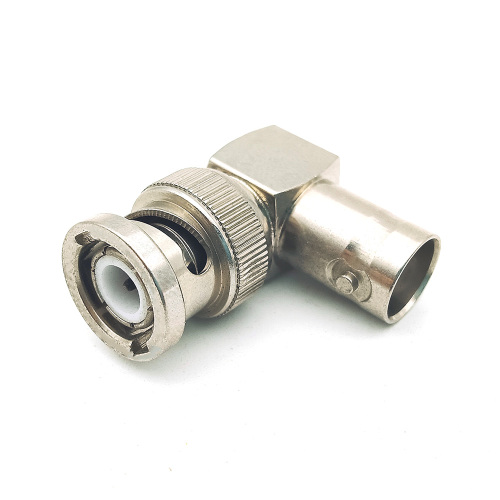

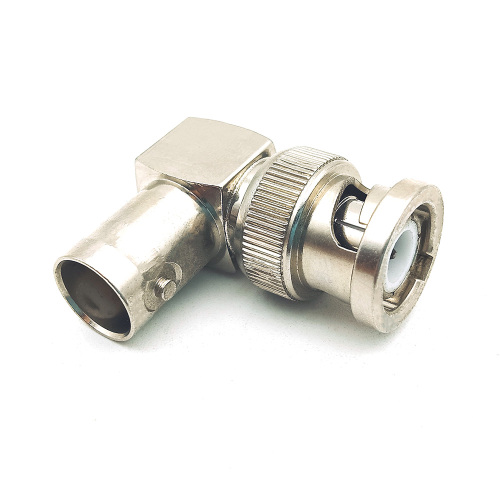

Right Angle BNC Male to Female Coaxial Adapter

Right Angle BNC Male to Female Coaxial Adapter – Reliable 90-Degree Connection for Professional AV & RF Installations

This precision-engineered right angle BNC male to female coaxial adapter delivers a secure, low-loss signal path in confined spaces where traditional straight connectors fall short. Designed for professionals in broadcast, surveillance, and telecommunications, this high-performance component ensures consistent signal integrity without compromising on durability or ease of installation. With its nickel-plated brass housing, gold-plated center pin, and Delrin dielectric, it’s built to withstand repeated mating cycles while minimizing electromagnetic interference—ideal for mission-critical environments.

Unlike standard adapters that force cables into awkward bends, this angled connector allows seamless integration between devices such as CCTV cameras, video switchers, and RF transceivers. The robust construction includes a solid brass body machined for exact tolerances, ensuring reliable contact every time. Its quick-lock bayonet coupling mechanism enables fast, tool-free connections—perfect for field technicians who need efficiency without sacrificing quality. Whether you're setting up a compact home studio or managing a large-scale security network, this adapter is engineered to perform under pressure.

Key Features:

• 90-degree angular design for space-saving cable routing
• Nickel-plated brass body for corrosion resistance and mechanical strength
• Gold-plated brass center conductor for optimal conductivity and reduced signal loss
• Delrin insulator provides stable dielectric properties across temperature ranges
• Quick-connect bayonet-style locking system for secure, repeatable connections
• Compatible with standard RG-59, RG-6, and other BNC-compatible coaxial cables

Engineered for reliability in demanding conditions, this right angle BNC adapter excels in applications requiring precise signal transmission with minimal degradation. From live event production setups to industrial monitoring systems, it supports both analog and digital video signals while maintaining impedance stability at 75 ohms. The ergonomic form factor prevents strain on cables during installation, reducing the risk of premature failure—a critical advantage in high-use scenarios like security camera installations or mobile broadcasting units.

Common Use Cases:

• Installation of IP and analog CCTV systems in tight enclosures or wall-mounted configurations
• Connecting video equipment in broadcast studios or mobile production vans
• RF testing and measurement setups in telecom labs or field engineering operations
• Audiovisual integration in conference rooms, educational institutions, or corporate facilities

Users consistently praise this adapter for its rugged build, clean signal transfer, and intuitive fit. Many note how it eliminates the frustration of misaligned connectors in cramped cabinets or behind panels—making it a go-to solution for technicians working in complex AV deployments. Professionals in the security industry appreciate its ability to maintain signal clarity over long runs, while those in broadcast value the plug-and-play simplicity it offers during time-sensitive shoots.

Frequently Asked Questions:

What makes this right angle BNC adapter different from a straight one?

Its 90-degree orientation allows for more flexible cable management in restricted areas, preventing stress on the cable jacket and reducing the likelihood of connection issues caused by sharp bends.

Is it suitable for outdoor use?

Yes, the nickel-plated brass body offers protection against moisture and environmental wear, making it appropriate for indoor and sheltered outdoor installations.

Can I use this with different types of coaxial cables?

It’s designed primarily for BNC-compatible cables like RG-59 and RG-6, but compatibility may vary depending on the outer diameter of your specific cable. Always verify dimensions before installation.

Why choose gold-plated contacts?

Gold plating enhances conductivity, reduces oxidation, and ensures long-term performance—even in humid or dusty environments—making it ideal for professional-grade setups.

This adapter isn’t just a connector—it’s a performance-enhancing component that solves real-world challenges faced by installers worldwide. Whether you're building a new system or upgrading an existing one, this right angle BNC male to female coaxial adapter delivers the precision, durability, and peace of mind needed for top-tier results.

Product Categories : RF Coaxial Connector > Bnc Connector
