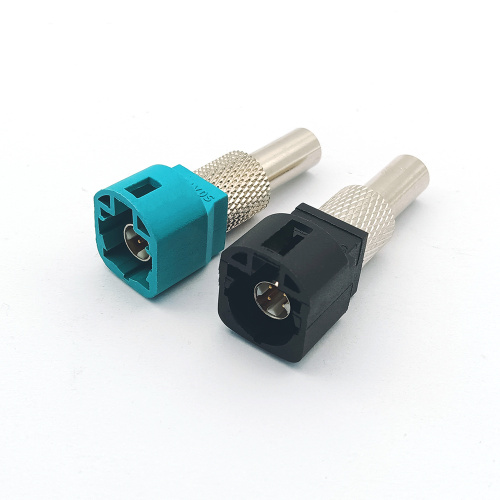

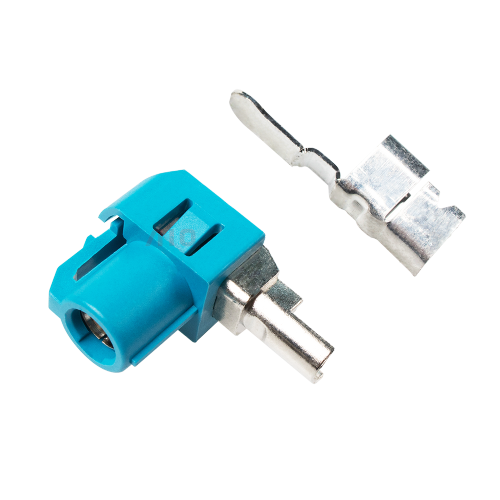

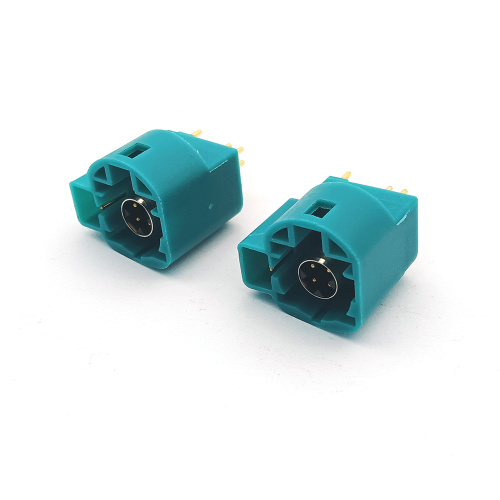

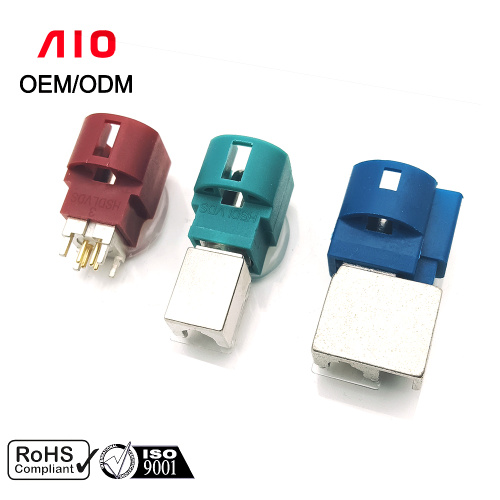

Auto High-speed Data Signals Transmission HSD LVDS Connector

High-Speed Data Transmission Connectors for Automotive Applications – Reliable, Versatile, and Future-Ready

Engineered for precision and performance, this advanced connector system is designed to meet the evolving demands of modern automotive electronics. With a robust 100 ohm impedance specification, it supports differential signaling essential for digital data transmission across high-speed networks. Whether you're integrating infotainment systems, managing sensor data in autonomous vehicles, or ensuring seamless communication between vehicle modules, these connectors deliver consistent signal integrity with minimal loss—ideal for environments where reliability and speed are non-negotiable.

Manufactured using premium-grade materials, each unit undergoes rigorous testing to ensure durability under extreme conditions, including temperature fluctuations, vibration, and electromagnetic interference. This makes them particularly suitable for use in electric vehicles (EVs), advanced driver-assistance systems (ADAS), and next-generation telematics platforms. The modular design allows for easy integration into existing architectures while supporting multiple digital protocols such as LVDS, MIPI, and CAN FD—offering one unified solution for diverse connectivity needs.

Key Features:

• 100 ohm impedance for optimized differential signal transmission
• Supports high-speed data rates up to several gigabits per second
• Robust construction using thermoplastic and metal alloy components
• Compatible with various industry standards including FAKRA HSD
• Customizable color coding and part numbering options
• Low insertion loss and excellent shielding effectiveness

This connector series excels in applications requiring real-time data exchange between critical vehicle subsystems. It's commonly used in headend units that aggregate signals from cameras, radar sensors, and ultrasonic devices before forwarding them to central processing modules. In cluster displays, it ensures crisp image rendering and responsive touch feedback by maintaining stable video and control signal paths. Additionally, consumer ports benefit from its ability to handle both power delivery and high-bandwidth data simultaneously, making it ideal for in-vehicle entertainment systems and charging interfaces.

Users have reported exceptional performance in demanding automotive environments—from compact city cars to heavy-duty commercial fleets. One engineer noted: “The connector’s consistency in signal quality over long cable runs made our ADAS calibration process significantly more efficient.” Another user highlighted how customization options helped streamline their production line: “We were able to match specific color codes to different vehicle models, reducing assembly errors and improving traceability.”

Frequently Asked Questions:

1. What role do FAKRA HSD connectors play in autonomous vehicles? They enable reliable, high-speed communication between sensors like cameras, LiDAR, and radar systems and the onboard computing platform—critical for real-time perception and decision-making in self-driving technology.
2. How do these connectors support vehicle diagnostics? By facilitating rapid data transfer between ECUs and diagnostic tools, they allow for live monitoring, fault logging, and firmware updates without interrupting vehicle operation.
3. What types of connectors are available? We offer a wide range of solutions including circular connectors, DIN connectors, BNC, TNC, MCX, UHF, DC power connectors, and specialized automotive-grade interconnects tailored for audio, video, and control applications.

Product Categories : Automotive Connector > Hsd Connector
