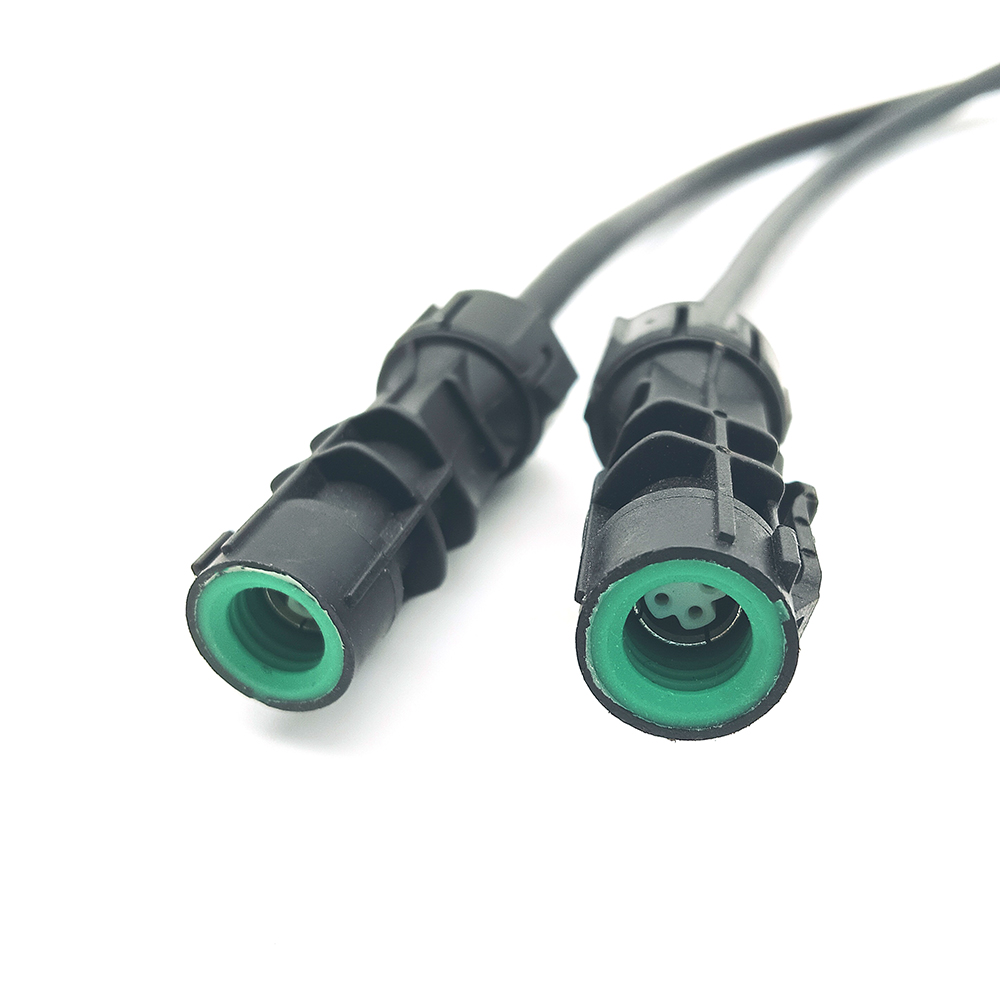

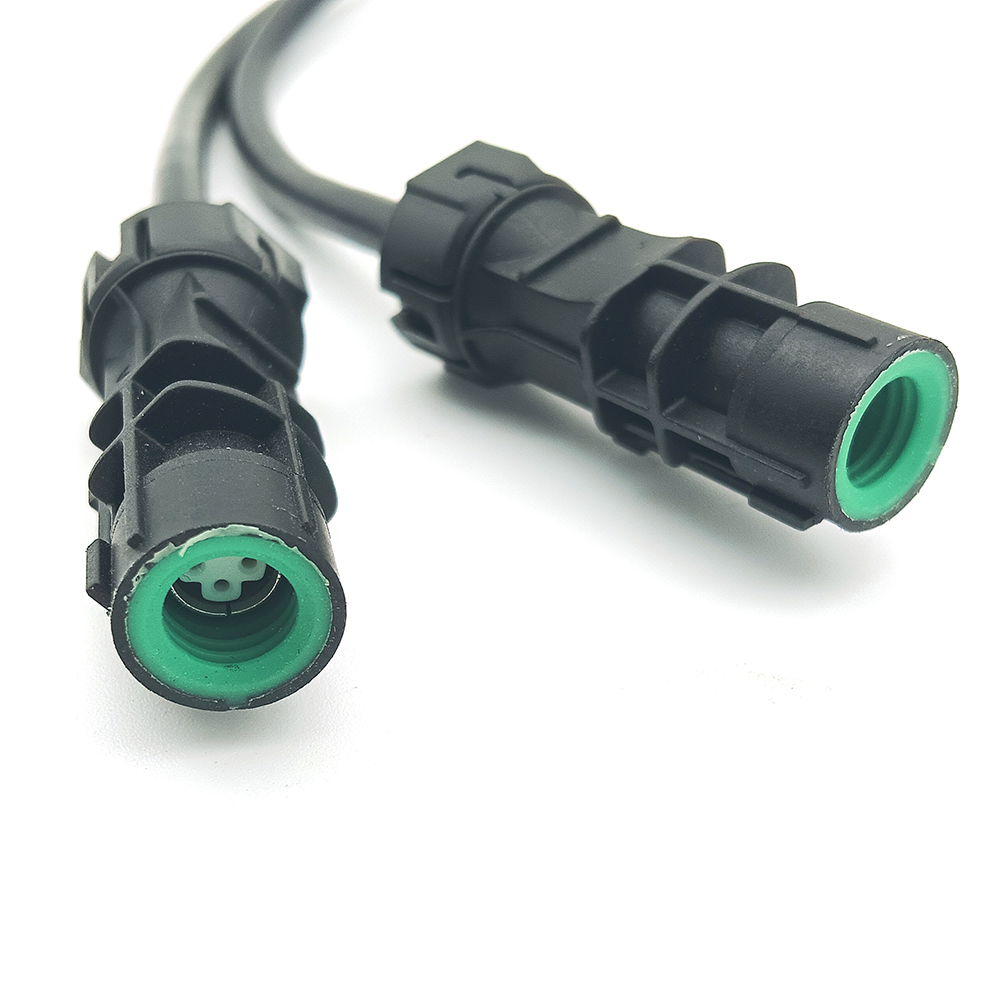

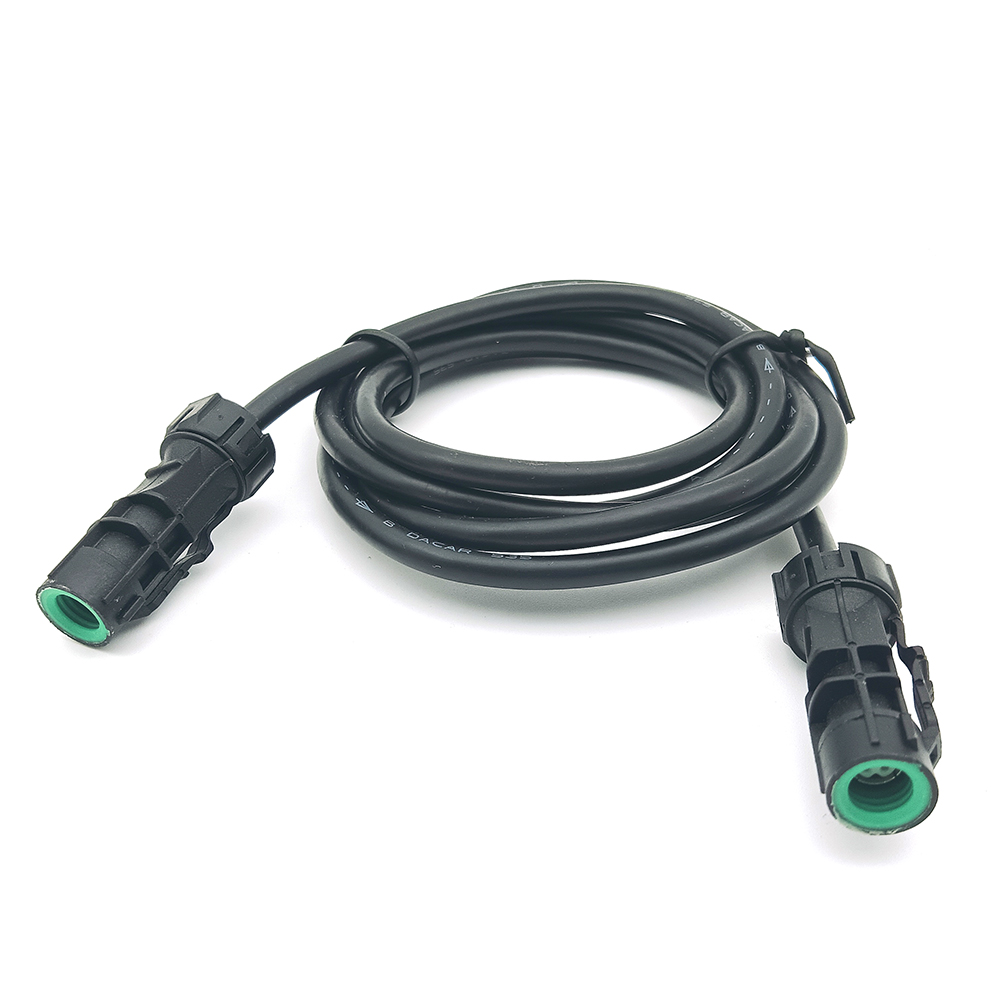

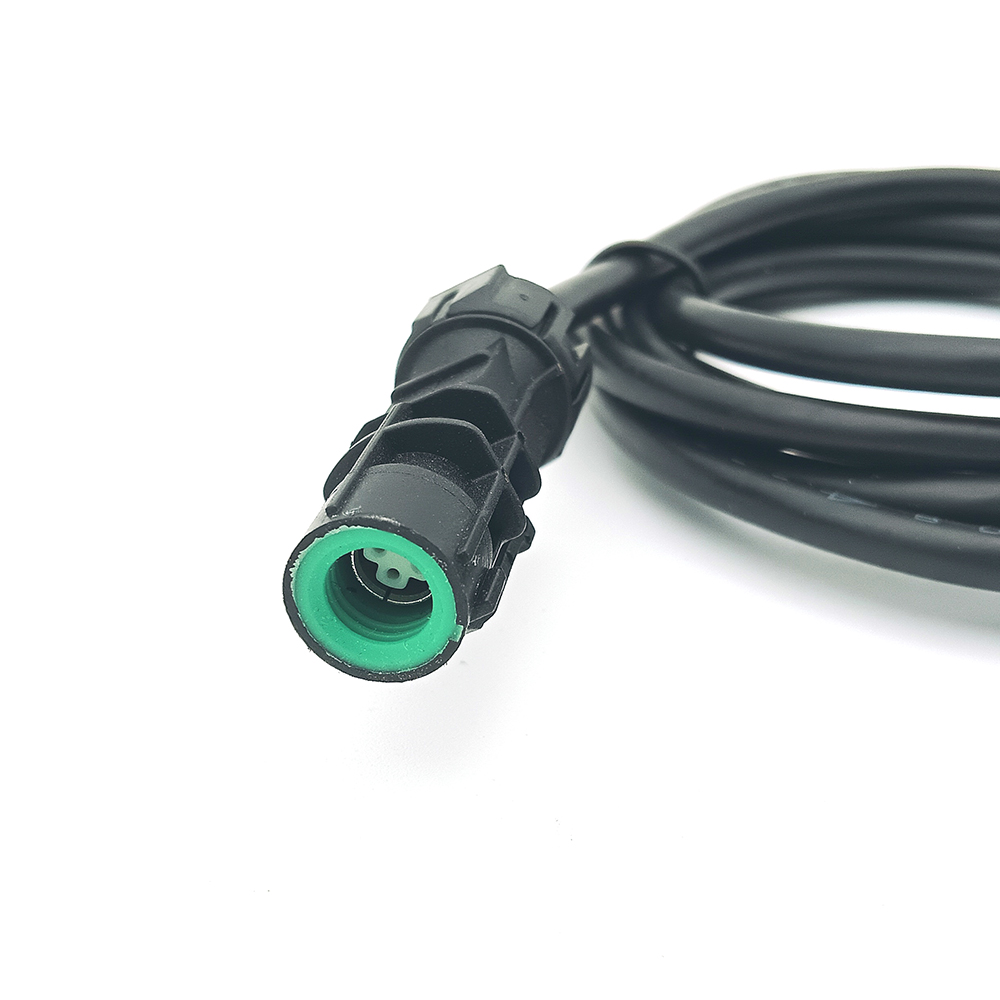

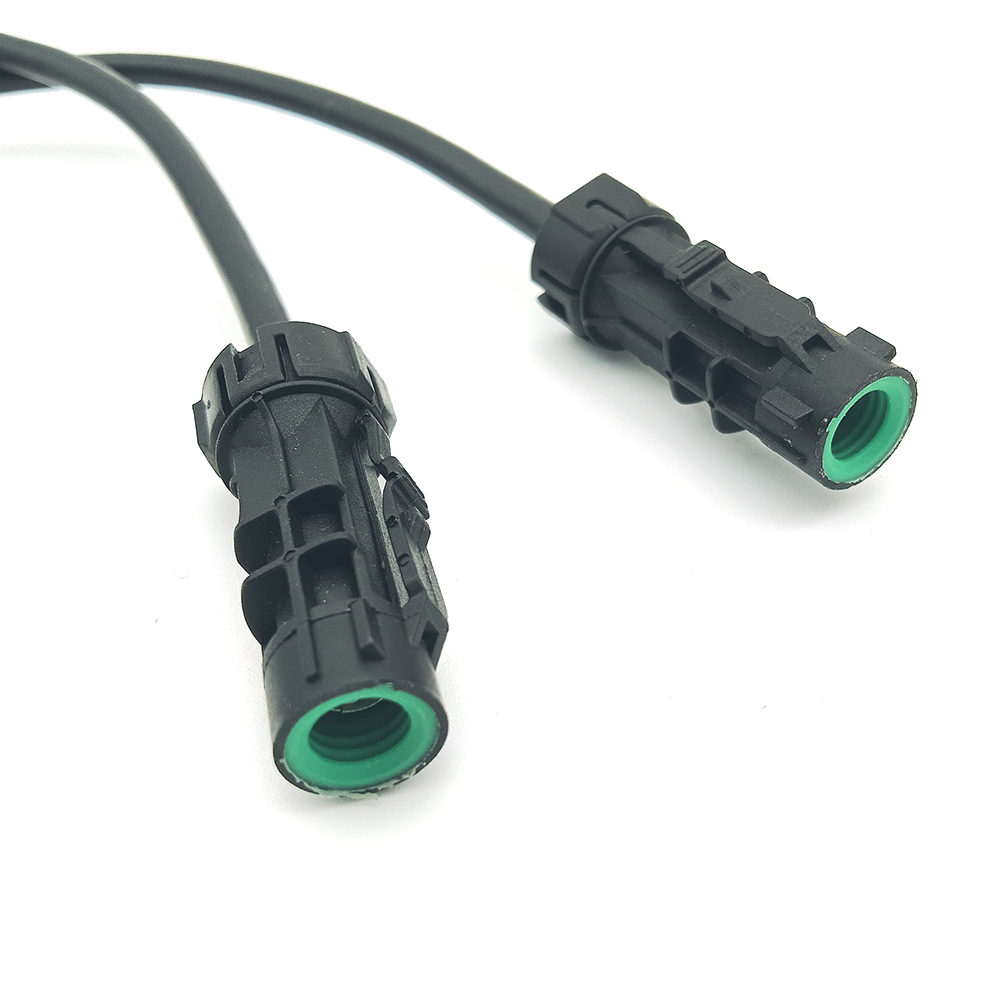

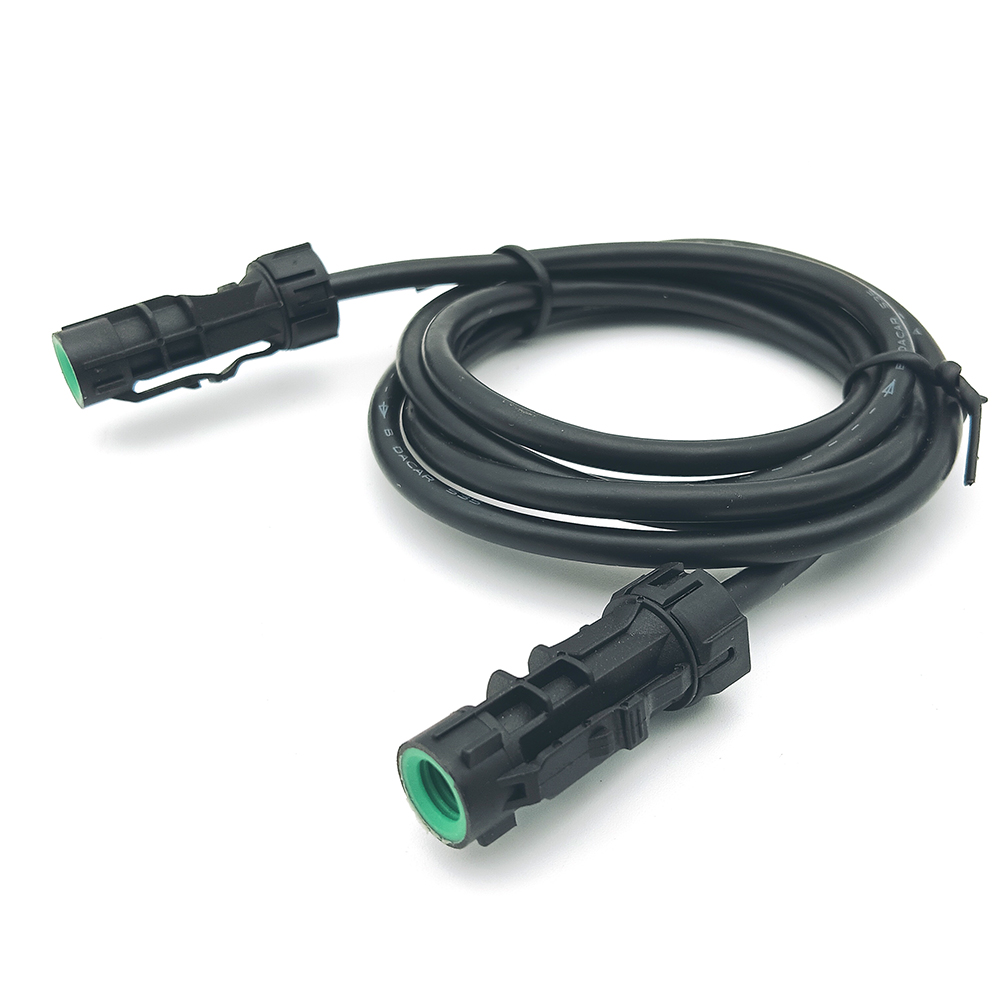

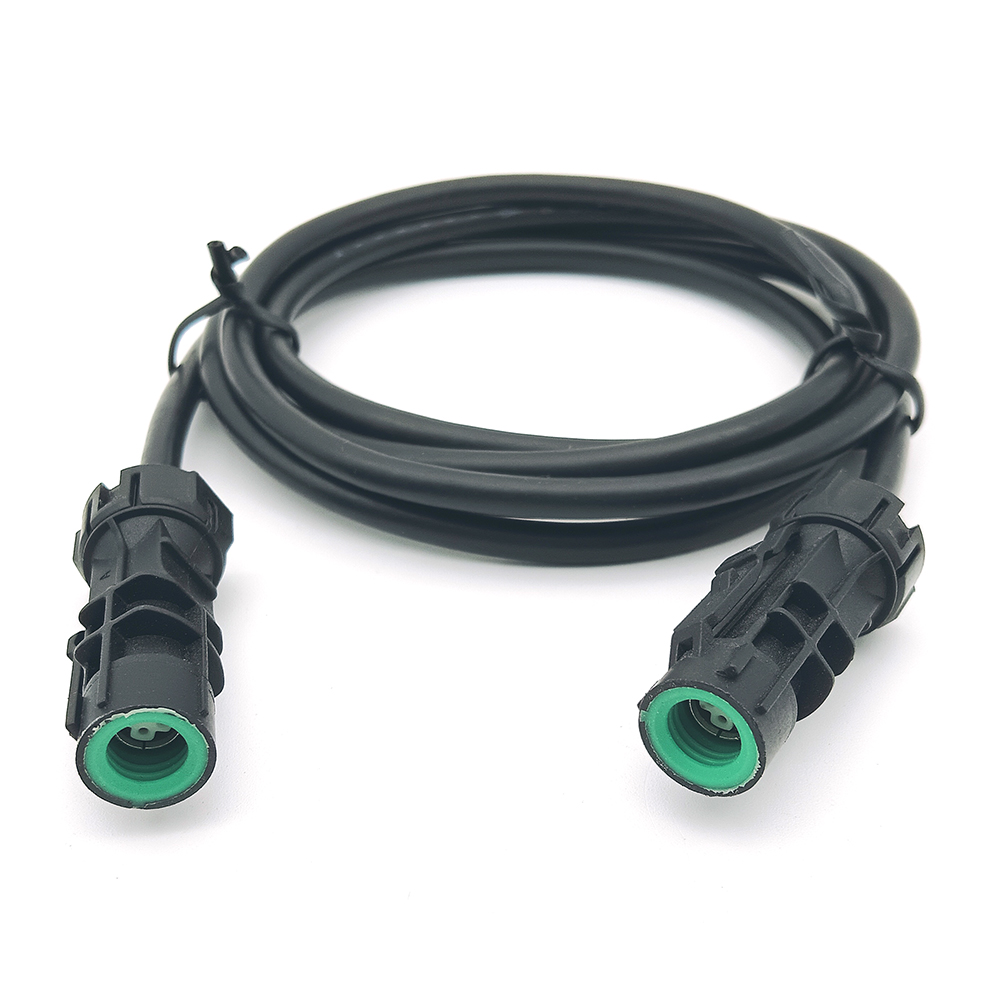

Waterproof HSD LVDS Female to Female Cable Assembly

Waterproof HSD LVDS Female to Female Cable Assembly for Reliable High-Speed Data Transmission in Demanding Environments

Engineered for mission-critical applications where environmental resilience and signal fidelity are non-negotiable, this waterproof HSD LVDS female-to-female cable assembly delivers robust performance in automotive, industrial, and outdoor settings. Designed with precision engineering and premium materials, it ensures stable, high-bandwidth data transfer between two HSD (High-Speed Data) interfaces while maintaining full protection against moisture, dust, and mechanical stress—making it a top choice for engineers, integrators, and system designers working across global markets.

Key Features

• IP67 Waterproof Protection: Fully sealed against water immersion up to 1 meter for 30 minutes and total dust ingress prevention—ideal for wet or dusty conditions.
• Ultra-Fast Signal Integrity: Optimized for Low-Voltage Differential Signaling (LVDS), supporting up to 4.95 Gbps without signal degradation over extended distances.
• Durable Construction: Reinforced with high-quality PVC or TPU jacketing and reinforced strain relief to endure extreme temperatures (-40°C to +85°C), vibration, and frequent mating cycles.
• Flexible Interconnect Solution: Female-to-female configuration enables seamless extension or bridging of HSD-compatible devices without requiring adapters or modifications.
• Low-Interference Performance: Double-shielded design minimizes electromagnetic interference (EMI), ensuring clean data flow even in electrically noisy environments like vehicle cabins or factory floors.

Technical Specifications

• Connector Type: HSD LVDS Female to Female – ideal for connecting cameras, sensors, infotainment units, and control modules.
• Environmental Rating: IP67 certified — dust-tight and waterproof under temporary submersion.
• Cable Material: Dacar 535 high-performance cable core with low attenuation and consistent impedance.
• Data Rate Capability: Up to 4.95 Gbps, suitable for HD video streaming, real-time sensor data, and advanced telematics systems.
• Jacket Material: Flexible, abrasion-resistant PVC or TPU for long-term durability in harsh conditions.
• Cable Length: Customizable lengths available to meet specific project requirements.
• Operating Temperature Range: -40°C to +85°C (-40°F to +185°F) for reliable operation in freezing climates or high-heat industrial zones.
• Impedance Matching: Precisely maintained at 100 Ohms to support optimal LVDS signal transmission and reduce reflections or crosstalk.

Applications

• Automotive Infotainment & ADAS: Connects dashcams, surround-view systems, radar sensors, and displays in vehicles operating under varying weather and road conditions.
• Industrial IoT & Automation: Used in robotic arms, machine vision systems, and control panels exposed to humidity, oil, or chemical exposure.
• Outdoor Surveillance Systems: Enables secure, uninterrupted video feeds from security cameras mounted in rain-prone or coastal locations.
• Marine Electronics Integration: Provides waterproof interconnection between GPS units, sonar equipment, and communication radios on boats and ships.
• Telecom Infrastructure: Supports ruggedized outdoor base stations and remote monitoring nodes needing reliable LVDS links.

User Benefits

• Uncompromised Reliability: With IP67 sealing, this cable maintains functionality even when subjected to heavy rain, mud, or condensation—a critical factor in off-grid deployments.
• High-Bandwidth Compatibility: Handles modern data-intensive tasks such as 4K video streaming, CAN FD integration, and multi-channel sensor fusion.
• Reduced Maintenance Needs: No need for frequent inspections or replacements due to environmental damage—ideal for remote or hard-to-access installations.
• Universal Device Compatibility: Works seamlessly with any device featuring an HSD LVDS interface, including cameras, processors, and embedded controllers from leading manufacturers.
• Plug-and-Play Simplicity: Secure locking mechanism ensures easy installation and prevents accidental disconnection during operation or transport.

Frequently Asked Questions

• Is this cable suitable for use in cold climates? Yes, its wide temperature range allows safe operation from -40°C to +85°C, making it perfect for arctic research stations, winter test labs, or northern European installations.
• Can I extend the cable length beyond standard options? Absolutely—custom lengths can be produced based on your exact needs, ensuring minimal signal loss and proper impedance matching.
• Does it support 4K video transmission? Yes, with a maximum throughput of 4.95 Gbps, it is fully capable of carrying uncompressed 4K video signals over short to medium distances without compression artifacts.
• How does it compare to standard LVDS cables? Unlike generic connectors, this solution offers enhanced shielding, superior waterproofing, and built-in strain relief—critical for professional-grade installations where failure isn’t an option.
• What industries commonly use this product? Automotive OEMs, industrial automation firms, marine electronics manufacturers, surveillance system integrators, and telecom infrastructure providers rely on this cable for dependable connectivity in tough environments.
