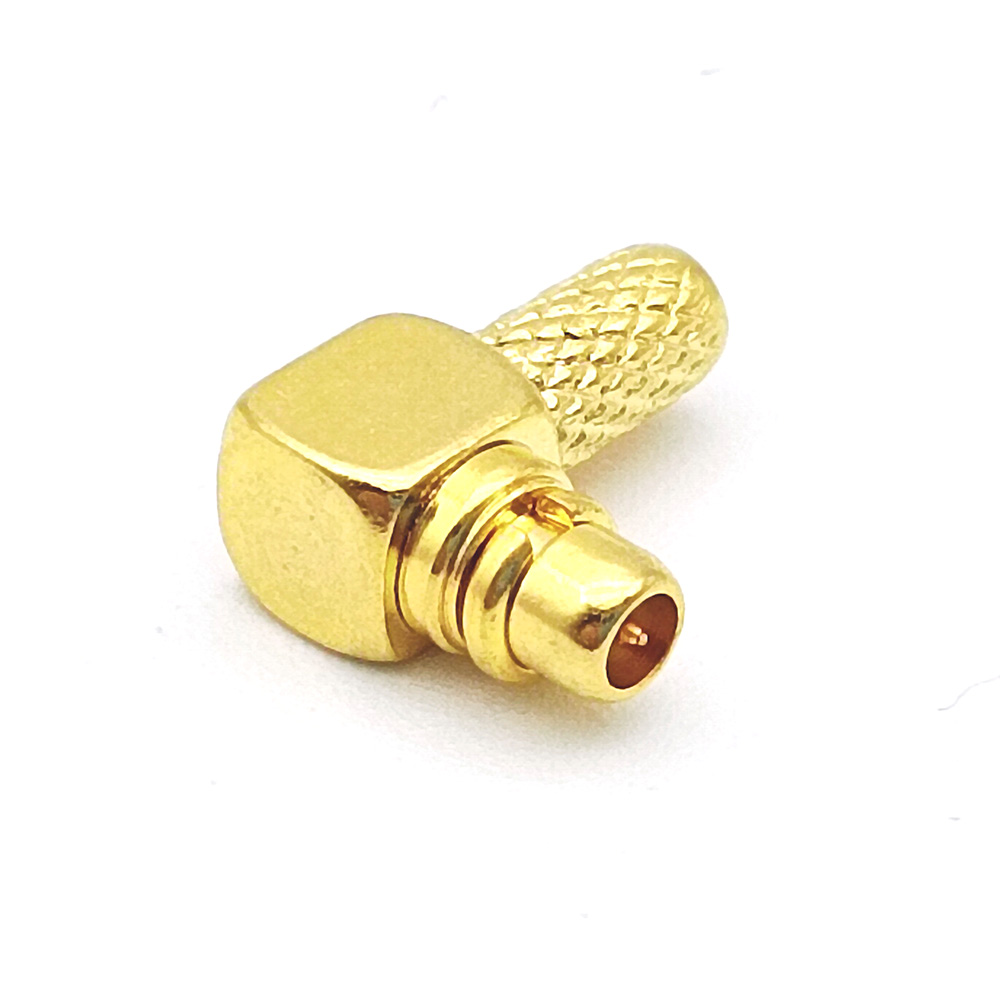

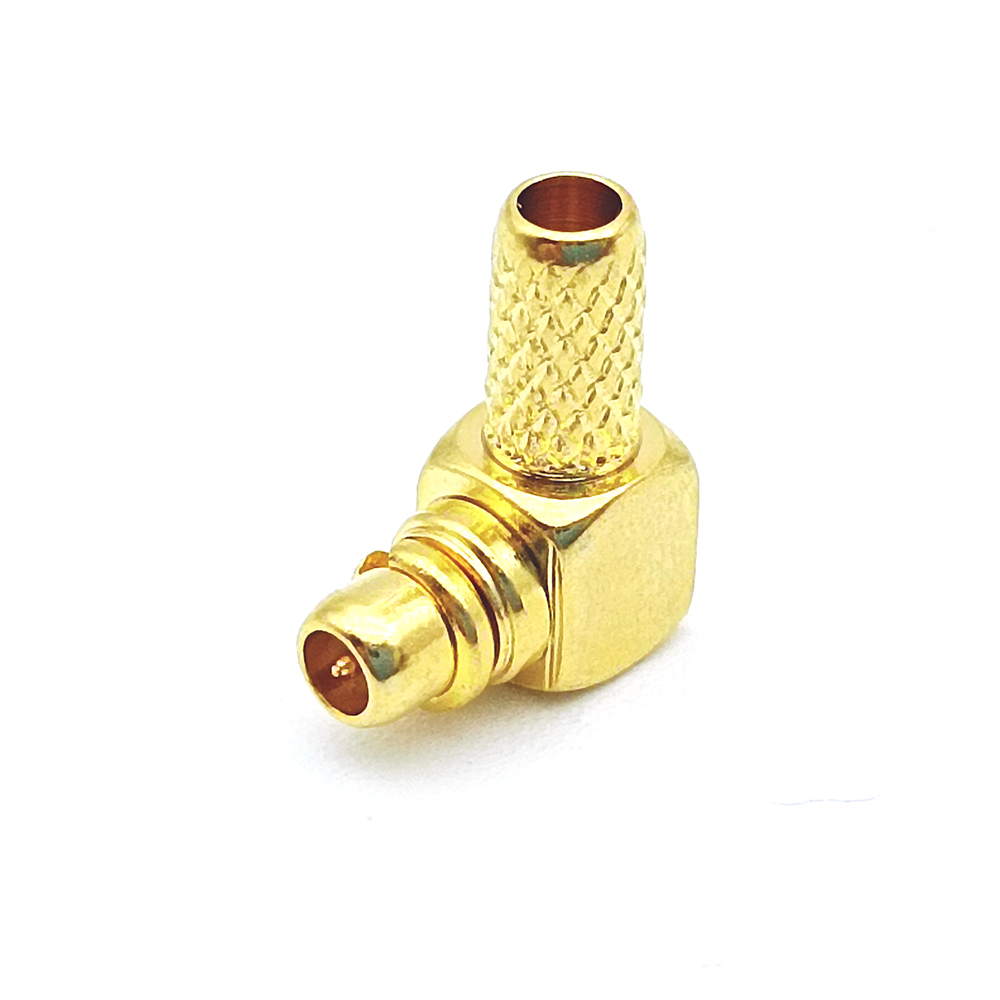

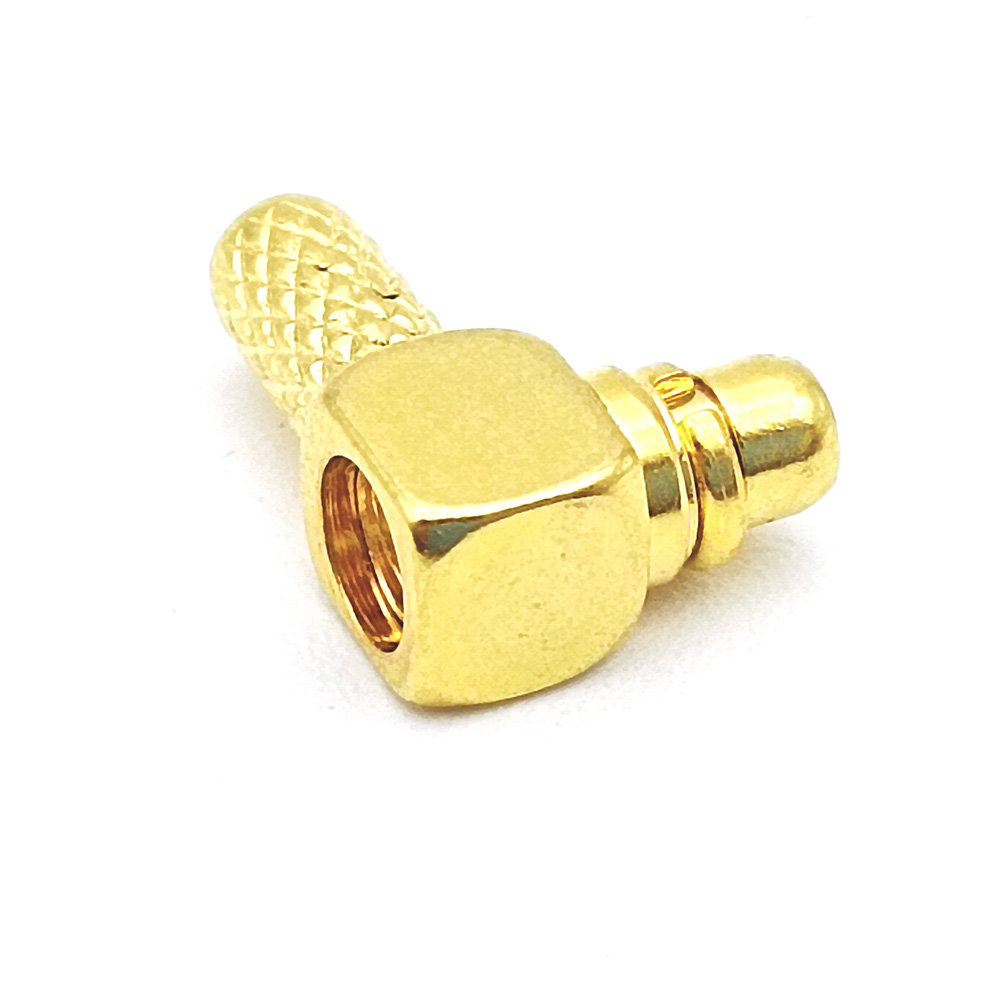

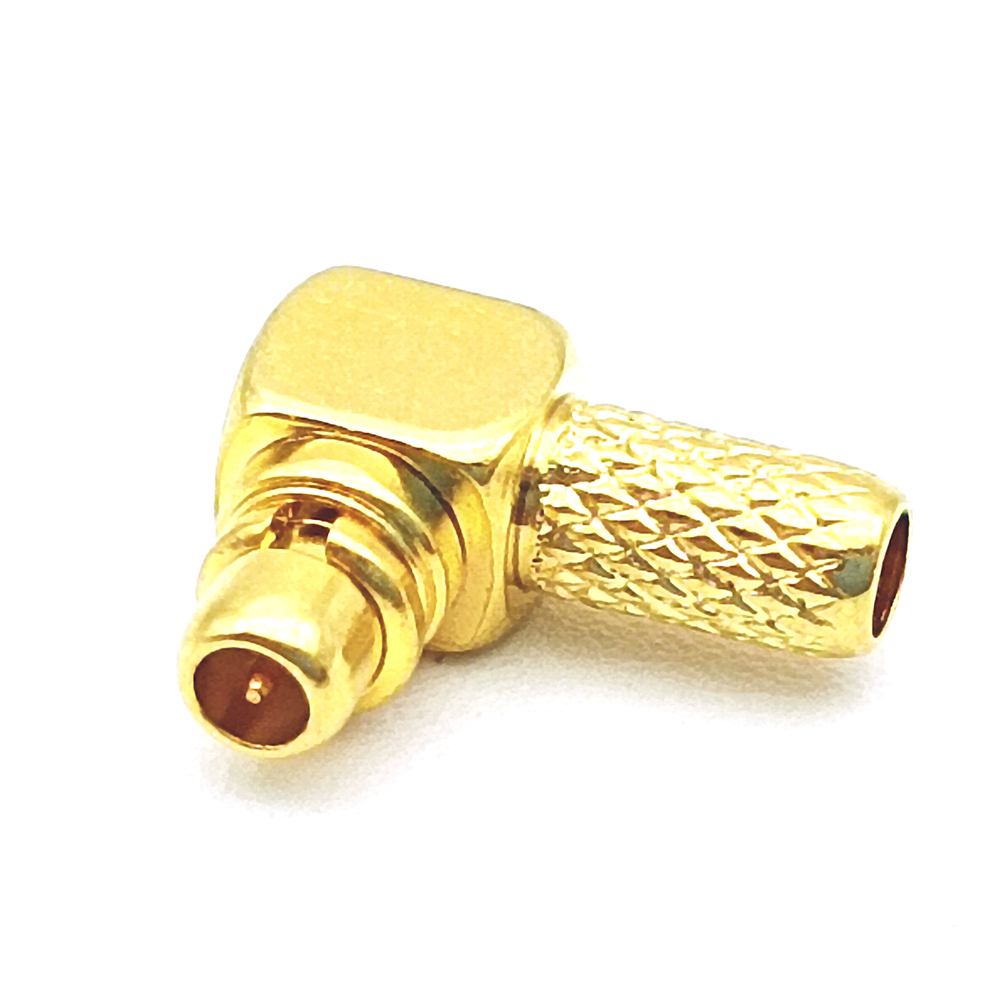

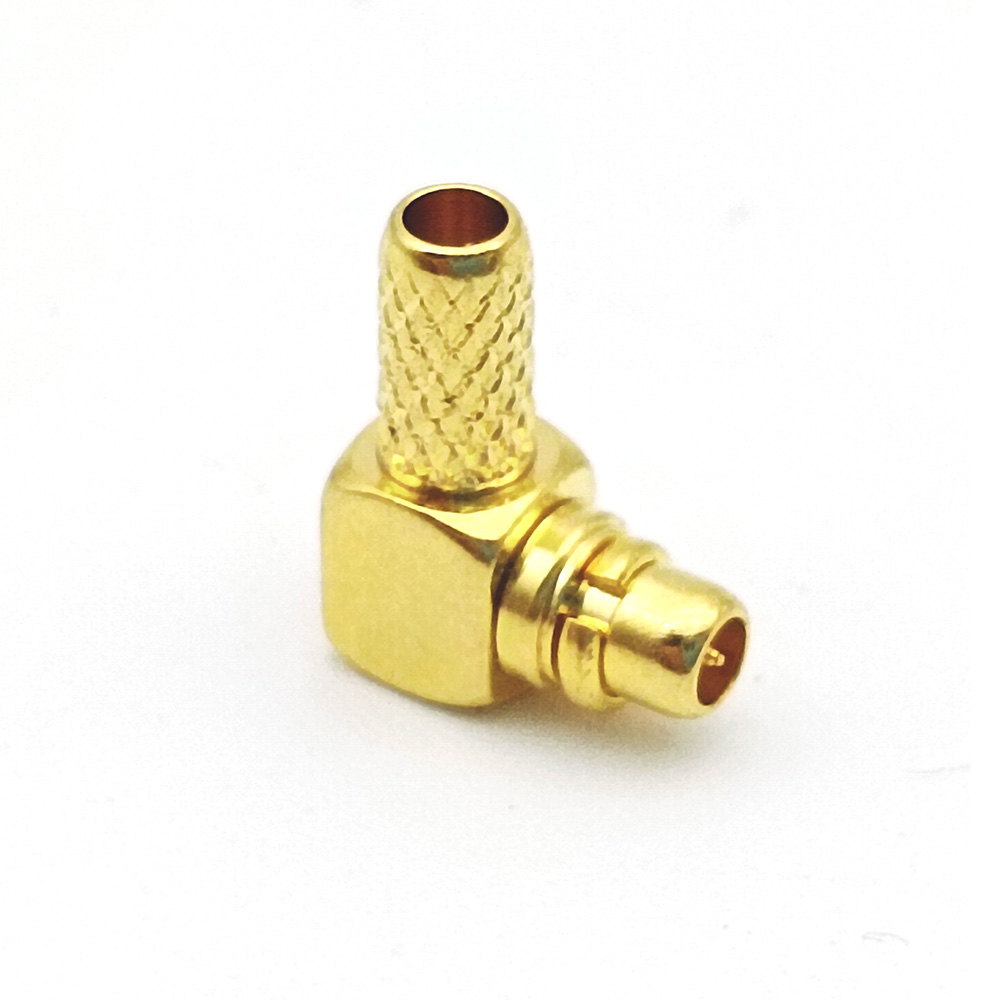

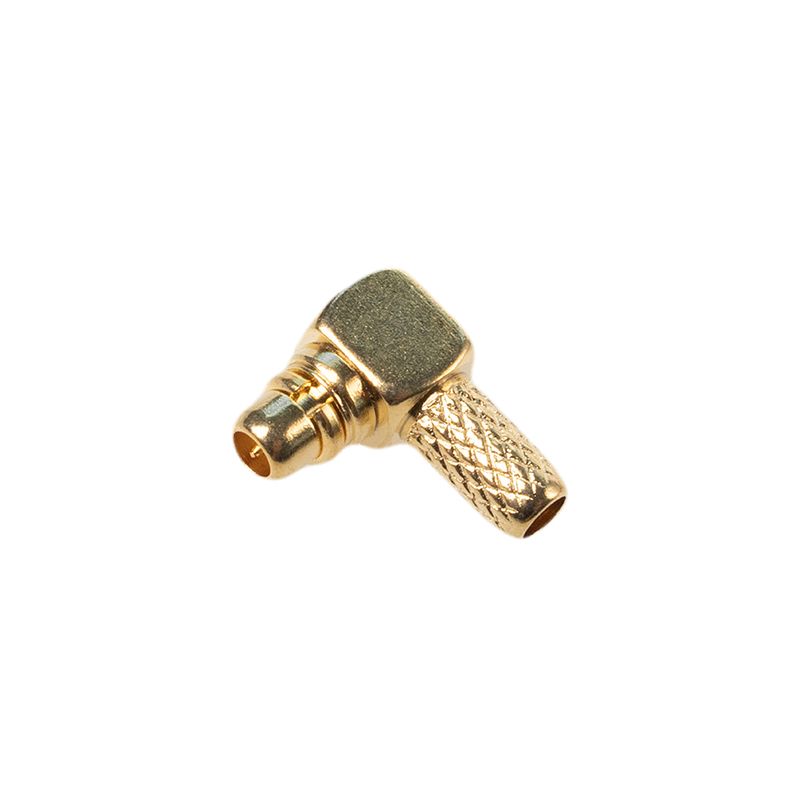

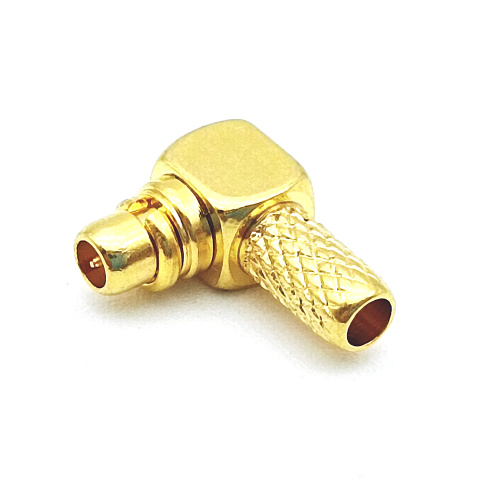

Right Angle MMCX Male Plug RF Coaxial Connector

Right Angle MMCX Male Plug RF Coaxial Connector – High-Performance, Space-Saving Solution for Modern Wireless Systems

Engineered for precision and reliability in demanding RF environments, this Right Angle MMCX Male Plug RF Coaxial Connector delivers exceptional signal integrity while maintaining a compact footprint ideal for modern embedded and portable electronics. Designed with advanced materials and a robust push-pull locking mechanism, it ensures quick, secure connections without compromising performance—making it a preferred choice across global industries from telecommunications to high-frequency test equipment.

Featuring a gold-plated brass housing and contact surfaces, the connector offers superior corrosion resistance and long-term durability even under extreme temperature conditions (-40°C to +85°C). Its 50-ohm impedance and support for frequencies up to 6 GHz make it perfectly suited for high-speed wireless communication systems, including 5G modules, GPS tracking units, and IoT devices where signal fidelity is critical. The right-angle design allows for efficient routing of cables in tight spaces, reducing strain on PCB traces and enhancing overall system stability.

Key advantages include:

• Ultra-Compact Form Factor: Ideal for miniaturized designs such as wearables, smart sensors, and compact consumer gadgets where every millimeter counts.
• Push-Pull Coupling Mechanism: Enables tool-free mating and unmating, improving assembly efficiency and reducing mechanical stress during repeated use.
• High-Frequency Reliability: Maintains consistent signal transmission at frequencies up to 6 GHz, suitable for Wi-Fi, Bluetooth, LTE, and other high-bandwidth applications.
• Durable, Corrosion-Resistant Build: Gold-plated contacts ensure low insertion loss and reliable conductivity over time, even in harsh industrial or outdoor settings.

This connector excels in a wide range of professional and commercial applications, including but not limited to: mobile network infrastructure, satellite navigation systems, wireless LAN adapters, automotive telematics, medical imaging devices, and RF measurement instruments. Whether you're designing an embedded module for drone communications or integrating a compact antenna into a rugged handheld device, this MMCX male plug provides the mechanical resilience and electrical consistency needed for mission-critical operations.

Users consistently praise its seamless integration into tight enclosures, minimal signal degradation, and ease of installation compared to traditional SMA or MCX connectors. Many engineers note that the right-angle configuration significantly improves cable management in stacked PCB layouts—a key factor in reducing electromagnetic interference (EMI) and optimizing thermal performance.

Frequently asked questions often revolve around compatibility—this connector mates seamlessly with standard MMCX female receptacles found on most RF modules and antennas. It’s also commonly used alongside related components like Fakra connectors, HSD connectors, and wire harnesses in automotive and industrial setups. Unlike some alternatives, it doesn’t require specialized tools for connection, which reduces maintenance costs and downtime in field deployments.

For professionals seeking a dependable, high-frequency interconnect solution that balances size, speed, and longevity, this Right Angle MMCX Male Plug stands out as a premium option backed by rigorous testing standards and real-world performance validation across diverse global markets.

Product Categories : RF Coaxial Connector > Mmcx Connector
