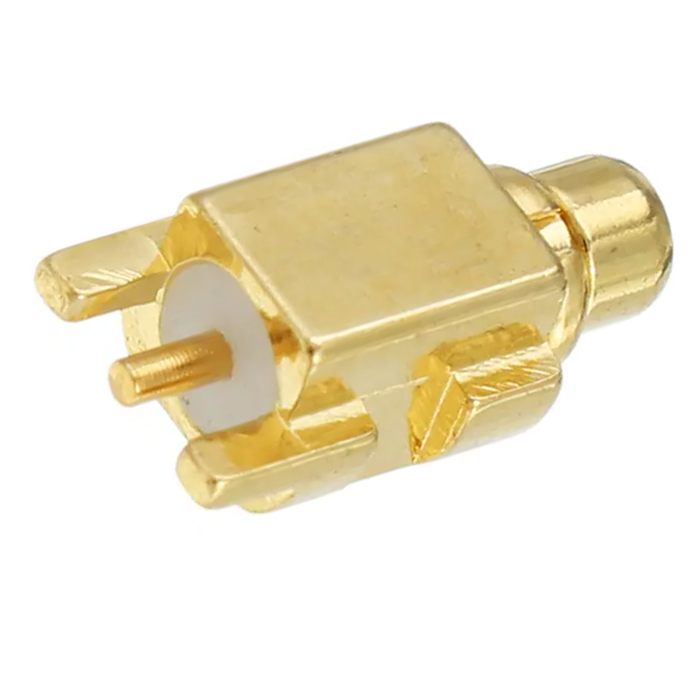

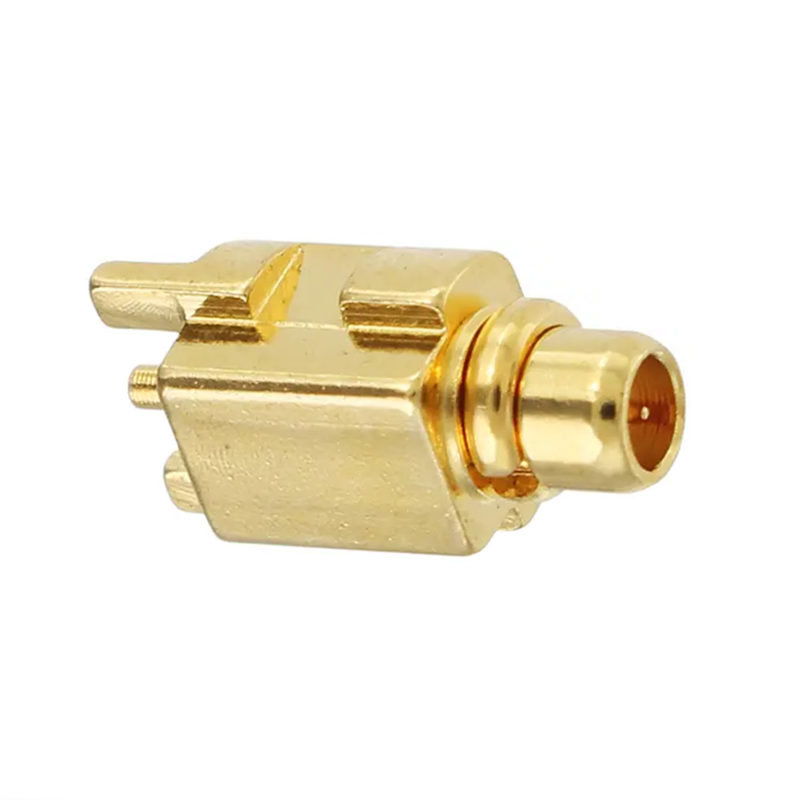

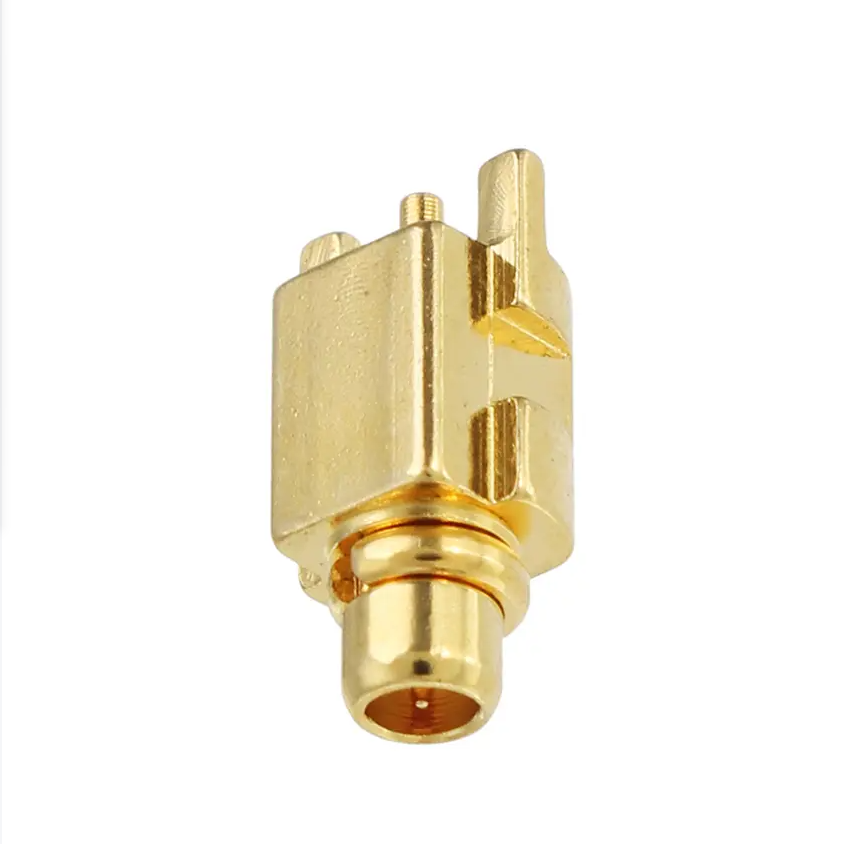

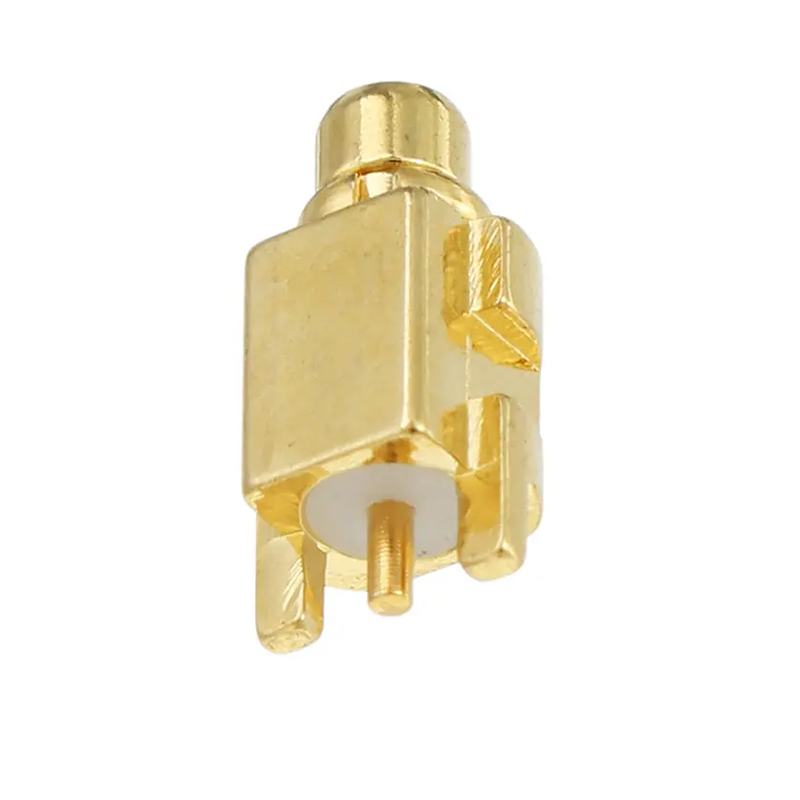

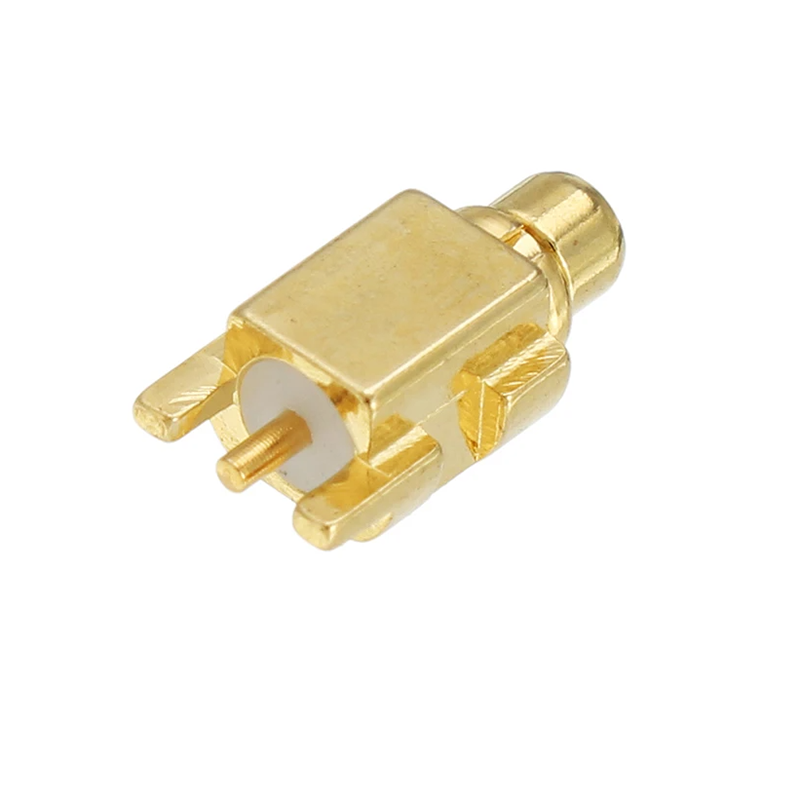

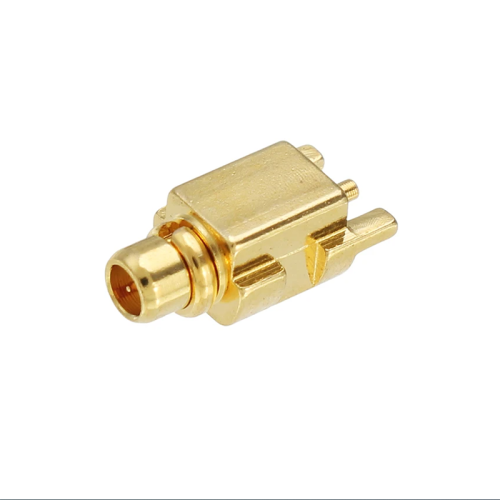

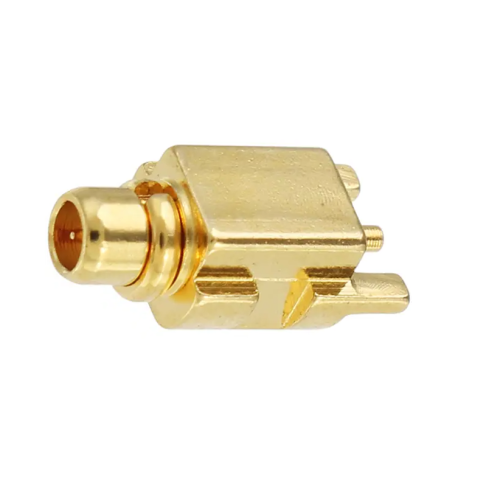

3 Pin MMCX Male Plug PCB Mount Connector

MMCX RF Connectors – High-Performance, Compact Solutions for Modern Wireless Systems

Engineered for precision and durability, MMCX connectors offer a reliable interface in demanding RF environments. These miniature coaxial connectors are ideal for applications where space constraints and signal integrity are critical. With a frequency range extending up to 6 GHz and a standardized 50-ohm impedance, they ensure minimal loss and maximum efficiency across wireless communication platforms.

Key Features & Benefits

• Ultra-Compact Design: Smaller than MCX connectors, MMCX offers superior space-saving capabilities—perfect for portable electronics like smartphones, tablets, and wearable devices.
• High-Frequency Performance: Optimized for frequencies up to 6 GHz, making them suitable for advanced Wi-Fi routers, GPS modules, and 5G-ready equipment.
• Robust Construction: Made from high-purity oxygen-free copper (OFC), these connectors reduce signal attenuation and enhance long-term reliability under continuous use.
• Secure Push-Pull Coupling: The snap-on locking mechanism allows fast, tool-free mating and unmating—ideal for frequent reconfiguration or maintenance in industrial and medical settings.
• Environmental Resilience: Designed for rugged conditions including temperature fluctuations, humidity, and vibration—making them suitable for outdoor installations such as cellular base stations or satellite communication systems.

These connectors are manufactured using fine-tuned machining techniques that guarantee consistent electrical performance and mechanical stability over time. Their compact form factor does not compromise on quality—they are engineered to maintain signal fidelity even in high-density PCB layouts or tightly packed enclosures. Whether used in handheld radios, IoT sensors, or military-grade communication gear, MMCX ensures stable connectivity without added bulk.

Ideal Applications

From telecommunications infrastructure to consumer electronics, MMCX connectors serve a wide array of industries. Common uses include mobile phone antennas, GPS tracking units, wireless access points, radar systems, test and measurement instruments, and medical imaging equipment. They’re also widely adopted in smart home devices, drone technology, and remote sensing solutions where miniaturization meets performance.

Customer Feedback Highlights

Users consistently praise the connector’s ease of installation, consistent signal transmission at high frequencies, and resistance to wear after repeated connections. Many engineers note its compatibility with existing RF designs and how it simplifies assembly processes in mass production environments. Its ability to perform reliably in both indoor and outdoor conditions has made it a preferred choice for OEMs developing next-generation wireless products.

Frequently Asked Questions

What is the operating frequency range of MMCX connectors? Most models support frequencies from DC up to 6 GHz, making them compatible with modern microwave and millimeter-wave systems.

What is the standard impedance? MMCX connectors are typically designed with a 50-ohm characteristic impedance, aligning with industry standards for RF transmission and minimizing return loss.

How do you connect an Mmcx Connector? It utilizes a push-pull coupling system—simply align and press until it clicks securely. To disconnect, gently twist and pull while applying slight pressure to release the latch.

Are MMCX connectors suitable for outdoor use? Yes, many variants are sealed against moisture and dust (IP67 rated) and can withstand extreme temperatures—from -40°C to +85°C—ensuring dependable operation in harsh environments.
