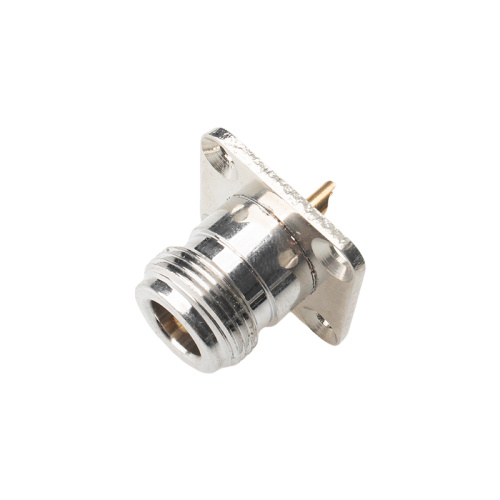

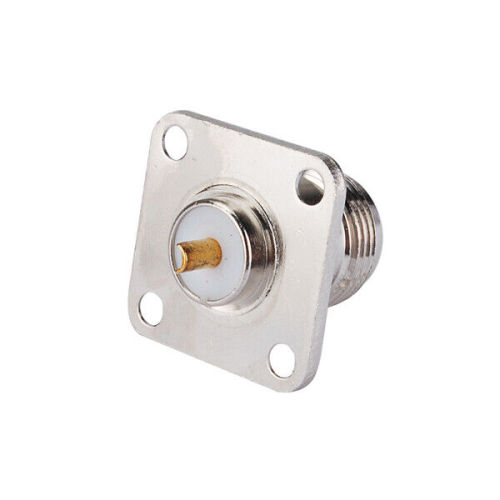

4 Hole Flange N Female Solder Connector

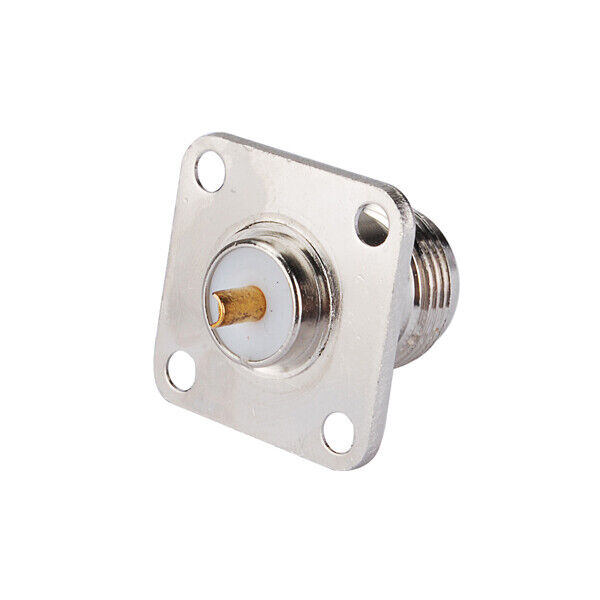

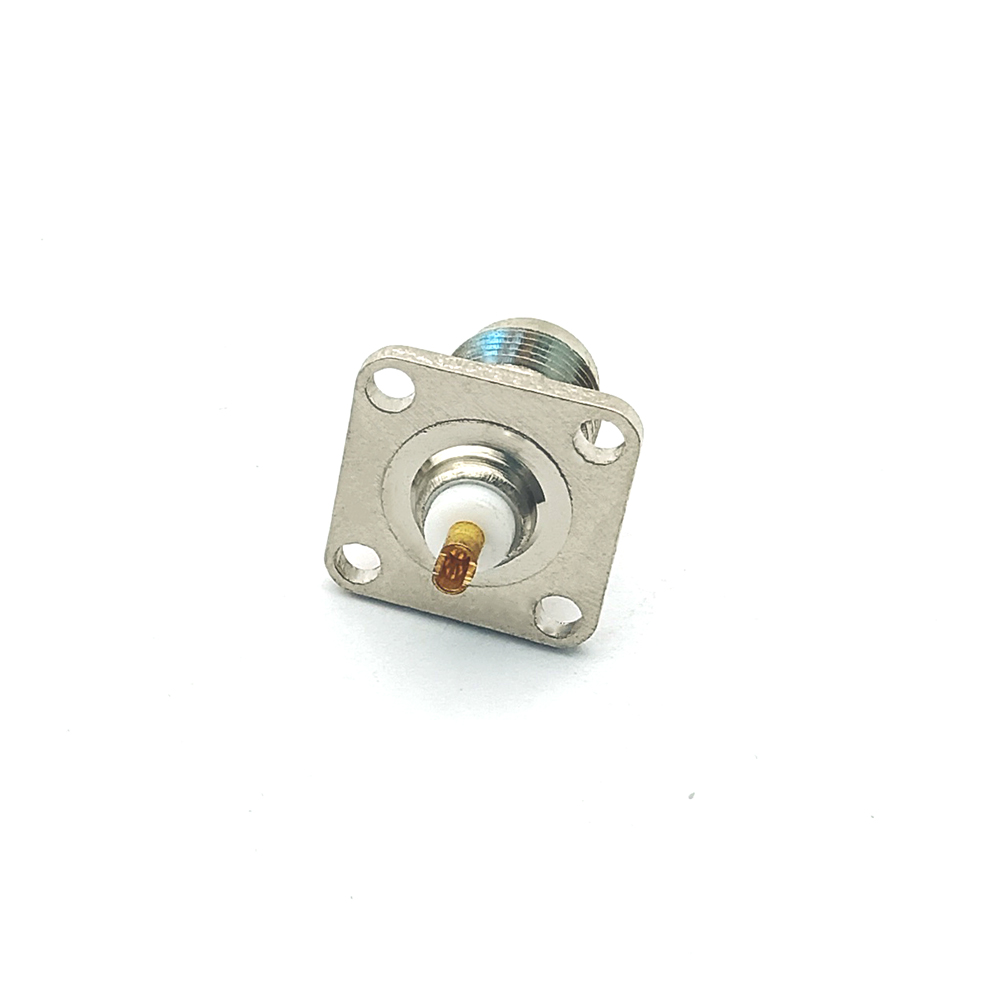

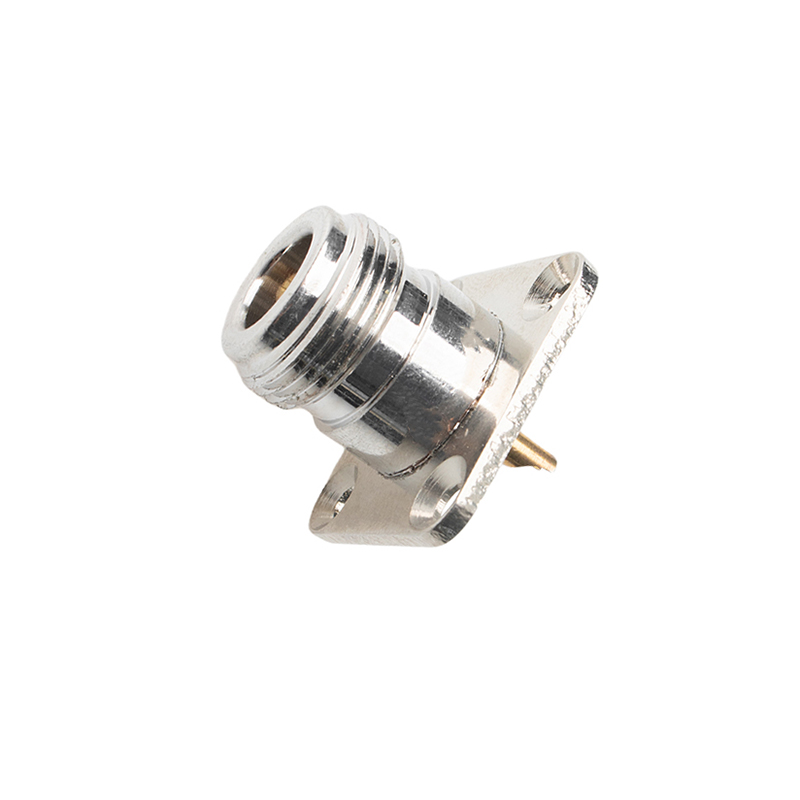

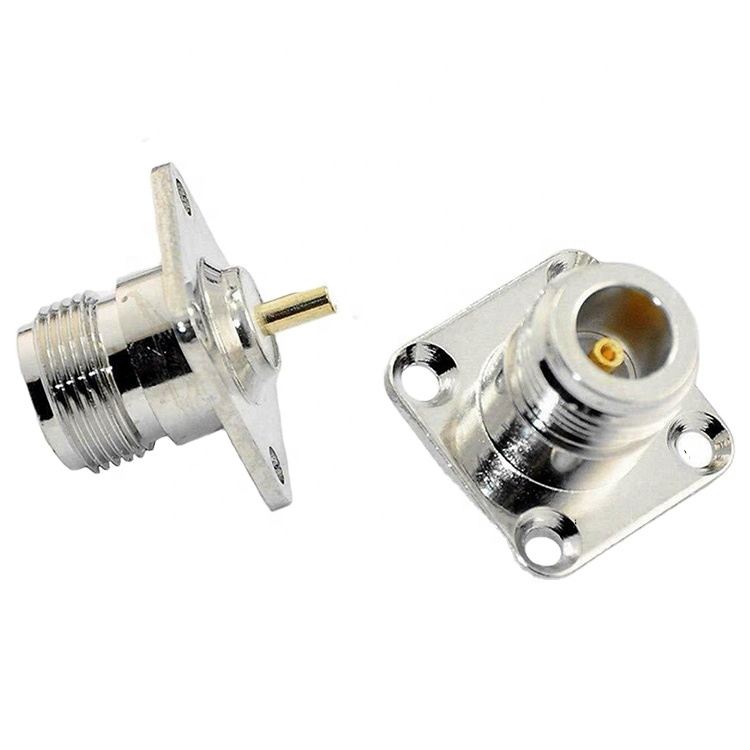

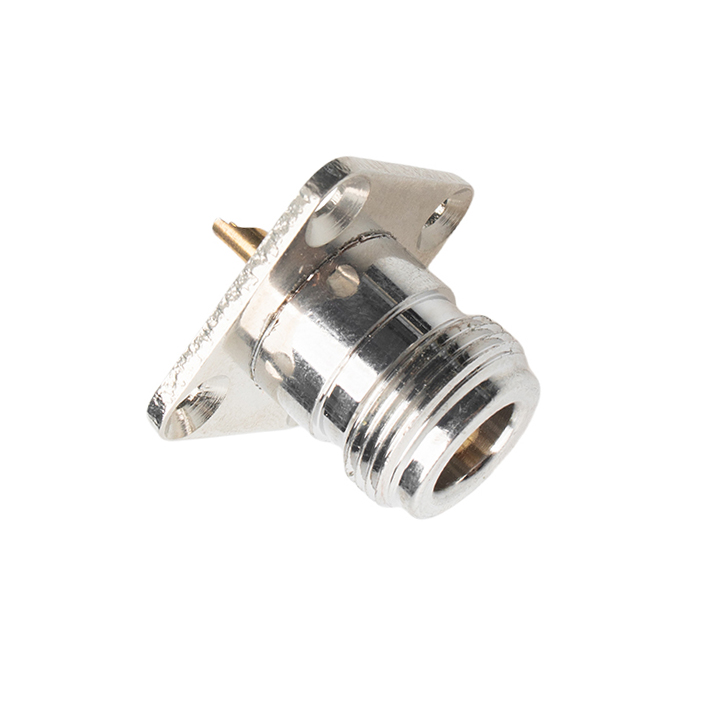

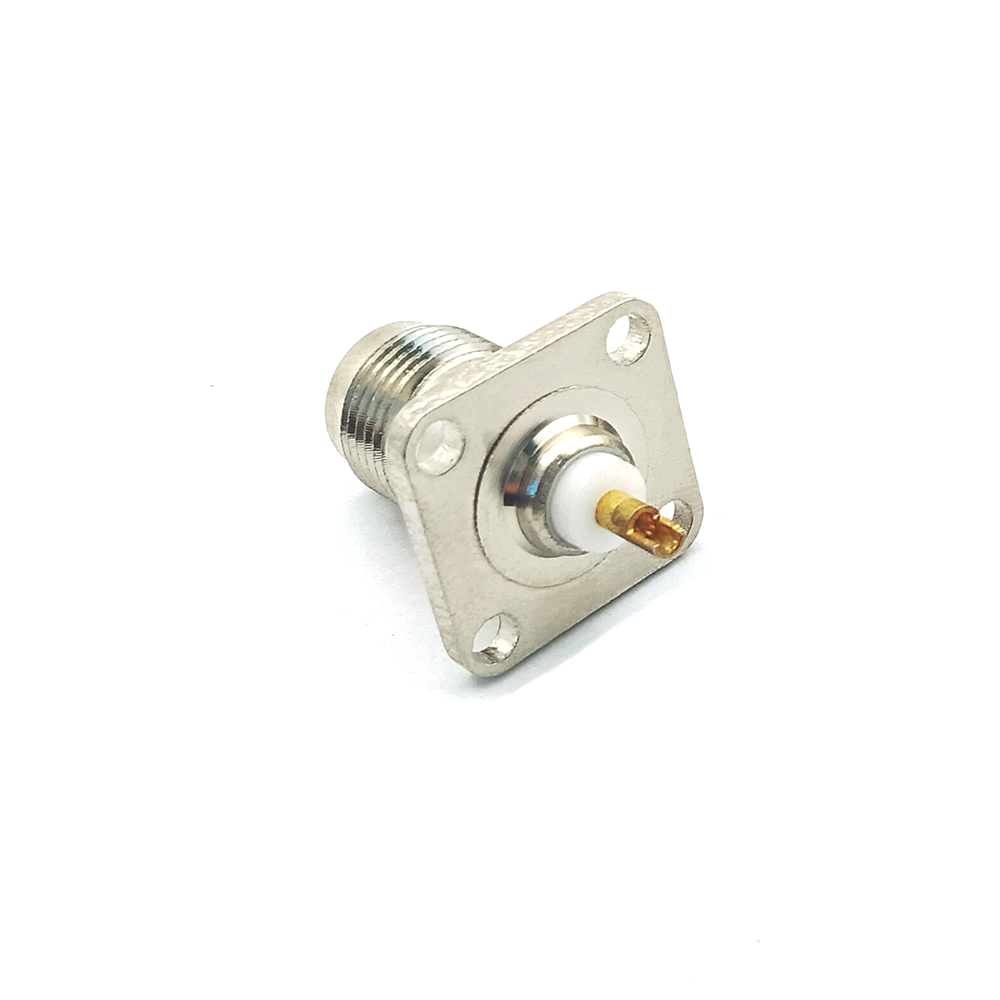

4-Hole Flange N Female Solder Connector – High-Performance RF Interconnect for Reliable Signal Transmission

This robust 4-hole flange-mounted N-type female solder connector delivers exceptional performance in demanding wireless and telecommunications environments. Engineered for precision, durability, and seamless integration into high-frequency systems, it serves as a critical component in professional-grade RF setups where signal integrity and mechanical stability are non-negotiable.

Designed with a standardized four-hole mounting flange, this connector ensures secure panel installation across industrial enclosures, base station housings, and broadcast equipment. Its nickel-plated brass construction offers superior corrosion resistance, making it ideal for outdoor installations or harsh operational conditions. With a 50-ohm impedance rating and an operating frequency range up to 11 GHz, it supports efficient signal transfer from microwave links to cellular infrastructure without compromising bandwidth or clarity.

Key features include a solder termination method that provides long-lasting electrical continuity and eliminates the risk of loose connections—critical in applications like antenna arrays, radar systems, and satellite communications. The threaded coupling mechanism aligns perfectly with male N connectors, ensuring low VSWR (Voltage Standing Wave Ratio) and minimal insertion loss even under continuous use. Whether deployed in military-grade communication platforms or commercial broadcast networks, this connector maintains consistent performance across extreme temperatures—from -55°C to +85°C—making it suitable for deployment in both arctic and desert climates.

Commonly found in telecom base stations, wireless backhaul systems, and test instrumentation, this N female solder connector is engineered not just for functionality but also for longevity. It's an essential part of any RF system requiring reliable coaxial interconnection, especially when vibration, moisture, or temperature fluctuations are present. For engineers designing or maintaining radio frequency networks, this product represents a balance between rugged build quality and precise electrical characteristics.

Users consistently praise its ease of installation, dependable solder interface, and ability to maintain signal fidelity over extended periods. Many report improved uptime in field deployments compared to cheaper alternatives, particularly in outdoor antennas and mobile network infrastructure. Its compatibility with standard RG-58, RG-8, and other coaxial cables further enhances its versatility across different application types.

Q: What makes an N Connector suitable for high-frequency applications? A: The N connector’s threaded design, precision machining, and consistent 50-ohm impedance ensure stable performance at frequencies up to 11 GHz, making it ideal for microwave and millimeter-wave systems. Q: How does the 4-hole flange improve reliability in panel-mounted configurations? A: This mounting style distributes stress evenly across the connector body, reducing mechanical fatigue and enhancing long-term stability in fixed installations such as cabinets, racks, and outdoor shelters. Q: Is this connector weather-resistant? A: While the female version doesn’t include an o-ring, its nickel-plated brass housing provides excellent protection against environmental degradation, especially when paired with a weatherproof male counterpart. Q: What other RF components do you offer besides N connectors? A: We supply a full line of coaxial connectors—including SMA, BNC, TNC, and F-type—as well as circular connectors, automotive harnesses, RCA interfaces, and custom wire assemblies tailored for global engineering needs.
