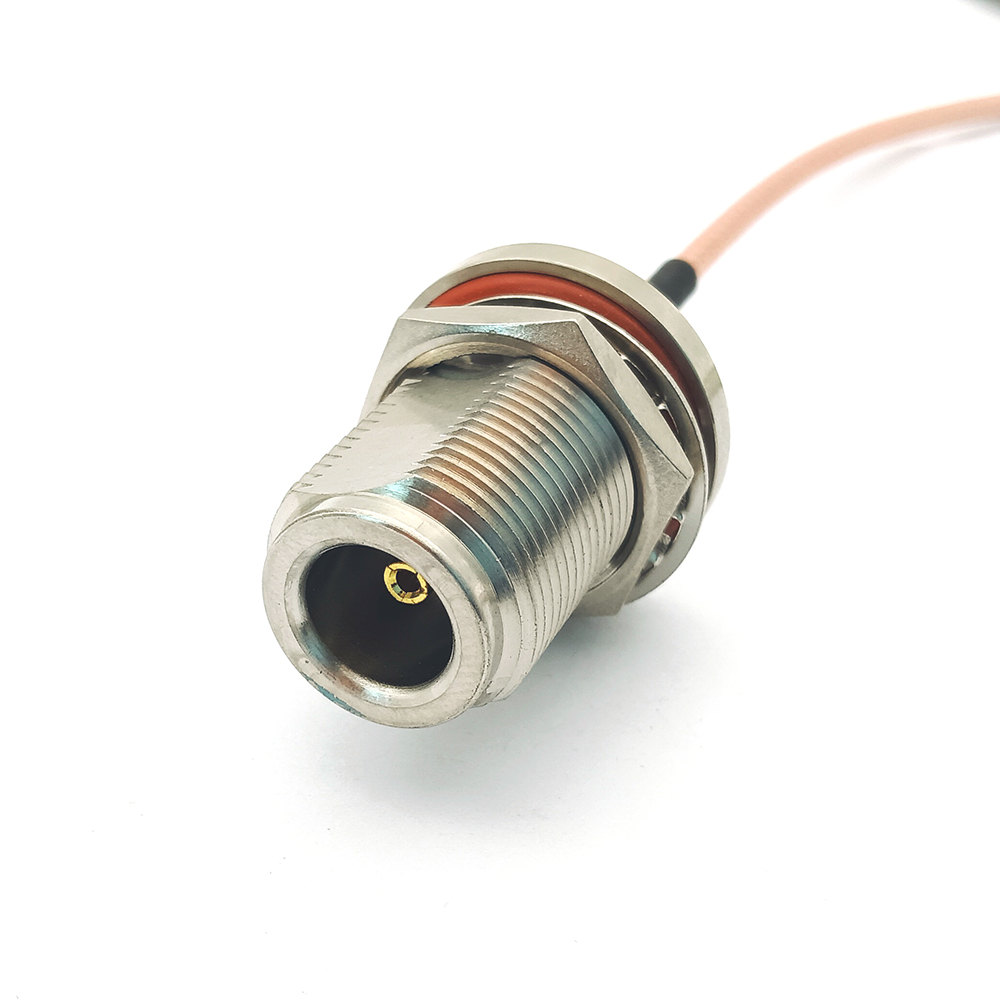

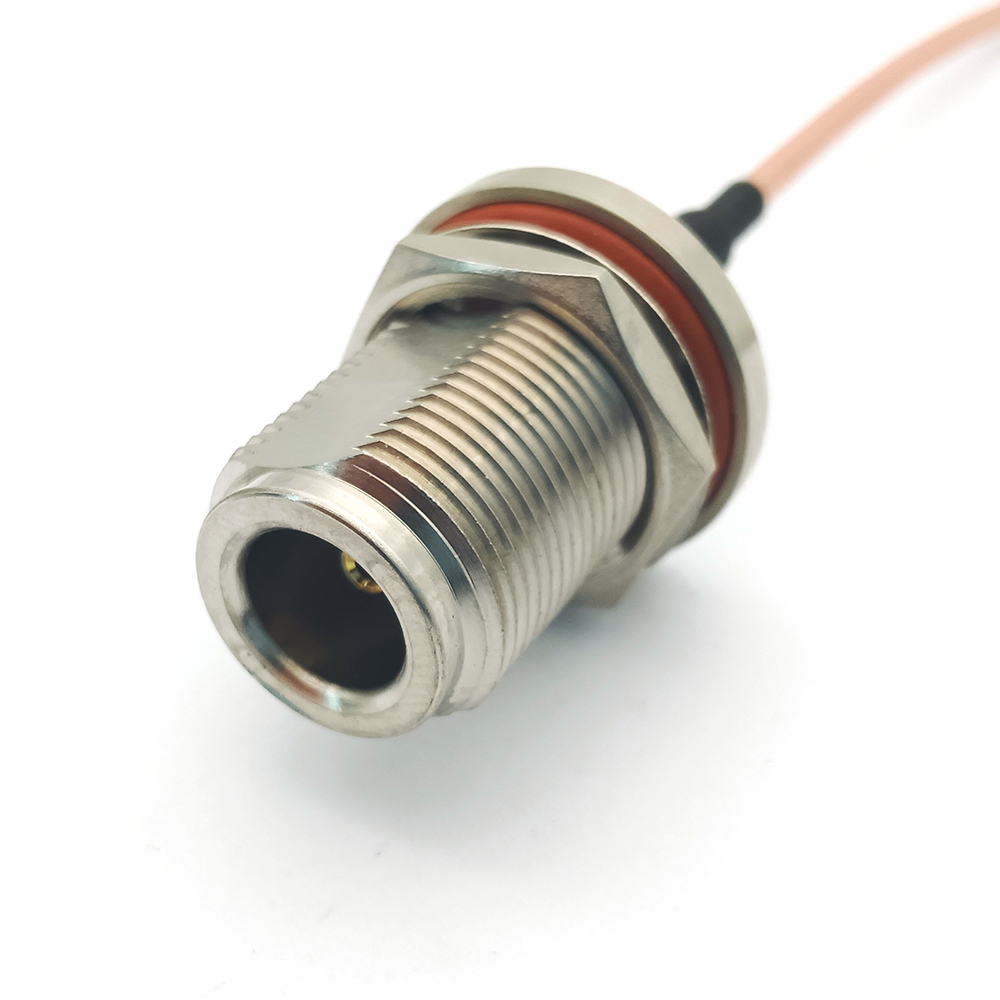

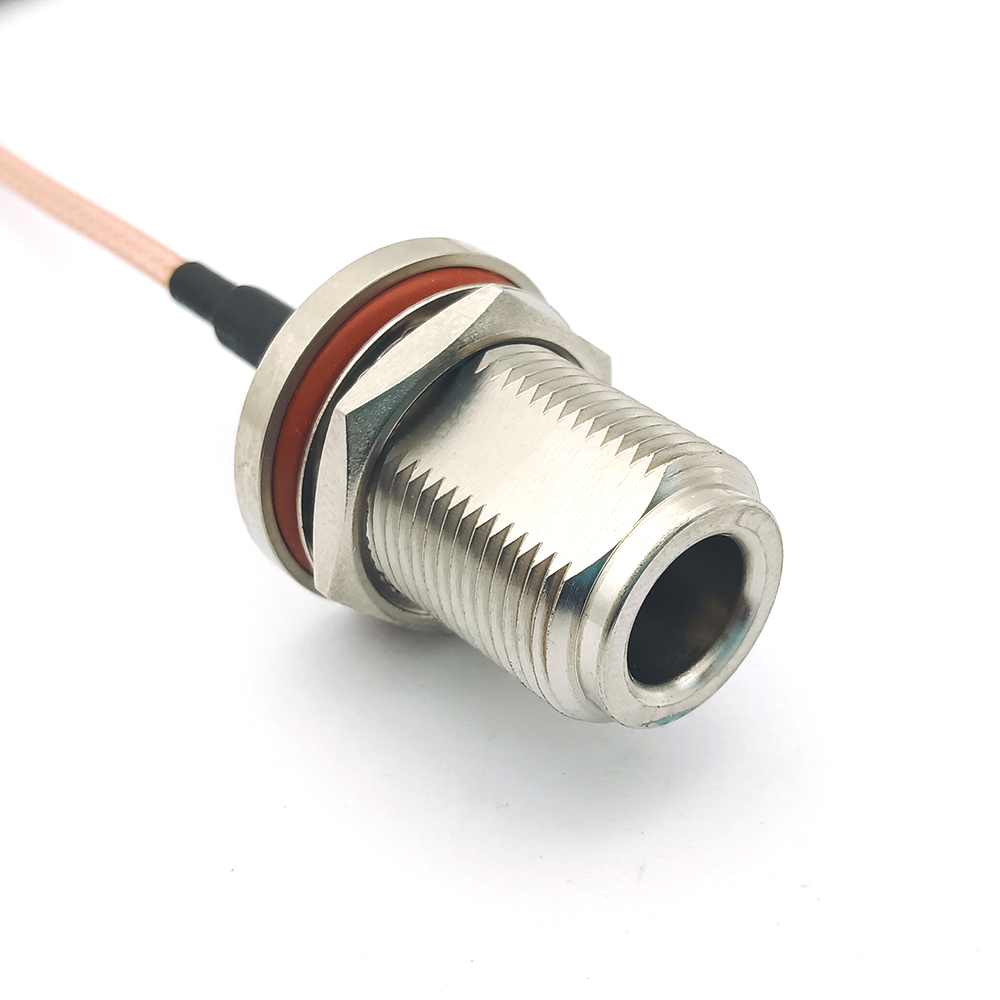

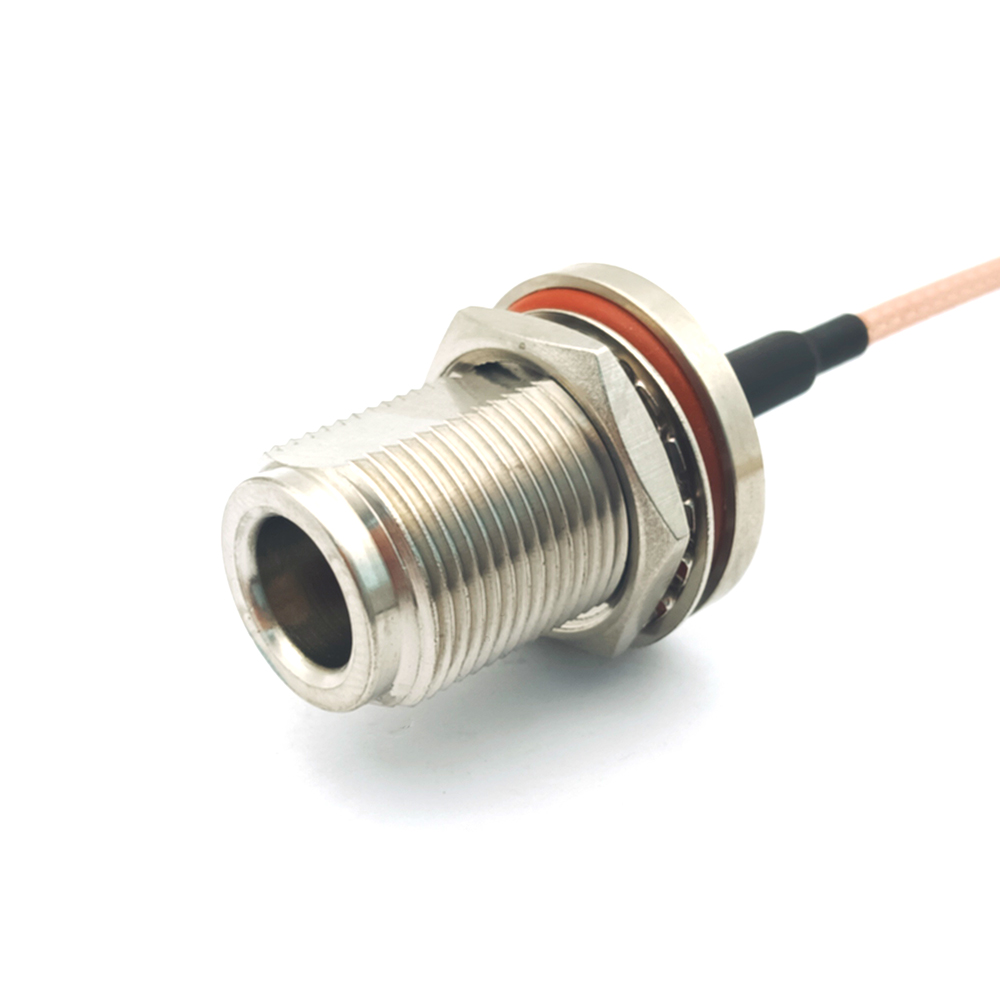

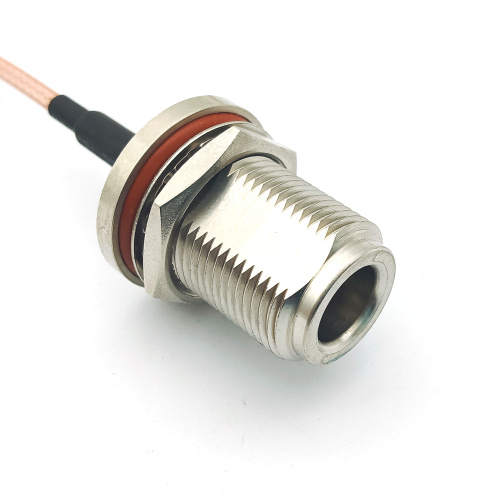

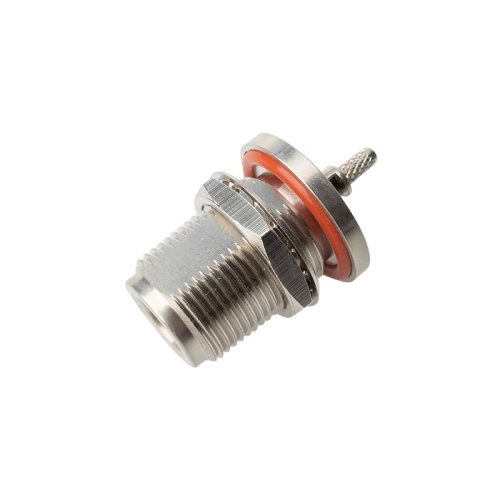

High-Performance Straight Bulkhead Solder N Female Crimp Cable Connector for RF and Microwave Systems
Engineered for precision and durability, the Straight Bulkhead Solder N Female Crimp Cable Connector delivers reliable high-frequency signal transmission in demanding environments. This robust RF Connector combines a secure bulkhead mounting design with dual termination methods—soldering and crimping—to ensure exceptional mechanical stability and electrical continuity across a wide range of applications.
Key Features:
- Supports RG-174 and RG-316 coaxial cables for versatile integration
- Female-threaded interface for compatibility with male N-type connectors
- Panel-mount bulkhead configuration enhances structural integrity
- Crimp-style termination offers quick assembly without soldering tools
- 50 Ohm impedance ensures minimal signal loss at microwave frequencies
- Nickel-plated brass body provides corrosion resistance and long-term reliability
Applications Across Industries:
- Telecommunications Infrastructure: Ideal for base station installations, antenna systems, and RF amplifiers where consistent performance is critical.
- Broadcast Engineering: Used in satellite uplinks, broadcast transmitters, and high-speed data transmission setups requiring low VSWR and stable impedance.
- Military & Aerospace Systems: Trusted in radar units, avionics, and communication modules due to its rugged build and environmental resilience.
- Test & Measurement Equipment: Commonly integrated into spectrum analyzers, network analyzers, and signal generators for accurate RF characterization.
- Industrial IoT Solutions: Deployed in wireless sensor networks, SCADA systems, and remote monitoring devices exposed to vibration or temperature extremes.
Why Choose This Connector?:
- Secure bulkhead mounting reduces microphonics and improves vibration resistance in mobile or industrial settings.
- Dual termination method—solder and crimp—ensures flexibility during installation while maintaining optimal contact resistance over time.
- Designed for frequencies up to 11 GHz, making it suitable for modern wireless protocols like 5G, Wi-Fi 6E, and millimeter-wave applications.
- Engineered to withstand harsh conditions including humidity, dust, thermal cycling, and mechanical stress—ideal for outdoor and embedded systems.
Customization Options Available:
- Compatible with multiple cable types such as RG-58, RG-142, LMR-195, and others for tailored system design.
- Custom plating (e.g., gold, tin, or stainless steel) available upon request for specialized EMI shielding or chemical resistance needs.
- Tailored configurations including different lengths, strain relief options, and locking mechanisms for unique engineering challenges.
For technical support, customization inquiries, or bulk orders, reach out to our global team of RF specialists. Whether you're designing a next-generation telecom module or upgrading legacy military hardware, this connector offers the performance and adaptability needed for mission-critical deployments. Explore related components including car antenna adapters, BNC connectors, UHF connectors, DC power connectors, and audio/video interconnect solutions for comprehensive system integration.
Frequently Asked Questions:
- What makes this N female connector ideal for outdoor installations? Its nickel-plated brass construction resists corrosion, while the bulkhead design prevents water ingress and mechanical loosening under vibration.
- Can I use this with non-standard cables like LMR-400? Yes—with proper crimp tooling and cable preparation, it supports various coaxial types beyond standard RG series.
- Is it suitable for high-power applications? Absolutely—it maintains low insertion loss and handles continuous power levels up to 150W at 1 GHz, depending on cable type and environmental factors.
- How does the crimp connection compare to soldering? The crimp method offers faster assembly and repeatability, especially in field service scenarios, while still providing excellent conductivity and durability when done correctly.
