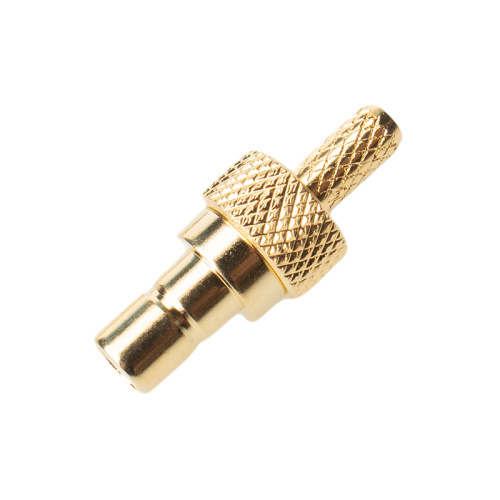

SMB Female Crimp Connector Right Angle Adapter

SMB Crimp Male and Female RF Connectors – High-Performance, Reliable, and Durable for Global Applications

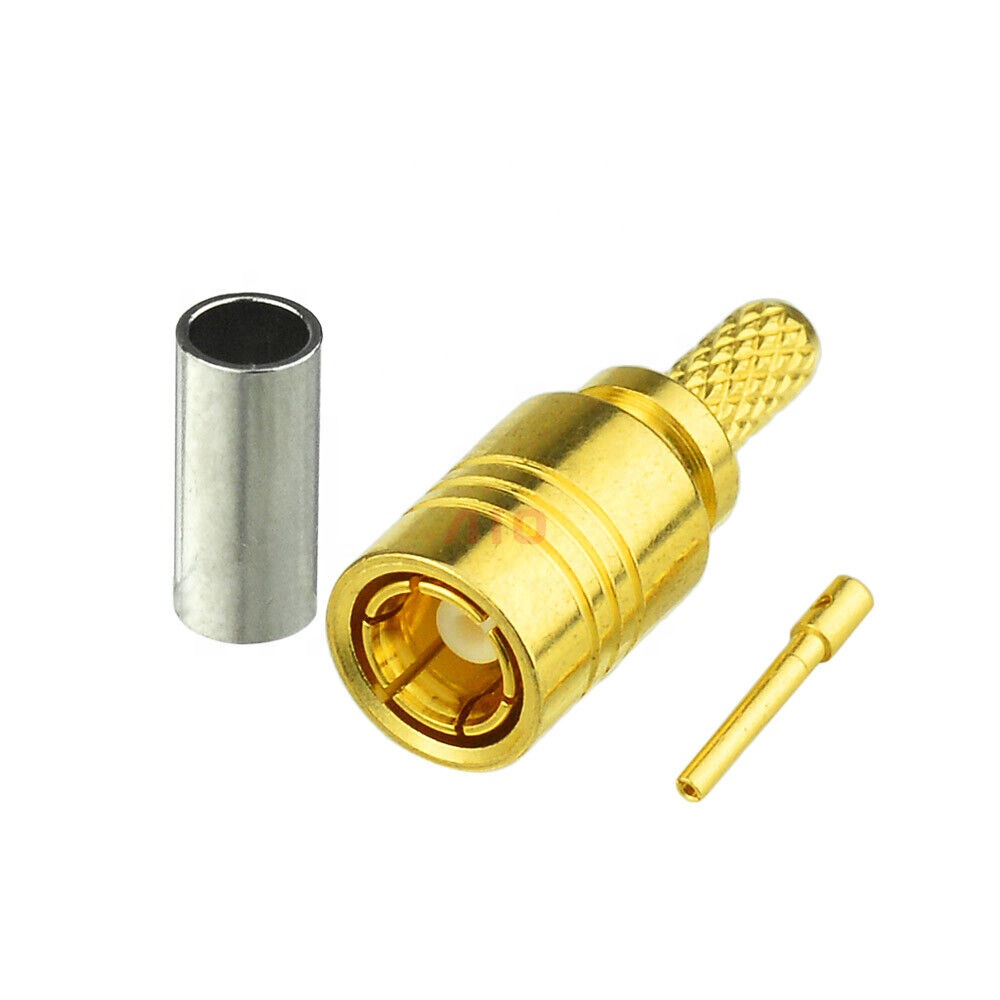

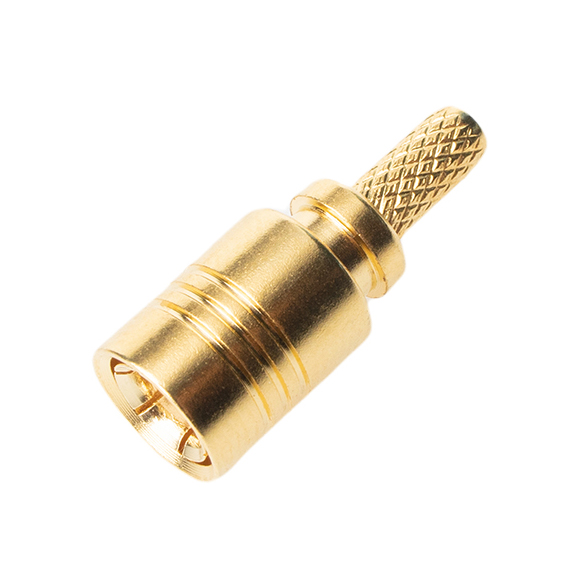

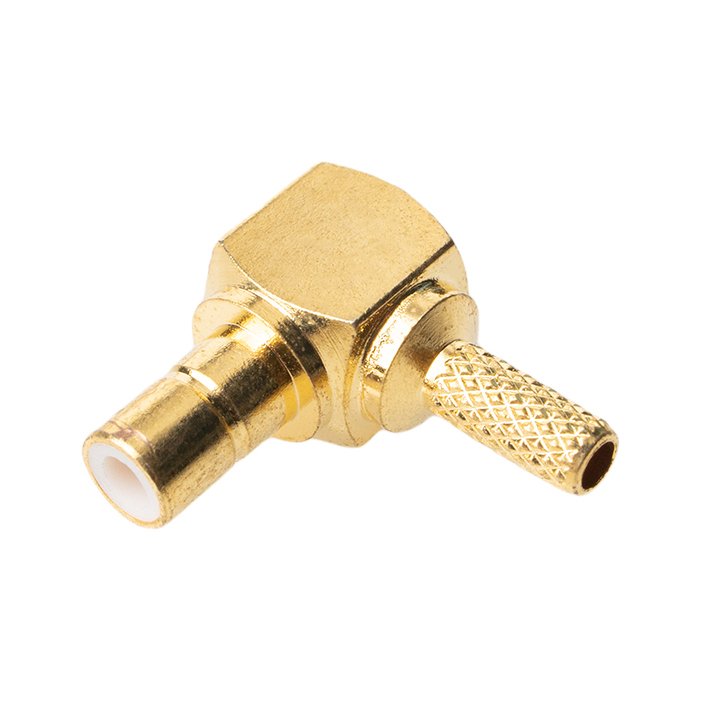

Engineered for precision and reliability in demanding environments, the SMB crimp connector series offers a robust solution for high-frequency signal transmission across telecommunications, industrial electronics, and test & measurement systems. These connectors are designed to meet international standards while delivering consistent performance under extreme conditions—from harsh outdoor installations to sensitive laboratory setups. With options for both male and female configurations, including straight and right-angle variants, this product supports versatile integration into existing PCB layouts or cable assemblies.

Key specifications include an operating temperature range from -55°C to +155°C (with PE cables rated up to +105°C), impedance options of 50Ω or 75Ω, and frequency capabilities reaching up to 4 GHz for 50Ω models and 2 GHz for 75Ω versions. The connectors maintain excellent electrical integrity with low insertion loss—just 0.1 x √f(GHz) dB at 1 GHz—and a voltage standing wave ratio as low as 1.35 at 3 GHz for straight types and 1.45 at 1 GHz for right-angle models. Their durability exceeds 500 mating cycles, ensuring long-term stability in repetitive connection scenarios.

Constructed with precision-machined brass contacts and corrosion-resistant plating, these connectors ensure minimal contact resistance—≤6 mΩ for center pins and ≤1 mΩ for outer shells—while maintaining insulation resistance above 1,000 MΩ. The coupling nut retention force exceeds 180 N, providing secure connections even in high-vibration applications such as automotive systems or aerospace equipment. Additionally, the center conductor retention force is ≥0.28 N, preventing accidental disconnection during handling or operation.

These SMB connectors are ideal for use in wireless communication modules, satellite receivers, medical imaging devices, industrial automation controls, and military-grade instrumentation where signal fidelity and mechanical resilience are critical. Whether deployed in fixed installations or portable field gear, they support seamless data transfer across a wide bandwidth spectrum without compromising on form factor or ease of installation.

Users worldwide have praised the consistency and quality of these connectors, noting their compatibility with standard RG-174 and similar coaxial cables, as well as their ability to reduce signal degradation over time compared to lower-grade alternatives. Many engineers appreciate the straightforward crimping process, which minimizes assembly errors and reduces production downtime in high-volume manufacturing settings.

Frequently Asked Questions:

Q: Are you a manufacturer? A: Yes, we are a factory-based producer located in Changzhou, China, specializing in RF connectors and cable assemblies. We offer OEM/ODM services tailored to global clients’ technical and branding needs.

Q: Can I get a free sample? A: We provide samples of available stock items at no cost, though shipping fees apply. For custom designs or special materials, please reach out directly for detailed discussions.

Q: How do I make payment? A: We typically accept T/T (Telegraphic Transfer). Other terms like L/C or PayPal can be arranged upon request based on order size and client preferences.

Q: Is the quality guaranteed? A: Absolutely. Our facility uses advanced CNC machines and automated testing tools to validate every batch against international benchmarks. Each unit undergoes rigorous inspection before shipment to ensure compliance with ISO and IEC standards.

Q: What’s the lead time for bulk orders? A: Production typically takes 10–25 working days after deposit confirmation, depending on order volume and customization complexity.

Q: What else can I purchase from your company? A: Beyond SMB connectors, we supply a full suite of RF interconnect solutions—including mini Fakra connectors, car antenna adapters, RCA connectors, 3.5mm audio jacks, HSD connectors, and more—designed for reliable performance in diverse electronic ecosystems.
