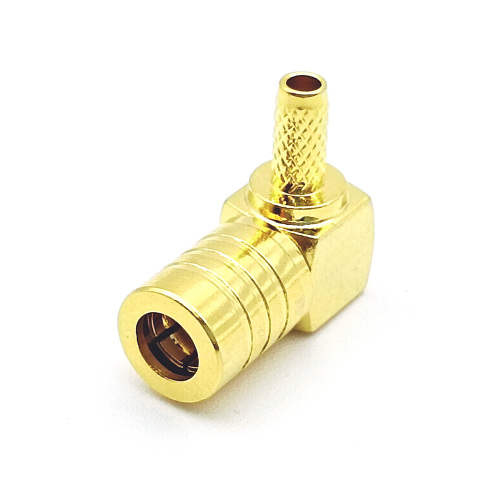

The Right Angle Crimp SMB Female Cable Mount Connector is a high-performance RF coaxial solution engineered for precision signal transmission in demanding environments. Designed with reliability, durability, and space efficiency in mind, this connector delivers consistent performance across a wide frequency range—ideal for modern telecommunications, wireless systems, and industrial electronics. Whether you're deploying in compact enclosures or rugged outdoor setups, the SMB female connector ensures stable connections without compromising on form factor or functionality. This connector supports impedance options of 50Ω and 75Ω, making it compatible with both standard and video-grade coaxial cables such as RG58, RG59, and RG174. Its frequency response spans from DC to 4 GHz (for 50Ω) and up to 2 GHz (for 75Ω), enabling seamless integration into microwave, Wi-Fi, and broadband communication networks. With an operating temperature range of -55°C to +155°C (and -40°C to +105°C for PE-insulated cables), it excels in extreme climates—from Arctic installations to desert-based infrastructure. Key electrical characteristics include a working voltage of 335V RMS at sea level, a withstand voltage of 1000V RMS, and insulation resistance exceeding 1000 MΩ, ensuring safe operation under high-stress conditions. The center contact resistance is maintained below 6 mΩ, while outer contact resistance remains under 1 mΩ, minimizing signal degradation. Insertion loss is optimized at 0.1√f(GHz) dB at 1 GHz, preserving signal integrity over long cable runs. A VSWR of ≤1.35 at 3 GHz (straight version) and ≤1.45 at 1 GHz (right-angle version) confirms its suitability for sensitive RF applications where minimal reflection matters. Mechanical robustness is equally impressive: the nickel-plated housing resists corrosion, while gold-plated contacts offer superior conductivity and longevity. It features a crimp termination method that guarantees secure attachment to various cable types, reducing the risk of intermittent connections. Engagement and disengagement forces are balanced between 8–63 N, allowing easy mating without sacrificing retention strength. The coupling nut can withstand over 180 N of force, ensuring stability even during vibration-prone operations. With a minimum of 500 mating cycles, this connector maintains optimal performance through repeated use—a critical advantage for field technicians and maintenance engineers. Ideal for applications requiring reliable RF interconnects, this SMB female connector is widely used in satellite communications, radar systems, test equipment, broadcast gear, IoT devices, and medical imaging hardware. Its right-angle configuration allows efficient routing within tight spaces—perfect for small PCB assemblies, embedded modules, or crowded chassis designs. Customization options include gold-plated contacts for enhanced signal fidelity, bulk order availability for large-scale deployments, and tailored cable lengths for specialized installations. Users consistently praise its combination of compact design, excellent signal transfer, and mechanical resilience. Many note how the connector simplifies assembly in confined areas while maintaining low insertion loss and high return loss performance. Field professionals appreciate the ease of crimping and the confidence that comes from knowing their connections will hold up under pressure—whether in mobile base stations, military-grade radios, or automated test benches. Common questions often revolve around compatibility with different cable types, expected lifespan under cyclic use, and environmental resistance. This connector performs reliably in humid, dusty, and high-vibration settings thanks to its sealed construction and corrosion-resistant materials. While not designed for ultra-high-power applications, it offers exceptional value for medium-frequency, moderate-power scenarios where consistency and ease of installation matter most. For engineers seeking a dependable, cost-effective, and versatile RF interface, the Right Angle Crimp SMB Female Cable Mount Connector stands out as a top-tier choice. Whether integrating into new product designs or upgrading existing systems, it provides a proven foundation for high-quality signal transmission across global markets.
Product Categories : RF Coaxial Connector > Smb Connector
