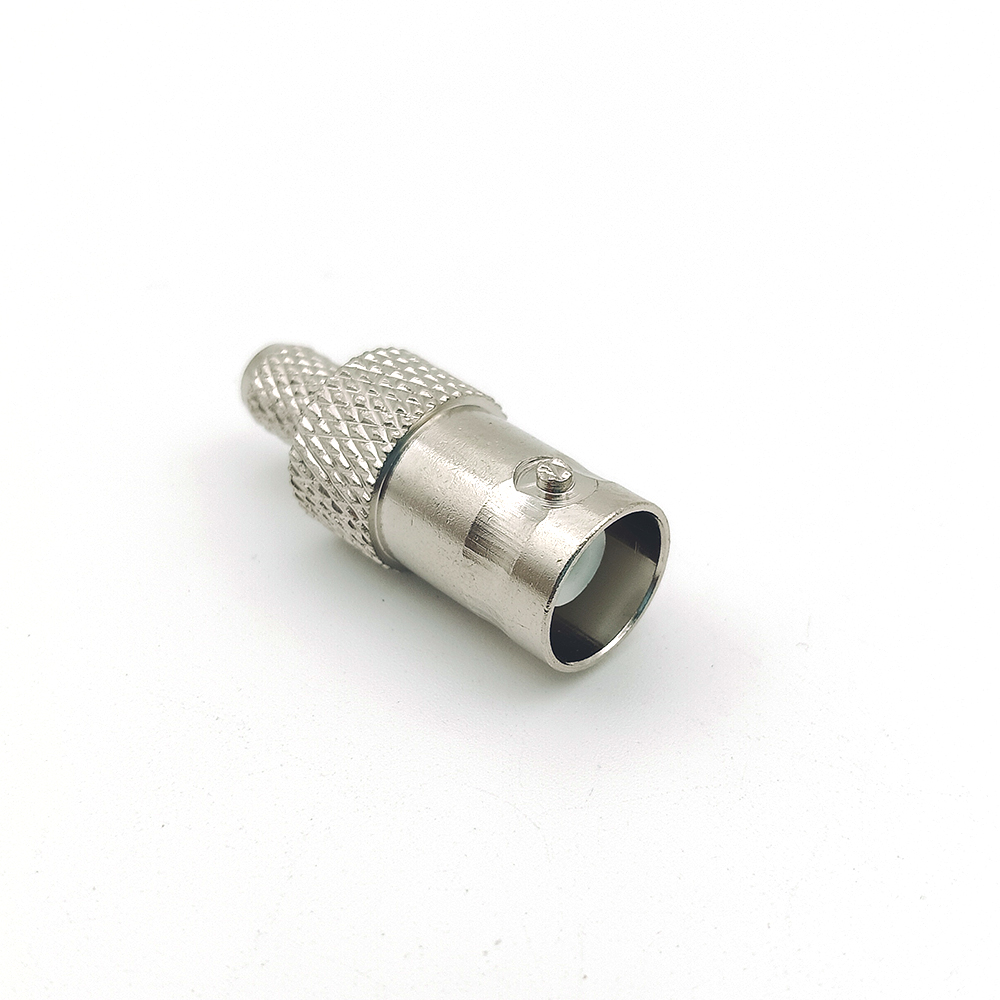

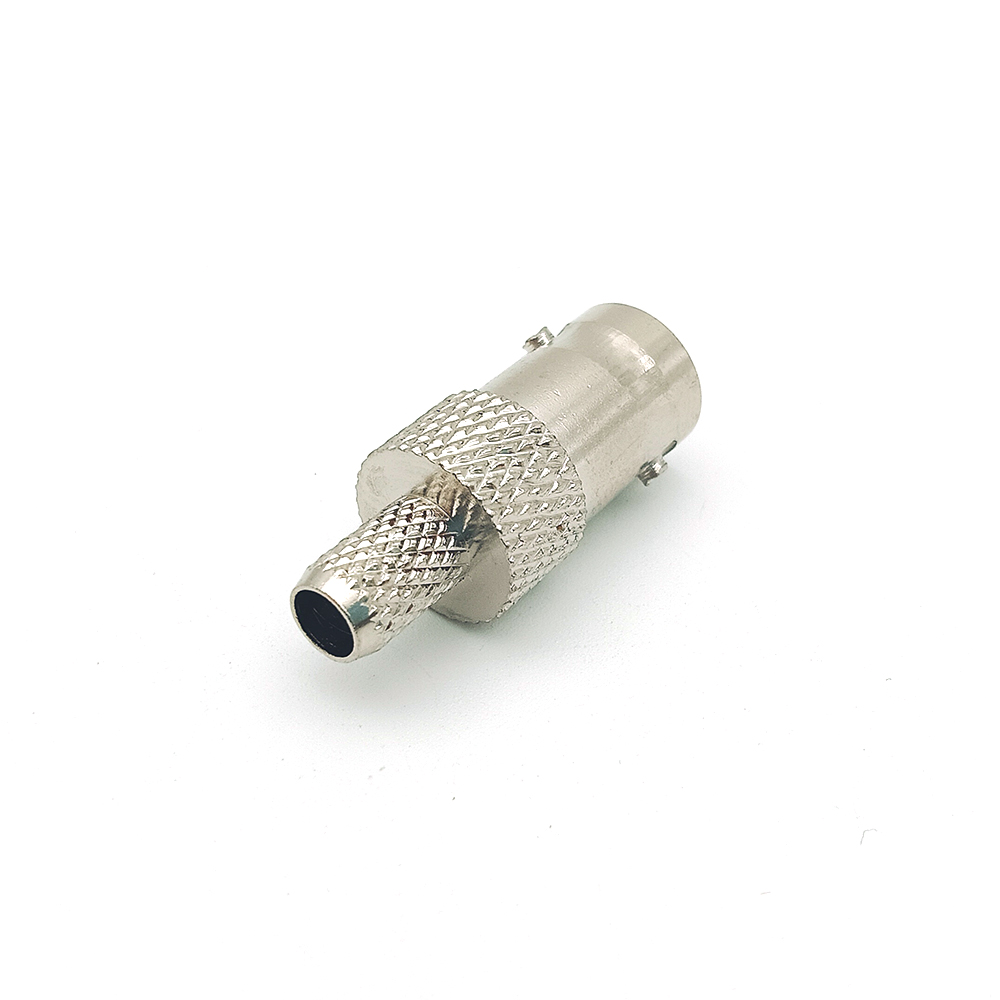

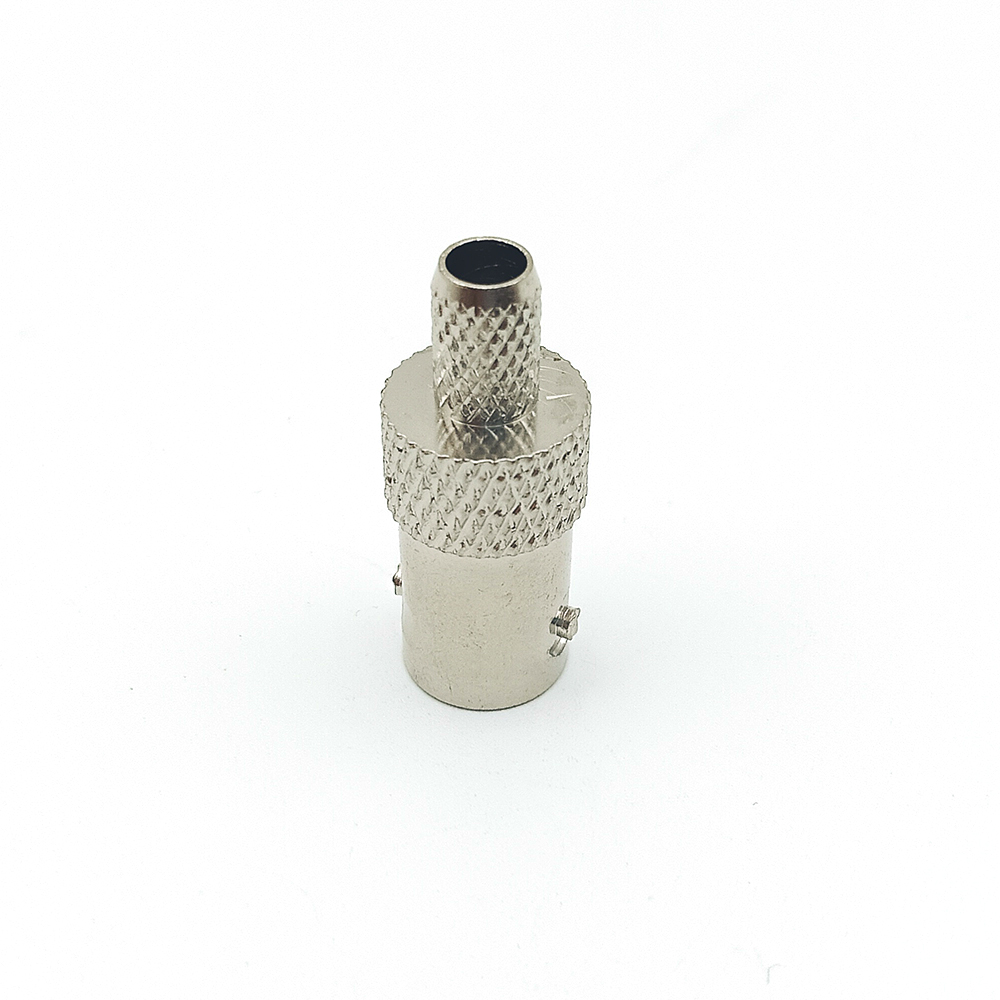

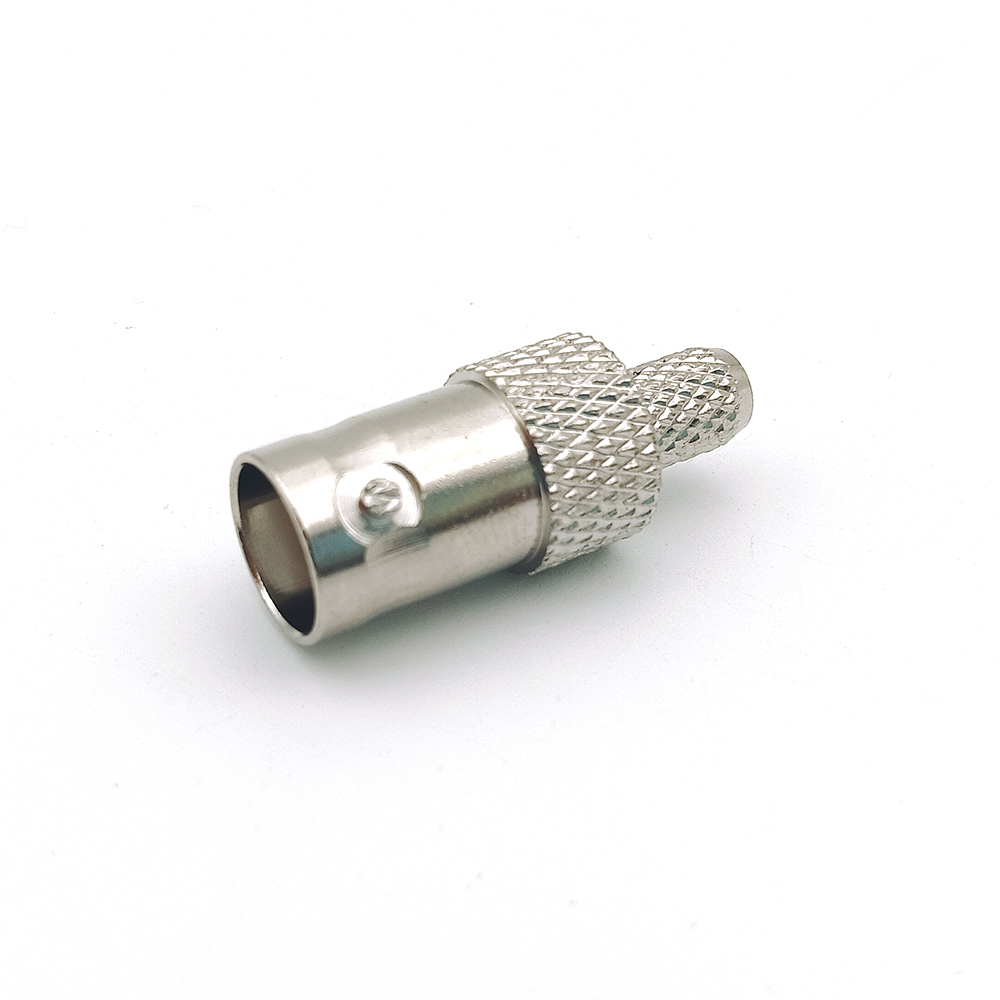

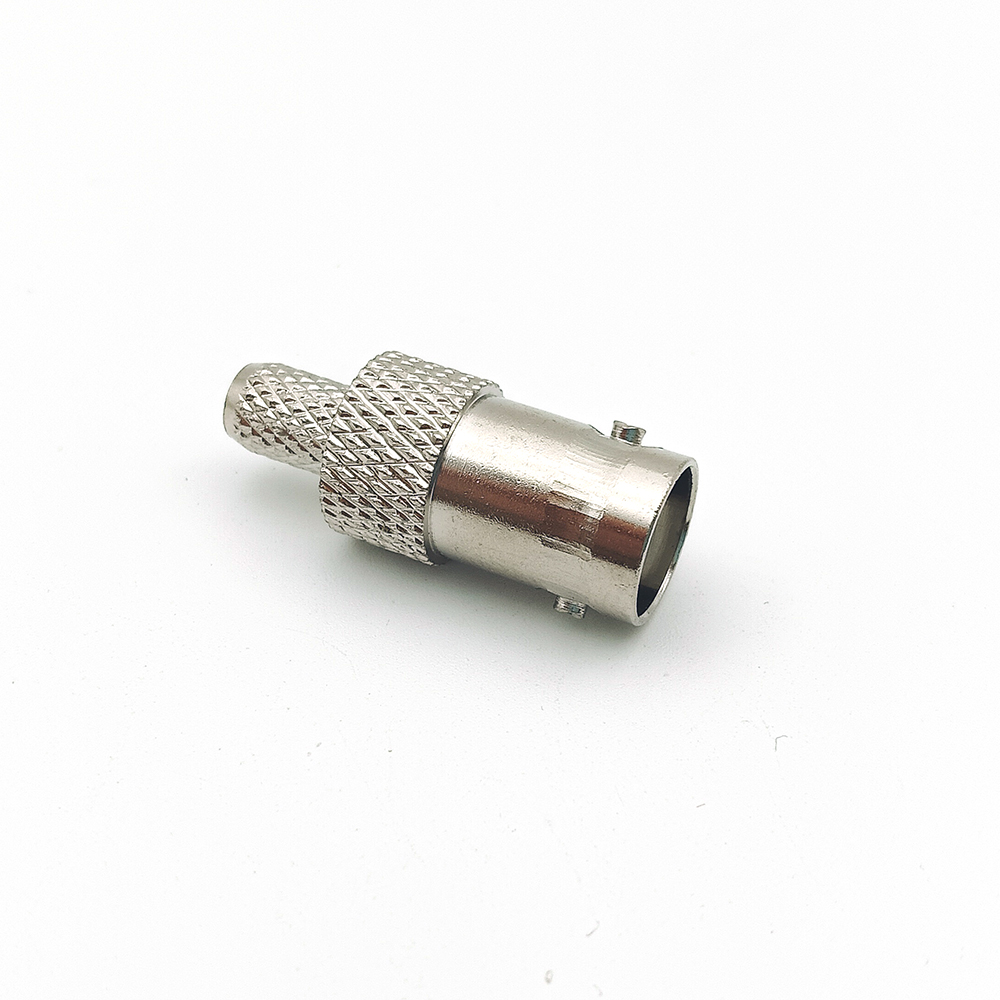

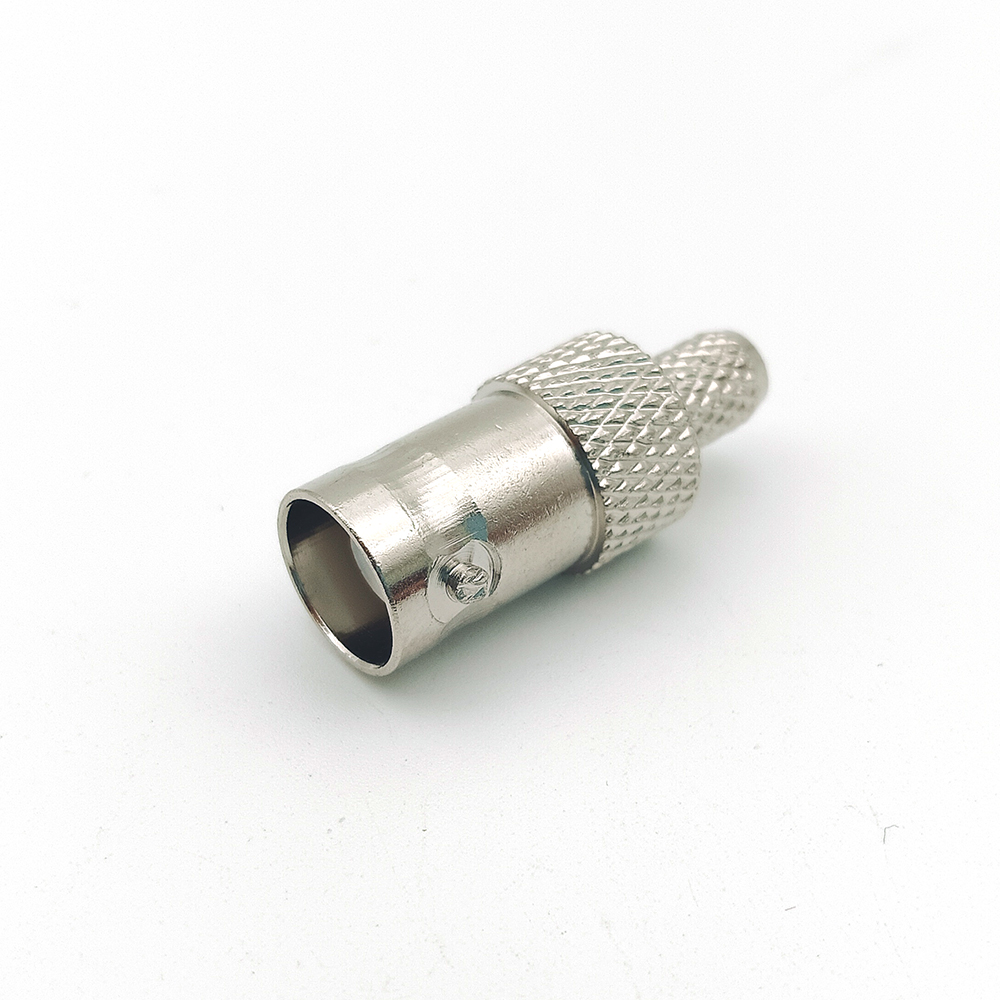

BNC Female Crimp Solder RF Coaxial Connector

High-Performance BNC Female Crimp Solder RF Coaxial Connector for Reliable Signal Transmission

Engineered for precision and durability, the BNC Female Crimp Solder RF Coaxial Connector delivers exceptional signal integrity in demanding environments across global industries. Whether you're setting up a professional broadcast system, installing surveillance infrastructure, or calibrating laboratory instruments, this connector ensures minimal signal degradation thanks to its hybrid crimp-and-solder termination method—offering both mechanical stability and electrical continuity. Designed with compatibility in mind, it supports both 50-ohm and 75-ohm impedance configurations, making it adaptable to diverse RF systems including video transmission, wireless communications, and test equipment setups.

Key Features:

• Bayonet Coupling Mechanism: Enables fast, tool-free connection and disconnection while maintaining secure engagement under vibration or movement conditions.
• Impedance Compatibility: Available in standard 50Ω and 75Ω variants to match specific system requirements—ideal for CCTV, RF signal distribution, and telecom applications.
• Multi-Industry Use: Built to meet military-grade, industrial, and commercial standards for reliable performance in harsh operating environments.
• Universal Cable Compatibility: Supports common BNC-compatible coaxial cables such as RG-58, RG-59, and RG-6, ensuring seamless integration into existing installations.
• Enhanced Conductivity Options: Gold-plated contacts available for high-end applications requiring superior conductivity and corrosion resistance over time.

This robust RF coaxial connector combines the best of two worlds: the mechanical strength of crimping for secure attachment to cable shields and the low-resistance path provided by soldering at the center conductor interface. This dual-method approach minimizes reflection losses and enhances return loss performance—a critical factor in high-frequency signal transfer. Its compact design allows easy installation in tight spaces, while the durable brass body resists wear and environmental stressors like moisture and temperature fluctuations.

Applications Across Industries:

• Professional Broadcasting: Used extensively in television studios and live event production for stable video/audio signal routing between cameras, switchers, and monitors.
• Wireless Communication Systems: Ideal for Wi-Fi access points, cellular base stations, and two-way radio networks where consistent RF connectivity is essential.
• Security Surveillance: Connects IP or analog CCTV cameras to recorders or NVRs without compromising image quality or data throughput.
• Test & Measurement Equipment: Frequently found on oscilloscopes, spectrum analyzers, and signal generators for accurate RF testing and calibration purposes.

User Feedback Highlights:

Users consistently praise the connector’s reliability in mission-critical scenarios—from outdoor antenna installations to studio-grade audio setups. Many note how the gold-plated variant significantly improves long-term signal consistency in humid or corrosive environments. The ease of assembly using basic tools like crimping pliers and soldering irons makes it accessible even for intermediate-level technicians. Professionals appreciate that it reduces downtime caused by intermittent connections—a frequent issue with cheaper alternatives.

Frequently Asked Questions:

Is this connector suitable for outdoor use? Yes, with proper sealing and mounting, the BNC female crimp solder connector performs reliably in exterior settings due to its corrosion-resistant materials and sealed interface.

Can I use it with different types of coaxial cables? Absolutely—it's compatible with widely used RG-series cables such as RG-58, RG-59, and RG-6, though exact fit may depend on cable outer diameter and shield type.

What’s the difference between crimp-only and crimp+solder connectors? While crimp-only connectors offer speed, the crimp+solder hybrid provides better electrical continuity and reduced risk of signal loss over extended periods, especially in high-frequency applications (up to 4 GHz).

Do you offer bulk quantities for large-scale projects? Yes, custom orders are available for enterprises deploying hundreds or thousands of units across broadcast facilities, security systems, or telecommunications infrastructure.

For professionals seeking dependable, high-fidelity RF interconnect solutions, this BNC female coaxial connector stands out as a versatile, future-proof choice. Whether for new builds or retrofits, its combination of rugged construction, precise impedance control, and flexible customization options makes it an industry-recommended standard worldwide.
