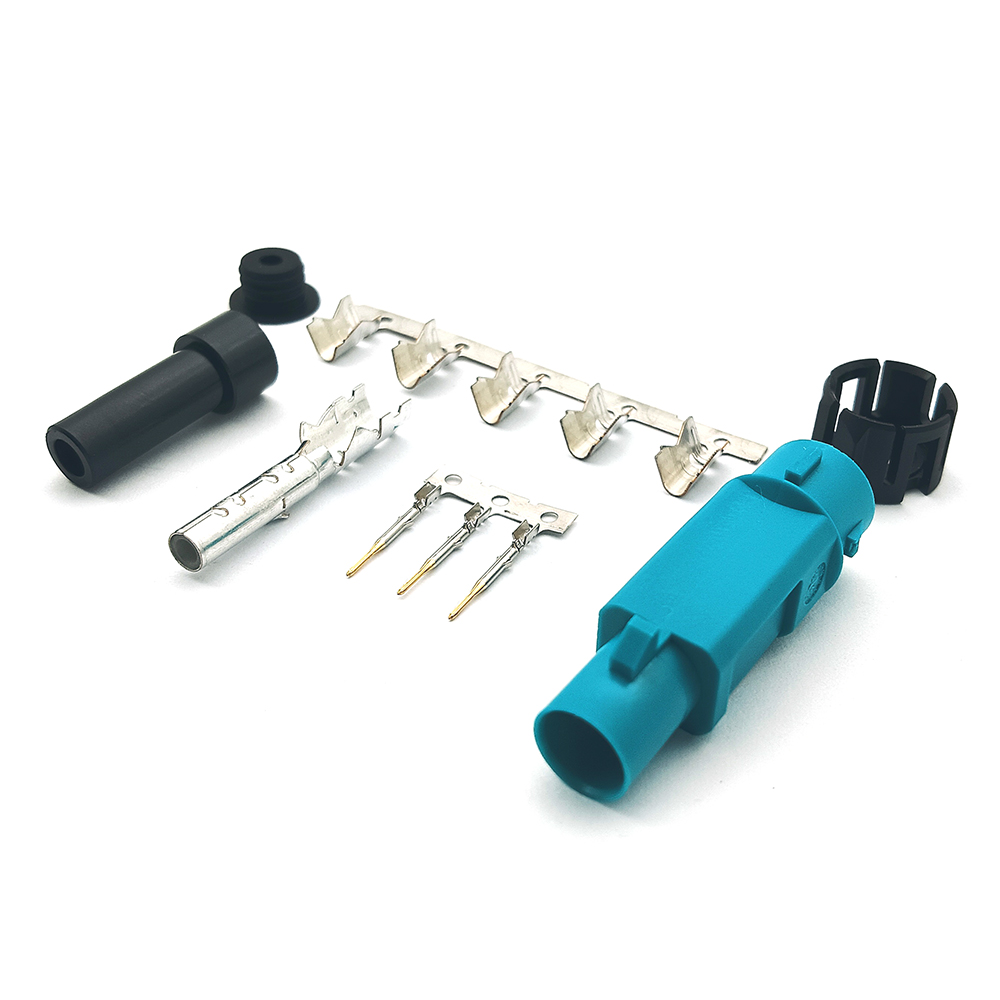

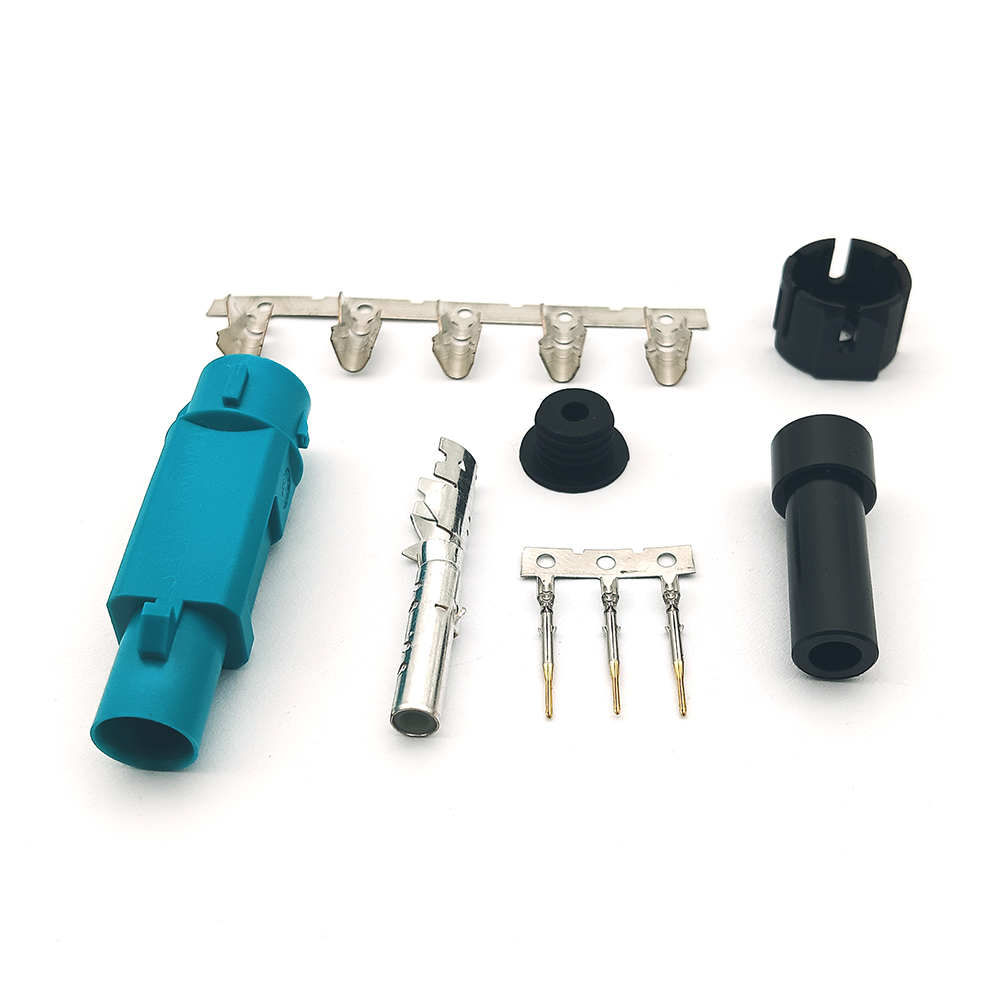

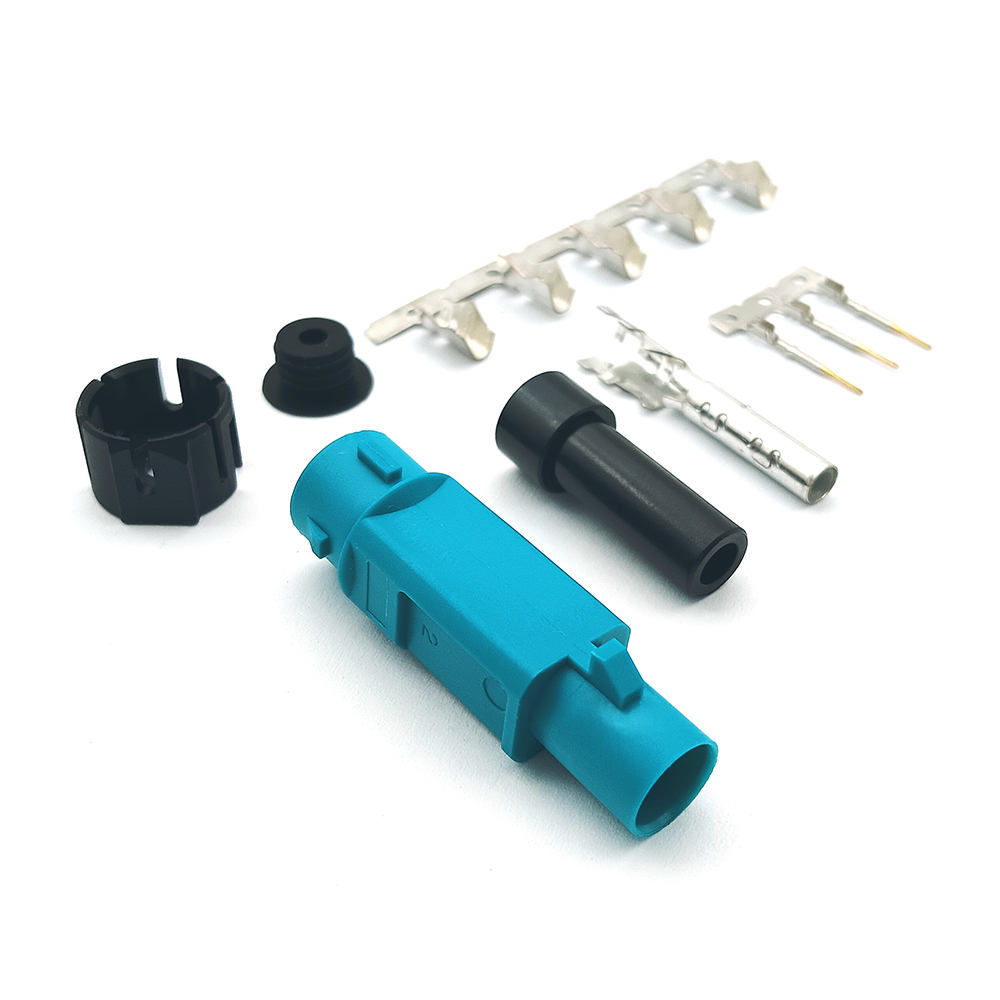

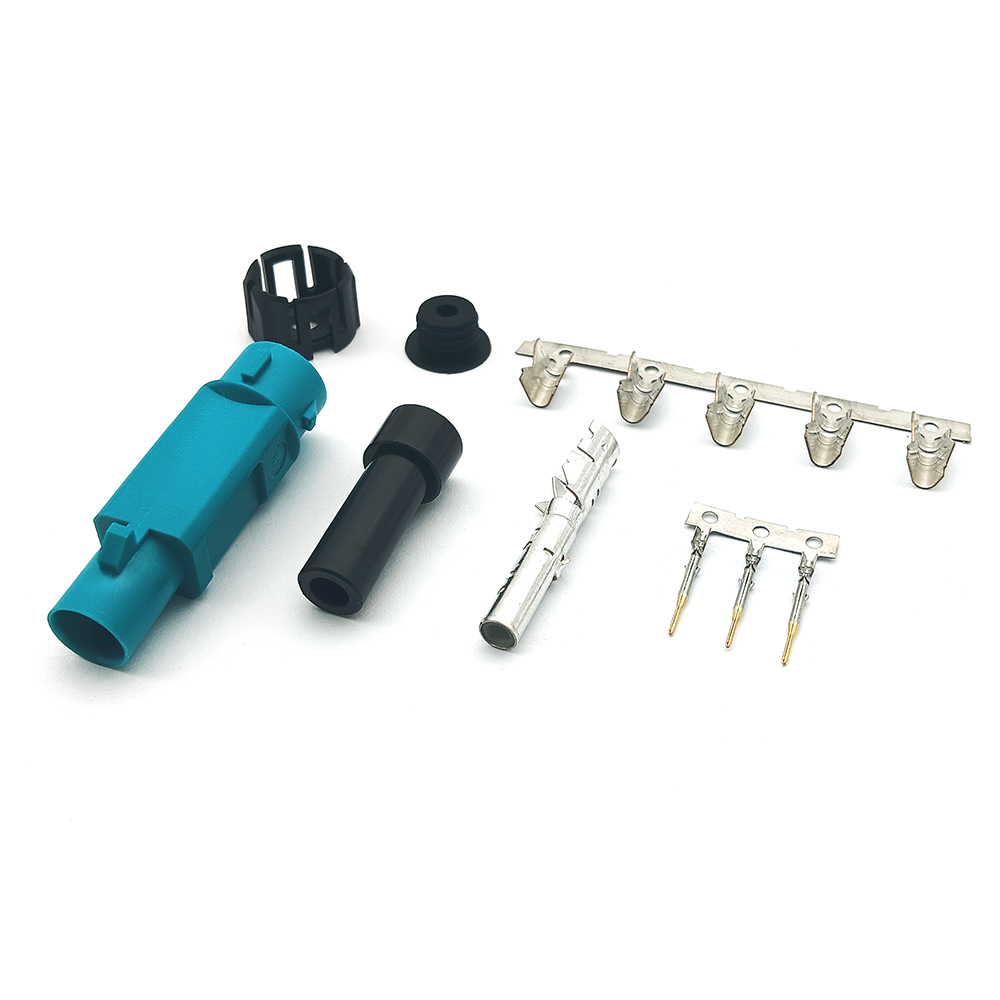

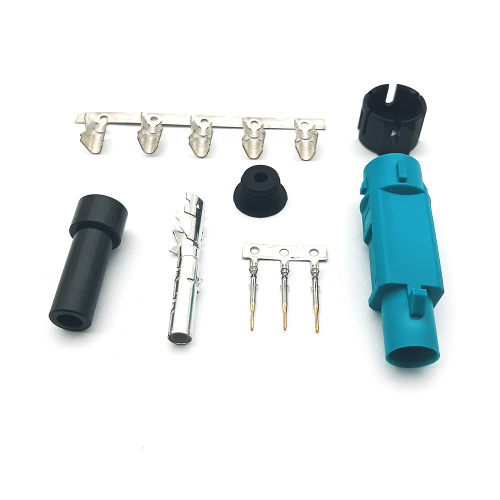

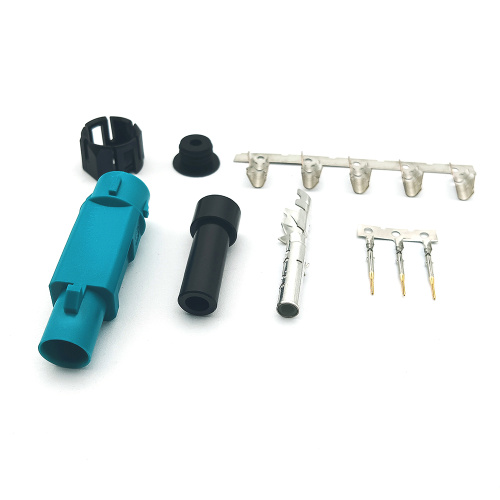

Universal Waterproof Fakra Male Crimp Coaxial Connector

Universal Waterproof Z-Code Fakra SMB Male Plug Crimp Coaxial Connector for RG174 Cable – High-Performance RF Solution for Automotive and Industrial Applications

This ruggedized coaxial connector is engineered to deliver reliable, high-frequency signal integrity in demanding environments. Designed specifically for RG174 cable, it combines the precision of a Z-Code Fakra SMB male plug with robust waterproofing capabilities, making it an ideal choice for modern automotive systems, industrial automation, and wireless communication modules where durability and performance are non-negotiable.

Engineered for secure mating and long-term reliability, this connector features a keyed housing that prevents incorrect connections—ensuring compatibility only with matching female counterparts. Its IP67-rated sealing provides complete protection against dust ingress and temporary immersion in water, crucial for outdoor installations or vehicle-mounted electronics exposed to harsh weather conditions. Whether deployed in electric vehicles, ADAS systems, or remote sensor networks, this connector maintains consistent 50-ohm impedance across a wide frequency range from DC up to 6 GHz, enabling seamless data transmission for LTE, GNSS, and high-speed video protocols like GMSL2 or FPD-Link III.

• Connector Type: Fakra SMB male plug — industry-standard interface used widely in automotive and embedded applications
• Coding System: Z-Code design ensures correct orientation and eliminates misconnection risks during installation
• Cable Compatibility: Specifically optimized for RG174 coaxial cables, offering low loss and excellent flexibility
• Installation Method: Crimp-style termination allows quick field assembly without soldering tools
• Environmental Protection: IP67 rating when mated correctly, suitable for wet, dusty, or vibration-prone settings
• Electrical Performance: Maintains stable 50 ohms impedance and minimal return loss even at high frequencies (DC–6 GHz)
• Material Quality: Brass body with gold or nickel plating for corrosion resistance; plastic Fakra shell for lightweight durability

The compact form factor makes this connector particularly well-suited for space-constrained layouts such as camera modules, telematics units, and onboard diagnostics. The combination of mechanical stability, electrical efficiency, and environmental resilience positions this component as a critical enabler for next-generation connected devices in transportation, robotics, and IoT infrastructure. It supports both analog and digital signals, ensuring future-proof connectivity in evolving smart systems.

Common use cases include rearview cameras, radar sensors, GPS modules, infotainment systems, and advanced driver assistance technologies. It’s also compatible with various OEM designs requiring miniaturized yet dependable RF interfaces, including those using HSD or HSL connectors. This product serves as a versatile alternative to traditional SMA or BNC connectors while offering superior environmental protection and easier integration into modern vehicle architectures.

Users consistently praise its ease of installation, consistent signal quality under stress, and long-term durability compared to generic alternatives. Many engineers note how the Z-Code feature significantly reduces wiring errors during production, improving overall system uptime and reducing maintenance costs over time.

Frequently asked questions often center around compatibility with different cable types—this connector is strictly designed for RG174 and should not be used with larger diameter cables like RG58 or RG316. Installation requires a proper crimp tool to ensure optimal contact pressure and shielding continuity. For best results, always verify mating surfaces are clean and free of debris before connecting. While not intended for repeated disconnections, it offers exceptional performance in fixed-installation scenarios where reliability trumps frequent reconfiguration.
