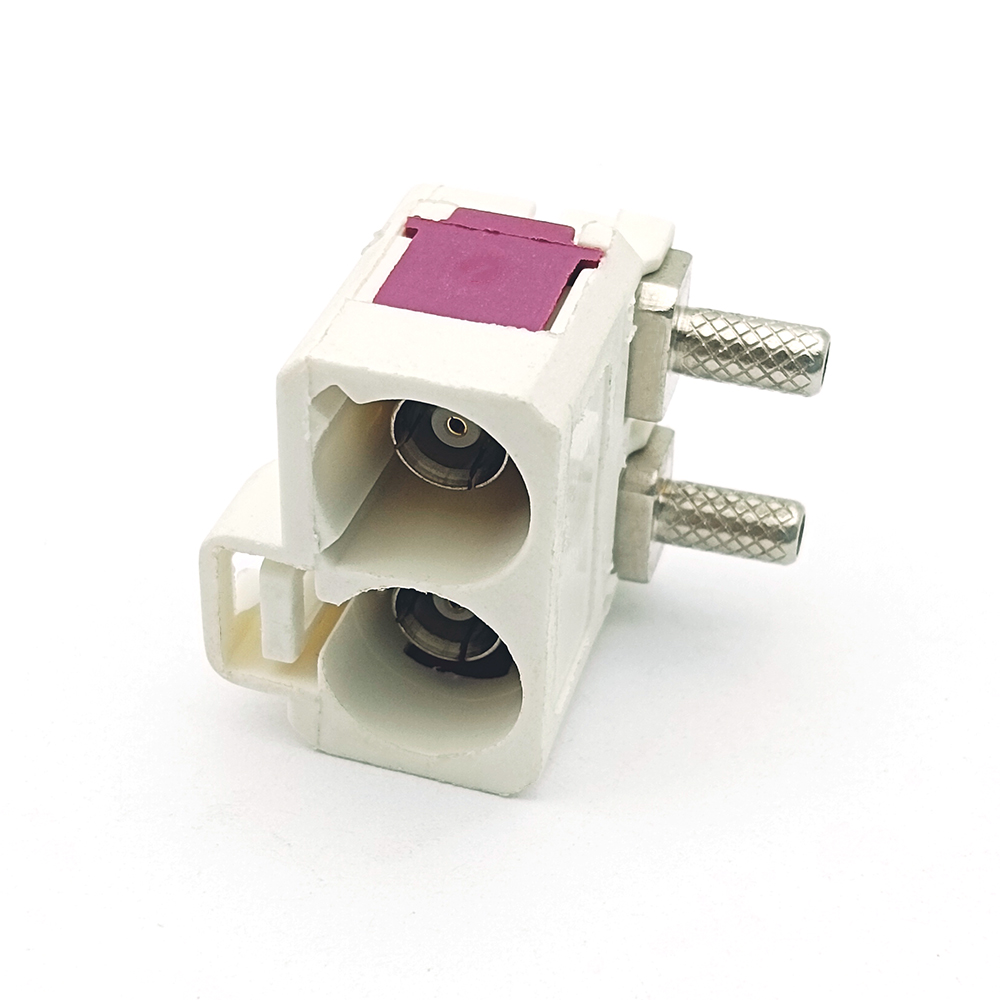

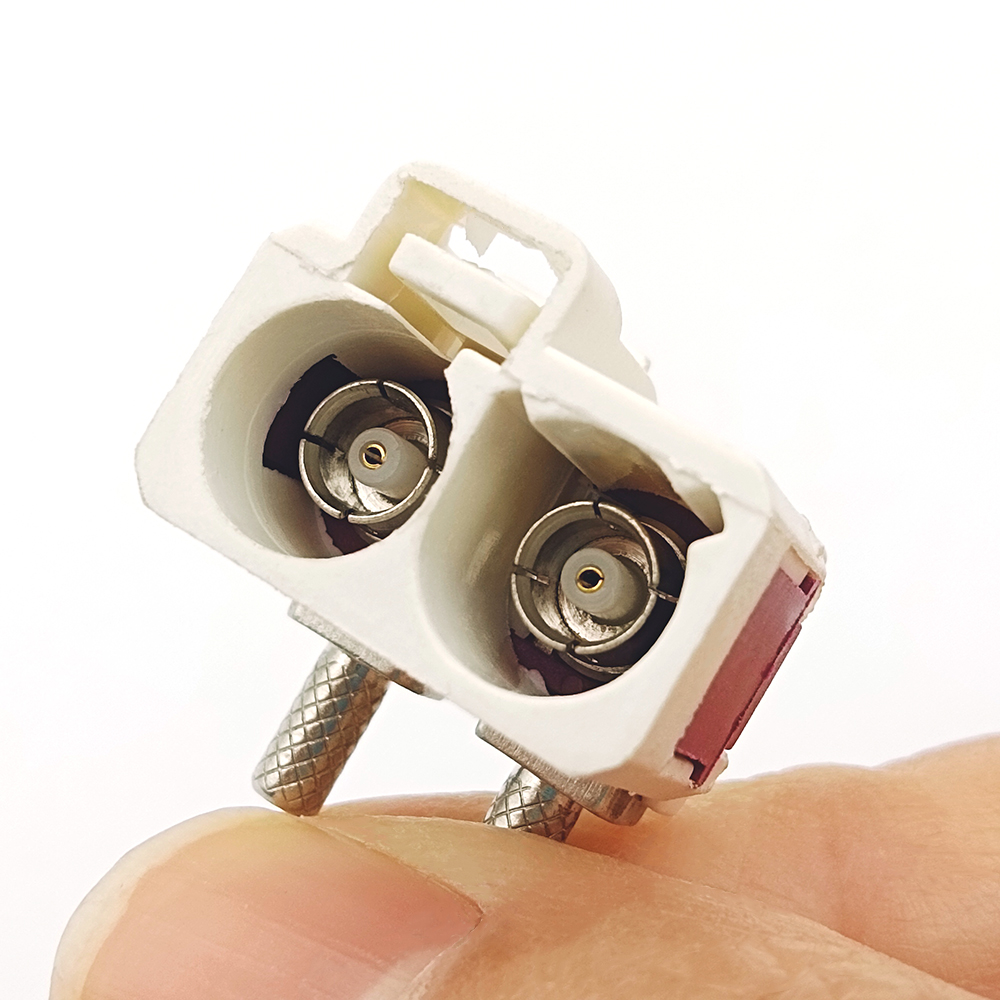

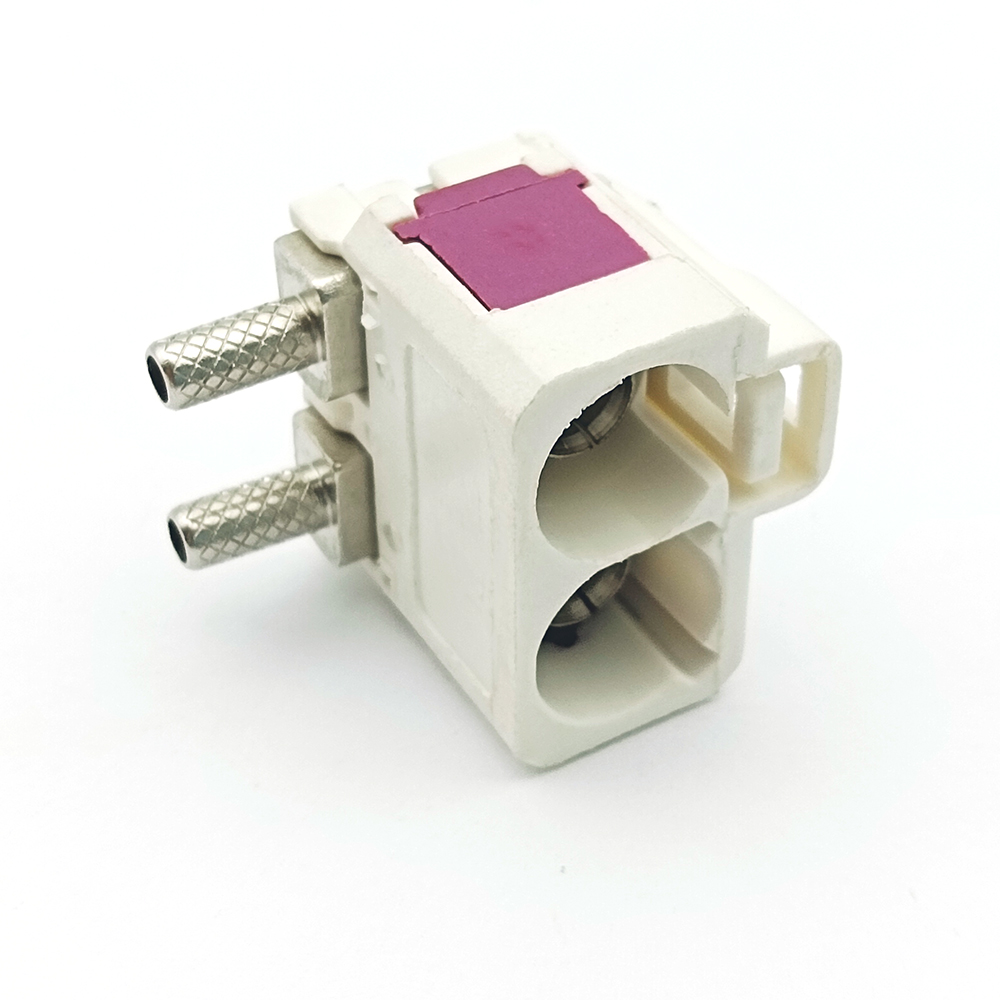

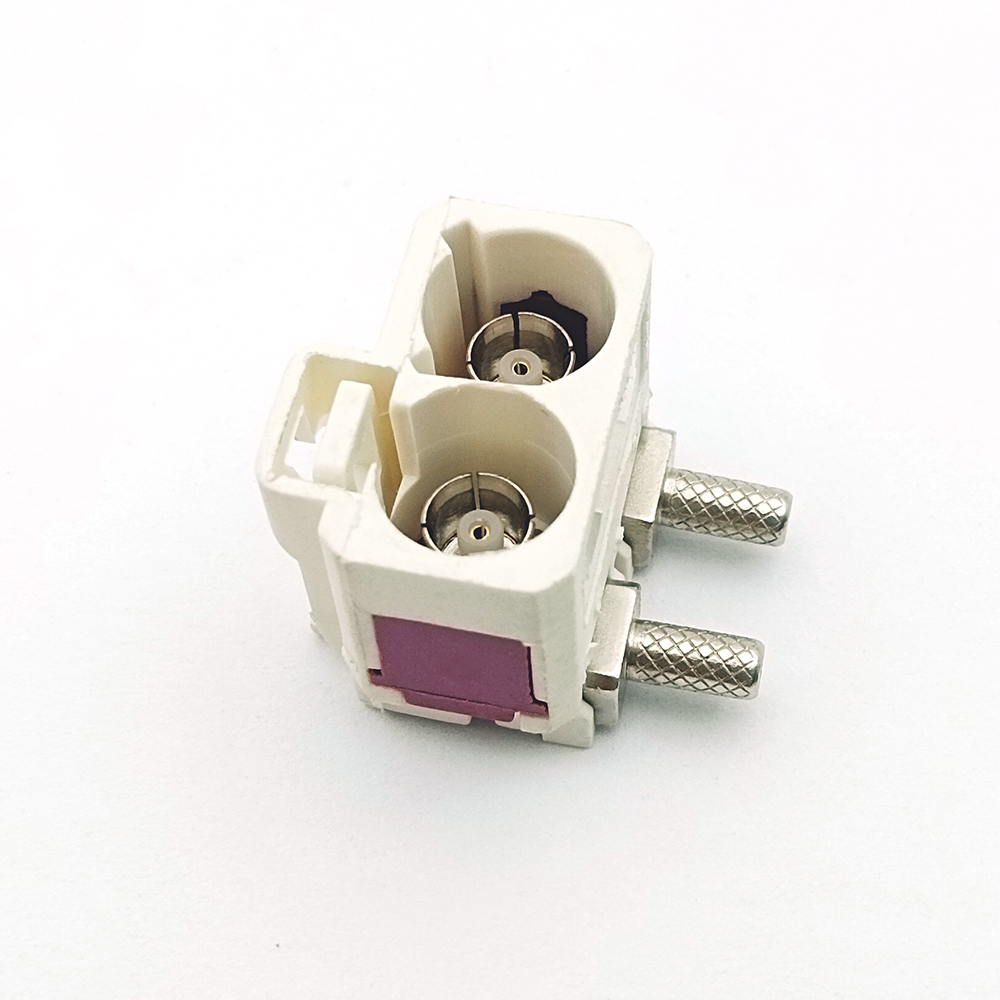

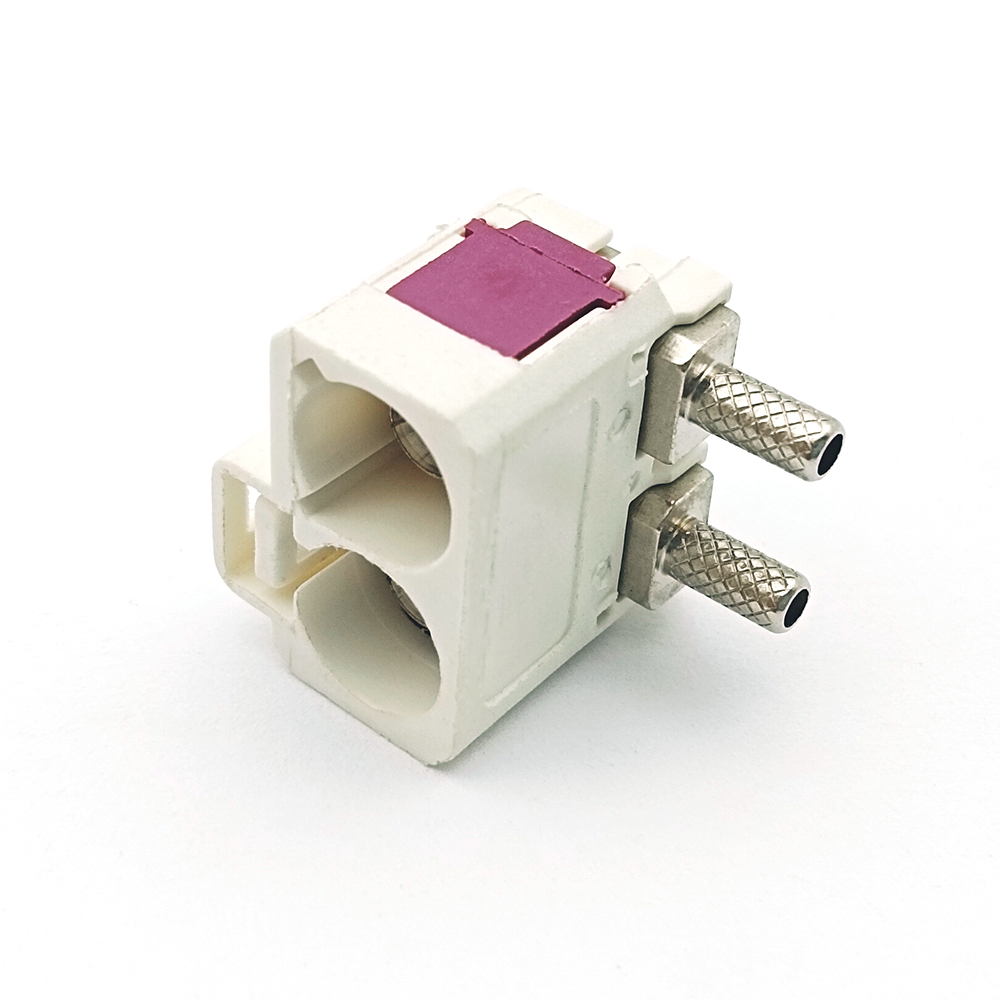

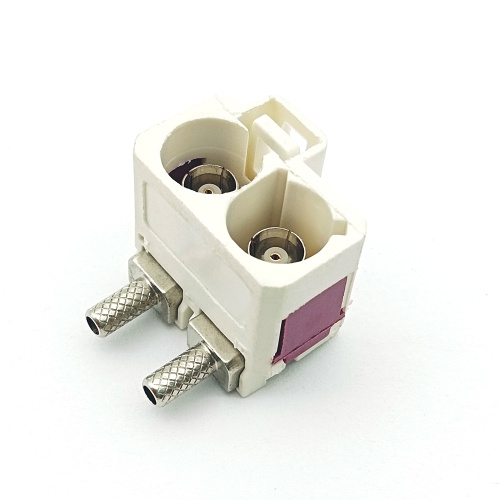

Right Angle Dual Fakra Female Coaxial Cable Connector

Right-Angle Dual Fakra B-Code Female Coaxial Connector for RG174/RG316 – High-Performance RF Solution for Automotive and Industrial Applications

This precision-engineered right-angle dual Fakra B-code female coaxial connector is specifically optimized for reliable high-frequency signal transmission in confined environments. Designed to mate seamlessly with RG174 and RG316 coaxial cables, it delivers consistent 50-ohm impedance performance across a broad frequency spectrum from DC up to 6 GHz—ideal for modern wireless systems requiring minimal signal degradation. Its compact 90-degree orientation enables efficient routing in space-constrained setups, making it an essential component in vehicle electronics, telematics modules, and industrial communication networks.

Engineered with durability and ease of installation in mind, this connector features a robust metal housing that ensures excellent electromagnetic shielding while maintaining mechanical stability under vibration and thermal stress. The dual-female configuration supports simultaneous connections for dual-band antennas or redundant signal paths, reducing wiring complexity and improving system reliability. With color-coded B-code housing, mating accuracy is guaranteed even during field repairs or rapid assembly processes—an important advantage for technicians working in automotive service centers or OEM manufacturing lines.

Key attributes include crimp or solder termination options depending on the model variant, ensuring flexibility in different production workflows. Whether used in GPS receivers, cellular modules, or advanced driver-assistance systems (ADAS), this connector maintains low VSWR and superior return loss characteristics, critical for maintaining signal integrity in demanding RF applications. It's particularly well-suited for OEMs seeking compact, high-reliability interconnect solutions that meet global automotive standards such as ISO 11452 and IEC 61000-6-4.

Common applications span vehicle infotainment systems, fleet tracking devices, onboard diagnostics (OBD-II) units, and embedded wireless sensors in smart machinery. In industrial automation, it supports secure data links between control panels and remote antenna arrays where space efficiency and EMI protection are paramount. For engineers designing compact IoT gateways or portable RF test equipment, this connector offers a plug-and-play solution without compromising performance at higher frequencies.

Users consistently report improved installation speed due to its intuitive design and reduced need for additional cable management hardware. Many appreciate the clean, low-profile mounting capability that allows integration into tight chassis spaces—especially beneficial in modern EV battery packs, dashcams, and telematics boxes where every millimeter counts. The connector’s ability to handle both digital and analog signals reliably makes it versatile across multiple industries including automotive, aerospace, marine, and telecom infrastructure.

Frequently asked questions often revolve around compatibility: Yes, this unit is fully compatible with RG174 and RG316 cables when properly terminated using the recommended tools. It also works effectively with other miniature coaxial connectors like Mini Fakra, HSD, and standard SMA types when paired with appropriate adapters. While primarily designed for fixed installations, some users have successfully deployed it in mobile applications involving moderate motion, provided proper strain relief and environmental sealing are implemented.

For those seeking a dependable, space-saving RF connection point that supports next-generation wireless technologies—from 4G LTE to future 5G NR bands—this right-angle dual Fakra B-code female connector stands out as a trusted choice. Its blend of form factor innovation, electrical performance, and application versatility positions it as a top-tier option for global engineering teams developing cutting-edge connected devices.

Product Categories : Automotive Connector > Fakra Connector
