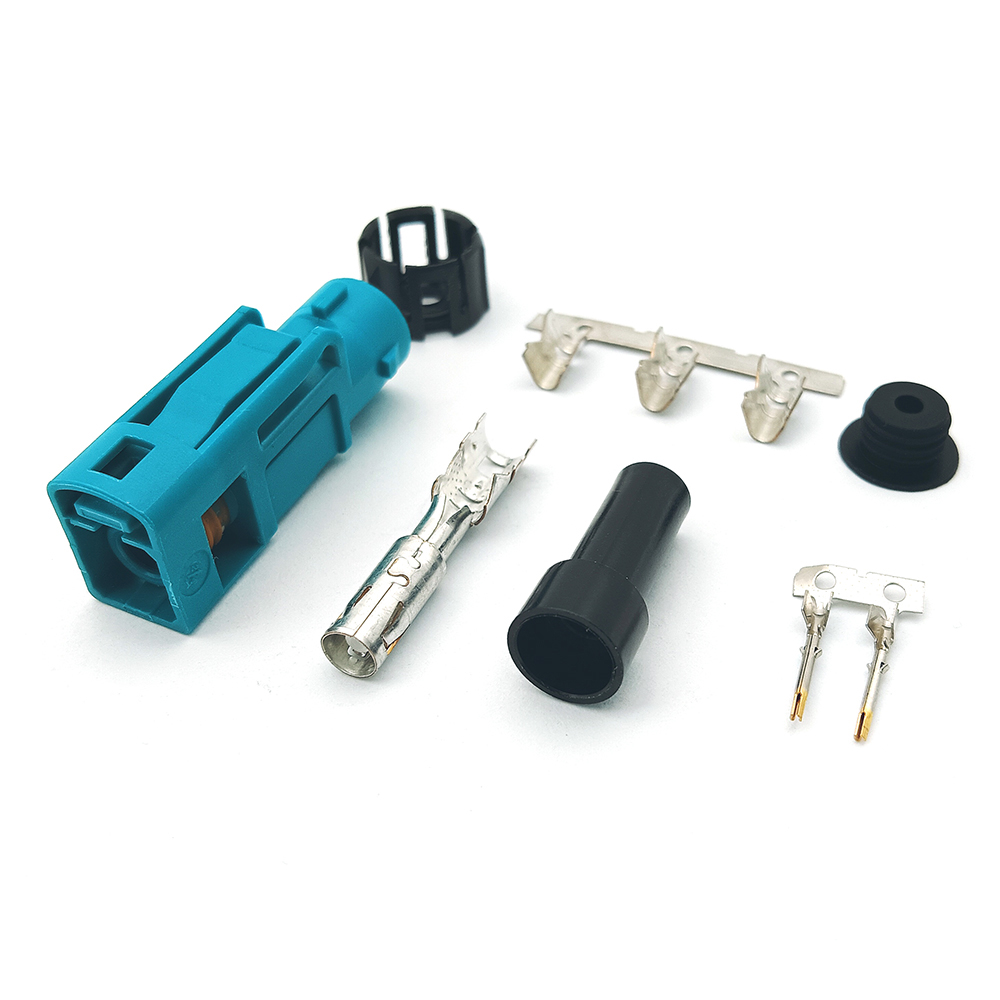

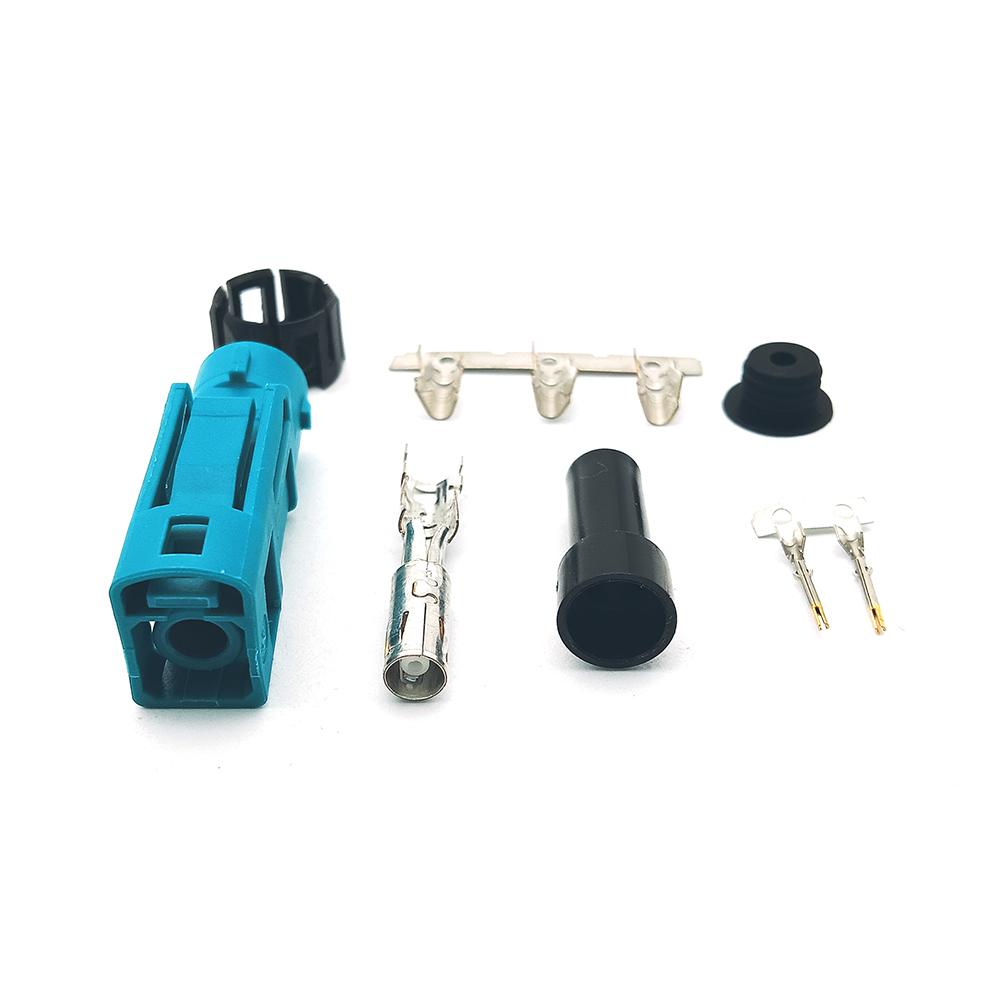

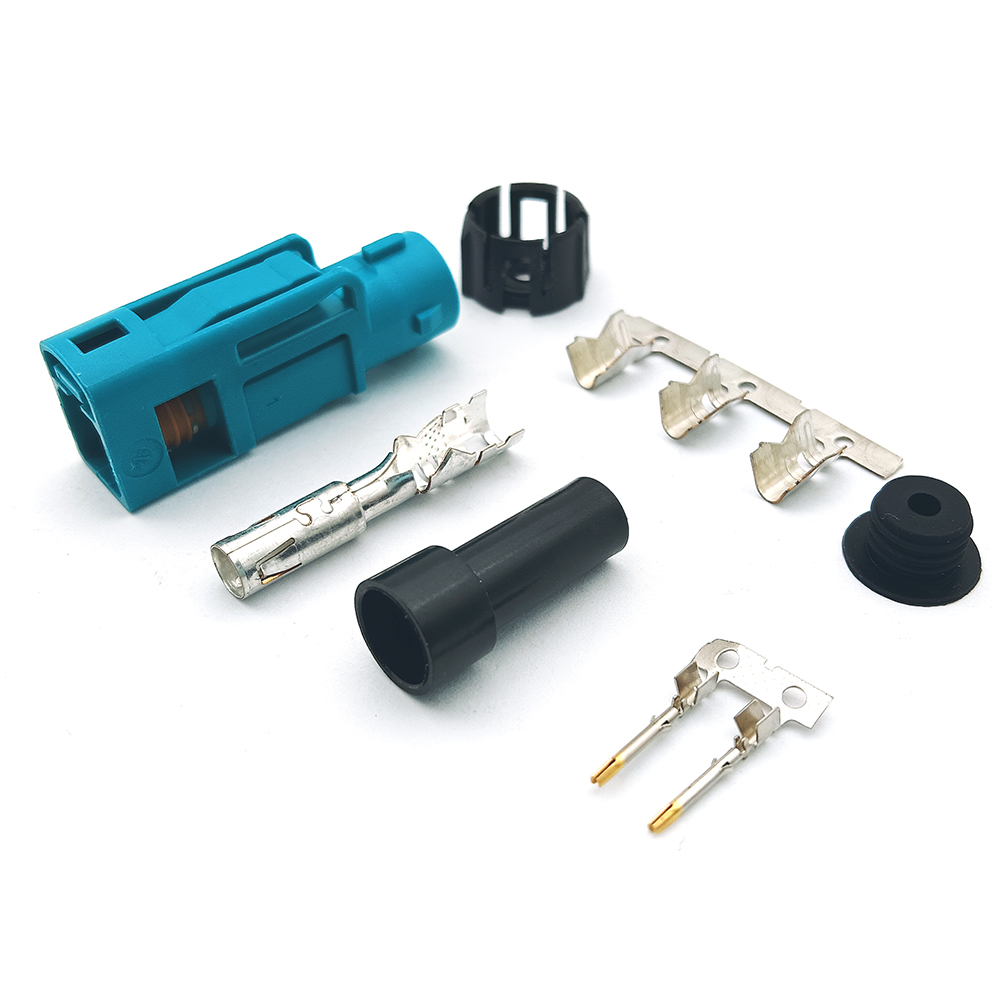

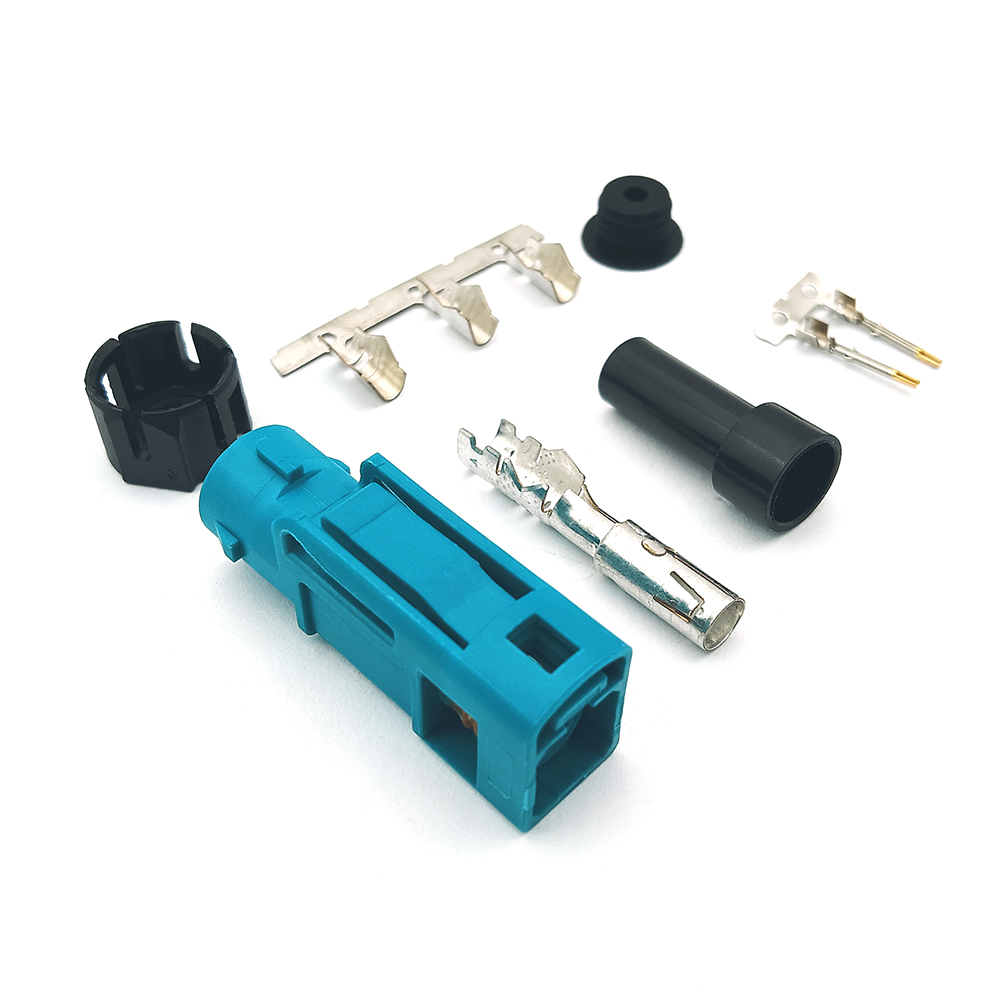

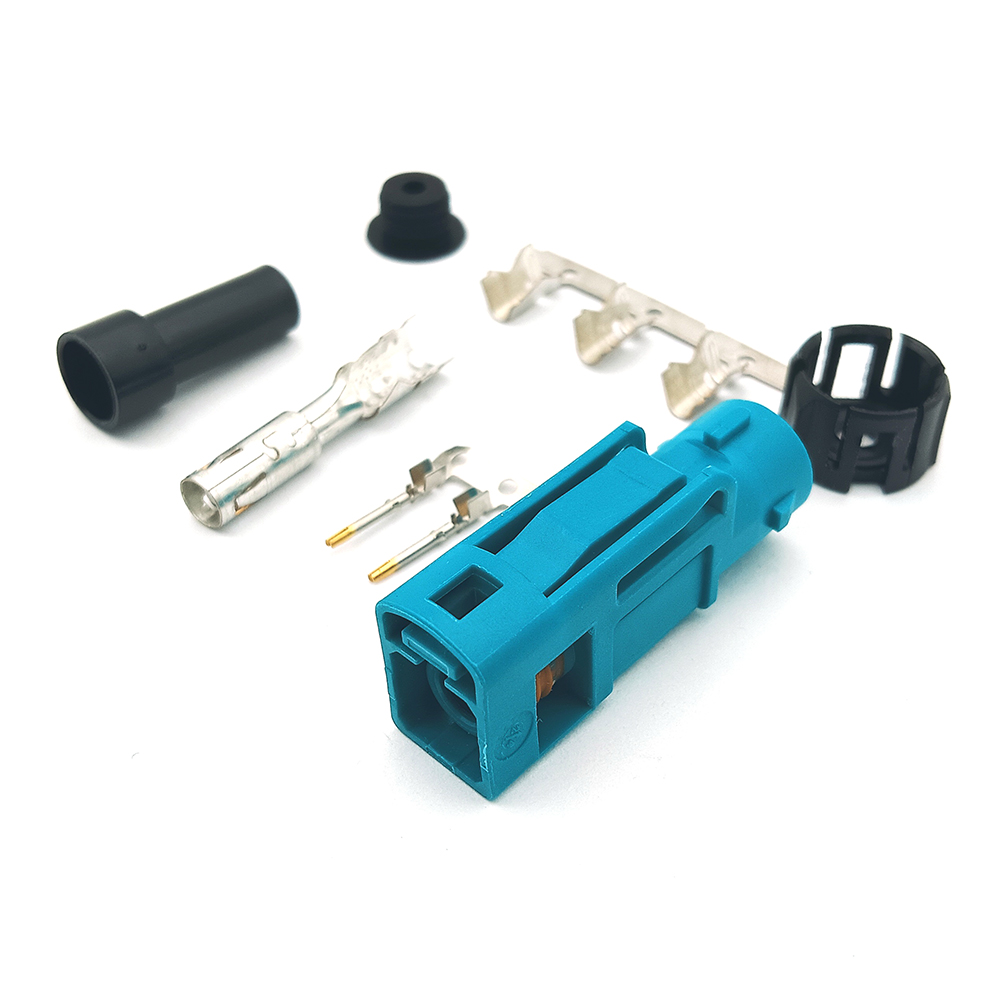

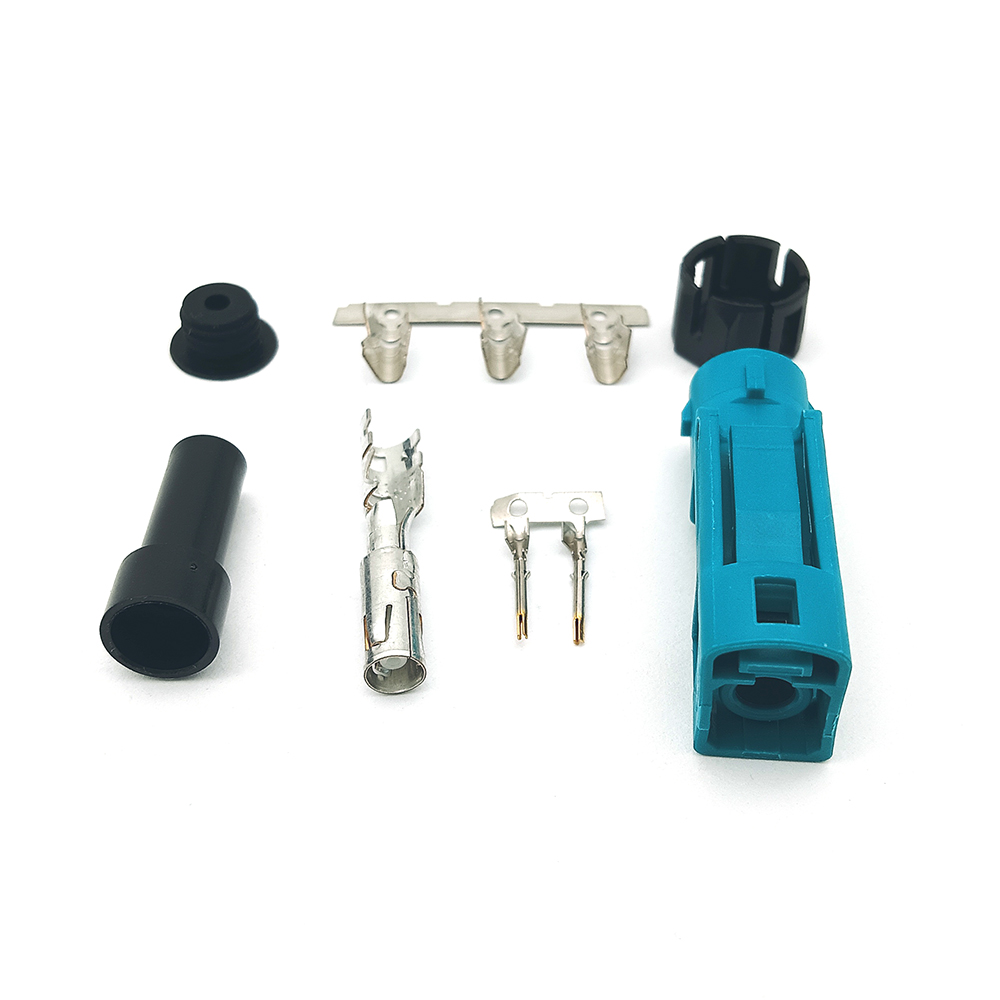

RG174/RG316 Single Straight IP67 Waterproof Fakra Z-Code Female Jack Cable Mount Connector – High-Performance RF Solution for Automotive and Industrial Applications This precision-engineered Fakra Z-Code female jack connector is designed for seamless integration into high-frequency signal systems where reliability, compactness, and environmental resilience are paramount. Compatible with RG174 and RG316 coaxial cables, it delivers stable 50-ohm impedance performance across a broad spectrum from DC to 6 GHz—making it ideal for modern automotive infotainment, telematics, GPS modules, and industrial RF setups. With an IP67 waterproof rating when correctly assembled, this cable-mounted connector ensures robust protection against dust ingress and temporary immersion in water, meeting stringent requirements for outdoor and vehicular environments. Key features include universal Z-code keying (purple-coded shell), which eliminates incorrect mating while enabling cross-compatible connections across multiple vehicle platforms. The brass body, available in nickel or gold plating, offers excellent corrosion resistance and electrical conductivity, while the PTFE insulator maintains consistent dielectric properties under extreme temperatures. This design supports both crimp and solder termination methods depending on model variants, allowing flexibility during installation and maintenance. Engineered for durability, it exceeds 100 mating cycles without degradation in performance—a critical factor in long-term deployment scenarios such as fleet vehicles or marine communication systems. The straight orientation of the cable mount configuration makes it especially suitable for tight spaces within dashboards, engine compartments, or control enclosures where space efficiency matters. Whether used in GMSL/FPD-Link II & III data transmission systems or integrated into radar sensors and camera modules, this connector provides minimal signal loss and superior shielding effectiveness. Its modular construction and standardized form factor simplify replacement and reduce downtime in service operations. Ideal for use in automotive cameras, ADAS systems, satellite navigation units, and wireless antennas, this
Fakra Connector also serves well in industrial automation, remote monitoring, and marine electronics applications. It’s particularly favored by engineers working on ruggedized equipment that must operate reliably in dusty, humid, or vibration-prone conditions. By combining mechanical strength with electromagnetic stability, it meets the evolving demands of next-generation connected devices in mobility and IoT sectors. Users report consistent results in field tests involving temperature cycling (-40°C to +85°C), shock resistance, and prolonged exposure to moisture. Many appreciate the ease of assembly using standard tools and the visual clarity provided by color-coded Z-keying, reducing installation errors. While some users note that proper crimping technique is essential for optimal performance, the inclusion of detailed instructions in accompanying documentation helps ensure successful deployment even for less experienced technicians. Common questions often revolve around compatibility: yes, this connector works reliably with RG174 and RG316 cables due to its precisely matched internal dimensions and contact geometry. Another frequent inquiry concerns interchangeability—thanks to the Z-code standard, it can be paired with male counterparts from various manufacturers, enhancing system flexibility. For those concerned about longevity, rest assured that repeated plug-and-unplug cycles do not compromise the integrity of the connection, thanks to reinforced contacts and durable materials. Overall, this Fakra Z-Code female jack represents a balance between advanced engineering and practical usability—an essential component for professionals building resilient, future-ready RF solutions.
