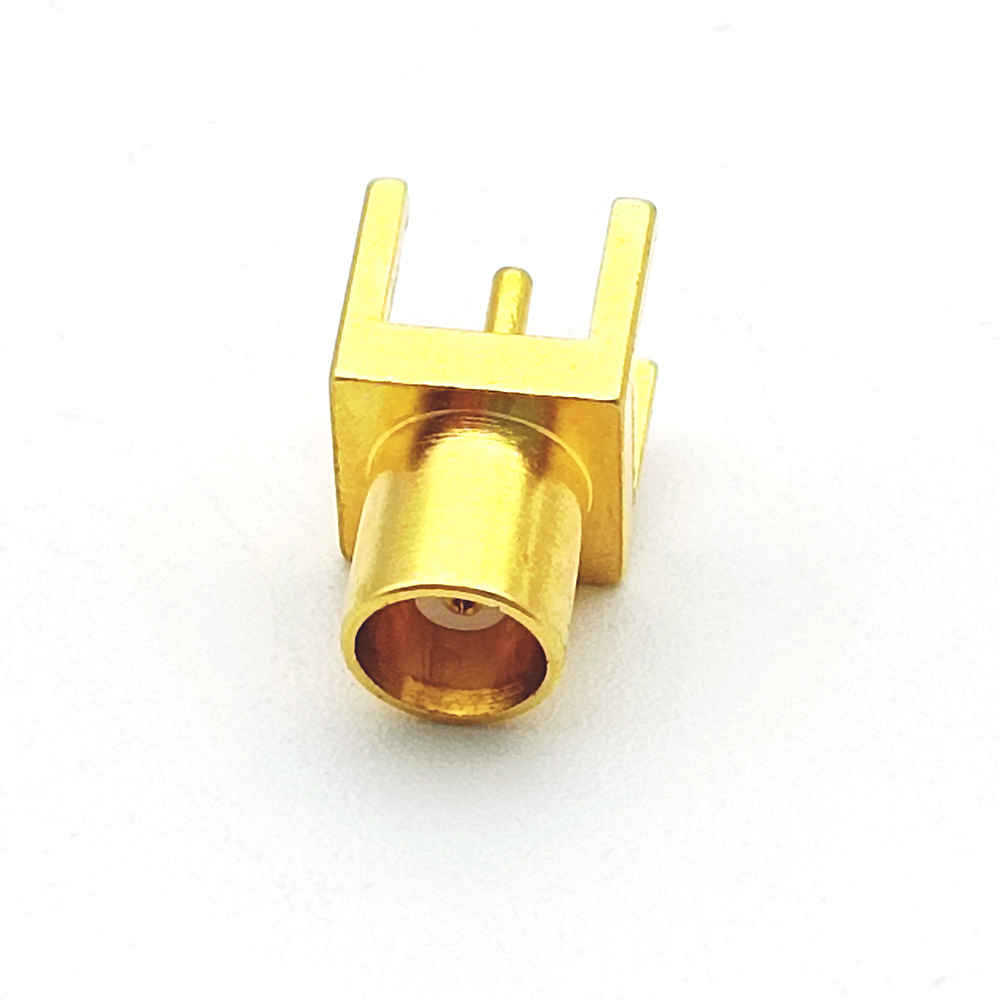

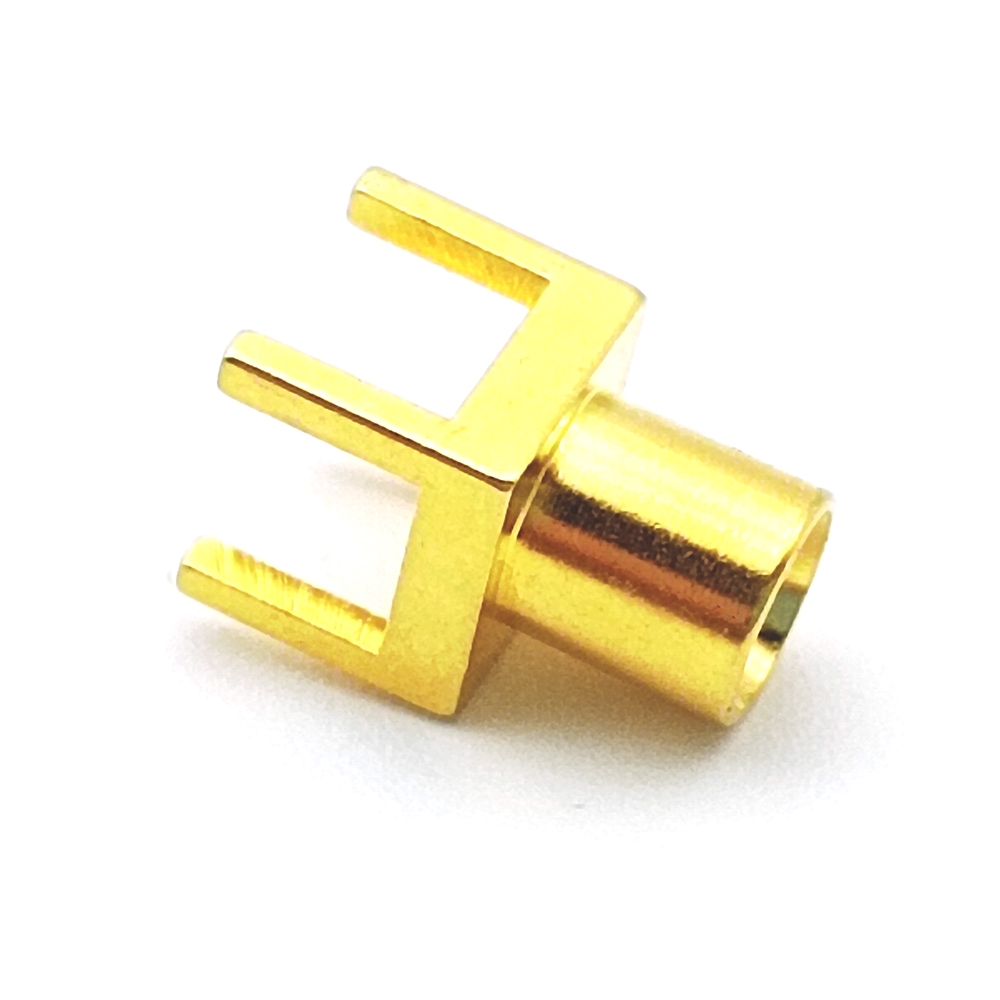

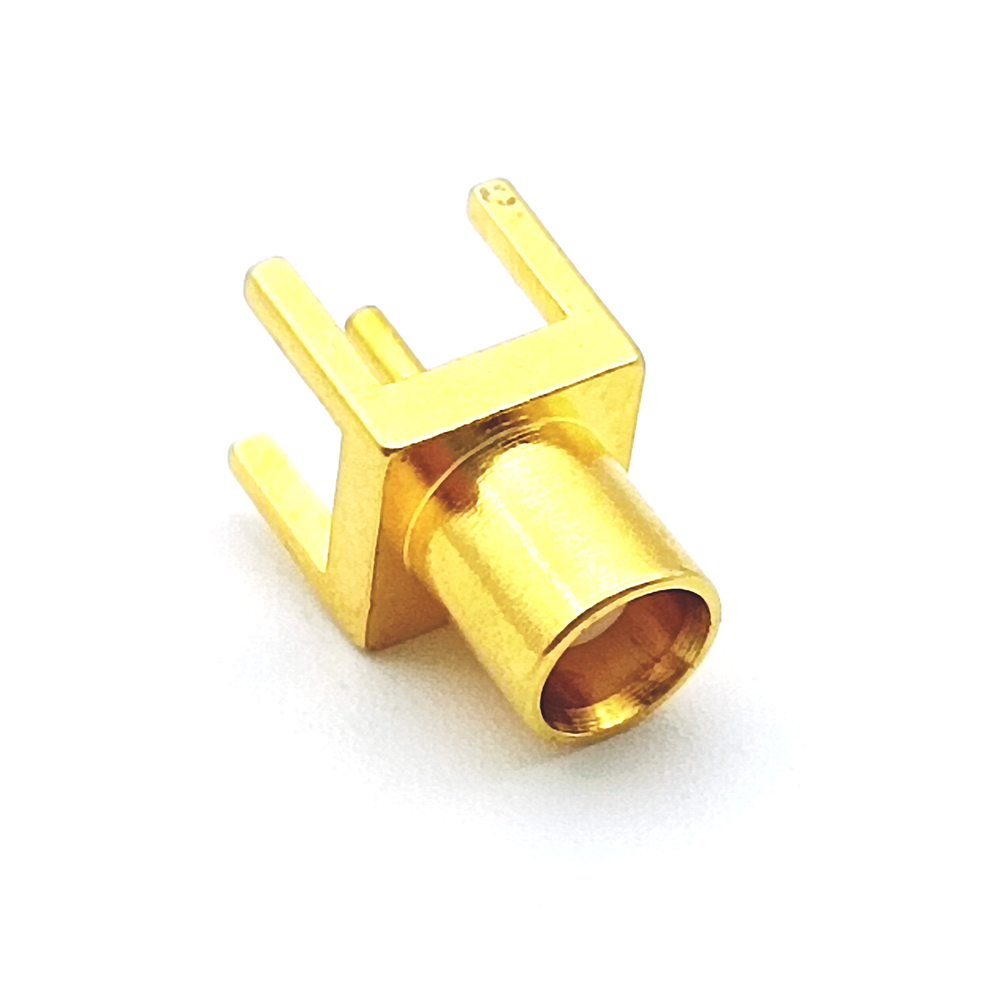

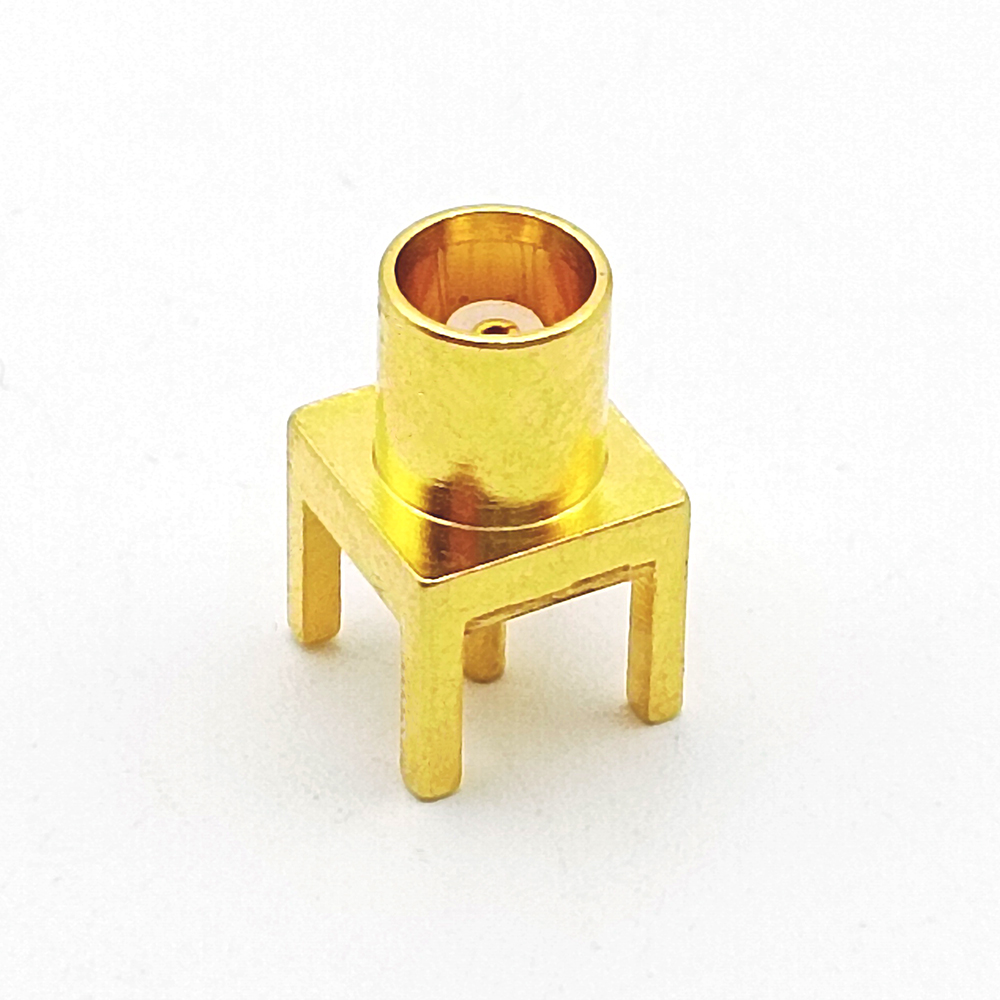

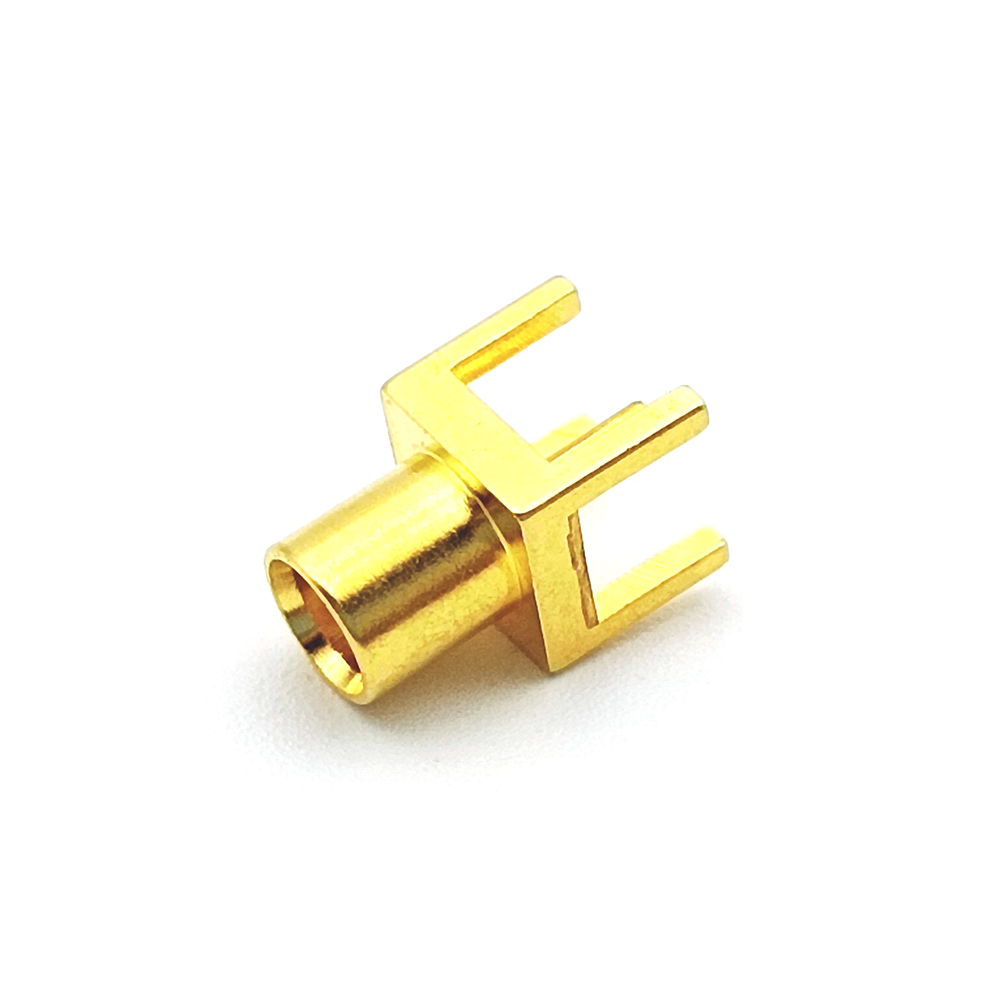

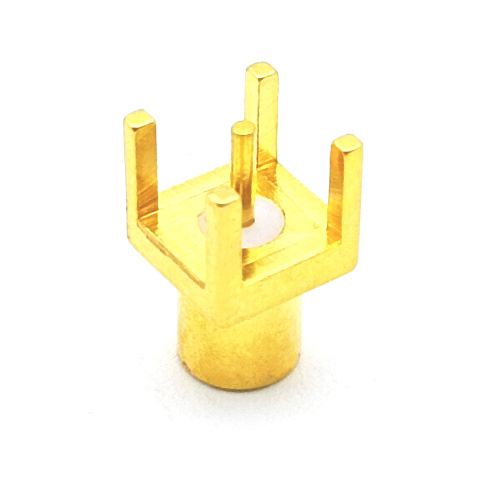

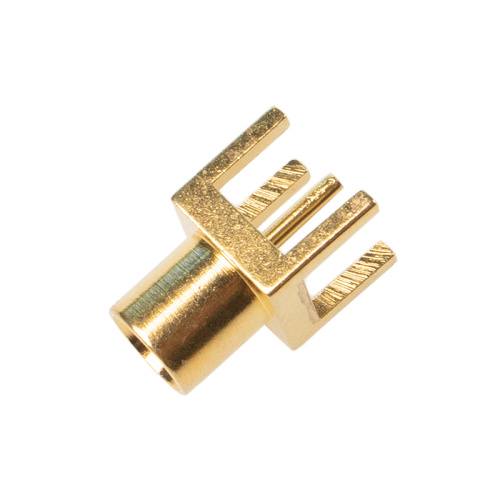

Male Female MCX RF Coaxial PCB Mount Connector

Male Female MCX RF Coaxial Pcb Mount Connector – High-Frequency, Reliable, and Compact for Modern Electronics

Engineered for precision and durability, the Male Female MCX RF Coaxial PCB Mount Connector delivers superior signal integrity in demanding high-frequency environments. Designed specifically for printed circuit board integration, this connector offers a snap-on coupling mechanism that ensures rapid, tool-free assembly while maintaining consistent electrical performance across DC to 6 GHz. Whether you're developing next-gen wireless modules, compact IoT devices, or automotive communication systems, this connector provides a robust solution tailored to modern engineering needs.

Key Features

• Secure Push-On Interface: Eliminates the need for screws or tools—ideal for automated assembly lines and field maintenance.
• 50 Ohm Impedance Matching: Minimizes signal reflection and maximizes power transfer efficiency in RF applications.
• PCB Mount Options: Available in both surface-mount (SMT) and through-hole variants to accommodate diverse board designs.
• Durable Materials: Brass or stainless steel body with gold-plated contacts ensures long-term conductivity and corrosion resistance.
• PTFE Insulator: Offers excellent dielectric properties for stable performance at microwave frequencies.
• Compact Form Factor: Optimized for space-constrained layouts in portable electronics and dense PCBs.

Technical Details & Performance

This RF Coaxial Connector supports a broad operational bandwidth from DC up to 6 GHz, making it suitable for Wi-Fi, Bluetooth, GPS, LTE, and 5G mmWave systems. With low insertion loss and exceptional VSWR (Voltage Standing Wave Ratio), it maintains signal fidelity even under high data rate conditions. The male-female configuration allows flexible interconnection between different PCB sections or external cables without requiring specialized adapters. Its rugged construction withstands mechanical stress, temperature fluctuations, and repeated mating cycles—critical for industrial, military, and automotive-grade deployments.

Applications Across Industries

Commonly used in telecommunications infrastructure, embedded wireless modules, radar sensors, satellite communications, and consumer gadgets such as smart wearables and drones, this Mcx Connector excels where reliability and miniaturization matter most. It's also widely adopted in automotive telematics units, medical imaging equipment, and test instrumentation due to its consistent RF behavior and ease of integration.

Why Customers Choose This Connector

Users appreciate how this design balances performance, simplicity, and cost-effectiveness. Unlike traditional SMA connectors, the MCX variant is smaller yet equally reliable, enabling higher component density on PCBs. Engineers report fewer signal losses during prototyping and production phases, especially when working with millimeter-wave signals. Additionally, the gold-plated contacts reduce contact resistance over time, ensuring longevity even in harsh environmental conditions like humidity, vibration, or thermal cycling.

Frequently Asked Questions

Is this connector compatible with standard MCX cables? Yes, it follows the IEC 61169-17 specification, allowing seamless pairing with common MCX-style coaxial cables used in RF systems.

Can it be soldered manually or only via reflow ovens? Both surface-mount and through-hole versions support manual soldering techniques as well as automated SMT processes.

What makes it better than other miniature RF connectors? Compared to SMB or TNC types, the MCX offers superior frequency response, reduced size, and a more secure locking mechanism without sacrificing ease of use.

Does it support multiple mating cycles? Yes, tested for over 500 mating/unmating operations with minimal degradation in return loss or insertion loss.

Product Categories : RF Coaxial Connector > Mcx Connector
