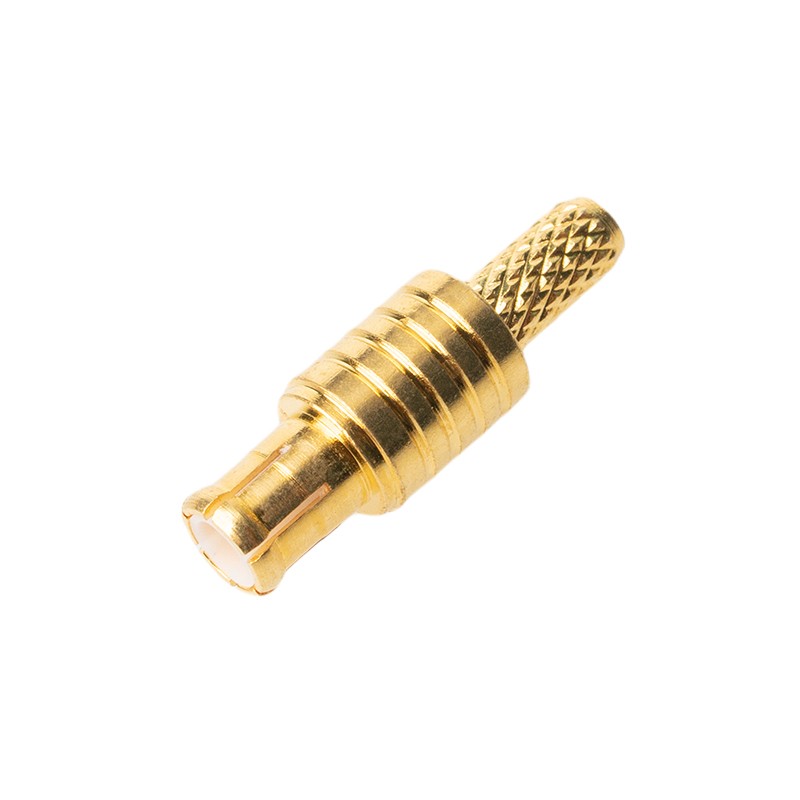

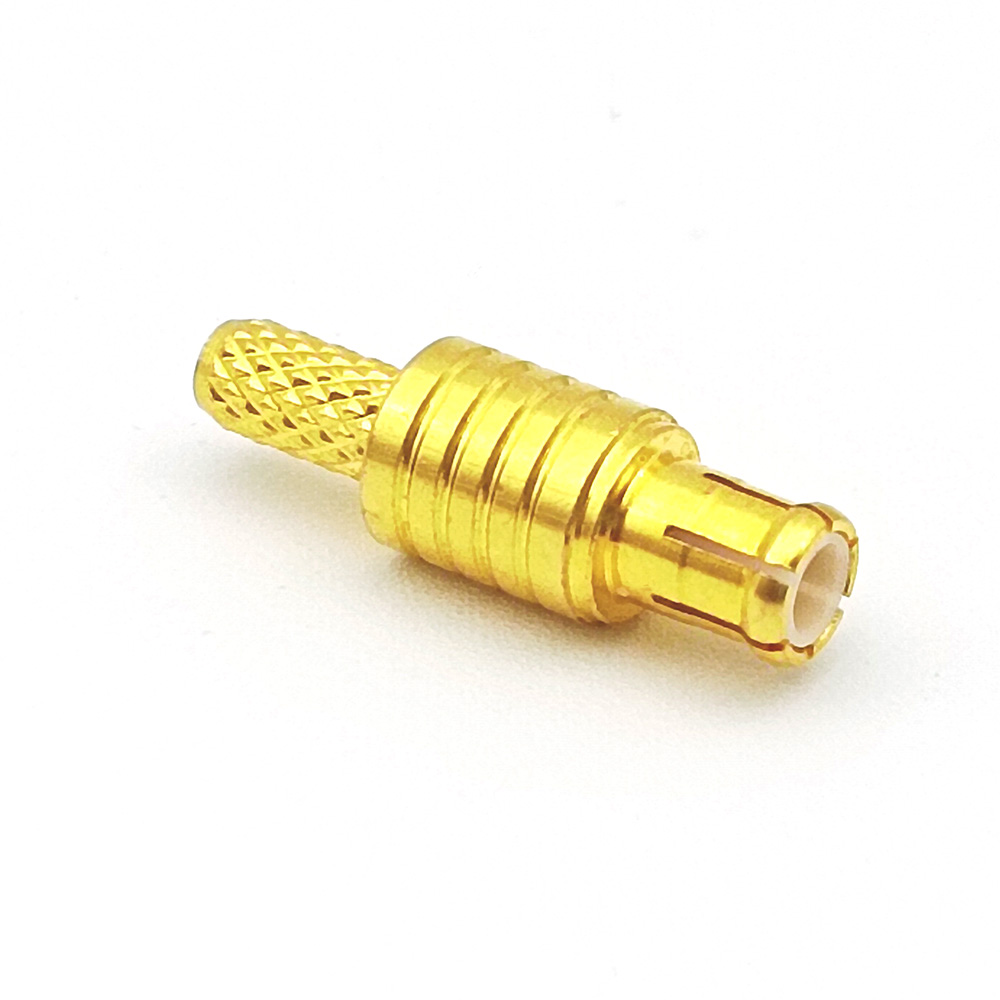

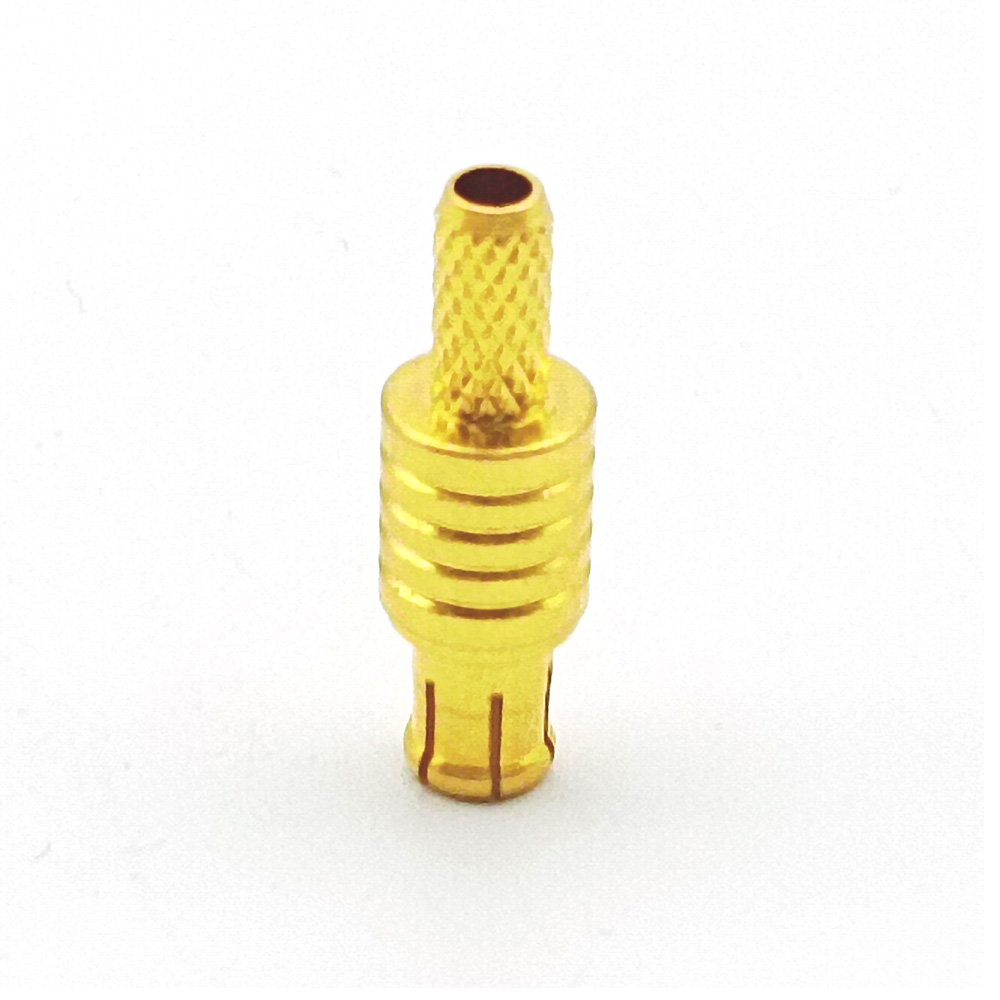

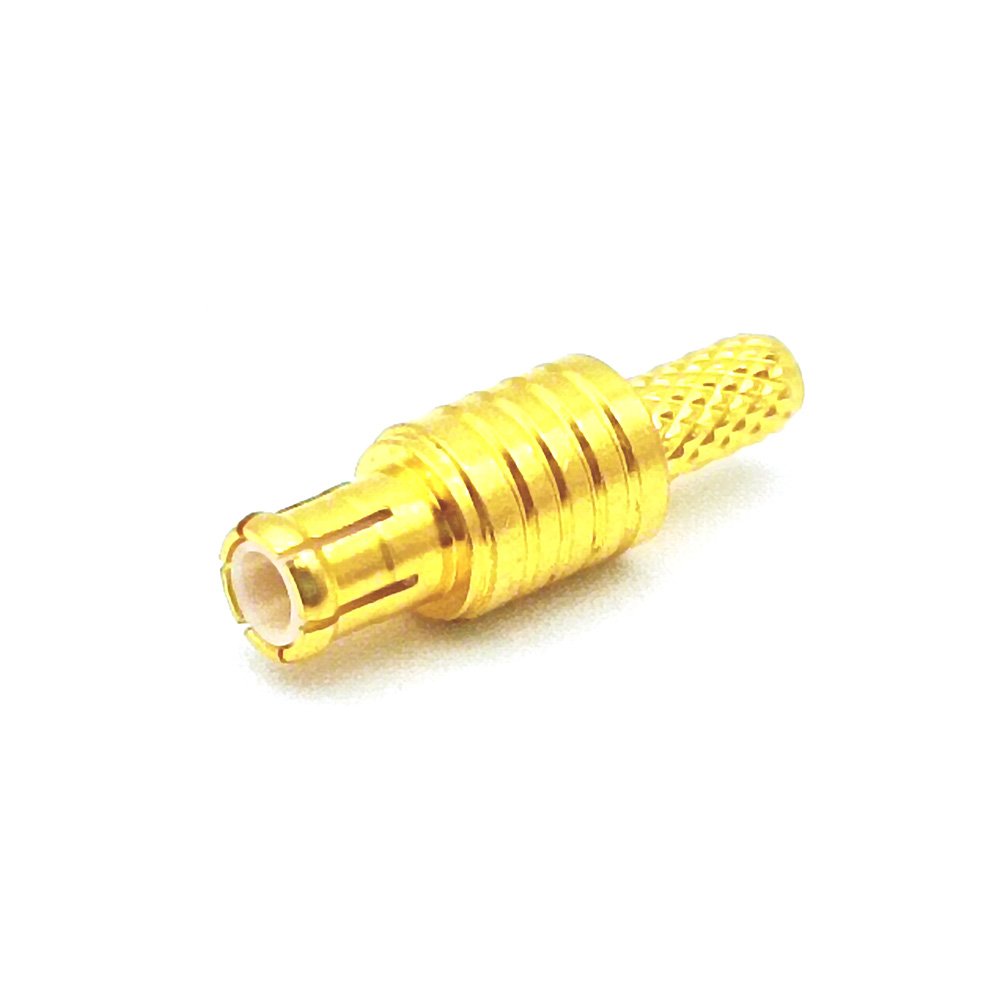

Straight MCX Male Plug RF Coaxial Cable Connector

High-Performance Straight MCX Male Plug RF Coaxial Connector for Reliable Signal Transmission

This precision-engineered straight MCX male plug RF coaxial connector delivers exceptional performance in compact and demanding environments. Designed for seamless integration into high-frequency systems, it ensures minimal signal loss and maximum reliability across a wide range of applications—from professional test equipment to advanced wireless communication devices. With its gold-plated brass construction and optimized impedance matching, this connector is ideal for engineers, technicians, and hobbyists seeking durable, low-interference connections in modern RF setups.

Key Features That Set It Apart:

• Miniature Form Factor: Engineered for space-constrained designs, the MCX plug offers a small footprint without compromising on durability or electrical performance—perfect for portable electronics and embedded systems.
• 50 Ohm Impedance Consistency: Maintains stable signal integrity up to 6 GHz, making it suitable for UHF, microwave, and broadband RF applications where accuracy matters most.
• Gold-Plated Contacts: Enhances conductivity and prevents corrosion, ensuring long-term reliability even under frequent mating cycles and varying environmental conditions.
• Wide Operating Temperature Range: Functions reliably from -20°C to +70°C, making it adaptable to both indoor and outdoor deployments in diverse climates.
• Lightweight & Durable Build: Ideal for mobile and handheld devices such as GPS modules, IoT sensors, and portable radios where weight savings are critical.

The connector’s robust mechanical design supports rapid assembly and disassembly while maintaining consistent RF characteristics. Its compatibility with standard RG174 and similar coaxial cables makes it an excellent choice for OEMs looking to streamline production processes. Whether you're building a custom antenna system, upgrading a telecom module, or designing a new generation of wireless hardware, this MCX male plug provides the foundation for clean, efficient signal transfer at high frequencies.

Where This RF Connector Excels:

Commonly used in satellite communication systems, military-grade radios, automotive telematics units, and industrial IoT gateways, this component excels in any scenario requiring reliable, low-loss interconnectivity. It's also frequently integrated into laboratory test benches, spectrum analyzers, and signal generators due to its repeatability and low VSWR (Voltage Standing Wave Ratio). For professionals working in fields like radar development, wireless networking, or aerospace engineering, this connector represents a trusted solution for minimizing noise and maximizing throughput.

User Feedback Highlights:

Users consistently praise its ease of installation, consistent signal quality over time, and resistance to wear—even after hundreds of connect/disconnect cycles. Many note improved stability compared to cheaper alternatives, especially when deployed in harsh environments or high-vibration settings. Engineers often mention how its standardized interface simplifies prototyping and reduces debugging time during product development phases.

Frequently Asked Questions:

Is this connector compatible with SMA or SMB interfaces? No, each type has distinct physical dimensions and thread specifications; however, adapters are available separately for cross-compatibility needs. What makes this version "straight" versus right-angle? The straight configuration allows for linear cable routing, reducing stress on the connector body and improving airflow in tight enclosures—a preferred choice for PCB-mounted applications. Can it be used in outdoor installations? Yes, thanks to its temperature tolerance and corrosion-resistant materials, but proper sealing with appropriate weatherproofing is recommended for prolonged exposure to moisture or dust.
