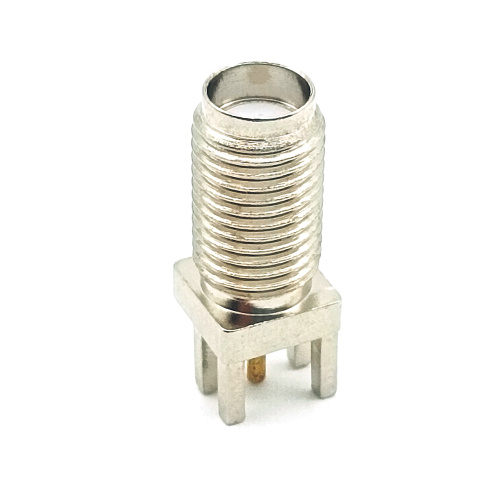

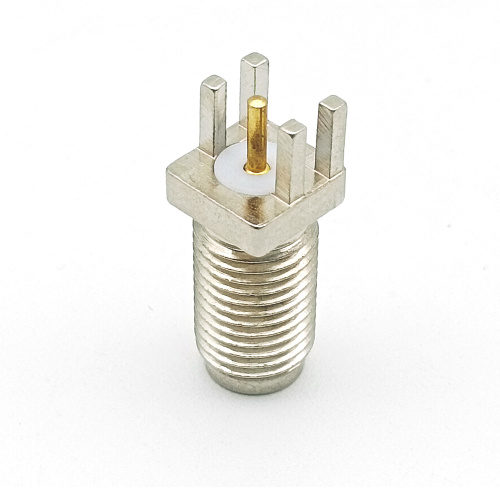

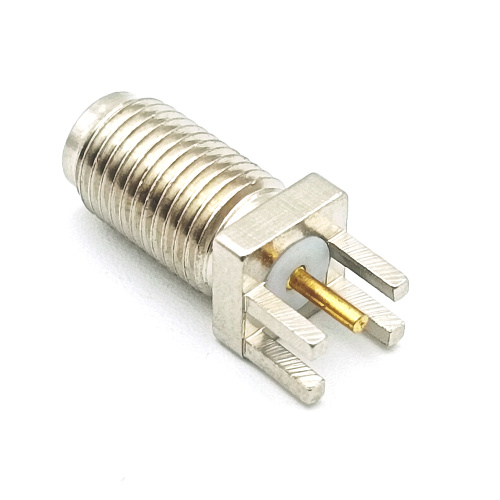

Female SMA Edge PCB Mount Coaxial Connectors

Female SMA Edge PCB Mount Coaxial Connectors – High-Performance RF Solutions for Modern Electronics

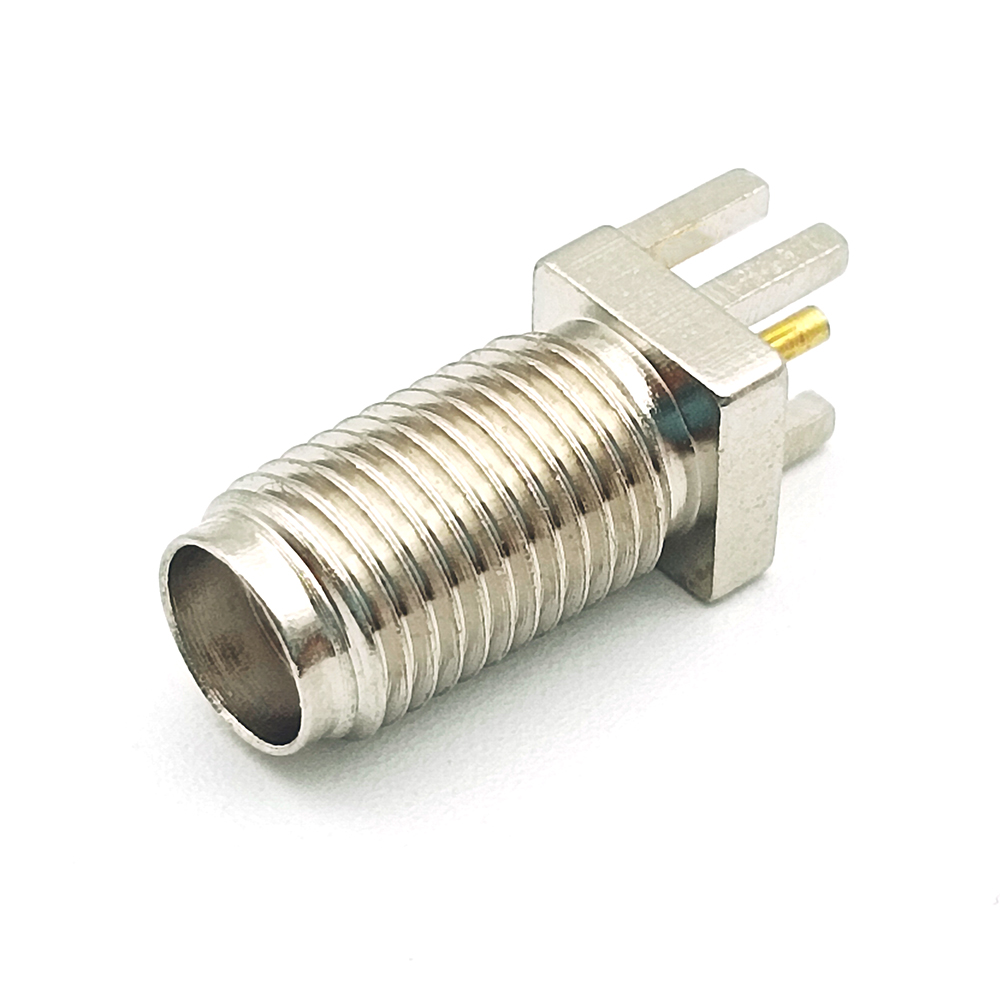

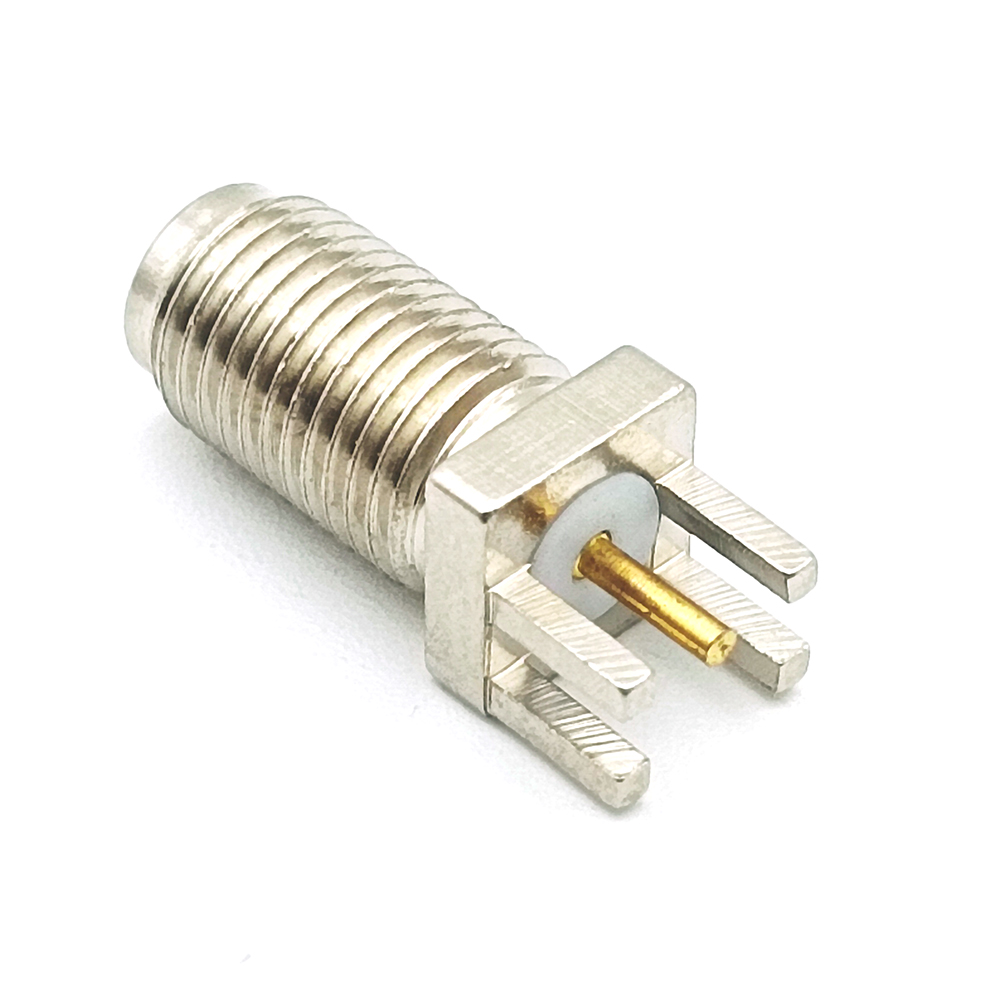

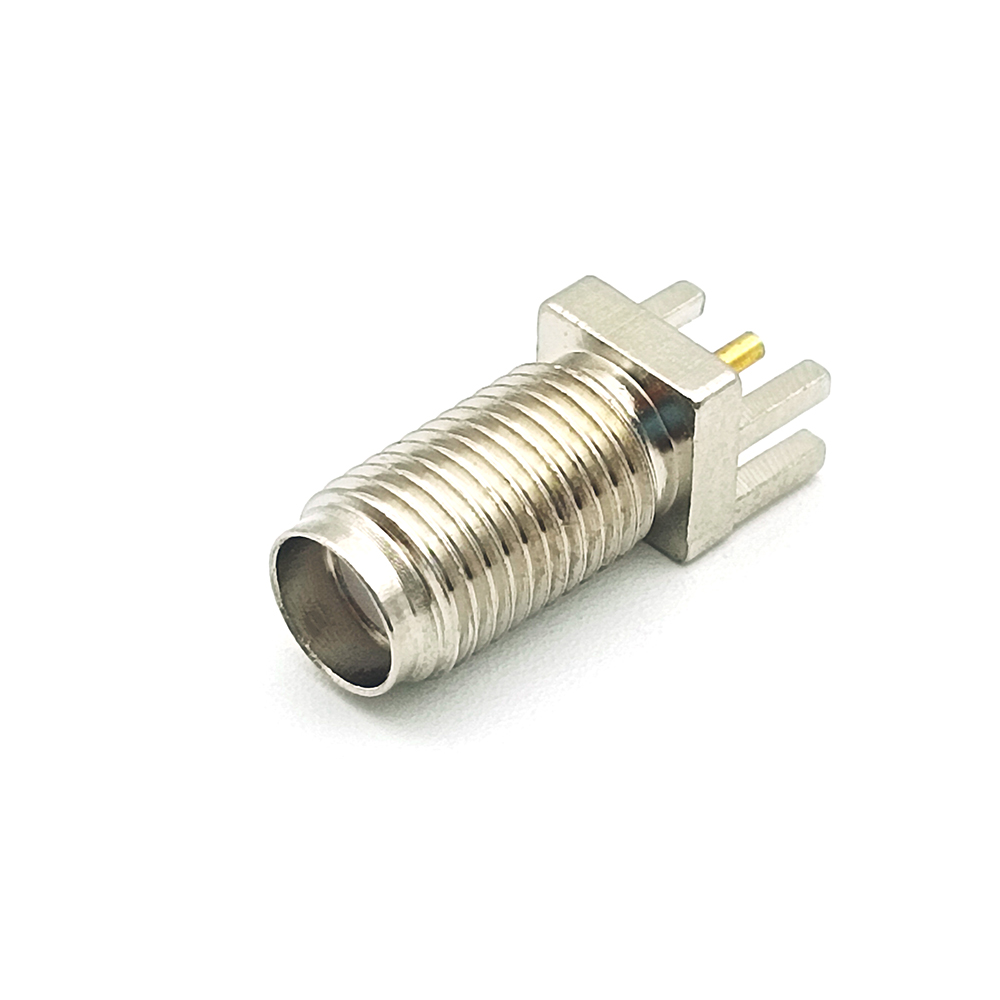

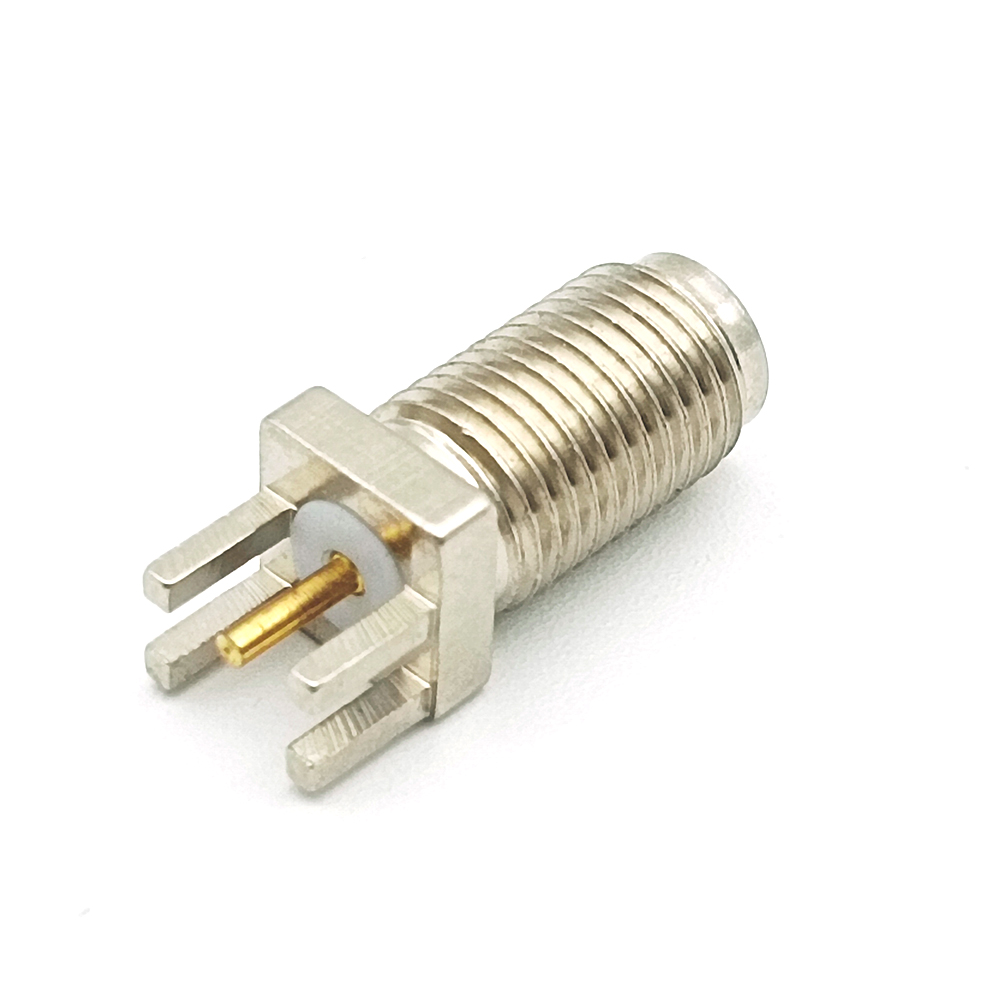

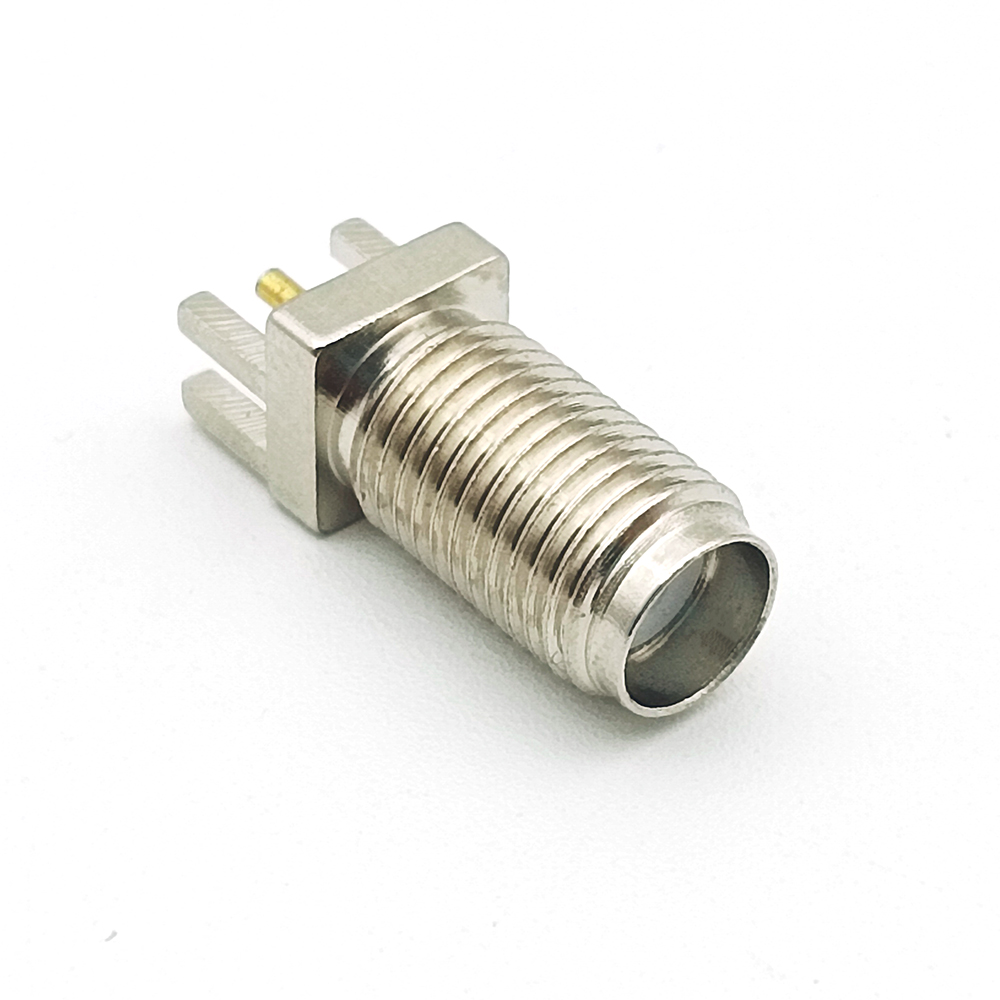

Engineered for precision and reliability, the Female SMA Edge PCB Mount Coaxial Connector delivers exceptional signal integrity in demanding RF and microwave environments. This compact, high-frequency interface is specifically designed for direct mounting on printed circuit board edges, offering an efficient alternative to traditional through-hole or surface-mount connectors. Ideal for space-constrained applications, it ensures stable connectivity while minimizing footprint—an essential feature in advanced wireless systems, test instrumentation, and industrial IoT devices.

With a frequency range extending from DC up to 18 GHz, these connectors support modern communication standards such as 5G, Wi-Fi 6, and satellite-based transmission protocols. Constructed from durable brass or stainless steel with gold-plated contacts, they provide low insertion loss, consistent impedance matching at 50 ohms, and long-term durability across extreme temperatures—from -55°C to +165°C. The solder-edge mounting style simplifies integration into automated assembly processes, reducing production time and enhancing mechanical stability.

Key attributes include a standardized SMA female interface that mates seamlessly with industry-compliant male connectors, ensuring compatibility across global RF systems. The robust housing resists environmental stressors like vibration, moisture, and thermal cycling—critical for outdoor and aerospace-grade deployments. Whether used in antenna feed networks, radar modules, or portable test equipment, this connector maintains performance consistency under high-stress conditions.

These connectors are widely adopted in wireless communication infrastructure, including base stations, small cells, and backhaul systems. They also serve as critical components in RF measurement setups, enabling accurate signal analysis in labs and field testing environments. For engineers designing next-generation IoT gateways, medical imaging devices, or military-grade comms gear, the edge-mount SMA solution offers both flexibility and resilience in compact form factors.

Users consistently praise the connector’s ease of installation, minimal signal degradation, and ability to maintain reliable connections even during prolonged operation. Its gold-plated contacts reduce contact resistance significantly, preventing corrosion and ensuring optimal conductivity over thousands of mating cycles—a key advantage in maintenance-sensitive applications.

Common inquiries often revolve around compatibility with different PCB thicknesses and soldering techniques. While primarily intended for edge-mounted boards with standard FR4 substrates, users may adapt them to thin flexible circuits with proper pre-soldering preparation. Additionally, many ask about their suitability for high-power RF signals—these connectors perform reliably up to 10 watts continuous power, making them ideal for moderate-duty scenarios without overheating concerns.

For professionals seeking a dependable, high-frequency connection point in compact electronics, this Female SMA Edge PCB Mount Coaxial Connector stands out as a trusted choice—combining proven design principles with cutting-edge materials and engineering rigor. Whether you're building a new prototype or upgrading existing hardware, it's a versatile component that enhances performance, reduces complexity, and supports future scalability across global markets.

Product Categories : RF Coaxial Connector > Sma Connector
