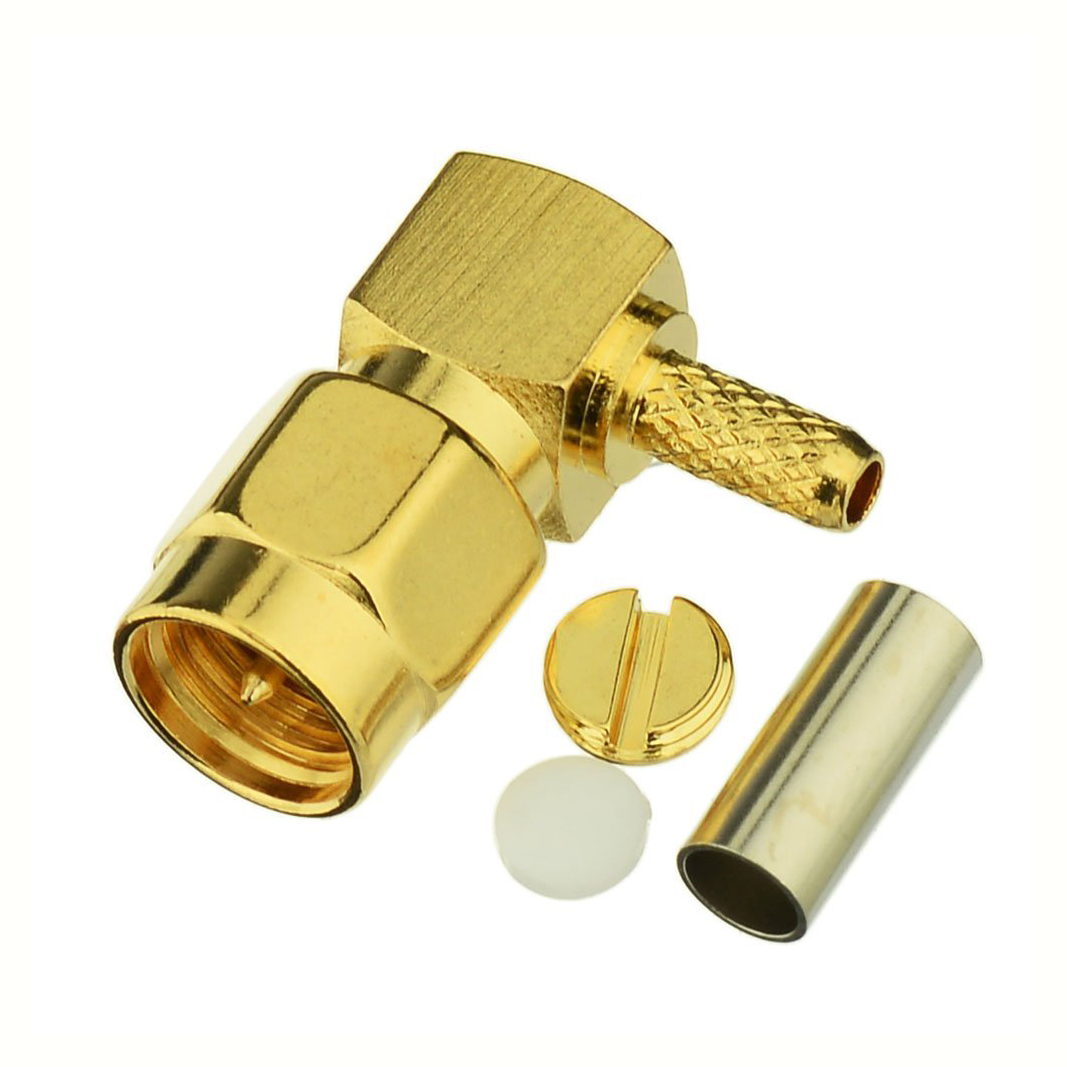

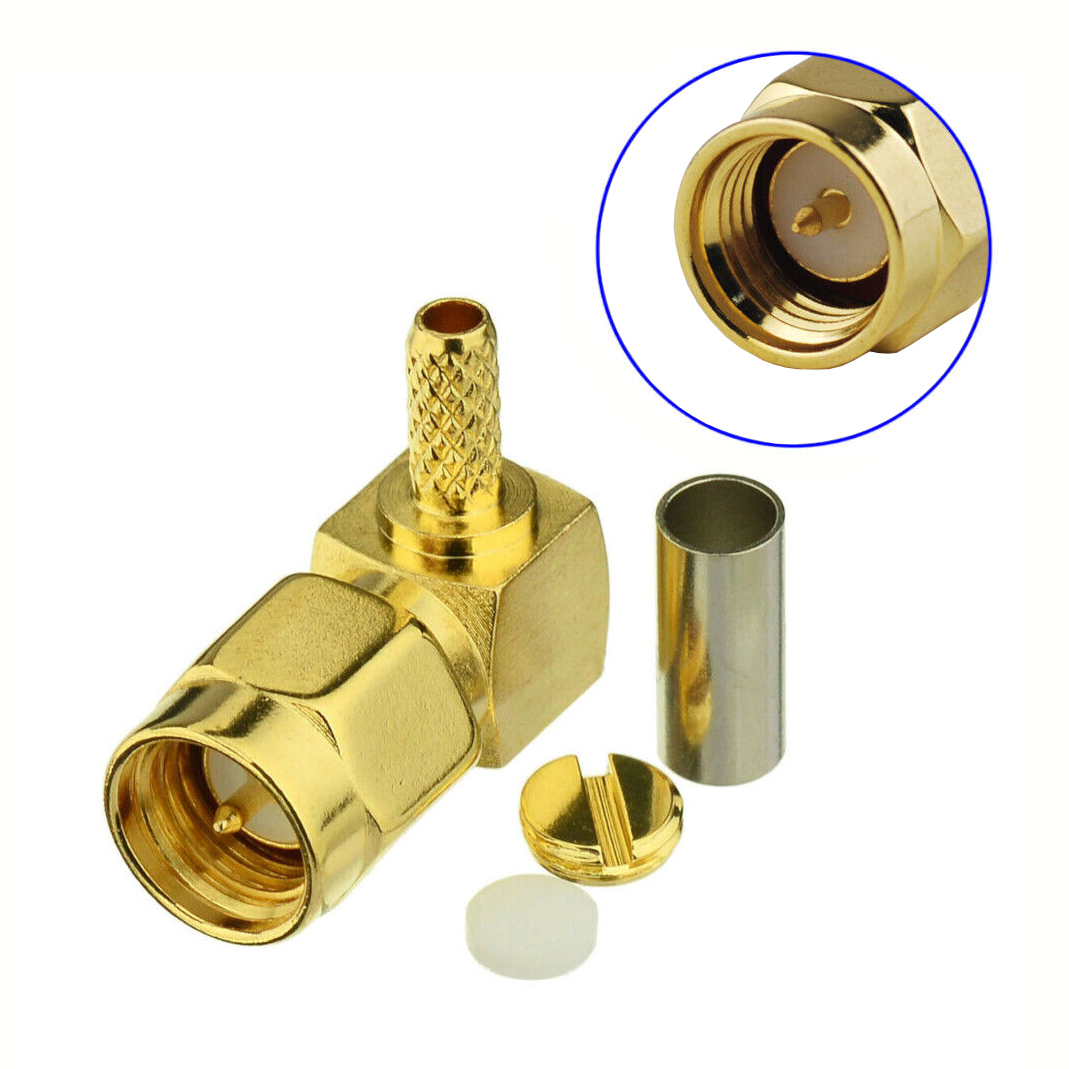

90 Degree SMA male Crimp Plug Right Angle

High-Performance SMA Right Angle Male Connector – Precision RF Interconnect for Reliable Signal Transmission

Engineered for demanding applications across telecommunications, aerospace, and industrial electronics, this SMA right angle male connector delivers exceptional electrical performance, durability, and environmental resilience. Designed with precision machining and premium materials, it ensures consistent signal integrity from DC to 18 GHz—making it ideal for high-frequency systems where reliability is critical. Whether you're deploying in harsh climates or designing compact PCB layouts, this connector offers a robust solution that meets global standards while optimizing space and minimizing signal loss.

Key features include a stable 50Ω impedance, low insertion loss of just 0.1 x √f (GHz) dB at 1 GHz, and a VSWR as low as 1.20 + 0.03f for right-angle configurations—ensuring minimal reflection and maximum power transfer. With a temperature range of -55°C to +155°C (with PE cable extending to -40°C to +105°C), these connectors perform reliably under extreme thermal conditions. The durable coupling nut provides retention force exceeding 180N, and the center conductor contact resistance remains below 3mΩ, guaranteeing efficient current flow even after 500 mating cycles.

This SMA male right angle plug is constructed using corrosion-resistant brass and gold-plated contacts, ensuring long-term conductivity and mechanical stability. It supports semi-rigid coaxial cables up to 18 GHz, making it suitable for radar systems, satellite communications, wireless infrastructure, and test equipment. Its compact right-angle design allows for tight routing on printed circuit boards, reducing strain on adjacent components and improving overall system density—a key advantage in modern miniaturized electronics.

Common use cases span professional-grade RF modules, automotive antenna interfaces, military-grade communication gear, IoT sensor networks, and laboratory testing setups. The connector’s compatibility with standard SMA female counterparts ensures seamless integration into existing systems without requiring custom adapters. Additionally, its excellent insulation resistance (>5000 MΩ) and withstand voltage capability (1000V RMS) make it suitable for both indoor and outdoor deployments, including those exposed to moisture, vibration, or electromagnetic interference.

Customers worldwide have praised the connector's consistent performance in field tests, particularly noting how the right-angle configuration simplifies assembly in confined spaces. One engineer remarked, “The smooth engagement and repeatable connection quality made our prototype development significantly faster.” Another user highlighted its suitability for rugged environments: “Even in desert conditions, we saw no degradation in signal strength over several months.” These testimonials reflect real-world validation of its engineering excellence.

Frequently asked questions address common concerns about sourcing and customization. Yes, this product is manufactured by Changzhou KingSun New Energy Technology Co., Ltd., a certified OEM/ODM provider specializing in RF interconnect solutions. Free samples are available upon request—shipping costs apply—but custom designs can be discussed directly with their technical team. Payment options include bank transfer (T/T), though alternative arrangements may be negotiated. Delivery lead time typically ranges from 10 to 25 days post-deposit, depending on order volume. Quality assurance is backed by advanced manufacturing processes and compliance with international standards such as IEC 61169-1 and MIL-STD-348.

For professionals seeking a reliable, high-frequency RF connection solution, this SMA right angle male plug combines proven performance, ease of installation, and long-term durability—making it an essential component for any serious electronic design project.
