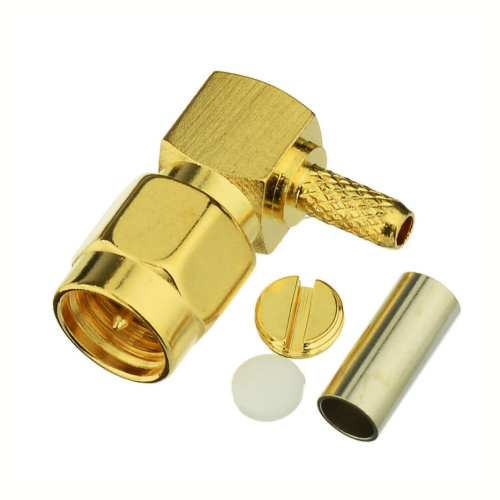

SMA Right Angle Plug and Crimp Connector – High-Performance RF Coaxial Solution for Global Applications This SMA right angle plug and male crimp connector is engineered for reliable signal transmission in demanding environments, offering superior electrical performance across a wide frequency spectrum. Designed for precision applications in telecommunications, industrial electronics, and defense systems, this RF coaxial jack connector delivers consistent results from DC to 18 GHz when used with semi-rigid cables—making it ideal for high-frequency data transfer, test equipment setups, and wireless communication modules. Key Features: - Impedance: 50Ω standard for optimal signal integrity - Frequency Range: Up to 12.4 GHz (semi-rigid up to 18 GHz) - Temperature Stability: Operates reliably from -55°C to +155°C (PE cable: -40°C to +105°C) - Low Insertion Loss: As low as 0.1 x √f(GHz) dB at 1 GHz - Excellent VSWR Performance: ≤1.20 + 0.03f for right-angle configurations - Robust Durability: Withstands over 500 mating cycles without degradation - High Mechanical Strength: Coupling nut retention force ≥180N - Superior Contact Resistance: Center contact ≤3 mΩ; outer contact ≤2.5 mΩ The SMA male crimp connector features a precision-machined brass body with gold-plated contacts for minimal signal loss and long-term corrosion resistance. Its right-angle design enables compact installation in tight spaces—commonly found in embedded systems, automotive radar units, IoT devices, and aerospace components. The connector’s insulated housing ensures safe operation under high voltage conditions, withstanding up to 1000V RMS at sea level while maintaining insulation resistance of ≥5000 MΩ. Ideal for engineers seeking durable, low-loss RF interconnects, this product supports both straight and right-angle mounting options depending on system layout requirements. Whether used in ruggedized military gear, industrial automation sensors, or telecom infrastructure, the
Sma Connector maintains stable performance even under extreme thermal and mechanical stress. It complies with international standards such as IEC 61169-1 and MIL-DTL-39012, ensuring compatibility across global markets. Common Use Cases: - Wireless communication systems (Wi-Fi, LTE, 5G base stations) - Test and measurement instruments (signal generators, spectrum analyzers) - Automotive telematics and ADAS systems - Industrial control panels and sensor networks - Satellite communications and radar installations Customer Feedback: Users appreciate the connector's reliability in harsh environments, noting its ability to maintain signal quality over extended periods. Many reviewers highlight the ease of crimping during assembly and the secure fit that prevents accidental disconnection—a critical factor in mobile or vibration-prone applications. Engineers often cite the low VSWR values as essential for minimizing reflected power in sensitive RF circuits. Frequently Asked Questions: Q: Are you a manufacturer? A: Yes, we are an ISO-certified OEM producer based in China specializing in custom RF connectors and cable assemblies for international clients. Q: Can I get a free sample? A: We offer existing stock samples at no cost—shipping charges apply. For special configurations, please reach out directly for tailored solutions. Q: What payment methods do you accept? A: We prefer T/T bank transfer but accommodate alternative terms upon request. Q: Is the quality guaranteed? A: Absolutely. Our production line uses advanced testing equipment and certified technicians to ensure every unit meets or exceeds global industry benchmarks. Q: How long is the lead time? A: Typically 10–25 days after deposit confirmation, depending on order volume. Q: What else can I buy from your range? A: In addition to SMA connectors, we supply Fakra, Mini Fakra, 3.5mm, RCA, HSD, and audio/video connectors suitable for consumer electronics, automotive, and industrial sectors worldwide.
