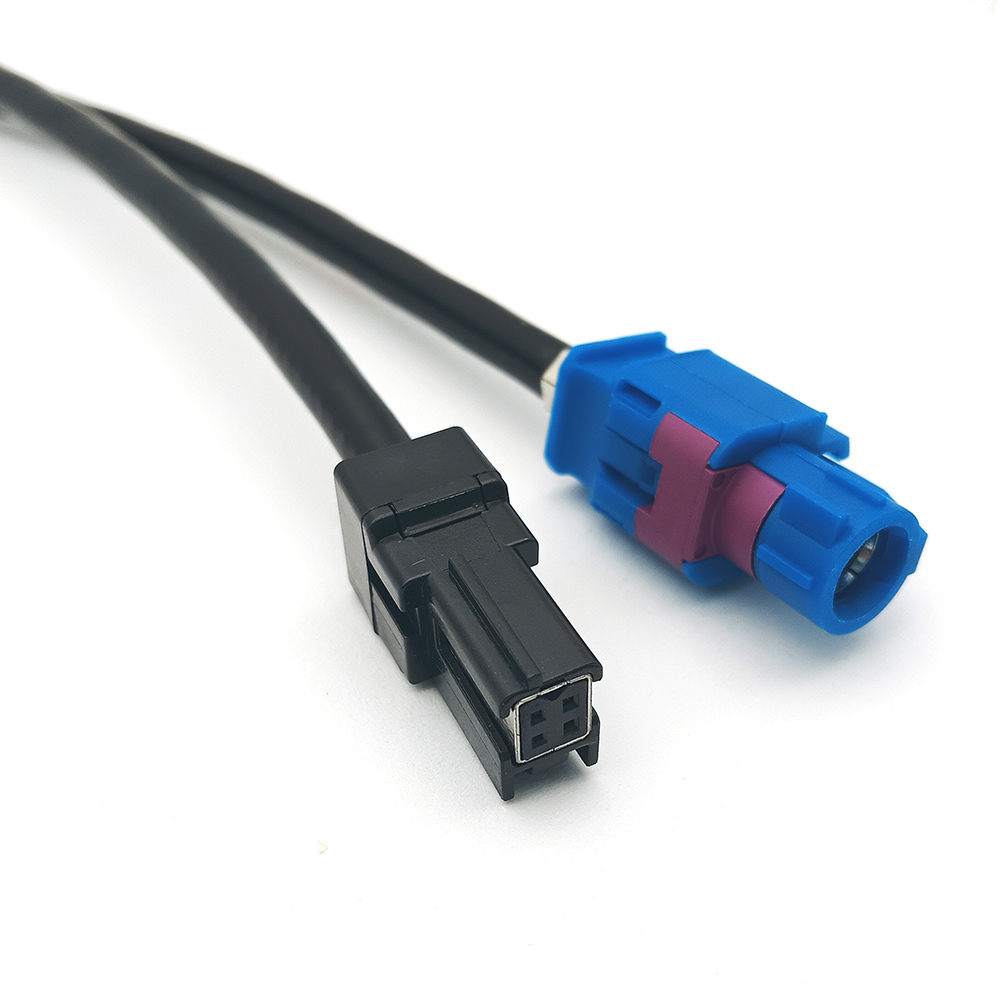

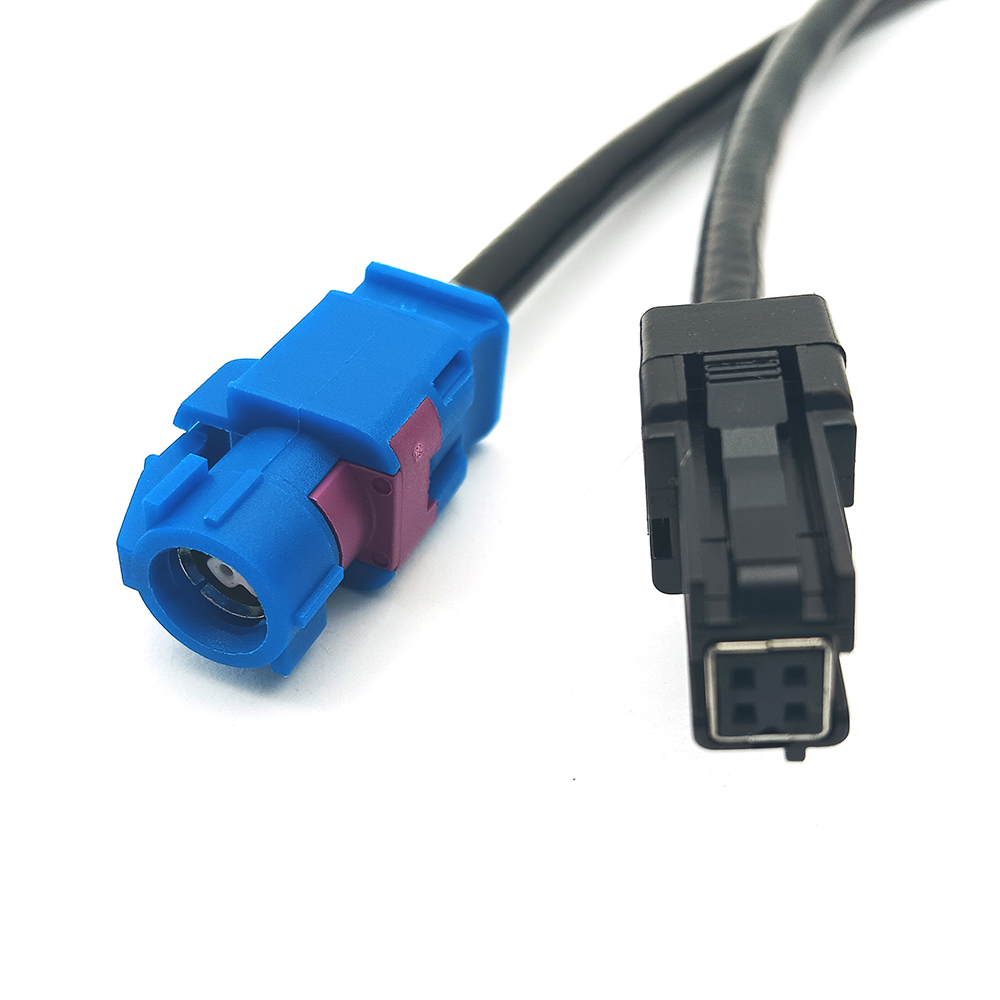

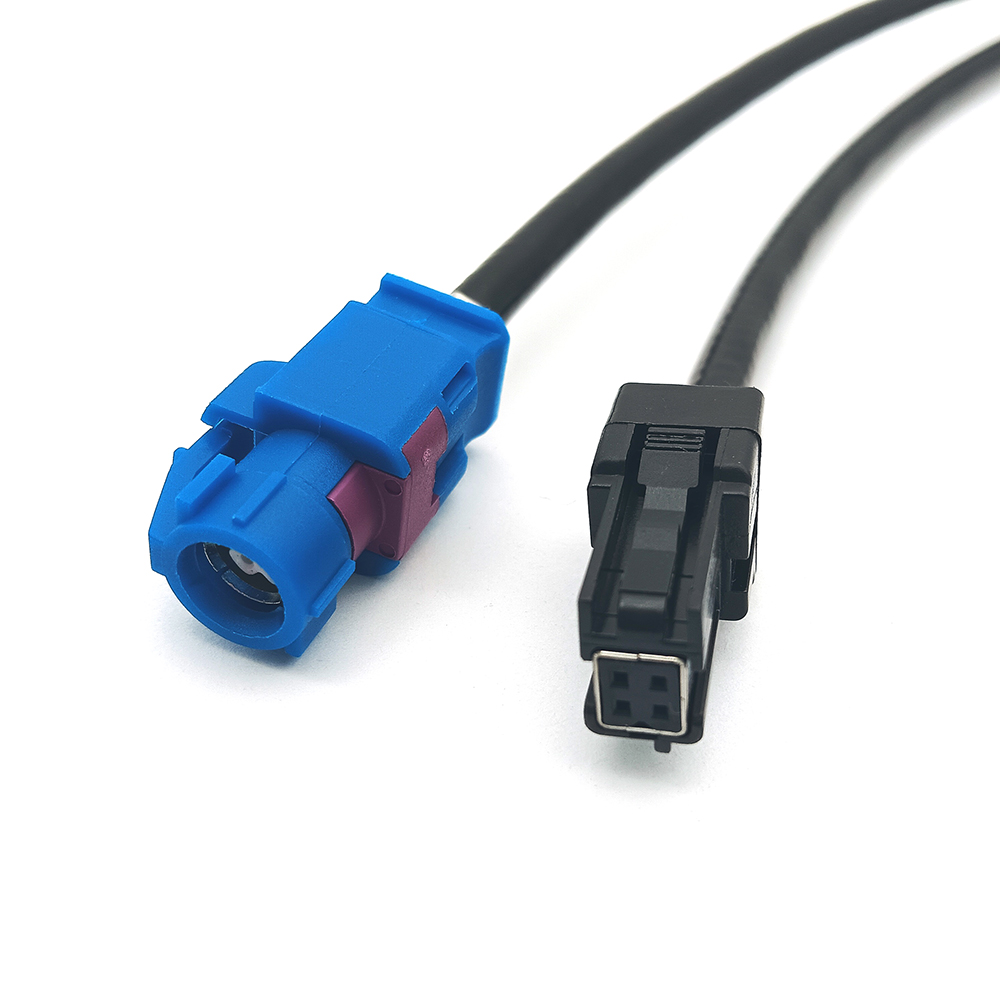

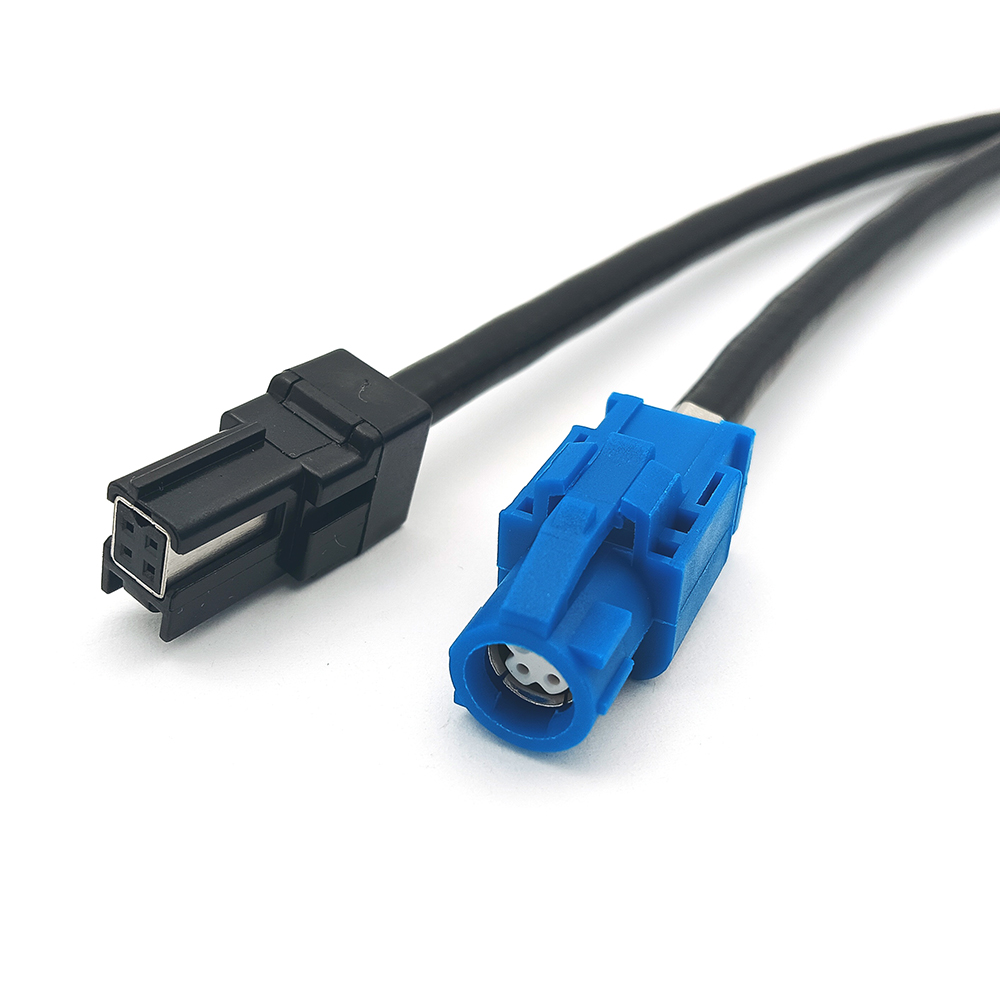

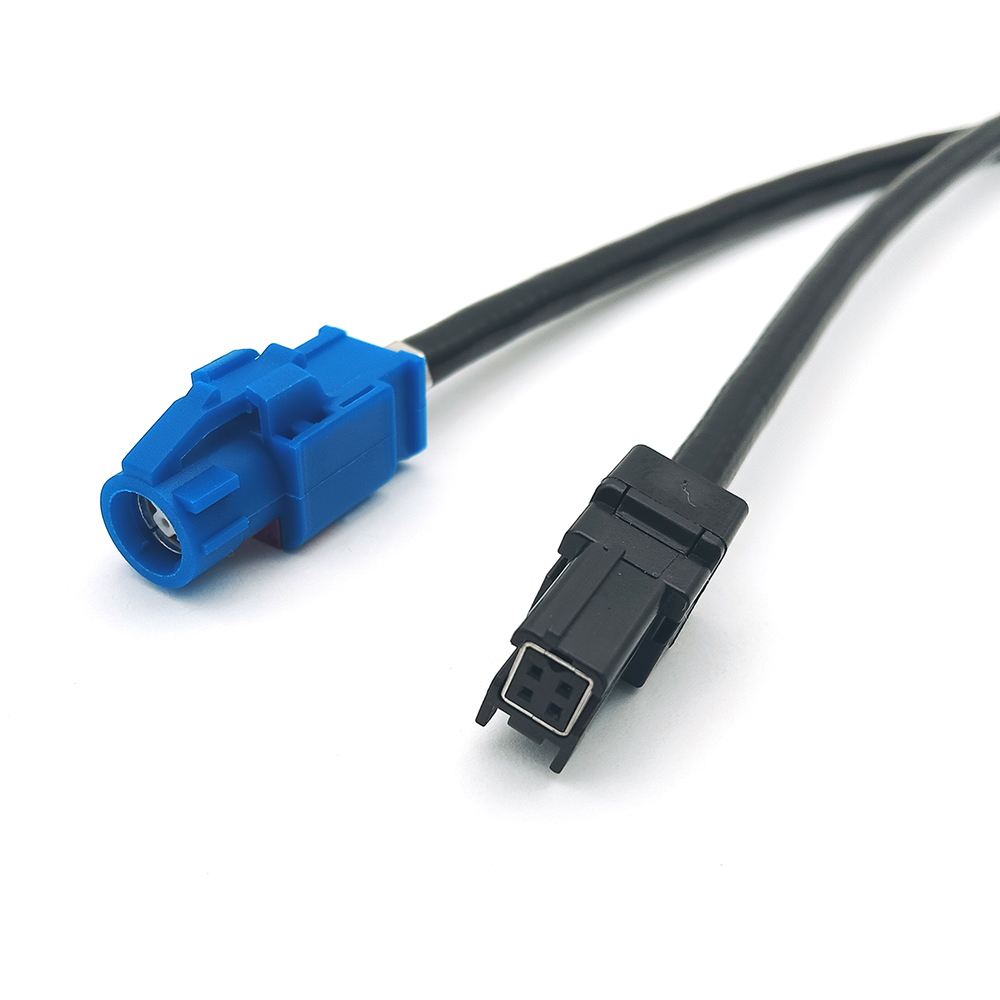

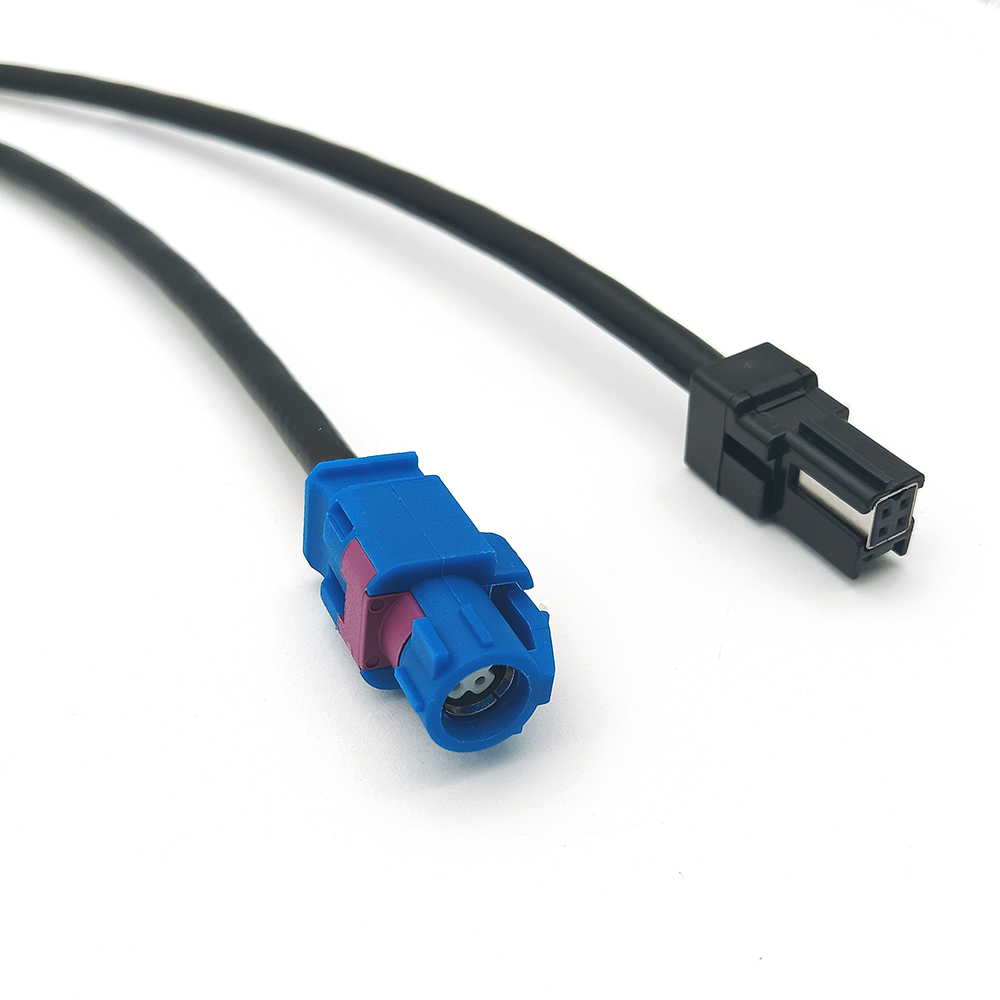

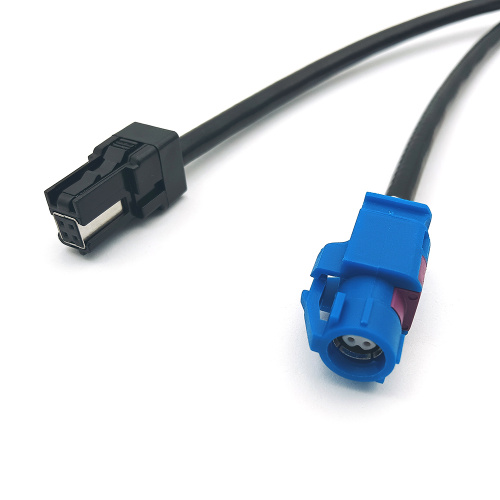

This high-performance 4-pin HSD C-code female to compact TAK HSVL female automotive cable is engineered for seamless, high-speed data and video transmission in modern vehicle systems. Designed for use with infotainment displays, ADAS modules, and camera interfaces, it bridges HSD (High-Speed Data) and TAK HSVL (High-Speed Video Link) standards, ensuring reliable communication between electronic control units, cameras, and multimedia components. Whether you're integrating advanced driver assistance features or upgrading in-car connectivity, this cable delivers exceptional signal integrity and durability. Engineered with precision, the cable features a green-keyed C-coded HSD female connector at one end and a compact TAK HSVL female connector on the other—both designed to prevent misalignment and ensure secure mating. It supports USB 2.0/3.0, LVDS, and other high-speed differential signaling protocols, making it ideal for transmitting real-time video feeds, sensor data, and control commands. With a characteristic impedance of 100 ohms (differential), shielded twisted pair construction, and full 360° EMI/RFI protection, it minimizes signal degradation even in electrically noisy environments typical of automotive applications. The robust design allows for over 100 mating cycles without performance loss, while customizable lengths accommodate diverse installation needs. Compliant with OEM-grade specifications, this cable meets stringent automotive standards for temperature resistance, vibration tolerance, and long-term reliability. Its compact form factor ensures minimal space usage within tight vehicle compartments, making it suitable for both new vehicle builds and retrofitting existing systems. Ideal for professionals working in automotive electronics, this solution supports a wide range of applications including in-vehicle infotainment (IVI), rearview and surround-view camera systems, telematics units, and advanced driver assistance systems (ADAS). The combination of high shielding efficiency, precise connector alignment, and optimized signal path makes it a preferred choice for engineers developing premium vehicle platforms. Users report improved stability in video streaming, reduced latency during data transfer, and consistent performance across extreme temperature ranges—from -40°C to +125°C. Many appreciate the plug-and-play compatibility with existing HSD and TAK-based architectures, eliminating the need for complex reconfiguration. While some users note that custom configurations may require additional lead time, the flexibility in length options and optional waterproof IP67 ratings adds significant value for outdoor or harsh-environment deployments. Common questions include whether the cable supports 4K video signals—yes, when used with compatible hardware—and if it’s suitable for aftermarket installations—it is, provided proper grounding and shielding are maintained. Some inquire about alternative connectors like Fakra, Mini Fakra, HSL, or circular variants; these can be supplied upon request to meet specific project requirements. Overall, this cable stands out as a versatile, future-ready component for automotive engineers seeking reliable, high-bandwidth interconnectivity solutions.
Product Categories : Automotive Connector > Wire Harness
