HSD Female to USB Car LVDS Extension Cable

4-Pin Straight HSD Female to USB 2.0 Type-A Male Car Audio/Video LVDS Extension Cable – Reliable High-Speed Signal Transmission for Automotive Infotainment Systems

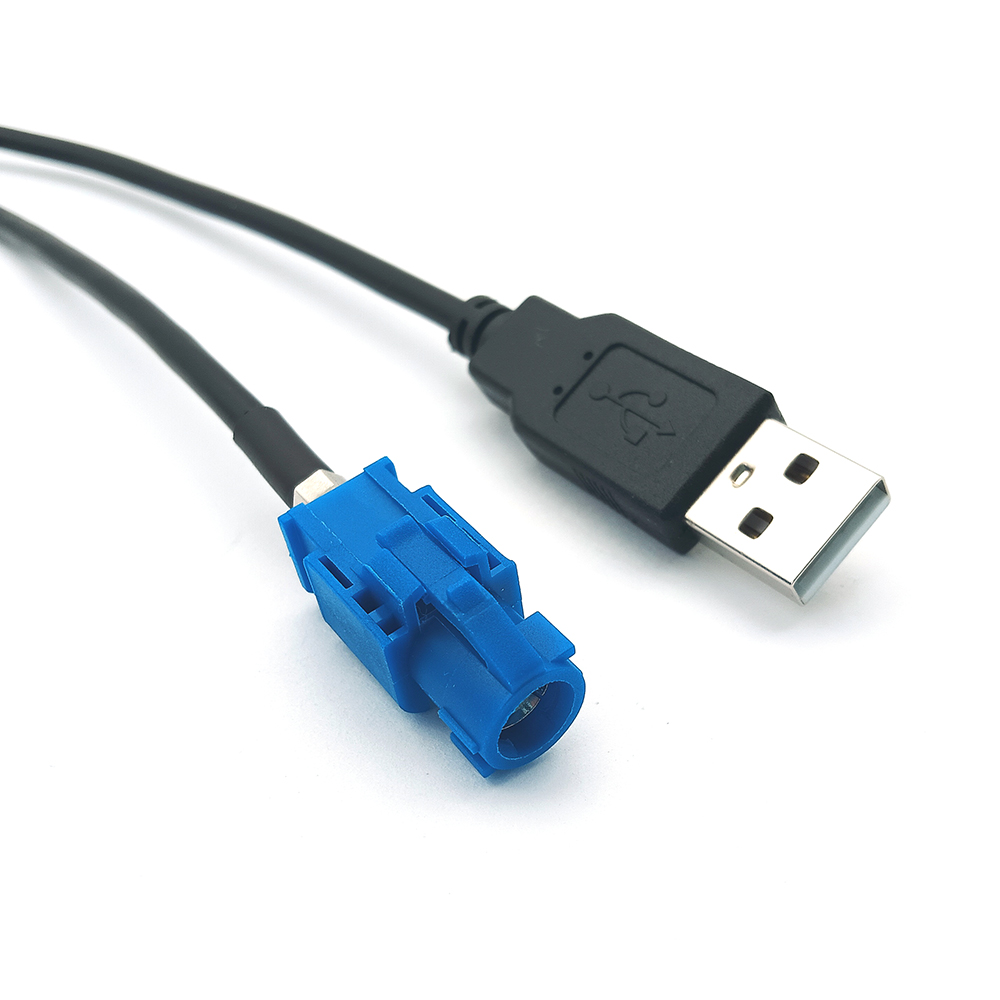

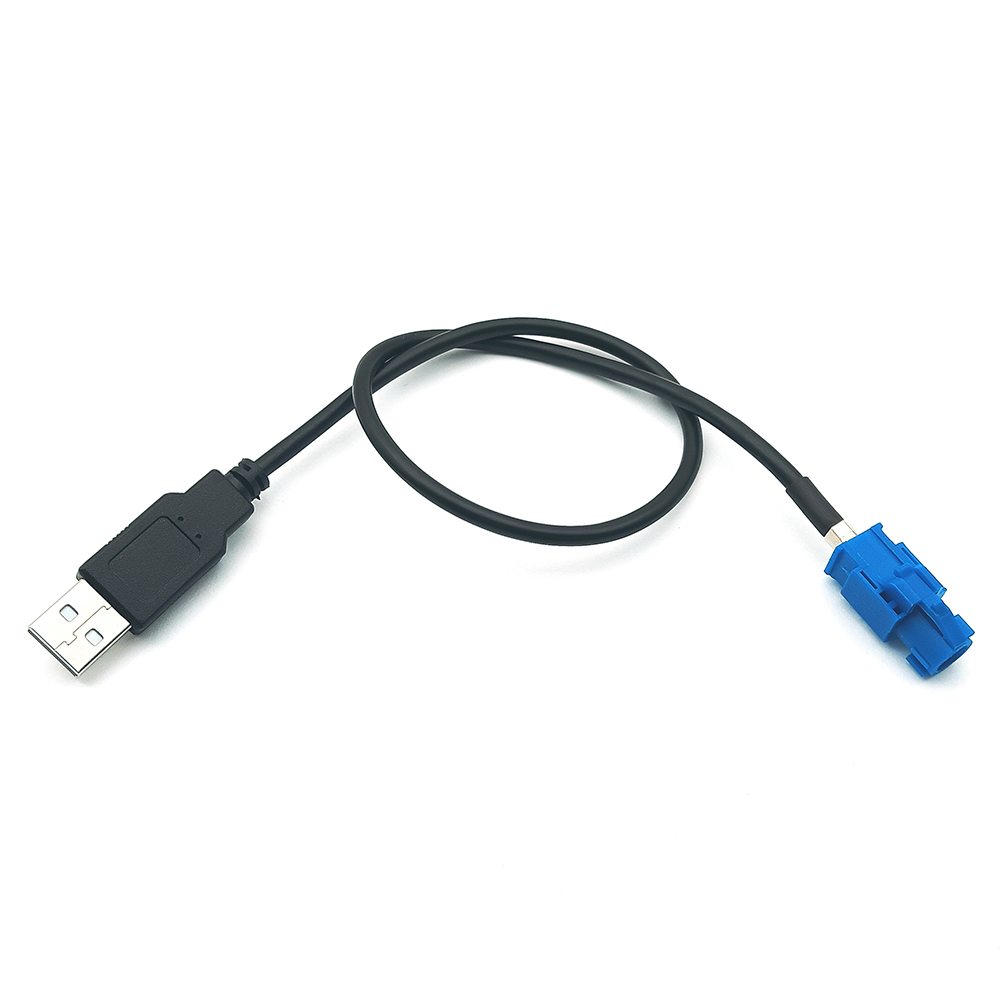

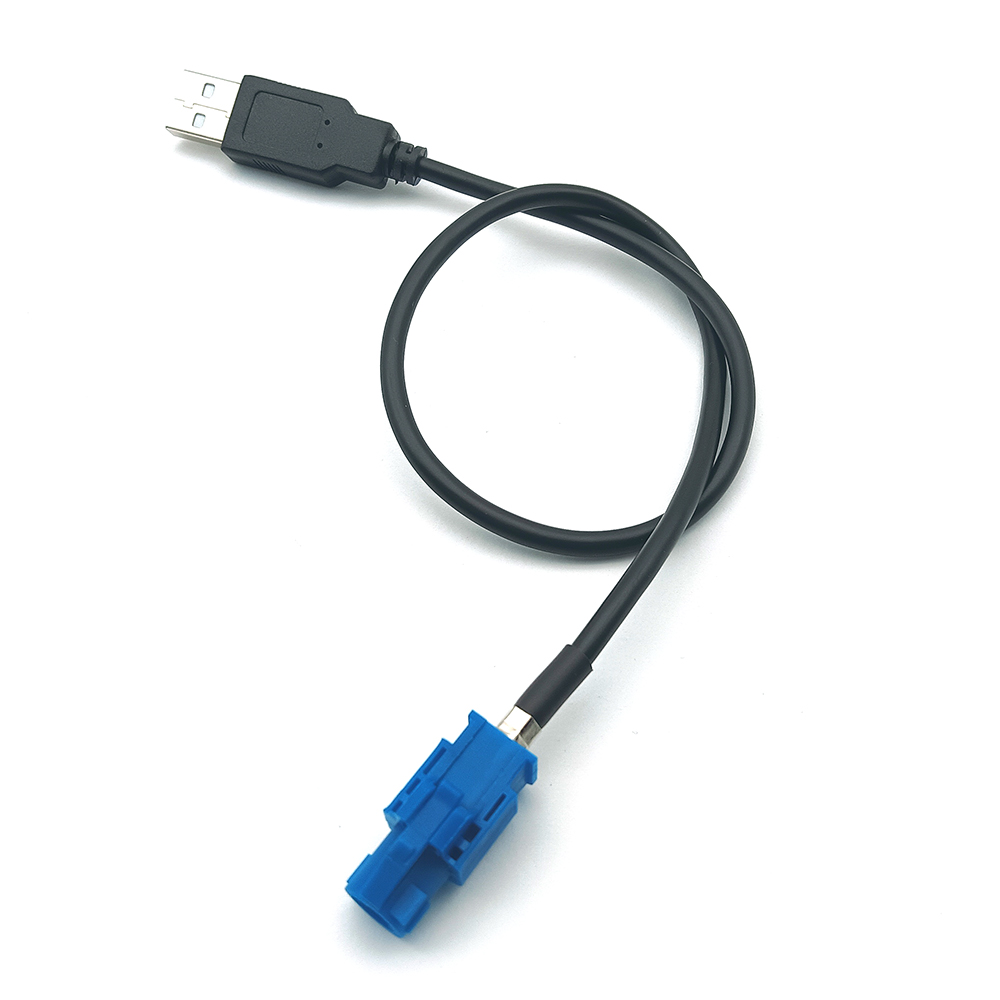

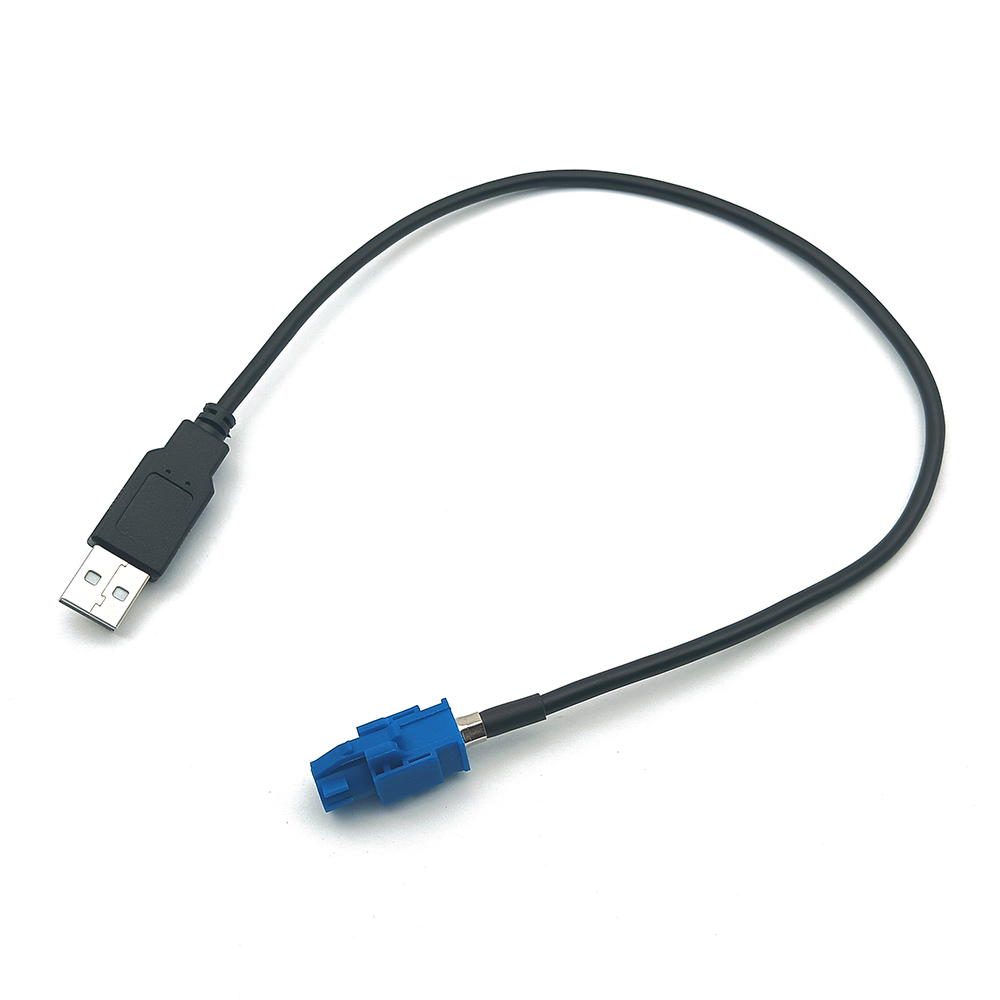

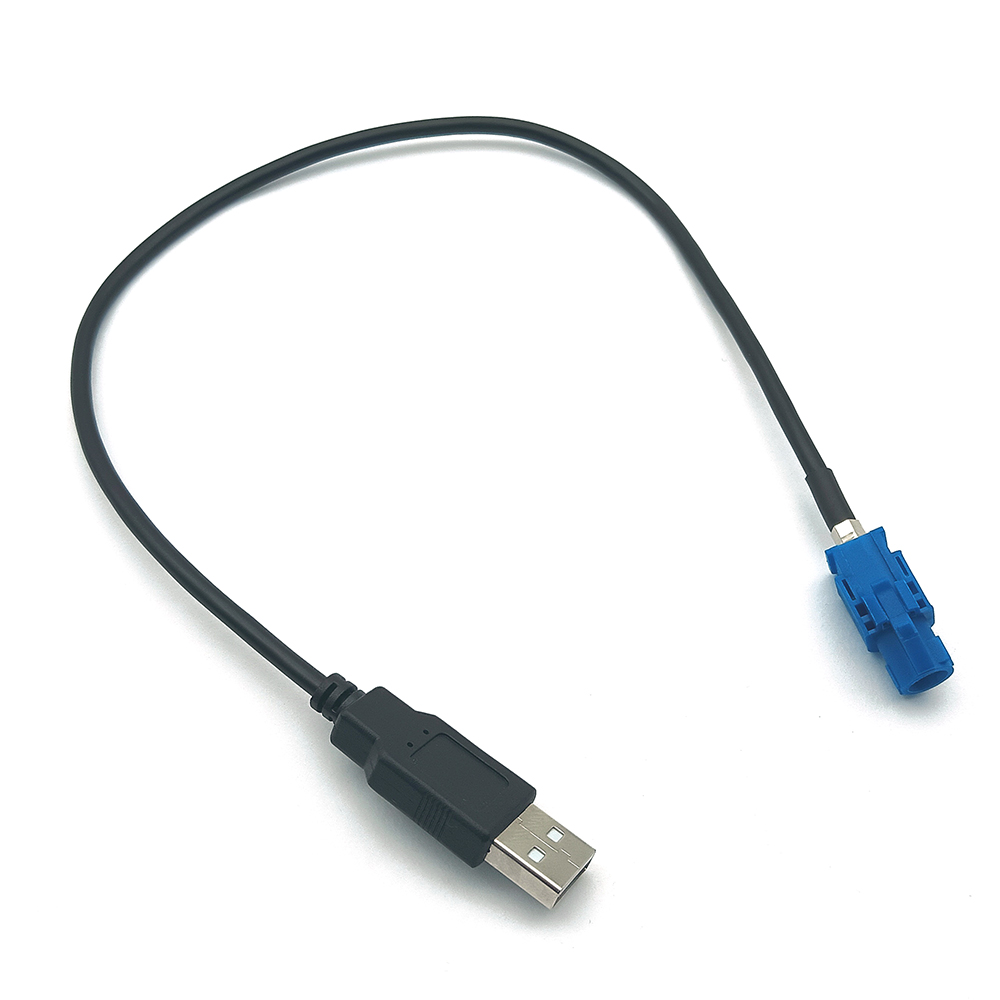

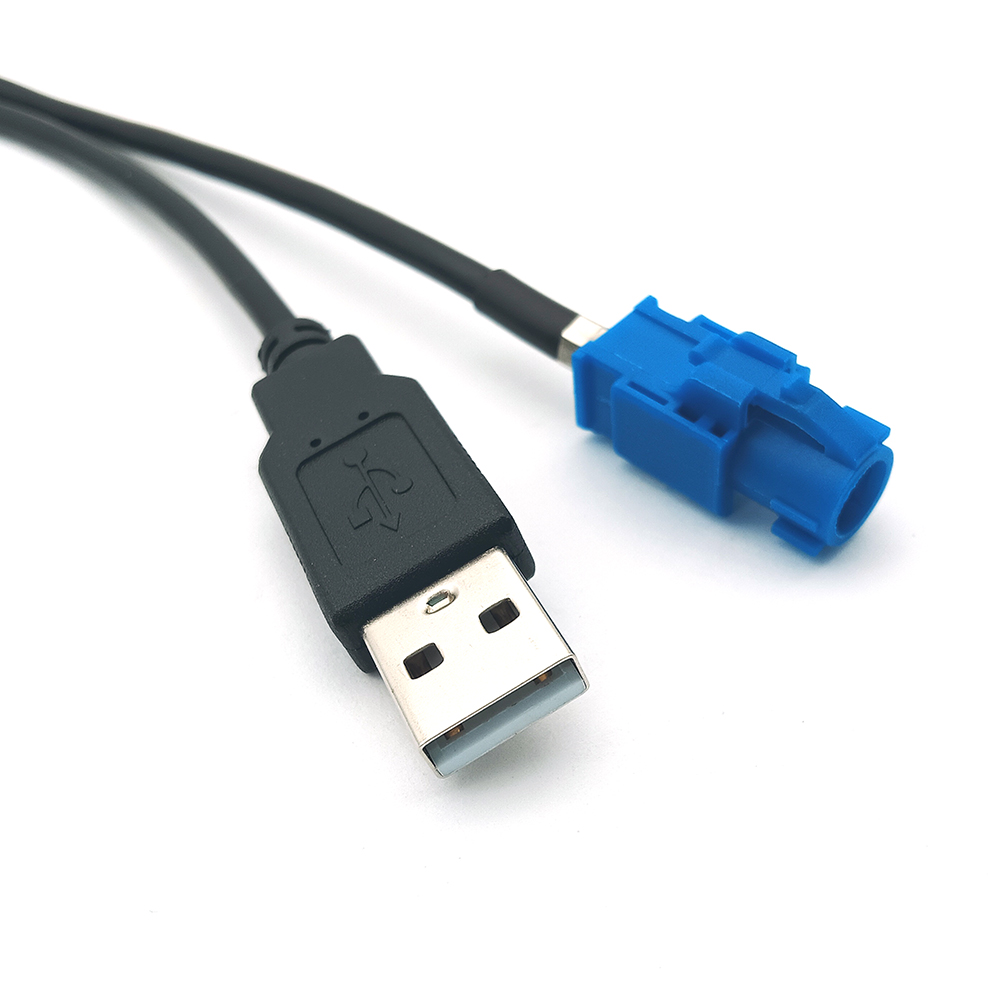

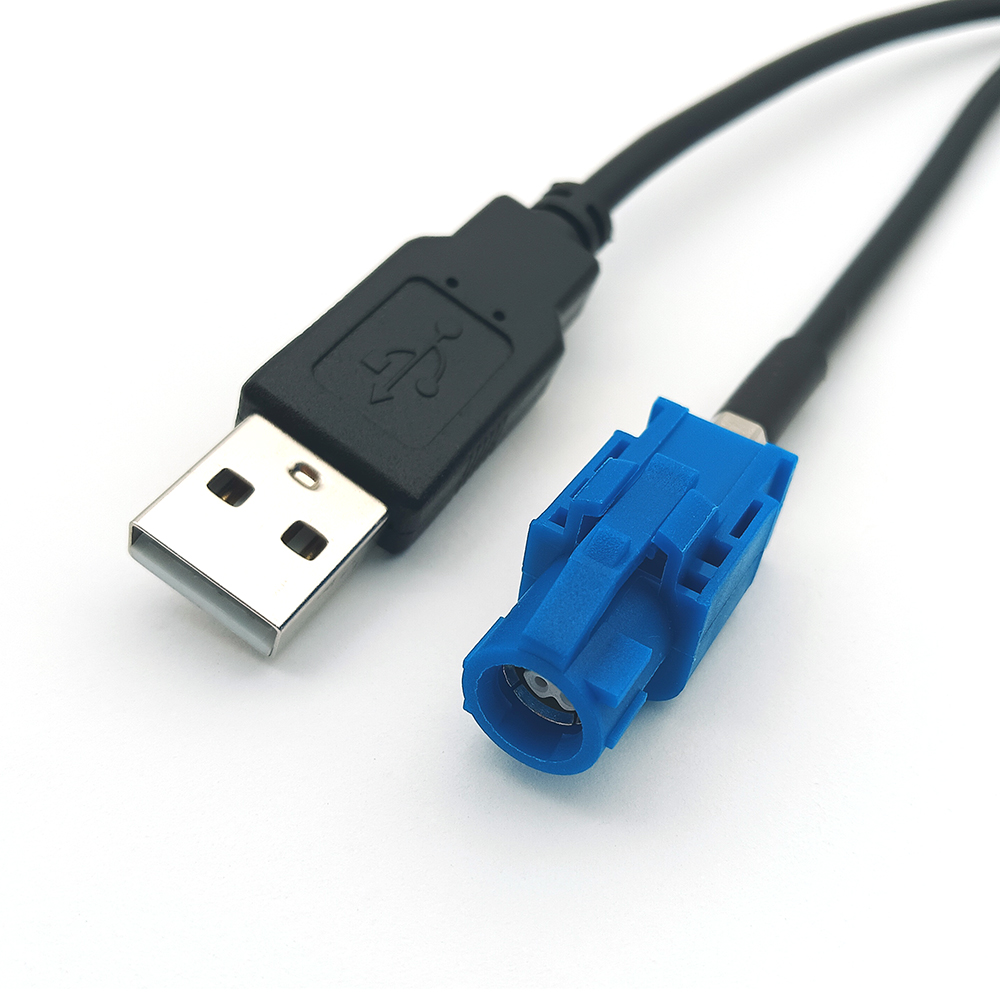

This robust automotive-grade extension cable serves as a critical bridge between high-speed digital interfaces in modern vehicle systems. Designed with precision engineering, it features a 4-pin straight HSD female connector on one end and a standard USB 2.0 Type-A male plug on the other, enabling seamless transmission of high-bandwidth signals such as LVDS video, USB 2.0 data (up to 480 Mbps), and audio streams. Engineered for durability and electromagnetic compatibility, this cable is ideal for integration into advanced in-vehicle infotainment units, rearview camera modules, and multimedia displays where signal integrity and environmental resilience are paramount.

Key Features That Set This Cable Apart

• Connector Compatibility: The 4-pin HSD female side supports industry-standard C-code or custom automotive pinouts, while the USB 2.0 Type-A male end ensures universal connectivity with consumer and OEM devices.
• Signal Integrity: Optimized for LVDS (Low-Voltage Differential Signaling) and USB 2.0 high-speed protocols, delivering stable performance even under demanding conditions like vibration, temperature fluctuations, and electromagnetic interference.
• Shielded Design: Utilizing a shielded twisted pair configuration with full 360° foil and braid shielding, this cable minimizes EMI/RFI noise—critical for maintaining clean video feeds and reliable data transfer in noisy automotive environments.
• Impedance Matching: Maintains consistent 100 ohms differential impedance on the HSD side to prevent signal reflections and ensure optimal signal fidelity over extended distances.
• Durability & Reliability: Rated for more than 100 mating cycles, making it suitable for frequent installation, removal, and reconfiguration during vehicle assembly or repair processes.
• Compliance Standards: Meets RoHS compliance and adheres to strict automotive OEM specifications, ensuring safe operation across global markets outside China, Hong Kong, Macau, and Taiwan.

Why Choose This Automotive LVDS Extension Solution?

In today’s connected vehicles, integrating multiple subsystems—from dashcams and surround-view cameras to head units and diagnostic tools—requires reliable, flexible cabling that doesn’t compromise performance. This particular cable excels in scenarios where space constraints, electrical noise, and mechanical stress demand a solution beyond generic consumer-grade connectors. Whether you're working on a factory-installed infotainment system or retrofitting an aftermarket upgrade, its compact form factor and plug-and-play nature reduce installation time and complexity. Unlike cheaper alternatives, which often fail prematurely due to poor shielding or inconsistent impedance, this product delivers consistent results across thousands of miles of real-world driving conditions.

Common Applications Across the Automotive Industry

From luxury sedans to commercial fleets, this cable plays a vital role in various applications including but not limited to: connecting rearview cameras to the main display unit via LVDS; linking USB-enabled devices (like portable media players or OBD-II scanners) to the car’s internal network; extending signals from a central control module to remote displays in electric vehicles; and supporting high-resolution video output in navigation systems. It also functions effectively in ADAS (Advanced Driver Assistance Systems) setups requiring precise timing and minimal latency between sensors and processing units.

User Feedback Highlights

Automotive engineers and integrators consistently praise this cable for its ability to maintain crystal-clear image quality over long runs without degradation—a common issue when using unshielded or improperly terminated cables. Many users report improved reliability compared to stock connectors, especially in vehicles exposed to extreme temperatures or heavy road vibrations. Its ease of installation makes it a favorite among technicians who prioritize both speed and accuracy during vehicle customization projects.

Frequently Asked Questions

Can this be used for USB 3.0 signals? No, this cable is specifically designed for USB 2.0 speeds up to 480 Mbps. For higher bandwidth requirements, consider our dedicated USB 3.0 variants.

Is there an IP67 waterproof version available? Yes, we offer customized versions with enhanced sealing for use in wet or dusty environments, such as those found in off-road vehicles or marine applications.

Do you provide angled connectors? Absolutely—we can supply right-angle or left-angle configurations depending on your mounting constraints, particularly useful in tight dashboard spaces.

What types of connectors do you support besides HSD and USB? We manufacture cables with Fakra, Mini Fakra, HSL, circular, and other specialized automotive connectors tailored to specific OEM needs.
